020 2023 110 kW

EVA RIBELLE (EMCE)

31
Drawings
18
Variants
66
VINs
74
Accessories

Drawings

Body (4)

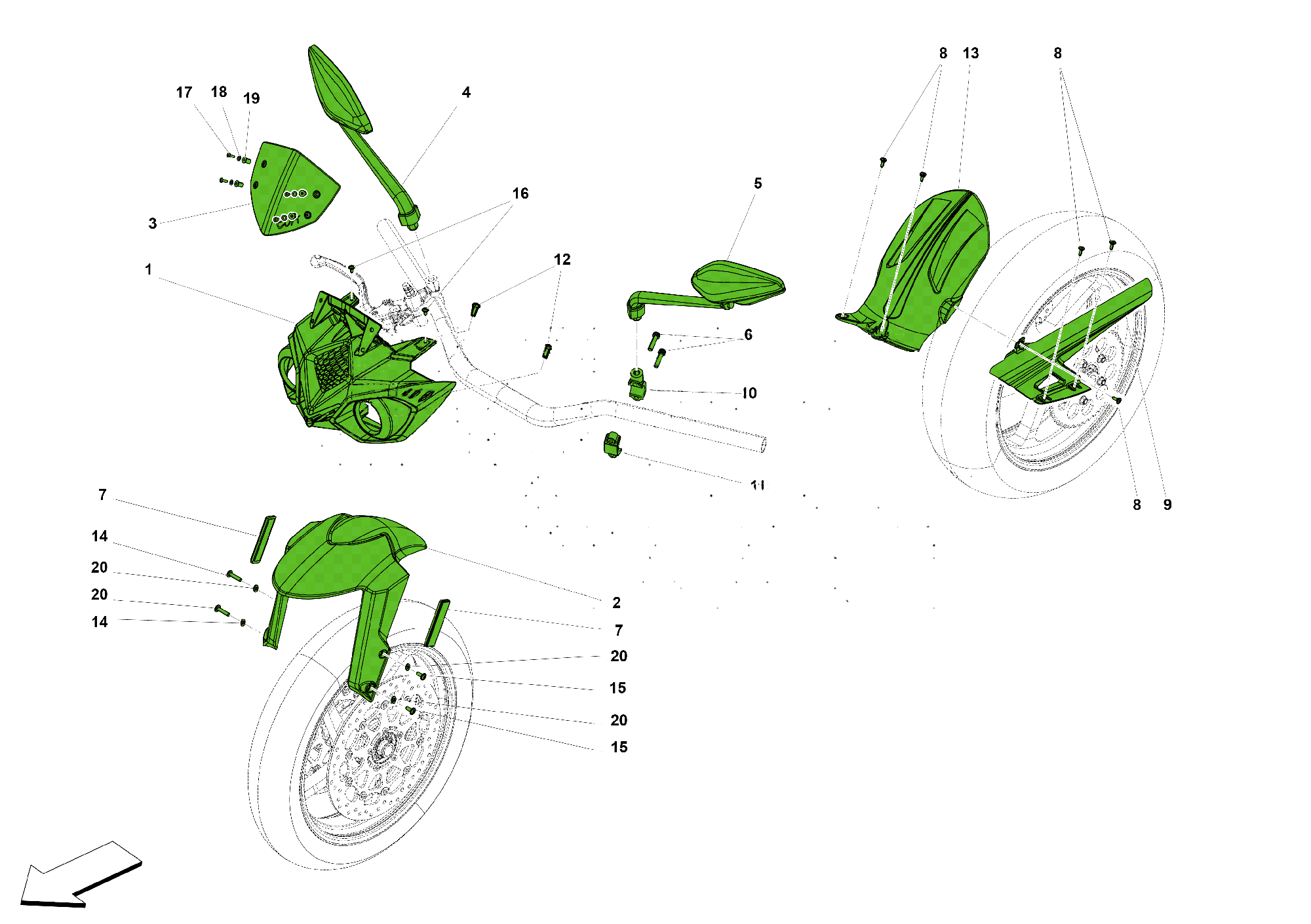

FRONT FAIRINGS AND MUDGUARDS
019
FRONT FAIRINGS AND MUDGUARDS

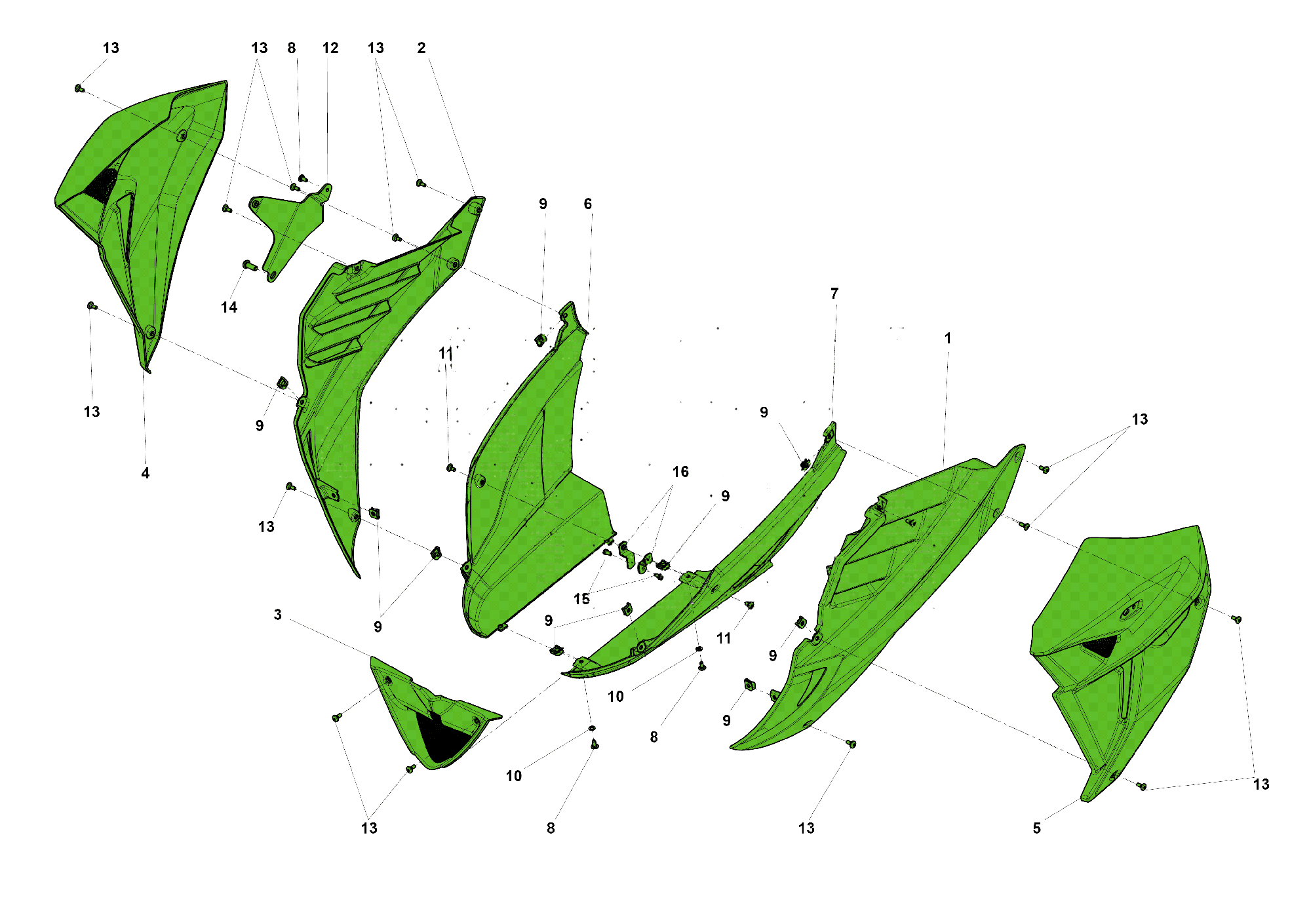

LATERAL FAIRINGS - BELLY PAN
020
LATERAL FAIRINGS - BELLY PAN

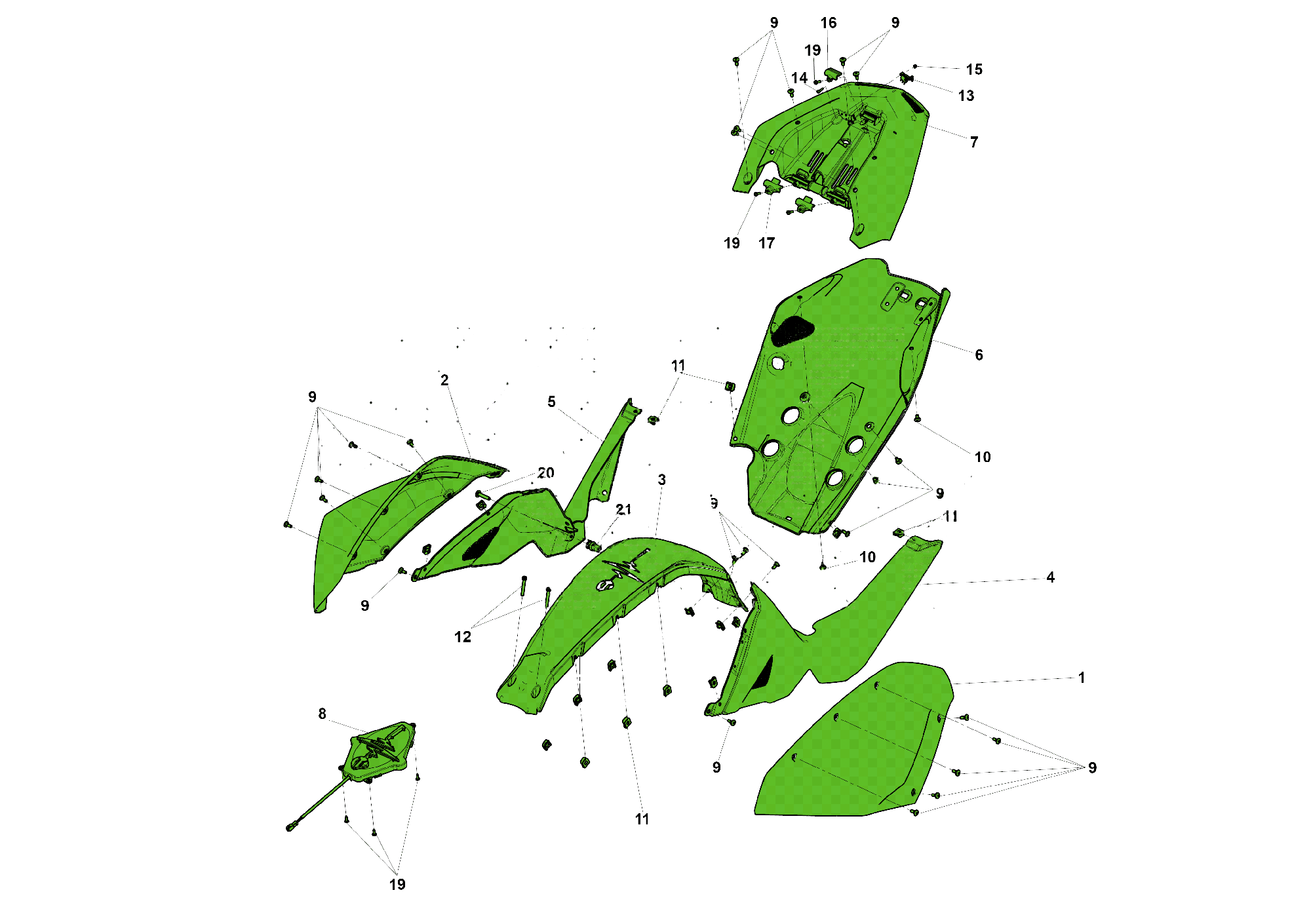

TANK FAIRING TAIL FAIRING
021
TANK FAIRING TAIL FAIRING

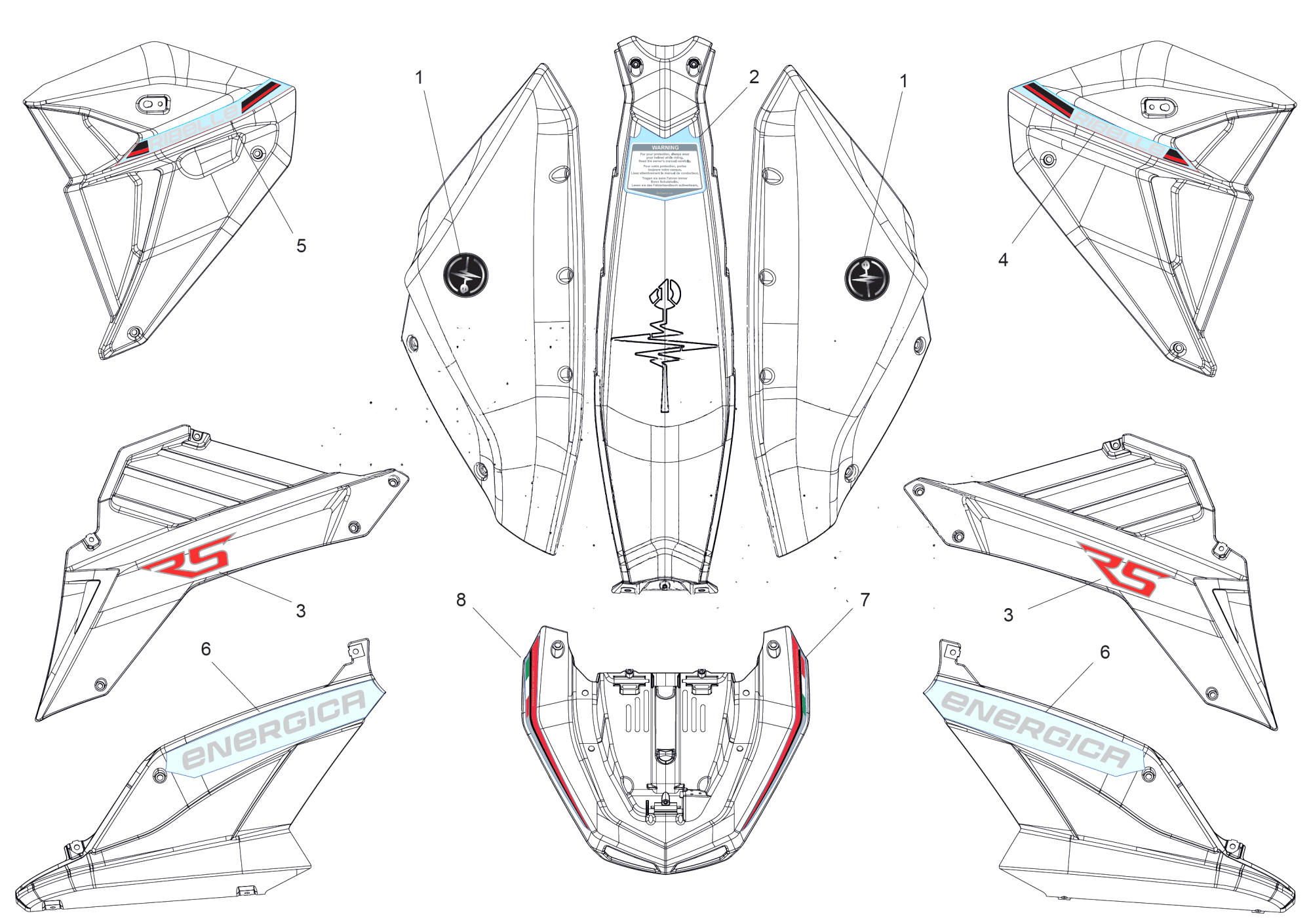

DECALS AND STICKERS
031
DECALS AND STICKERS

Electrical System and Instrumentation (8)

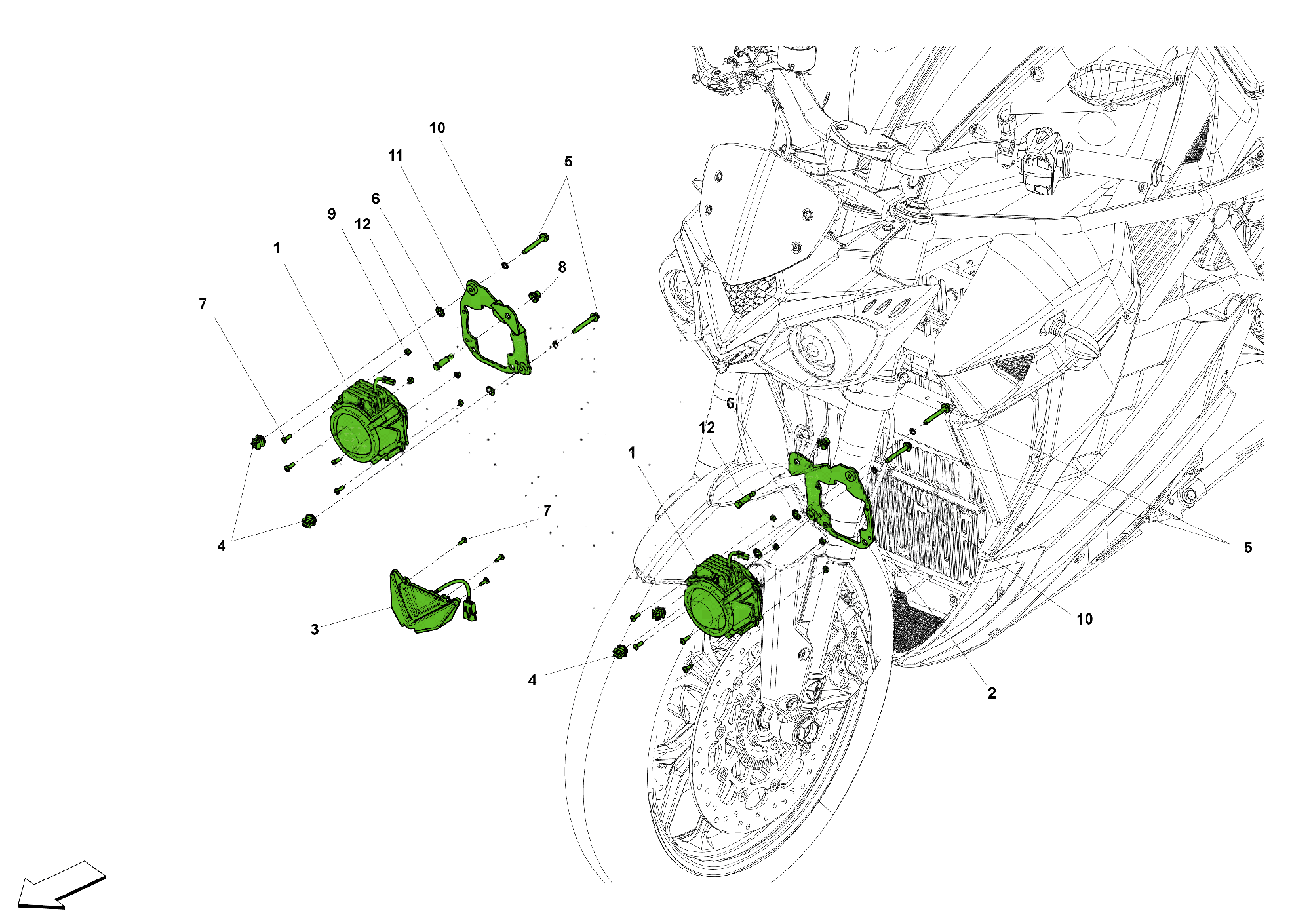

HEADLAMPS
023
HEADLAMPS

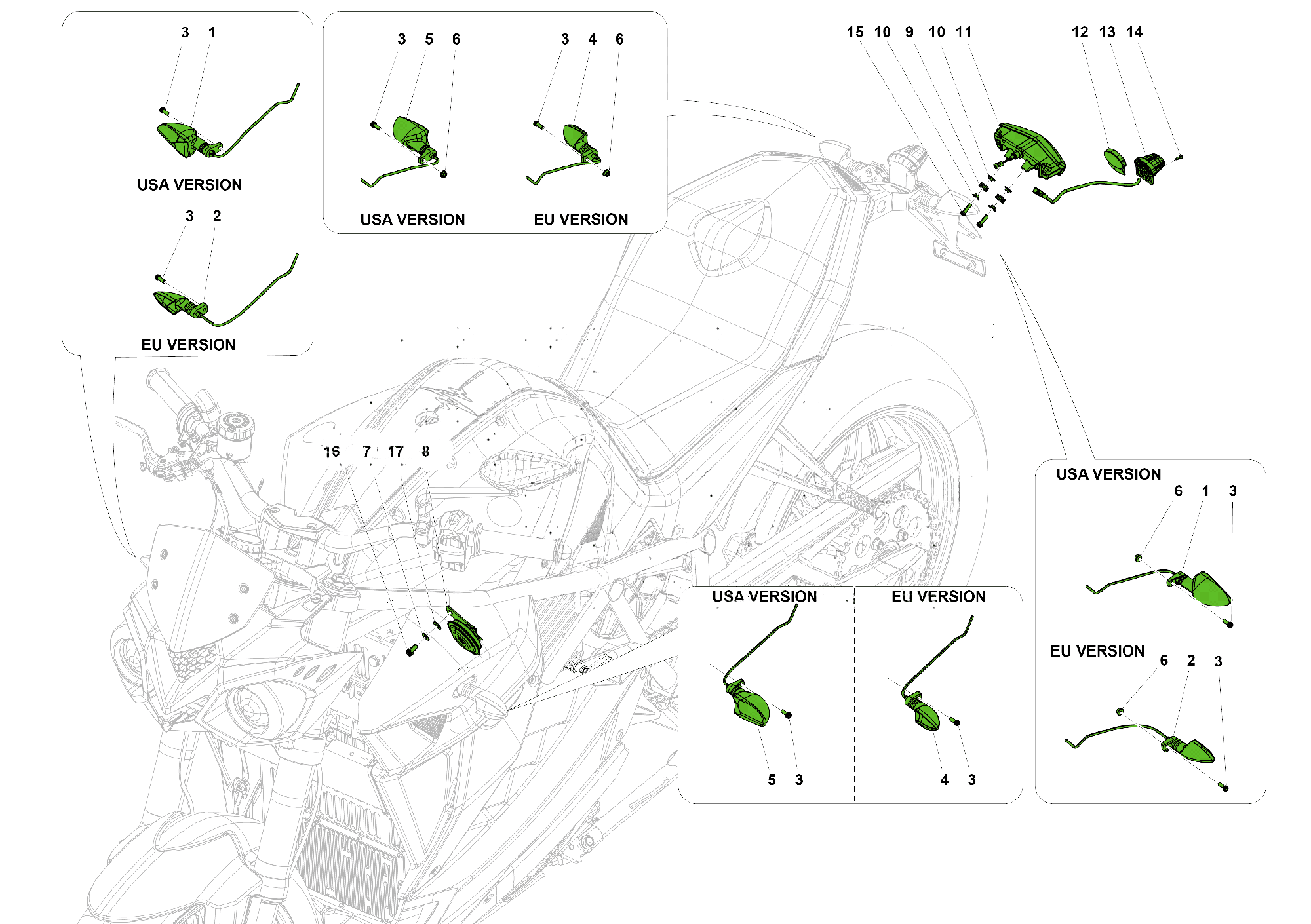

TURN INDICATORS AND TAIL LIGHT
024
TURN INDICATORS AND TAIL LIGHT

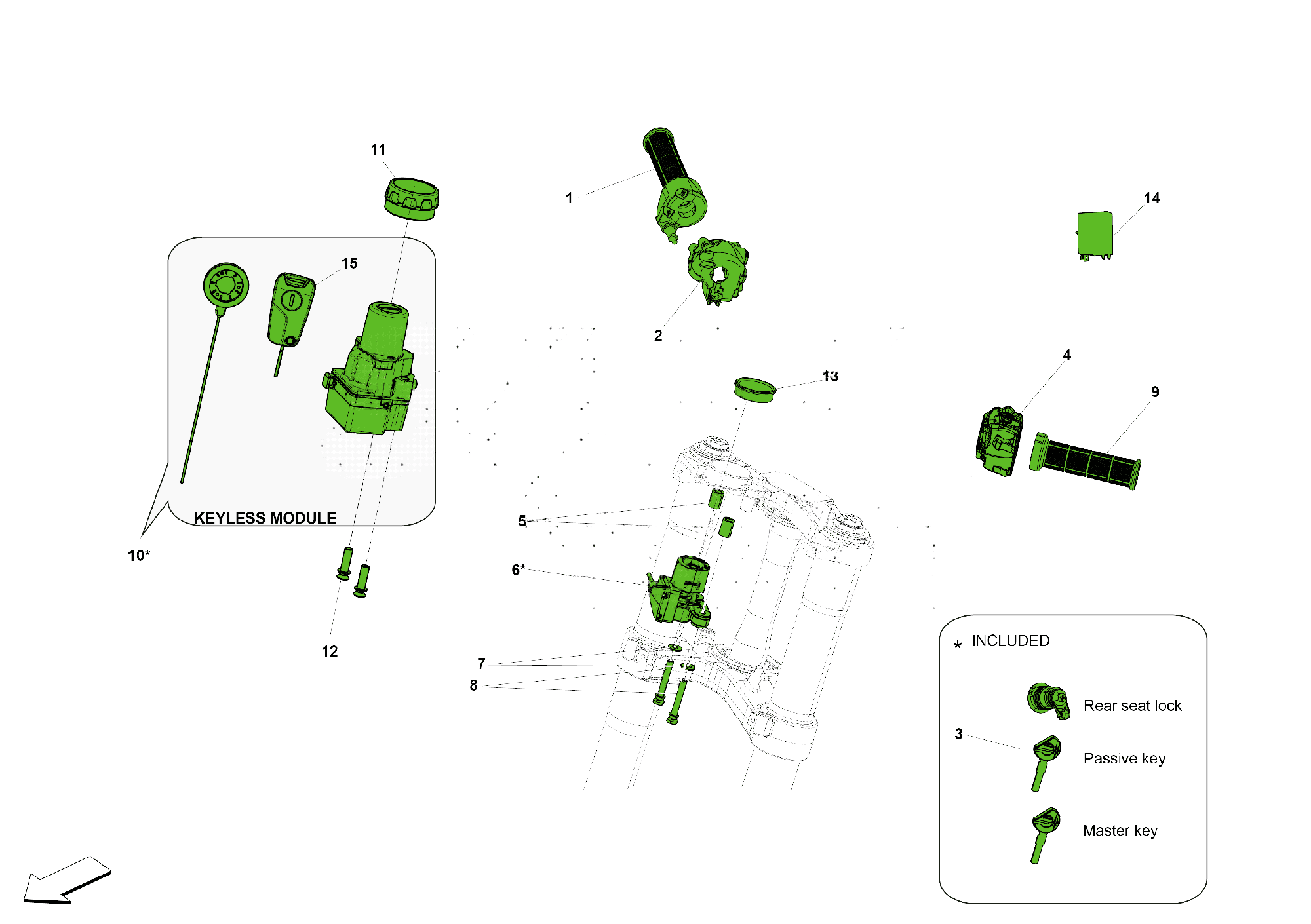

HANDLEBAR AND ELECTRONICS
025
HANDLEBAR AND ELECTRONICS

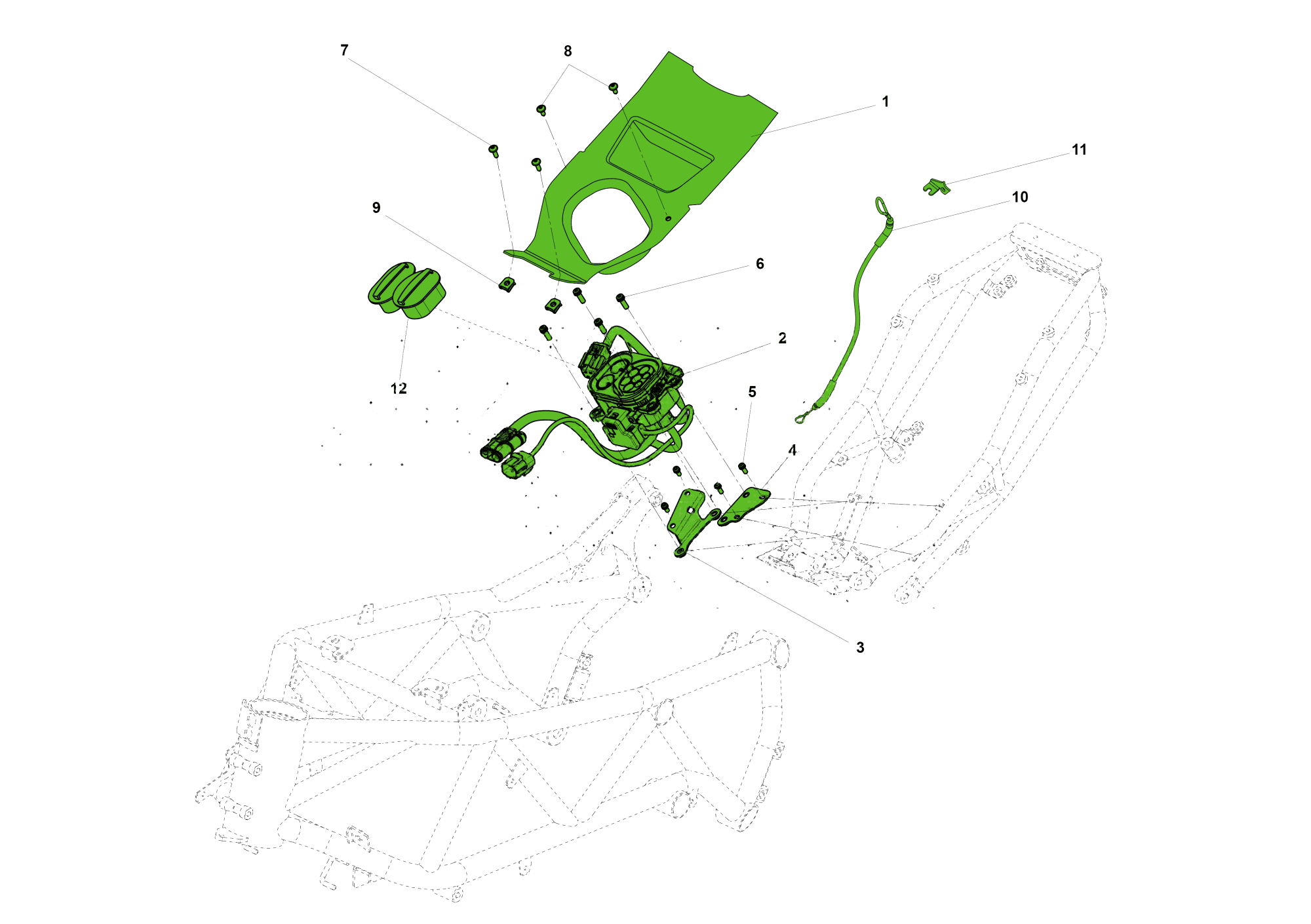

INLET CONNECTOR (CCS-TYPE_TYPE 2)
026
INLET CONNECTOR (CCS-TYPE_TYPE 2)

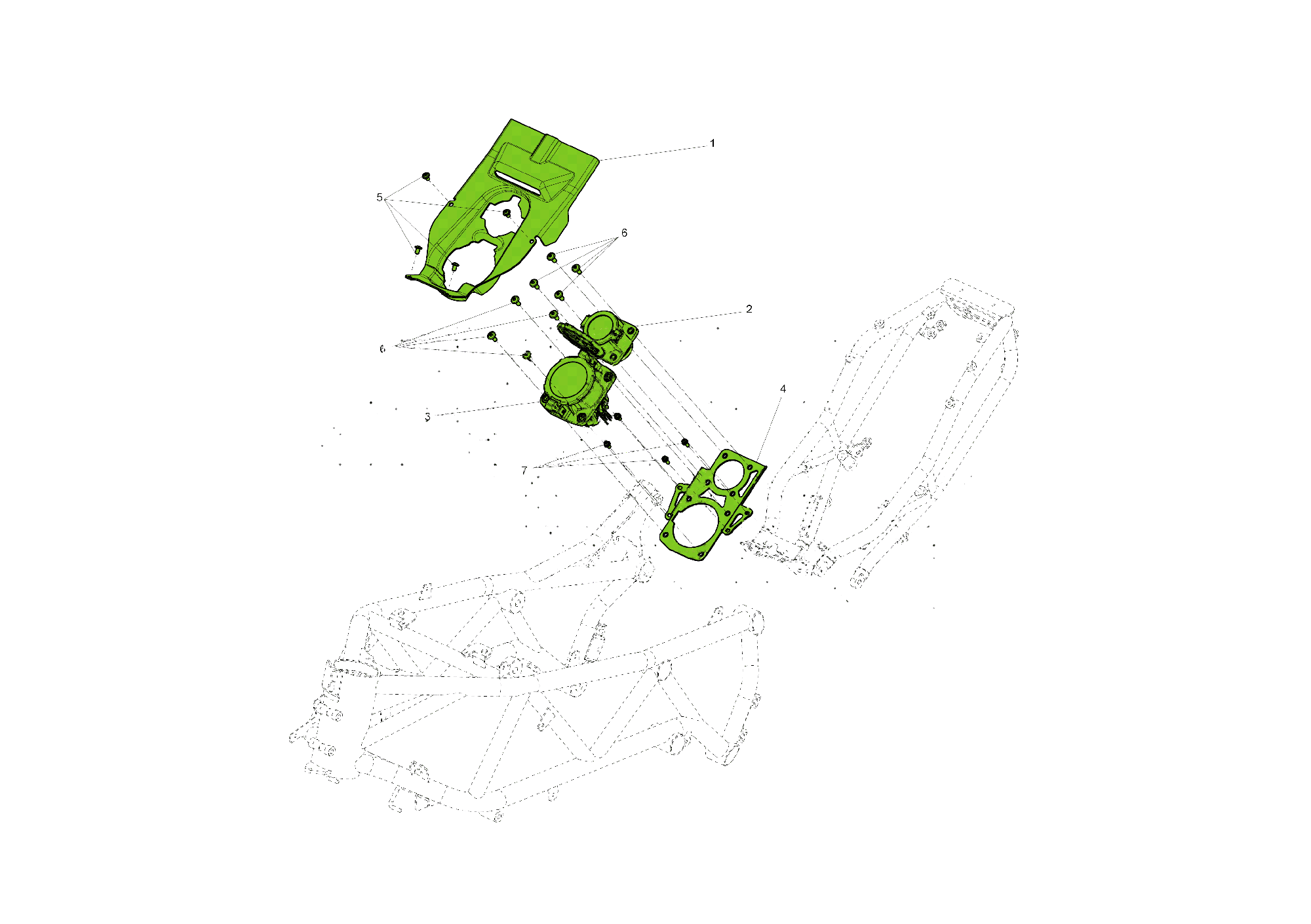

INLET CONNECTOR (CHEdeMO - TYPE 1)
027
INLET CONNECTOR (CHEdeMO - TYPE 1)

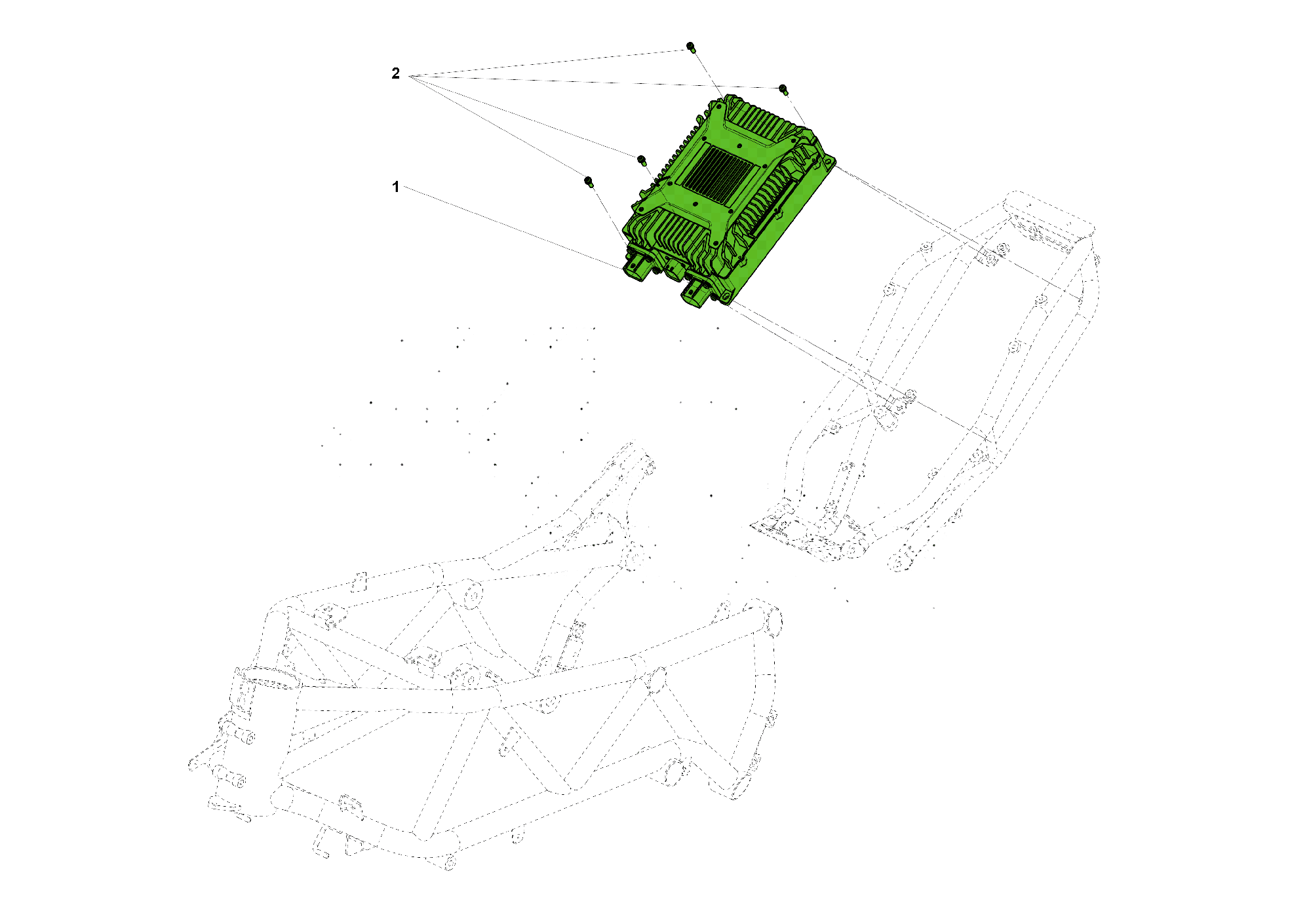

BATTERY CHARGER
028
BATTERY CHARGER

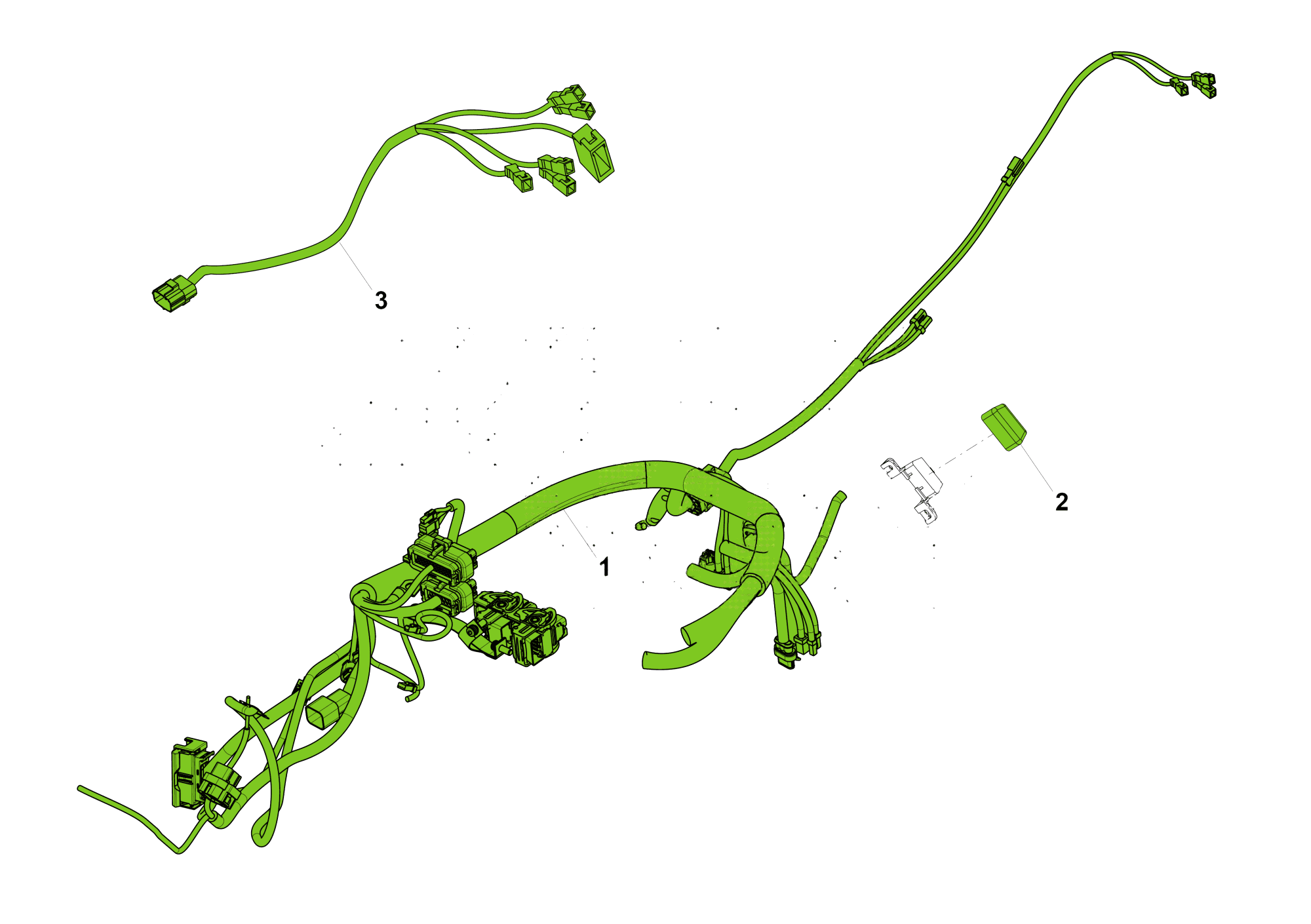

WIRING
029
WIRING

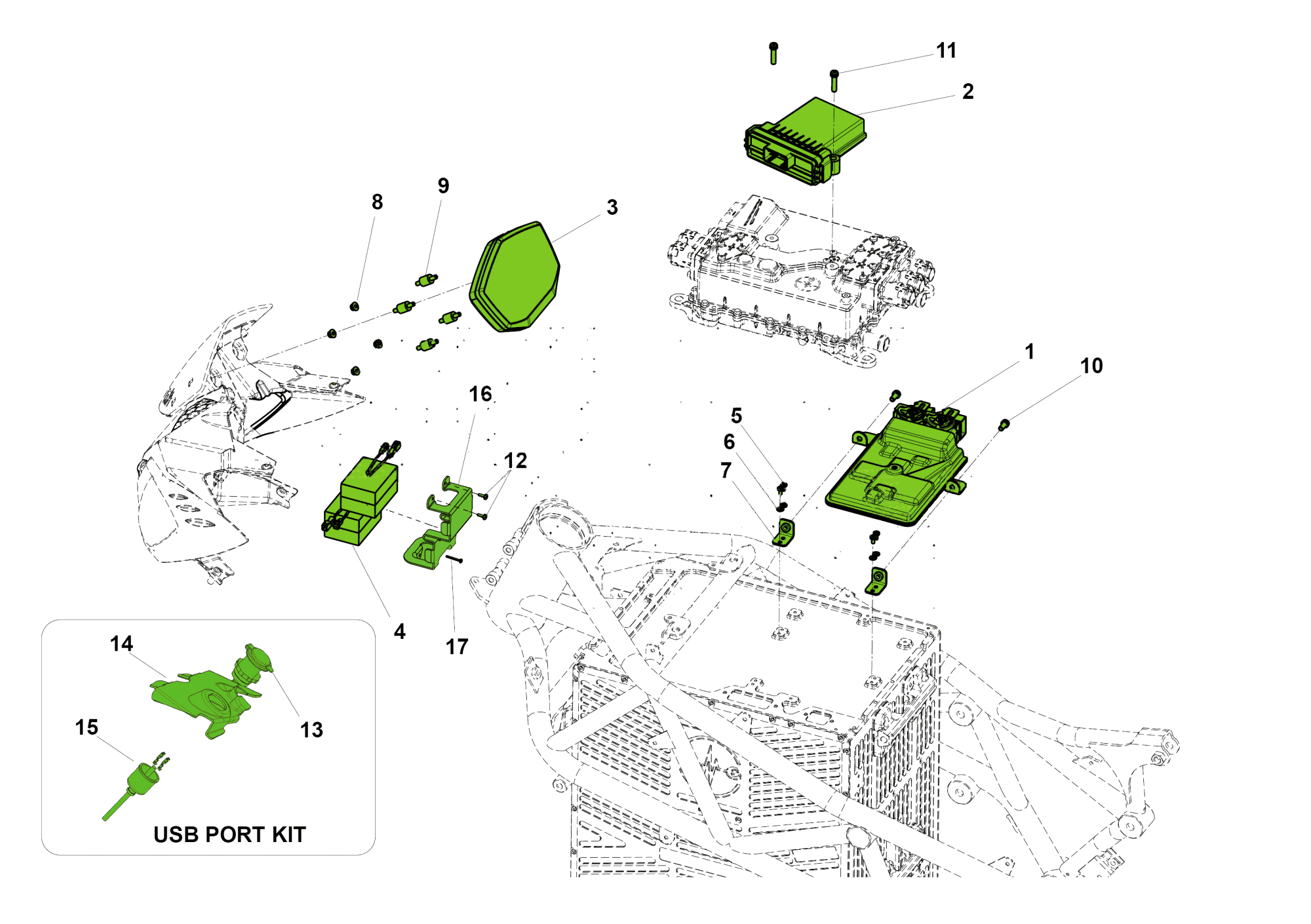

DASHBOARD - CHARGER MANAGER - VCU - HEADLAMP DRIVERS
030
DASHBOARD - CHARGER MANAGER - VCU - HEADLAMP DRIVERS

Motor (4)

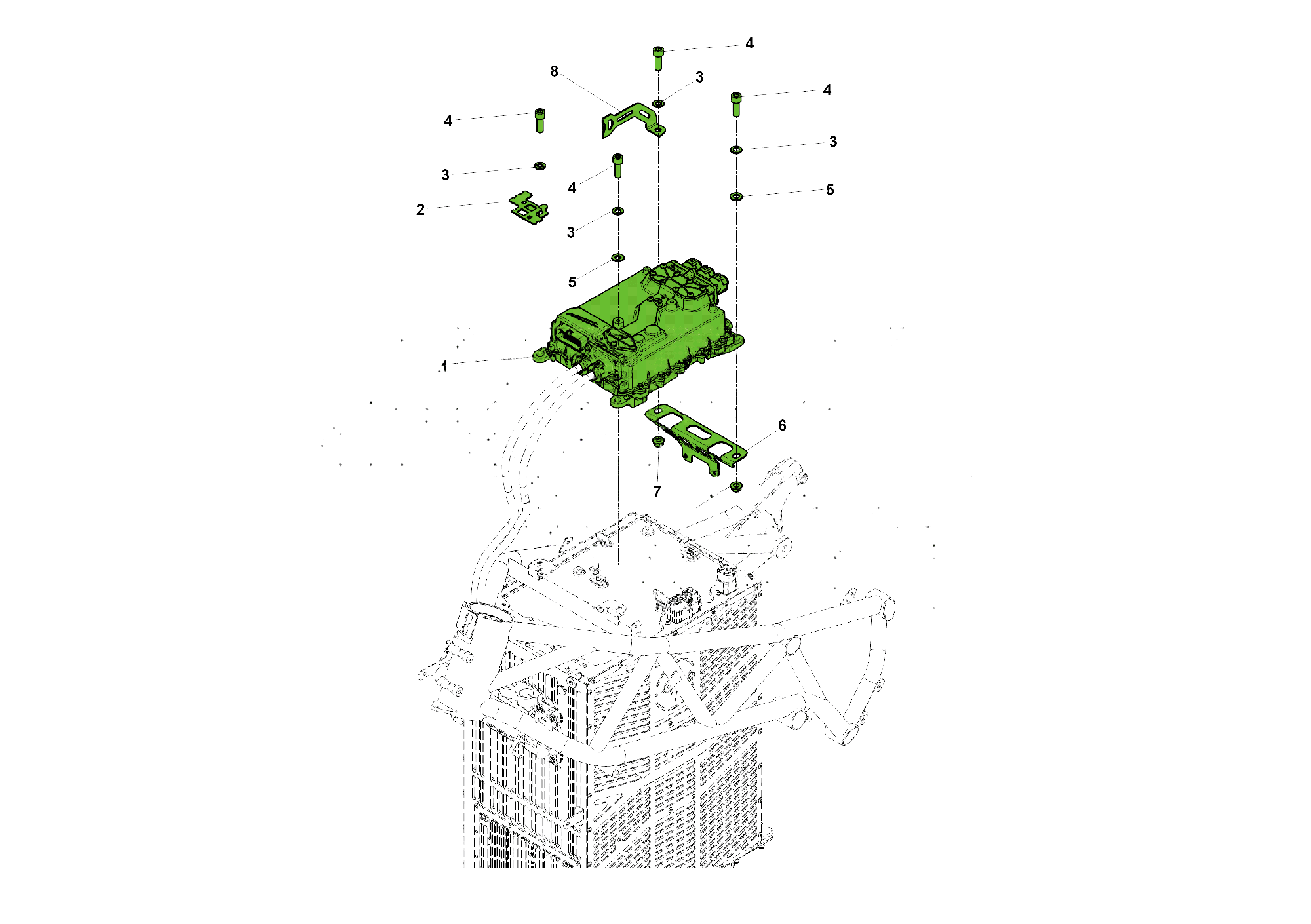

INVERTER
009
INVERTER

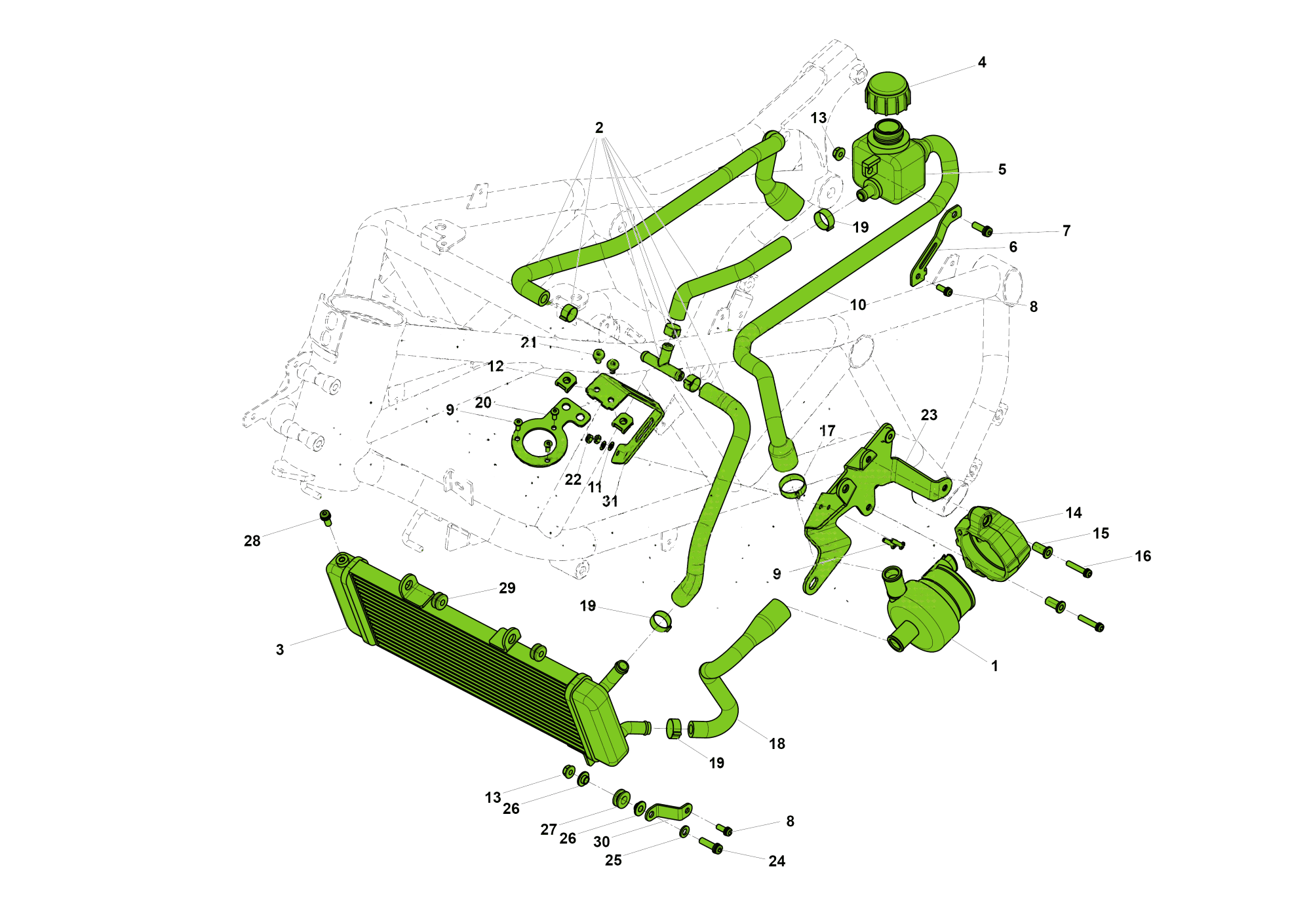

WATER RADIATOR
010
WATER RADIATOR

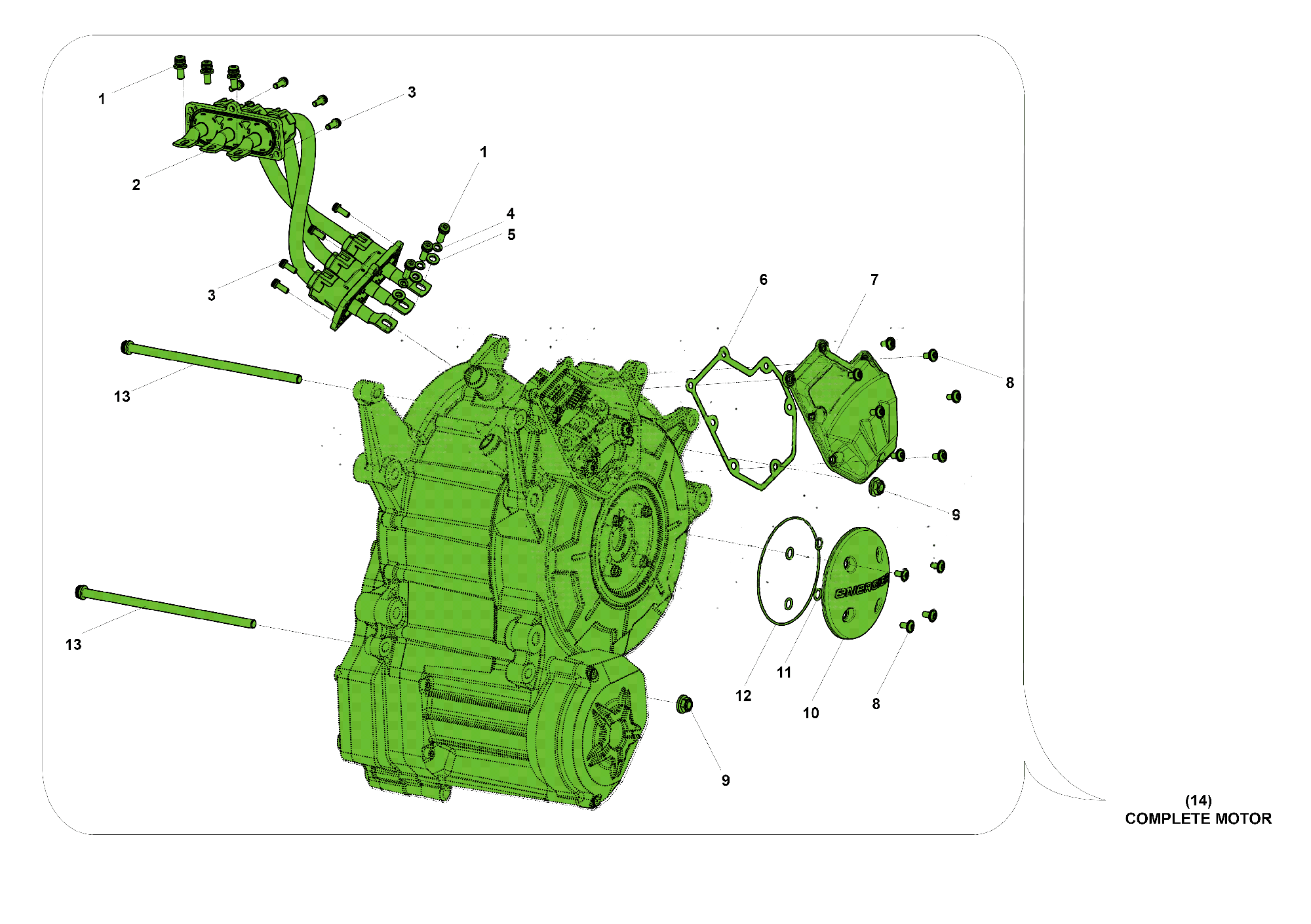

ELECTRIC MOTOR
017
ELECTRIC MOTOR

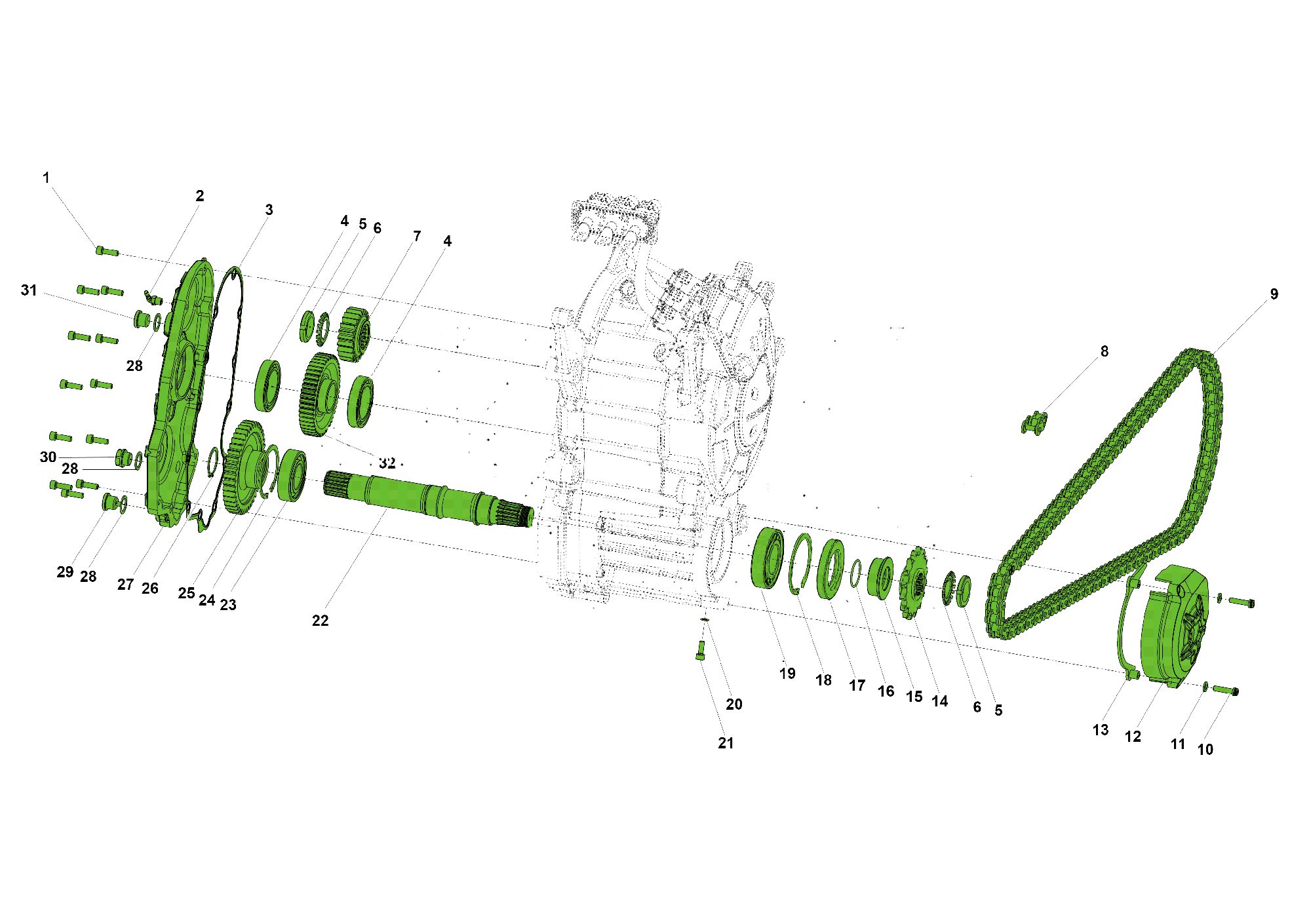

MOTOR TRANSMISSION
018
MOTOR TRANSMISSION

Frame (15)

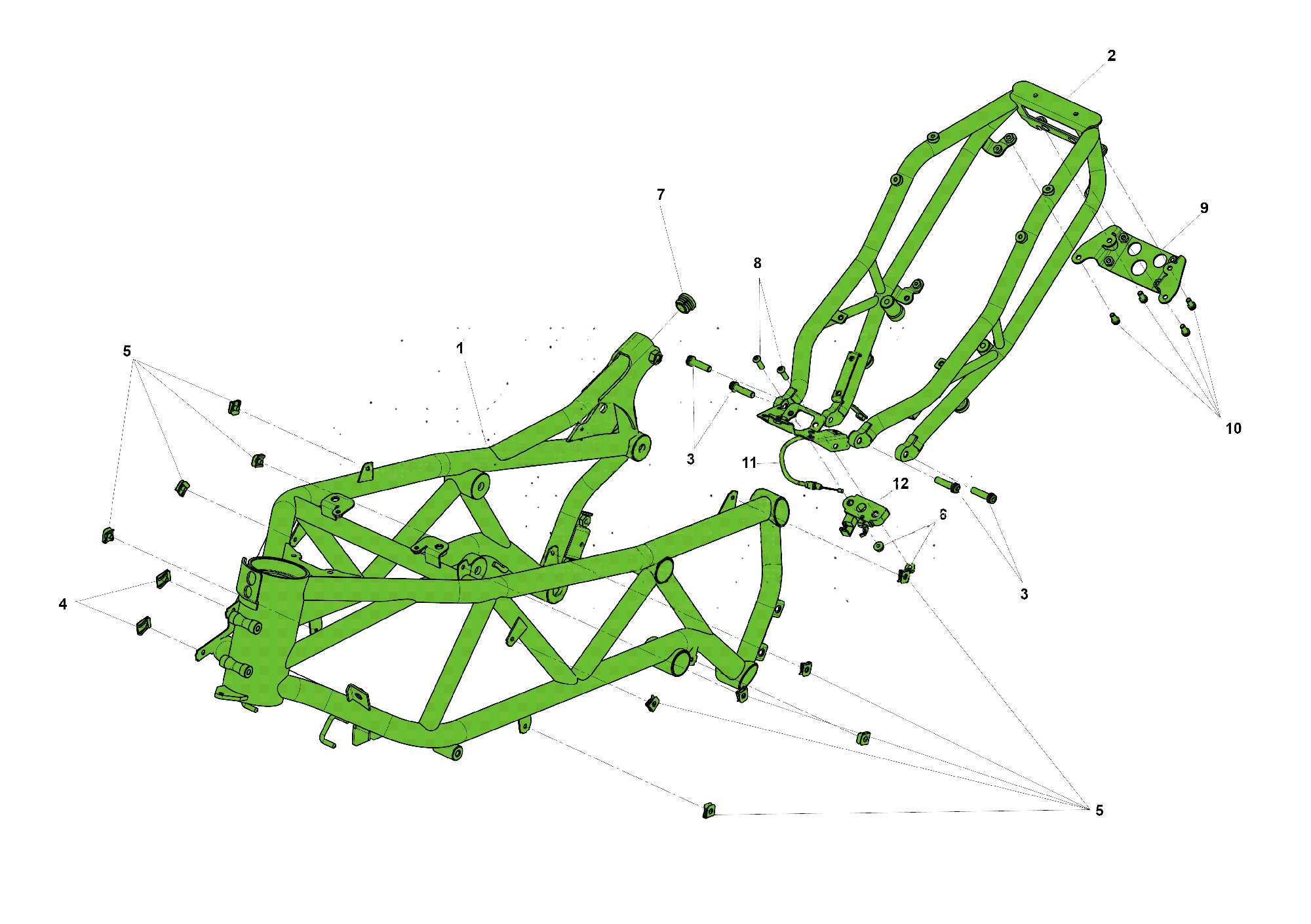

MAIN FRAME
001
MAIN FRAME

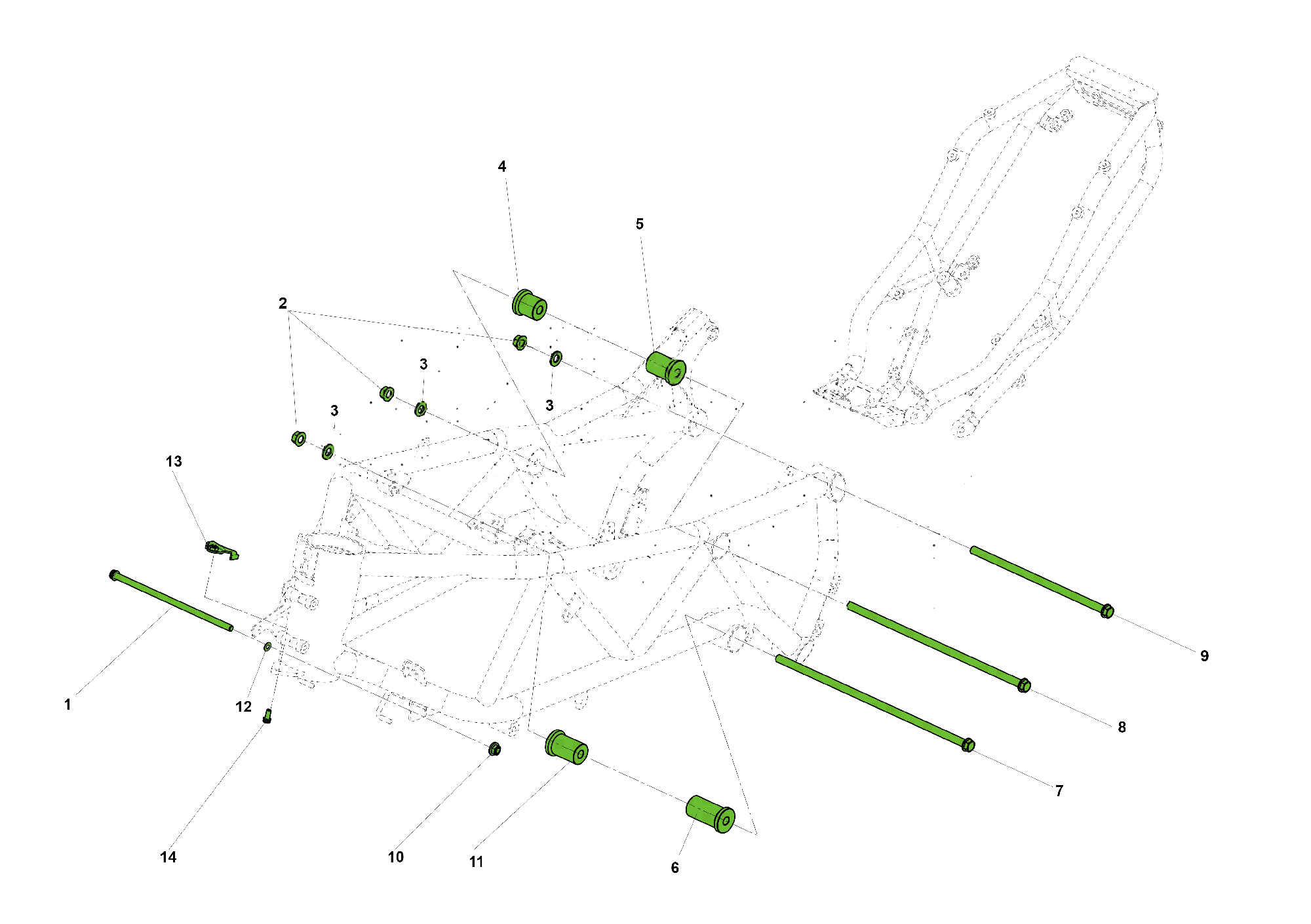

FRAME PINS
002
FRAME PINS

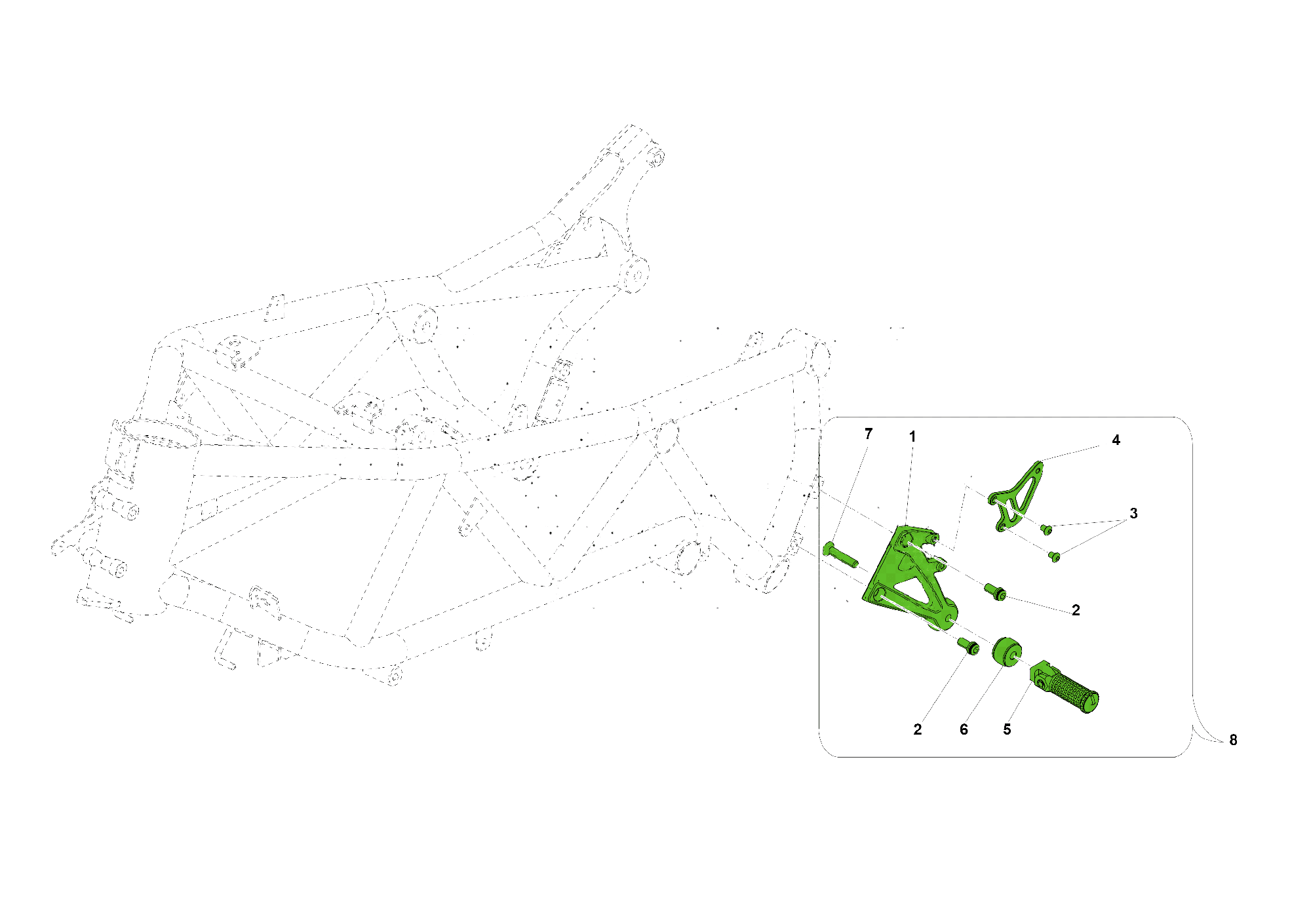

LH RIDER FOOTPEG
003
LH RIDER FOOTPEG

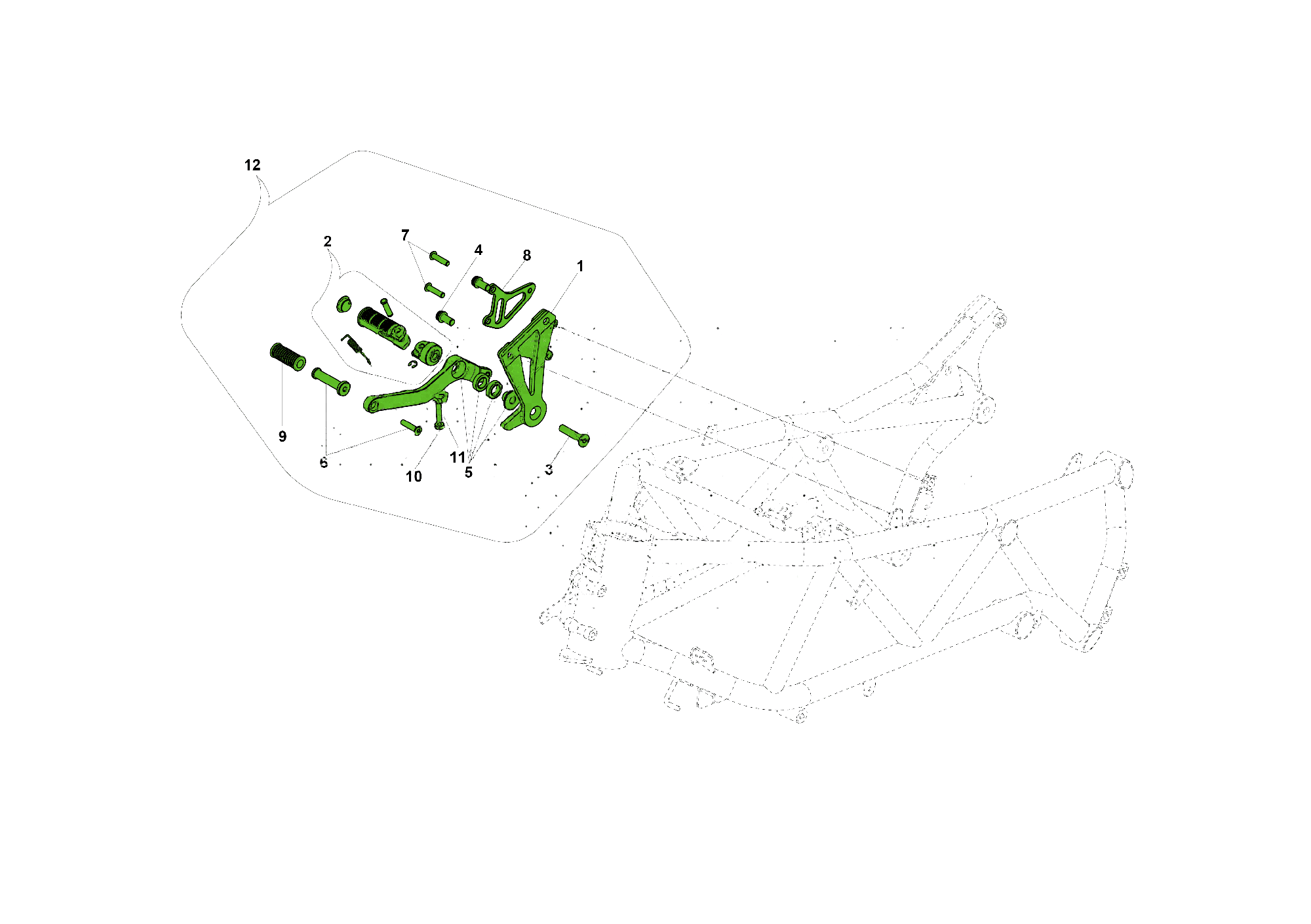

RH RIDER FOOTPEG
004
RH RIDER FOOTPEG

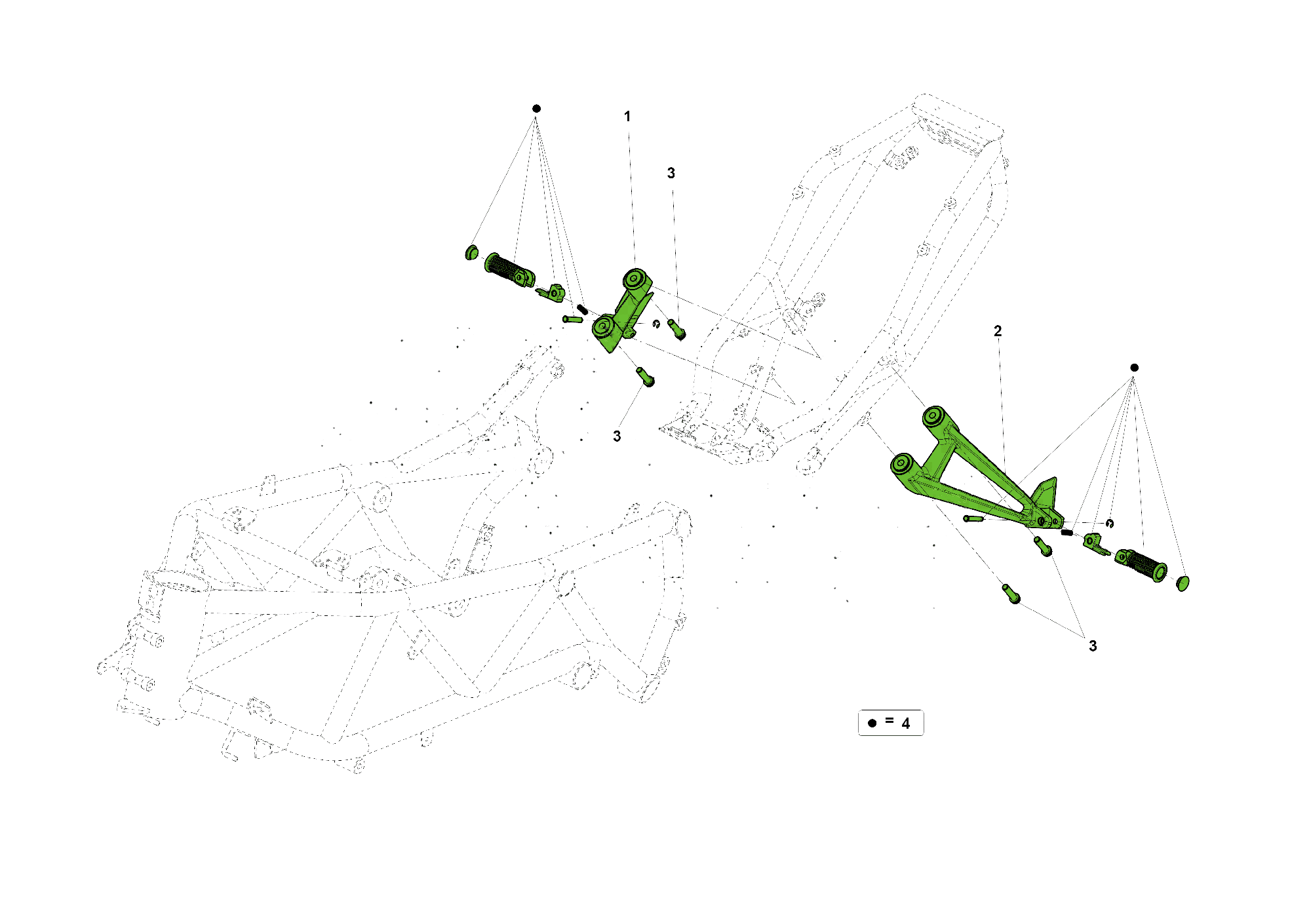

PASSENGER FOOTPEGS
005
PASSENGER FOOTPEGS

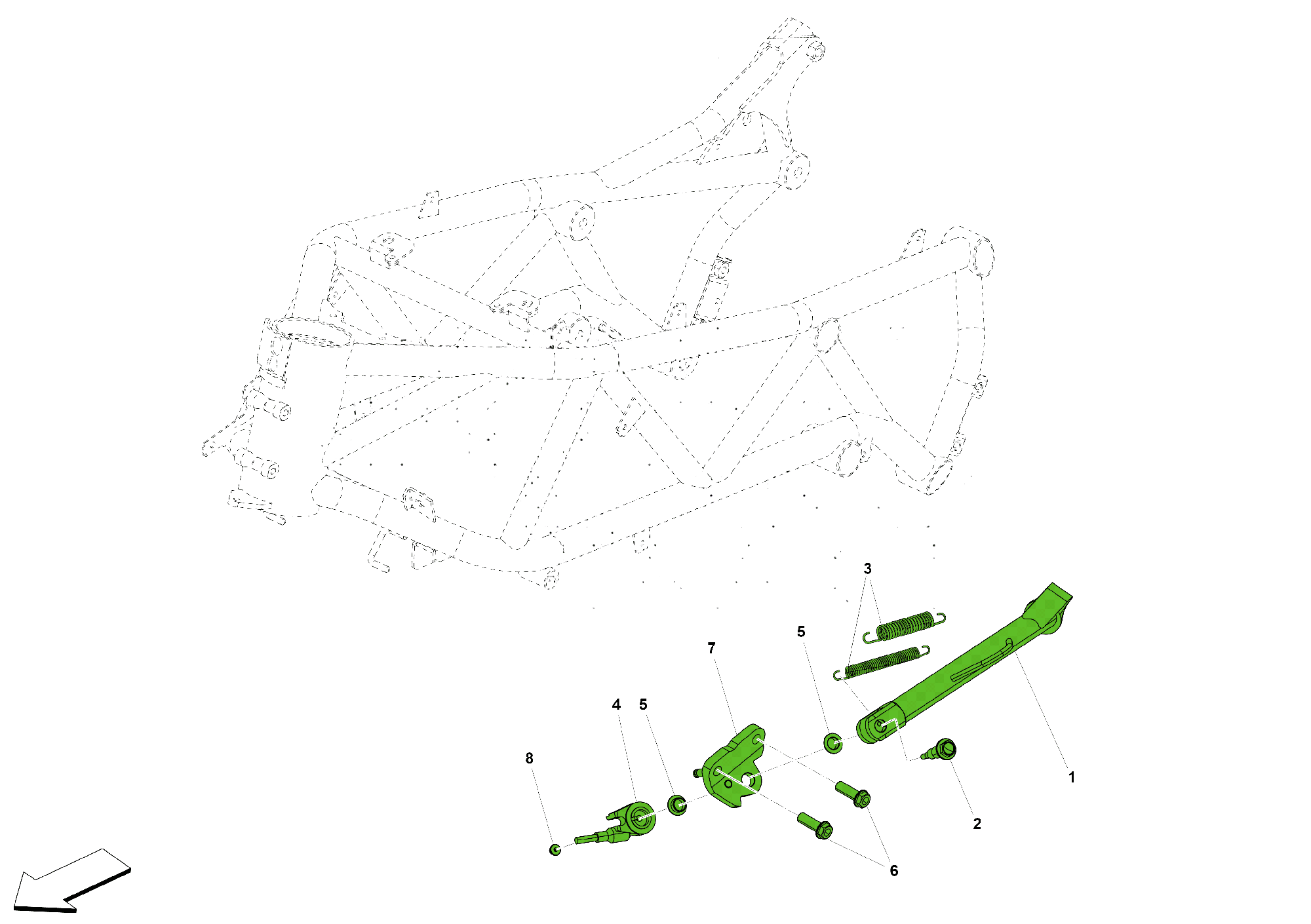

SIDE STAND
006
SIDE STAND

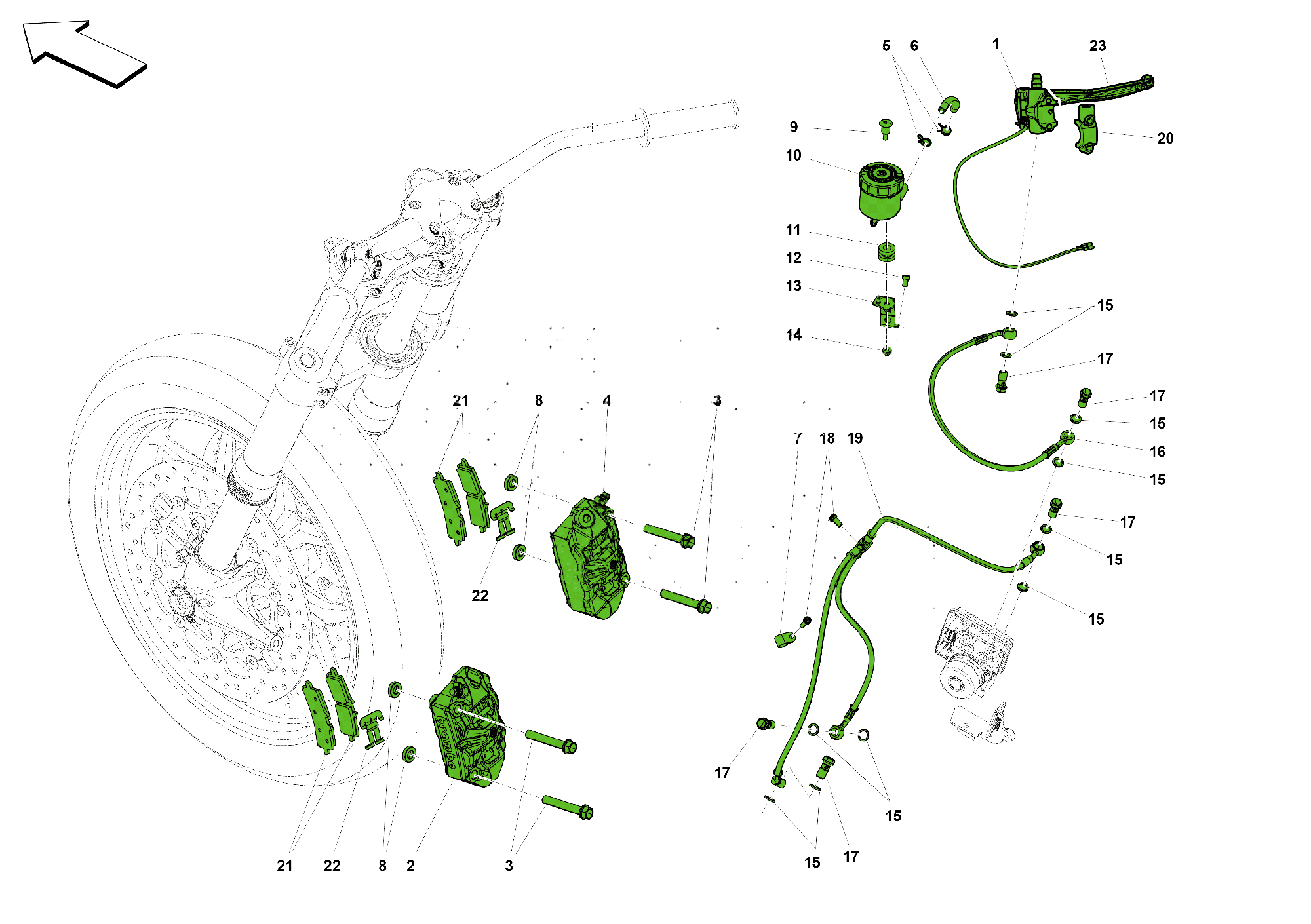

FRONT BRAKE SYSTEM
007
FRONT BRAKE SYSTEM

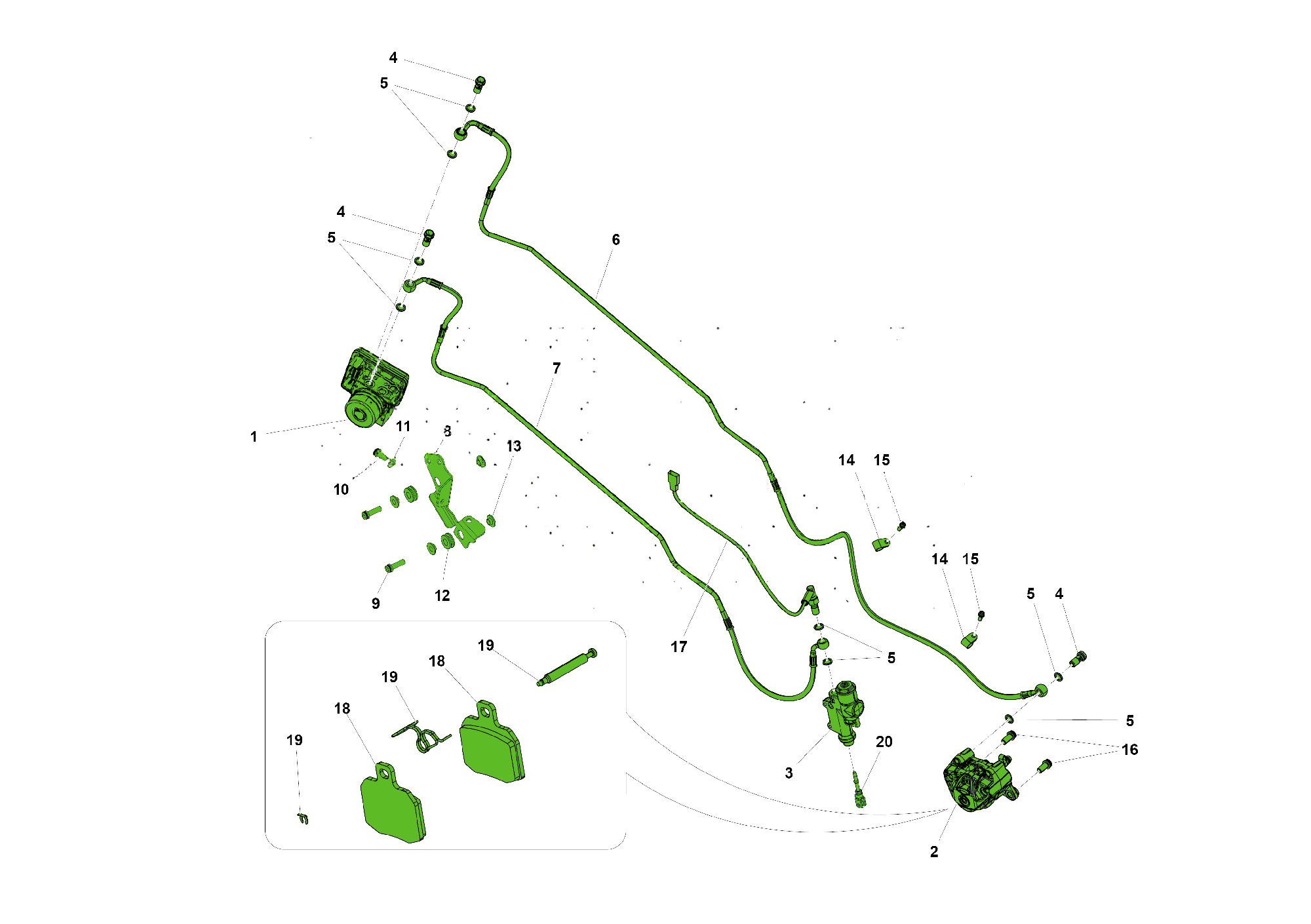

REAR BRAKE SYSTEM
008
REAR BRAKE SYSTEM

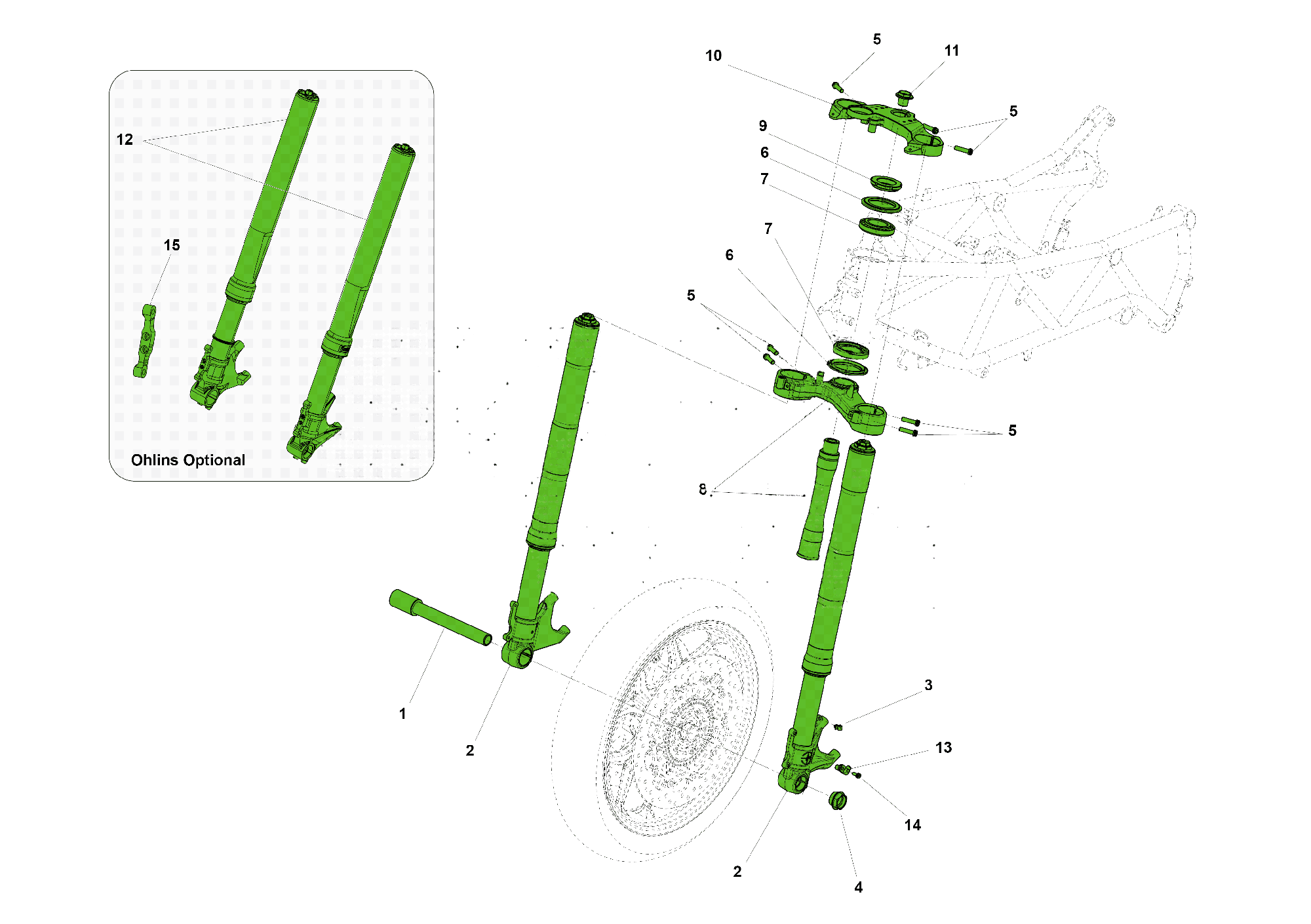

FRONT SUSPENSION
011
FRONT SUSPENSION

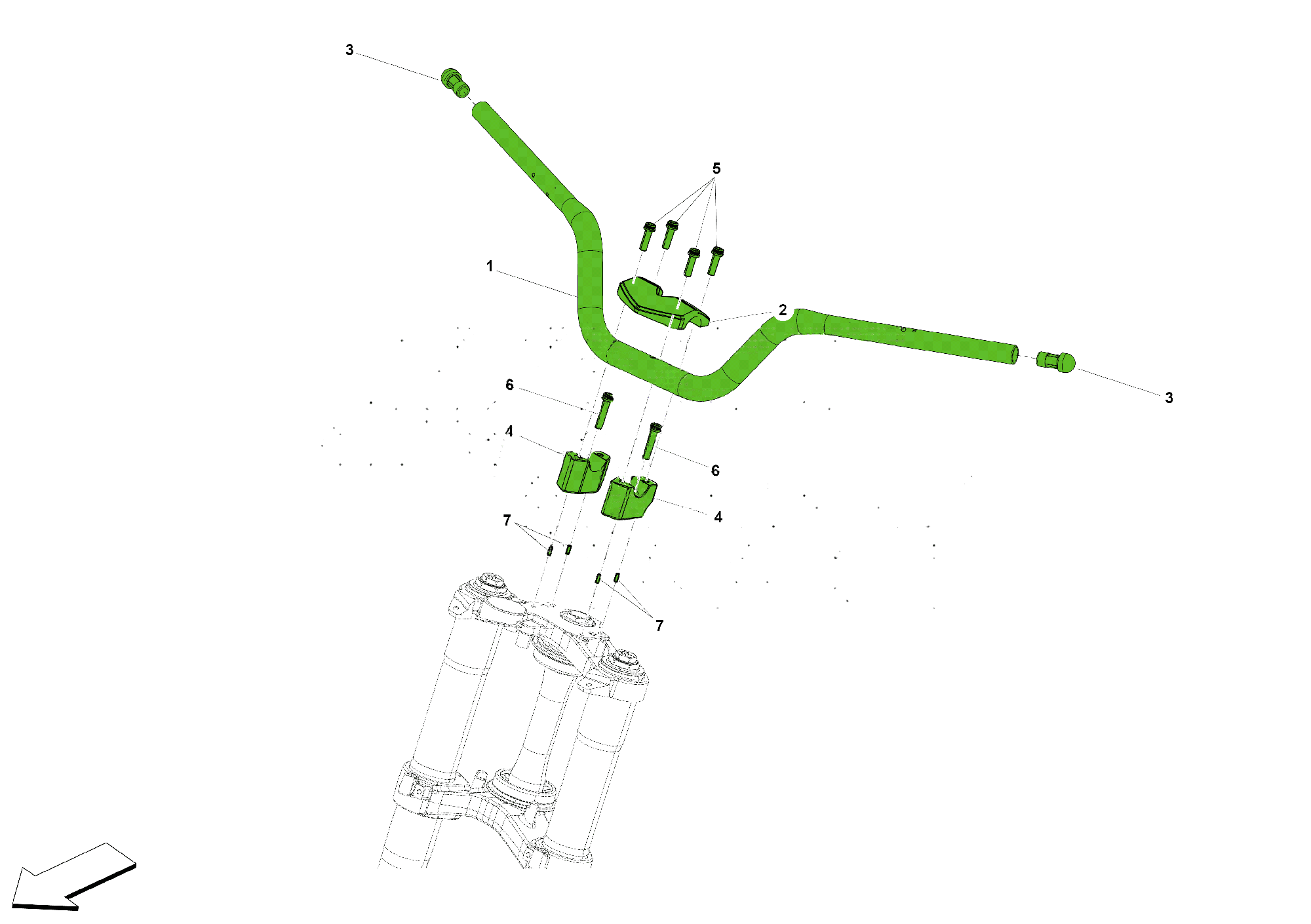

HANDLEBARS
012
HANDLEBARS

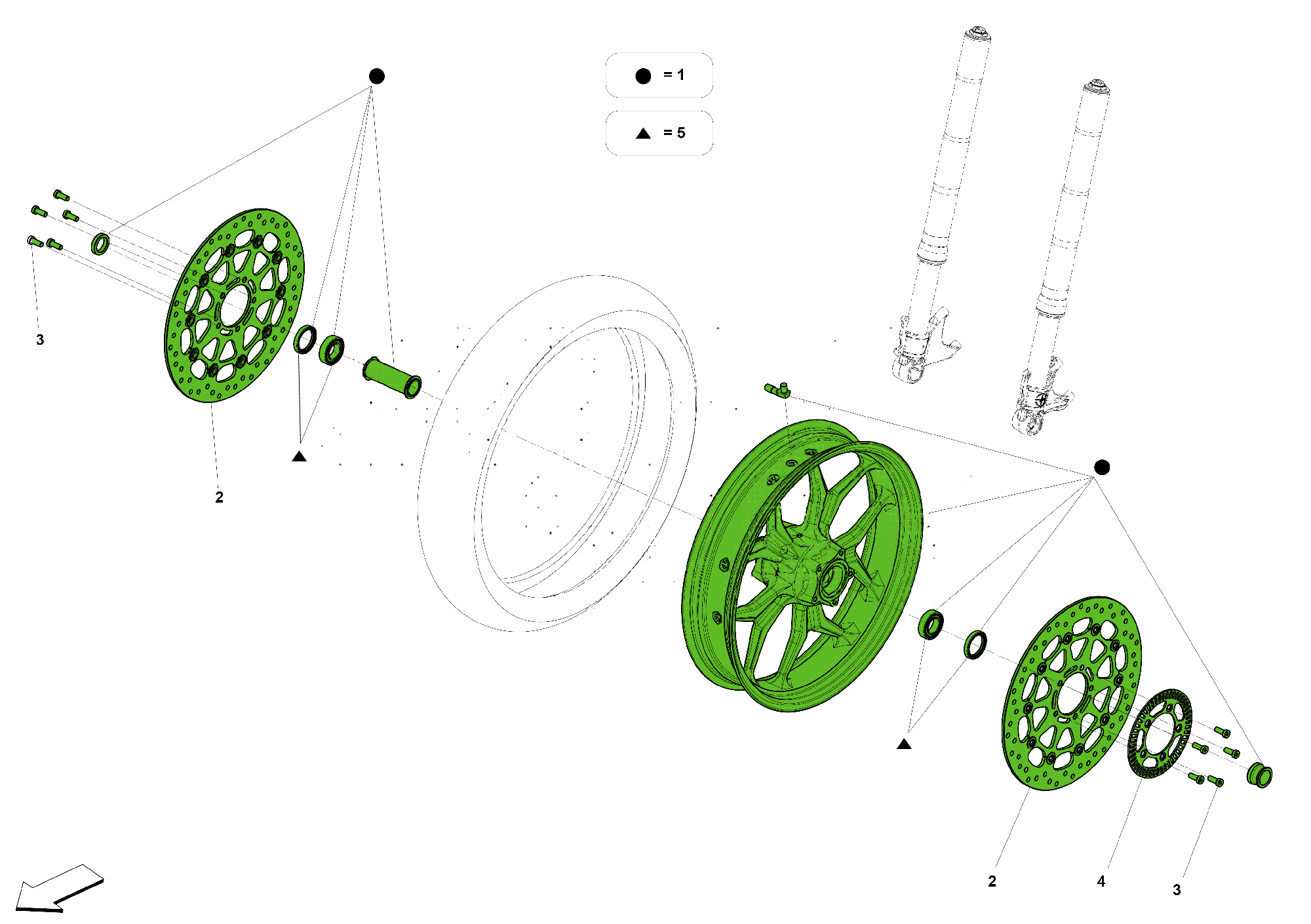

FRONT WHEEL
013
FRONT WHEEL

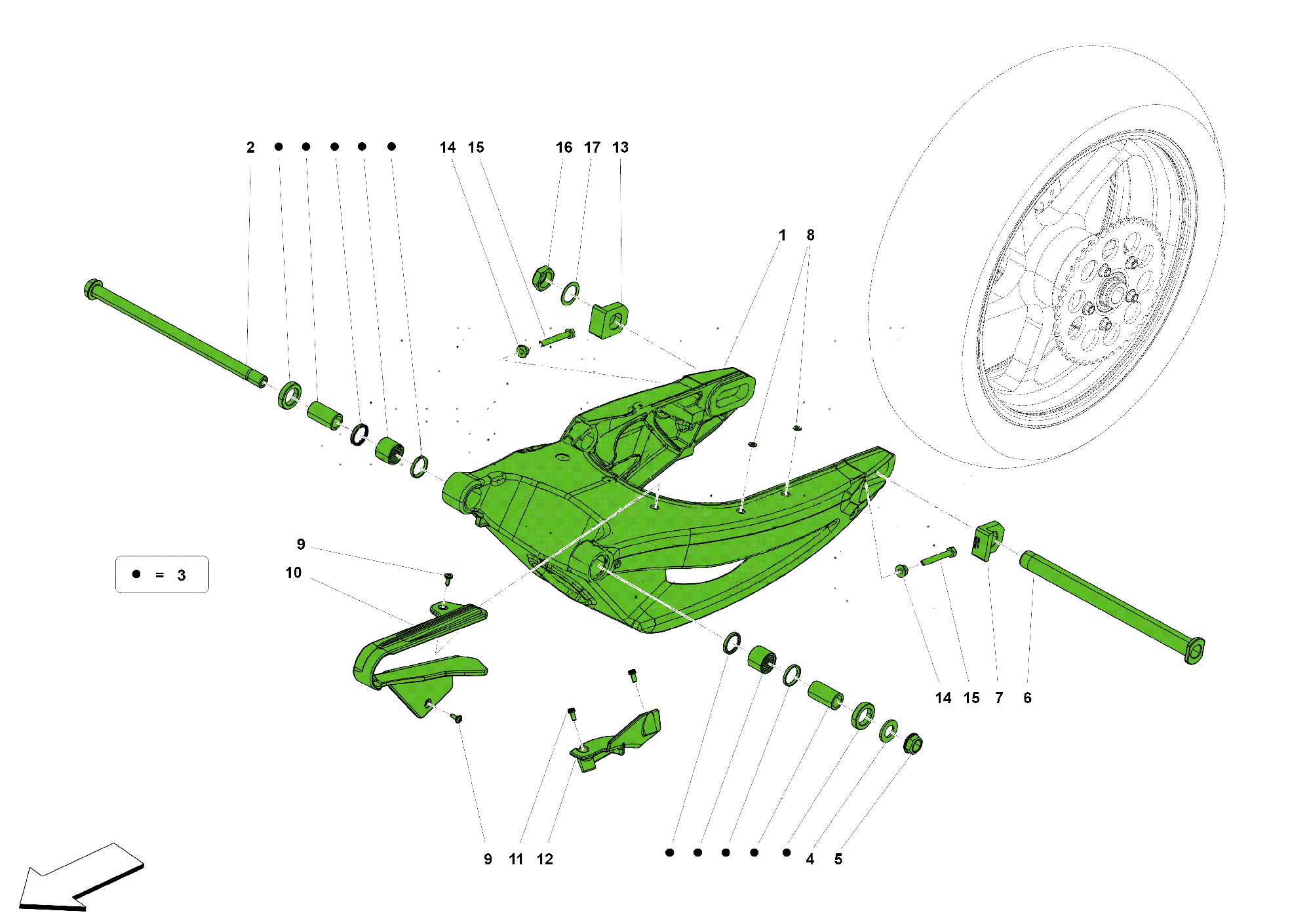

SWINGARM
014
SWINGARM

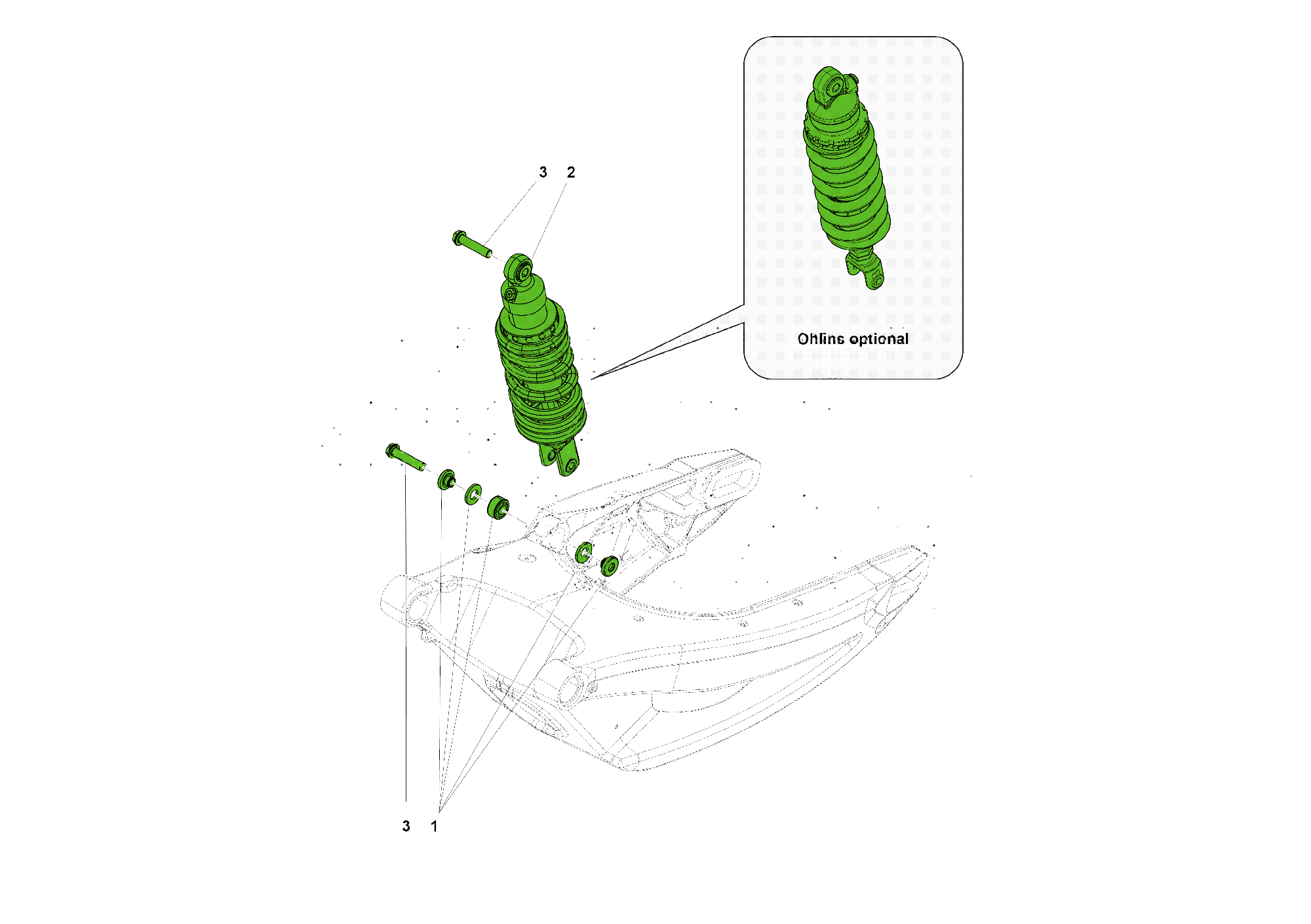

REAR SHOCK ABSORBER
015
REAR SHOCK ABSORBER

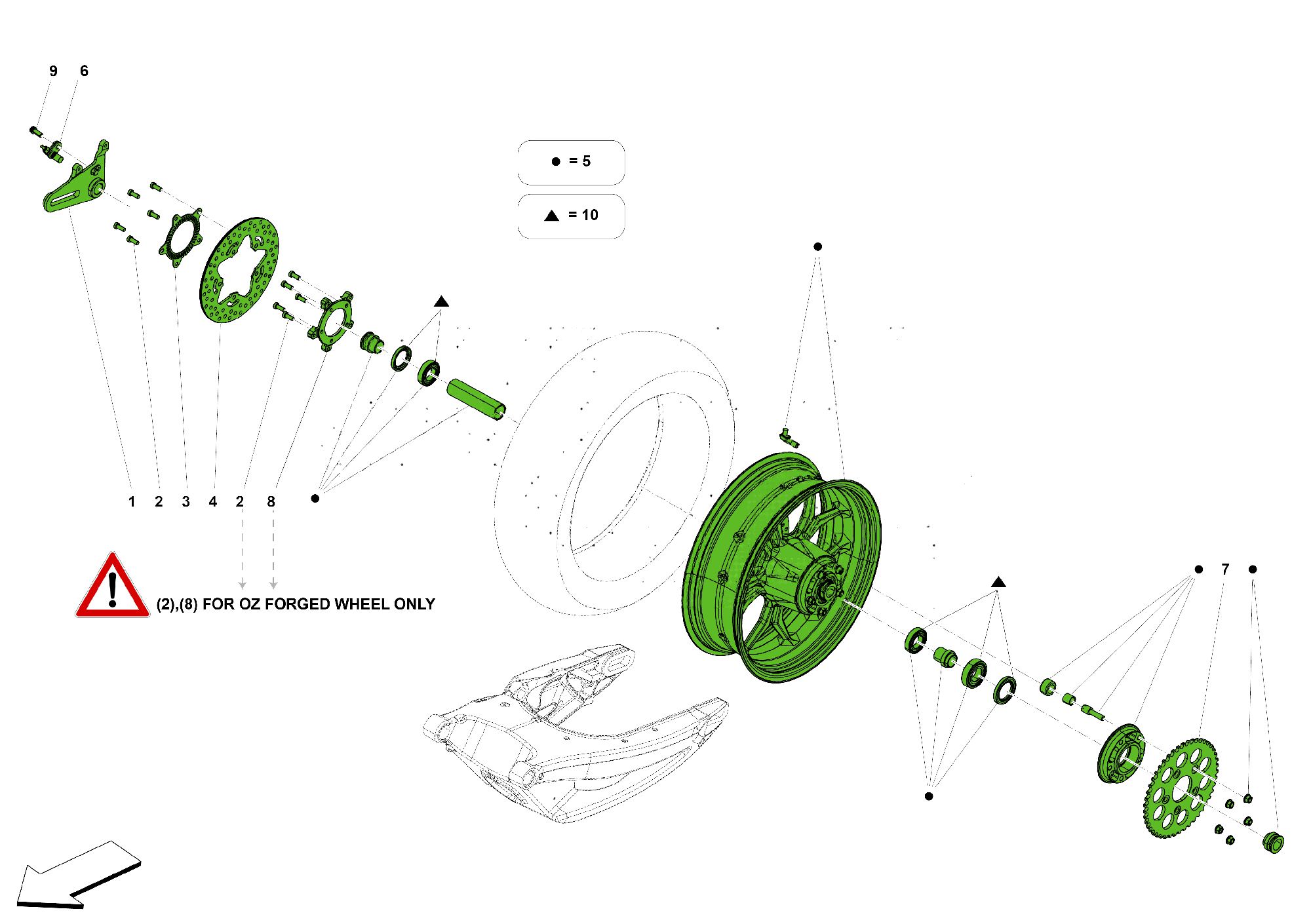

REAR WHEEL
016
REAR WHEEL

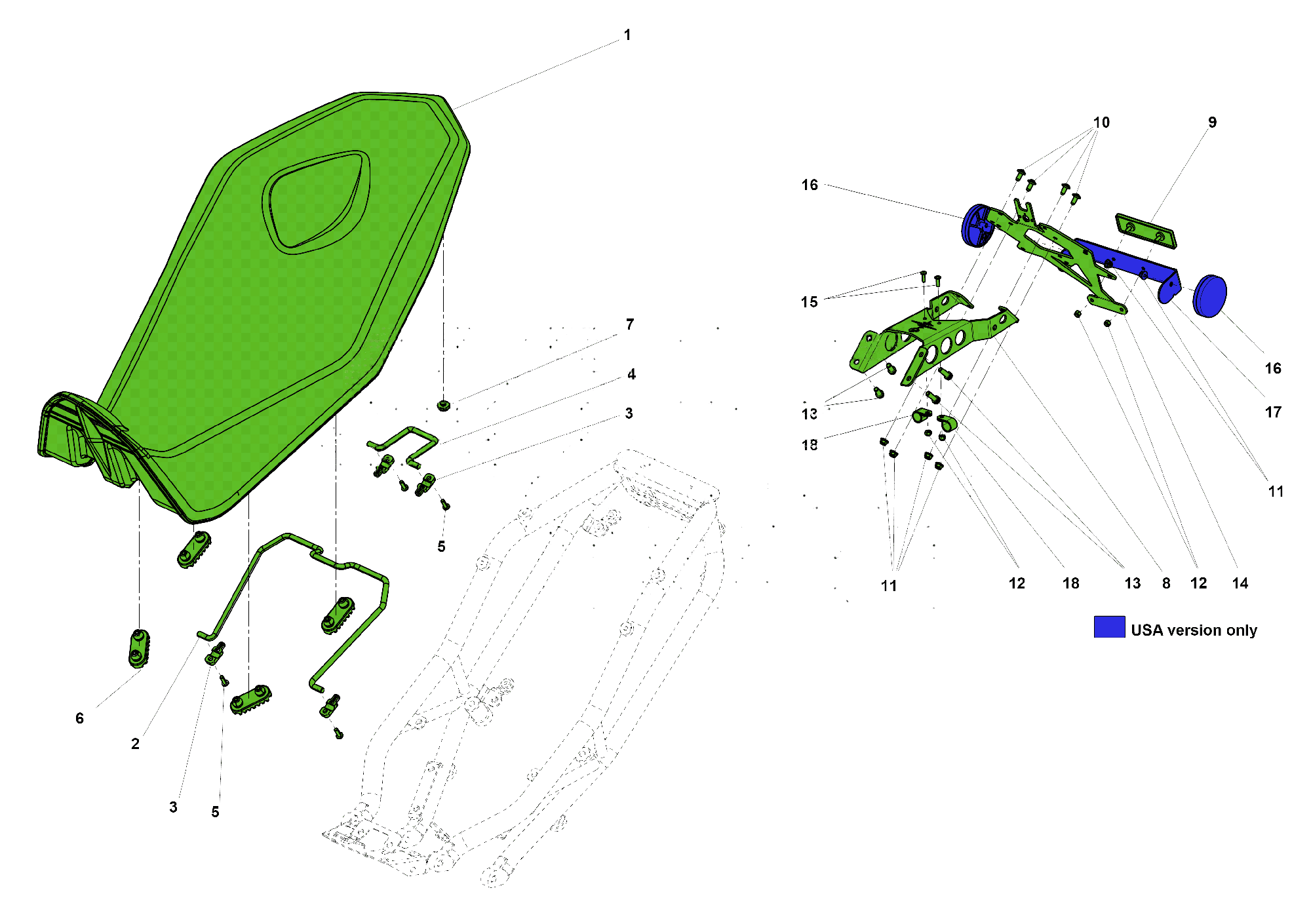

SEAT AND LICENSE PLATE
022
SEAT AND LICENSE PLATE

Variants (18)

Submodel Variant Notes Colour Power Years
ENA009016 EVA RIBELLE (EMCE) EU-TYPE 2
STEALTH GREY 0002,EN12
KW 110 2023
ENA009025 EVA RIBELLE / RS (EMCE) EU-TYPE 2
STEALTH GREY 0002,EN12
KW 110 2023
ENA009018 EVA RIBELLE (EMCE) US-TYPE 1
STEALTH GREY 0002,EN12
KW 110 2023
ENA009027 EVA RIBELLE / RS (EMCE) US-TYPE 1
STEALTH GREY 0002,EN12
KW 110 2023
ENA009021 EVA RIBELLE (EMCE) CHAdeMO/TYPE 1
STEALTH GREY 0002,EN12
KW 110 2023
ENA009030 EVA RIBELLE / RS (EMCE) CHAdeMO/TYPE 1
STEALTH GREY 0002,EN12
KW 110 2023
ENA009016 EVA RIBELLE (EMCE) EU-TYPE 2
TRICOLORE RICOLOR
KW 110 2023
ENA009025 EVA RIBELLE / RS (EMCE) EU-TYPE 2
TRICOLORE RICOLOR
KW 110 2023
ENA009018 EVA RIBELLE (EMCE) US-TYPE 1
TRICOLORE RICOLOR
KW 110 2023
ENA009027 EVA RIBELLE / RS (EMCE) US-TYPE 1
TRICOLORE RICOLOR
KW 110 2023
ENA009021 EVA RIBELLE (EMCE) CHAdeMO/TYPE 1
TRICOLORE RICOLOR
KW 110 2023
ENA009030 EVA RIBELLE / RS (EMCE) CHAdeMO/TYPE 1
TRICOLORE RICOLOR
KW 110 2023
ENA009016 EVA RIBELLE (EMCE) EU-TYPE 2
ROSSO CORSA 0004,EN12
KW 110 2023
ENA009025 EVA RIBELLE / RS (EMCE) EU-TYPE 2
ROSSO CORSA 0004,EN12
KW 110 2023
ENA009018 EVA RIBELLE (EMCE) US-TYPE 1
ROSSO CORSA 0004,EN12
KW 110 2023
ENA009027 EVA RIBELLE / RS (EMCE) US-TYPE 1
ROSSO CORSA 0004,EN12
KW 110 2023
ENA009021 EVA RIBELLE (EMCE) CHAdeMO/TYPE 1
ROSSO CORSA 0004,EN12
KW 110 2023
ENA009030 EVA RIBELLE / RS (EMCE) CHAdeMO/TYPE 1
ROSSO CORSA 0004,EN12
KW 110 2023

VINs (66)

Chassis no. Submodel Seq. Engine range
ZNND1A1C6PS000583 ENA009016 1 —
ZNND1A1C9PS000593 ENA009016 2 —
ZNND1A1C1PS000605 ENA009016 3 —
ZNND1A1C9PS000609 ENA009016 4 —
ZNND1A1C0PS000613 ENA009016 5 —
ZNND1A1C9PS000626 ENA009016 6 —
ZNND1A1C2PS000628 ENA009016 7 —
ZNND1A1C4PS000629 ENA009016 8 —
ZNND1A1C3PS000671 ENA009016 9 —
ZNND1A1C9RS000631 ENA009016 10 —
ZNND1A1C8RS000636 ENA009016 11 —
ZNND1A1C5RS000643 ENA009016 12 —
ZNND1A1C5RS000657 ENA009021 13 —
ZNND1A1C7RS000658 ENA009021 14 —
ZNND1A1C9RS000659 ENA009021 15 —
ZNND1A1C5RS000660 ENA009021 16 —
ZNND1A1C4PS000582 ENA009025 17 —
ZNND1A1CXPS000585 ENA009025 18 —
ZNND1A1C1PS000586 ENA009025 19 —
ZNND1A1C3PS000587 ENA009025 20 —
ZNND1A1C0PS000594 ENA009025 21 —
ZNND1A1CXPS000604 ENA009025 22 —
ZNND1A1C3PS000606 ENA009025 23 —
ZNND1A1C5PS000607 ENA009025 24 —
ZNND1A1C0PS000627 ENA009025 25 —
ZNND1A1C0PS000630 ENA009025 26 —
ZNND1A1C3RS000639 ENA009025 27 —
ZNND1A1CXRS000640 ENA009025 28 —
ZNND1A1C4RS000648 ENA009025 29 —
ZNND1A1C3RS000656 ENA009025 30 —
ZNND1A1CXRS000654 ENA009030 31 —
ZNND1A1C1RS000655 ENA009030 32 —
ZNND1A1C7RS000661 ENA009021 33 —
ZNND1A1C6RS000649 ENA009025 34 —
ZNND1A1C6RS000635 ena009025 35 —
ZNND1A1C1RS000641 ena009025 36 —
ZNND1A1CXRS000637 ENA009016 37 —
ZNND1A1C4RS000634 ENA009025 38 —
ZNND1A1C2RS000647 ENA009016 39 —
ZNND1A1C3RS000642 ENA009025 40 —
ZNND1A1C9RS000662 ENA009018 41 —
ZNND1A1C0RS000663 ENA009018 42 —
ZNND1A1C2RS000664 ENA009018 43 —
ZNND1A1C4RS000665 ENA009018 44 —
ZNND1A1C4RS000651 ENA009025 45 —
ZNND1A1C7RS000675 ENA009025 46 —
ZNND1A1C7RS000644 ENA009025 47 —
ZNND1A1C1PS000670 ENA009025 48 —
ZNND1A1C0RS000632 ENA009018 49 —
ZNND1A1C9RS000645 ENA009018 50 —
ZNND1A1C8RS000667 ENA009025 51 —
ZNND1A1C5PS000610 ENA009016 52 —
ZNND1A1C1RS000669 ENA009025 53 —
ZNND1A1CXRS000668 ENA009016 54 —
ZNND1A1C8RS000670 ENA009025 55 —
ZNND1A1C5RS000674 ENA009025 56 —
ZNND1A1C6RS000652 ENA009025 57 —
ZNND1A1C2RS000633 ena009025 58 —
ZNND1A1C7PS000611 ENA009016 59 —
ZNND1A1C1SS000676 ENA009025 60 —
ZNND1A1C3SS000677 ENA009025 61 —
ZNND1A1CXRS000671 ENA009030 62 —
ZNND1A1C3RS000673 ENA009021 63 —
ZNND1A1C8RS000653 ENA009016 64 —
ZNND1A1C6RS000666 ENA009021 65 —
ZNND1A1C9SS000652 ENA009025 66 —

Fitting accessories (74)

PARTS AND ACCESSORIES

A 32 accessories

PARTS AND ACCESSORIES

AA 32
(EVA AND SS9 MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
ENS008210
(EVA AND SS9 MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
€2.943,00
(EVA RIBELLE) ERGAL KIT - BLACK
ENA006864
(EVA RIBELLE) ERGAL KIT - BLACK
€315,00
(EVA RIBELLE) ERGAL KIT - GOLD
ENA006865
(EVA RIBELLE) ERGAL KIT - GOLD
€315,00
HEATED HANDGRIPS KIT
ENA004617
HEATED HANDGRIPS KIT
€230,00
RIBELLE SIDE BAGS AND SPECIFIC HOLDERS - GREY PLATES
ENA006768
RIBELLE SIDE BAGS AND SPECIFIC HOLDERS - GREY PLATES
€630,00
RIBELLE SIDE BAGS AND SPECIFIC HOLDERS - RED PLATES
ENA006769
RIBELLE SIDE BAGS AND SPECIFIC HOLDERS - RED PLATES
€630,00
RISER KIT +20MM (EVA)
ENA010899
RISER KIT +20MM (EVA)
€70,00
SPLASH GUARD EVA RIBELLE
ENS008245
SPLASH GUARD EVA RIBELLE
€85,00
TANK BAG WITH TANK COVER (can hold a full-face helmet)
ENS008374
TANK BAG WITH TANK COVER (can hold a full-face helmet)
€256,00
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008413
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008412
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
ENS007786
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
€165,00
ERGAL STAND BOBBINS
ENS002588
ERGAL STAND BOBBINS
€18,90 all models
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
ENS011754
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
€110,00 all models
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
ENS003355
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
€182,00
CARBON FIBER BATTERY COVERS (EVA)
ENS002814
CARBON FIBER BATTERY COVERS (EVA)
99 999+
CENTRAL TANK COVER SLEEK CARBON (EVA)
ENF002171
CENTRAL TANK COVER SLEEK CARBON (EVA)
€340,80
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
ENS010836
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
€340,00 all models
BEARINGS REPLACING KIT (BITUBO/OHLINS)
ENA006051
BEARINGS REPLACING KIT (BITUBO/OHLINS)
€160,00
GLOVES-HIGH VOLTAGE 1000V
ENS002235
GLOVES-HIGH VOLTAGE 1000V
€70,00 all models
HEXAGON SOCKET
ENS002237
HEXAGON SOCKET
€26,00
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
ENS010173
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
€120,00 all models
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
ENF007774
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
€15,75
PCAN INTERFACE (VDB vehicle data bus)
ENS003005
PCAN INTERFACE (VDB vehicle data bus)
€210,00 all models
PINION TIGHTENING (15-16-17 TEETH)
ENA009890
PINION TIGHTENING (15-16-17 TEETH)
€80,00
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
ENS004854
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
€260,00 all models
SPROCKET SOCKET
ENS001870
SPROCKET SOCKET
€90,00 all models
STEERING SOCKET
ENS002130
STEERING SOCKET
€70,00
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
ENS003004
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
€17,00 all models
CARBON WHEELS
ENS009532
CARBON WHEELS
€3.290,00
CAST ALUMINIUM WHEELS WITH RED DETAILS
ENS009533
CAST ALUMINIUM WHEELS WITH RED DETAILS
€322,00
OZ ALUMINUM FORGED WHEELS
ENS006842
OZ ALUMINUM FORGED WHEELS
€2.645,00 all models

DEALER IDENTITY

D 42 accessories

VISUAL & MERCHANDISING

DA 42
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
MKT000041
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
€28,50 all models
Bamboo smartphone stand. Minimum batch: 3 pieces
MKT000042
Bamboo smartphone stand. Minimum batch: 3 pieces
€10,50 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
MKT000046
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
€22,00 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
MKT000047
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
€22,00 all models
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
MKT000057
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
€58,00 all models
Energica Towel Package of 3 pieces Minimum batch: 3 piece
MKT000059
Energica Towel Package of 3 pieces Minimum batch: 3 piece
€30,00 all models
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
MKT000043
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
€29,70 all models
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
MKT000040
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
€24,00 all models
(326CM) – BEACH FLAG POLE + FLAG (72X285)
MKT000066
(326CM) – BEACH FLAG POLE + FLAG (72X285)
€119,00 all models
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
MKT000065
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
MKT000072
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
MKT000091
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
€399,00 all models
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
MKT000073
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
€249,00 all models
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
MKT000090
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
€349,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
MKT000077
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
€899,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
MKT000076
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
€599,00 all models
MKT000075
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM PVC LIGHT 15MM
€249,00 all models
100X200 ROLL UP PRINT + STRUCTURE
MKT000074
100X200 ROLL UP PRINT + STRUCTURE
€99,00 all models
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
MKT000082
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
€1.999,00 all models
MKT000093
100x200 15MM THICK LIGHT PVC PANEL PRINTED DOUBLE-SIDED
€249,00 all models
MKT000092
100x200 LIGHT PVC PANEL 19MM THICK PRINTED SINGLE SIDED, COMPLETE WITH PAIR OF SUPPORTS
€599,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
MKT000085
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
€839,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
MKT000084
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
€529,00 all models
MKT000083
110X270 BASIC PLATFORM MELAMINE FACED CHIPBOARD 18MM THICK + LOGO
€329,00 all models
MKT000086
120X240 EASY PLATFORM+PVC PANEL MELAMINE FACED CHIPBOARD 18MM THICK+LOGO
€649,00 all models
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
MKT000088
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
€1.399,00 all models
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
MKT000071
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
€64,00 all models
180X270X60 MERCHANDISING CORNER (BIG VERSION)
MKT000087
180X270X60 MERCHANDISING CORNER (BIG VERSION)
€2.799,00 all models
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000061
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.099,00 all models
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
MKT000070
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
€1.599,00 all models
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000060
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.599,00 all models
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
MKT000062
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
€499,00 all models
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
MKT000063
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
€649,00 all models
70X100 POSTER DIGITAL PRINT
MKT000078
70X100 POSTER DIGITAL PRINT
€8,99 all models
94X90X60 MERCHANDISING CORNER (EASY VERSION)
MKT000089
94X90X60 MERCHANDISING CORNER (EASY VERSION)
€499,00 all models
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
MKT000069
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
€69,00 all models
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
MKT000067
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
€29,00 all models
DESK DISPLAY IN TRANSPARENT METHACRYLATE
MKT000081
DESK DISPLAY IN TRANSPARENT METHACRYLATE
€9,99 all models
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
MKT000080
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
€99,00 all models
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
MKT000058
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
€184,00 all models
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
MKT000068
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
€64,00 all models
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
MKT000079
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
€69,00 all models
