006 2018 80 kW

EVA 2nd series

33
Drawings
4
Variants
43
VINs
86
Accessories

Drawings

Body (4)

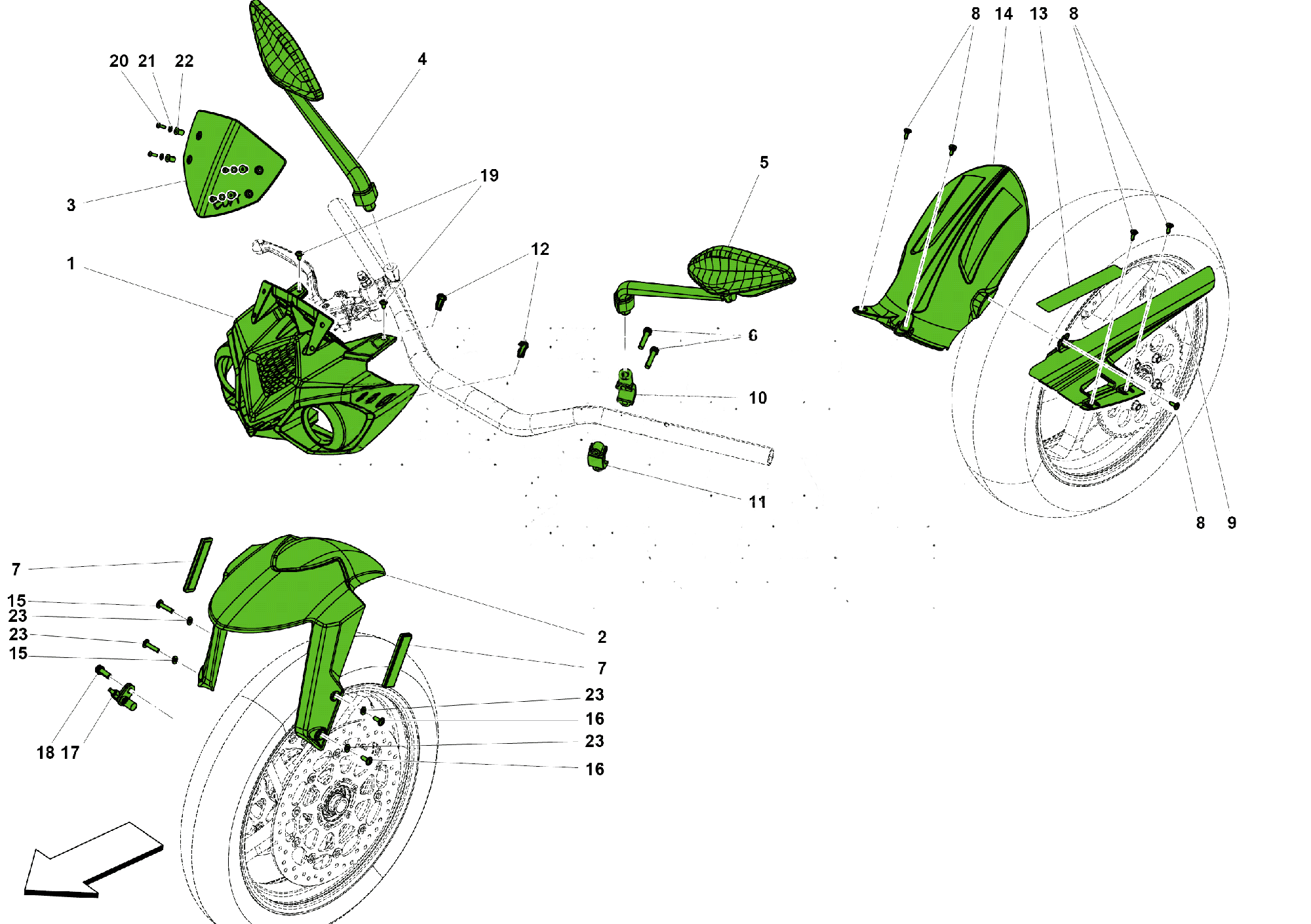

FRONT FAIRING AND MUDGUARDS
022
FRONT FAIRING AND MUDGUARDS

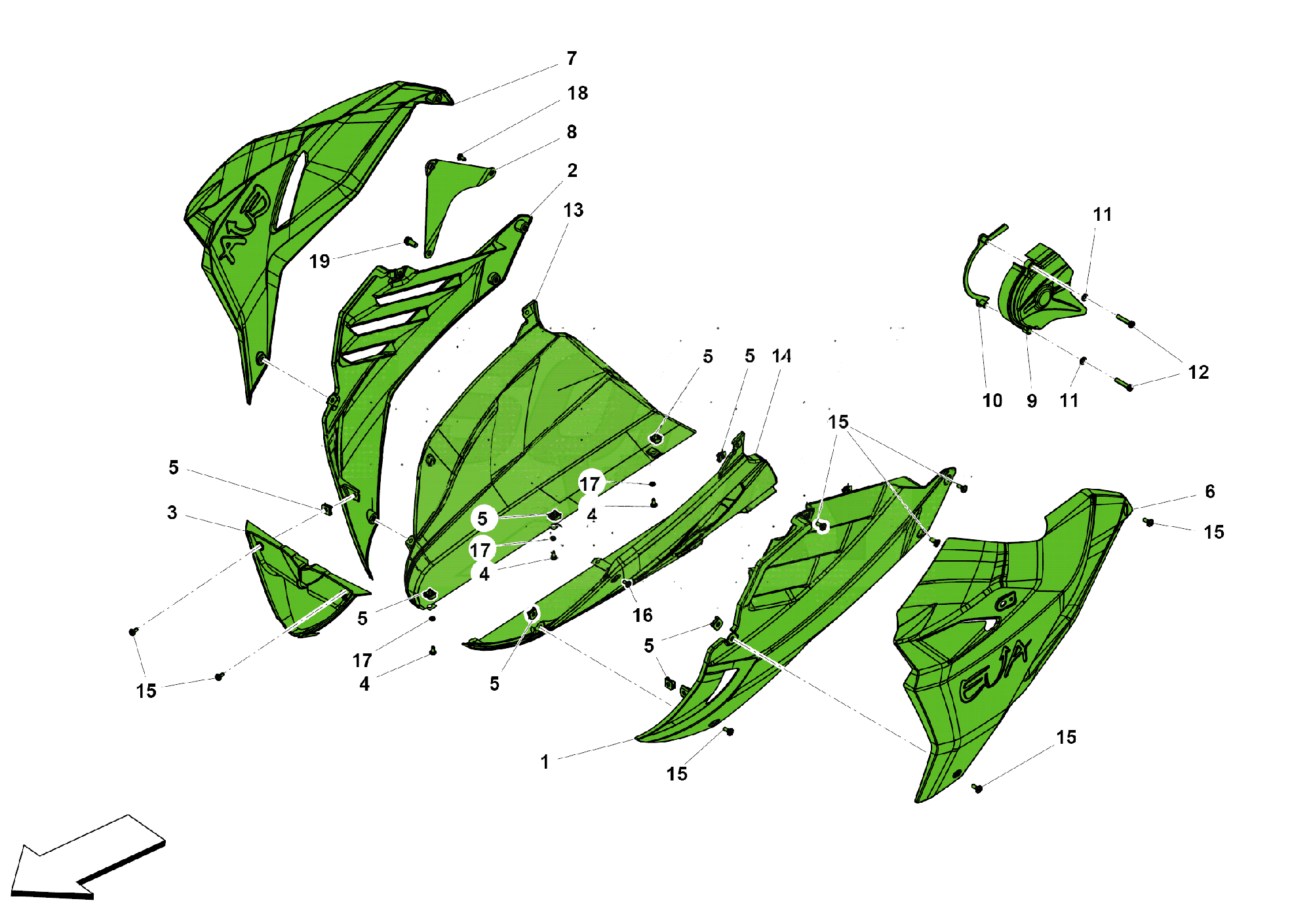

SIDE FAIRINGS AND BELLY PAN
023
SIDE FAIRINGS AND BELLY PAN

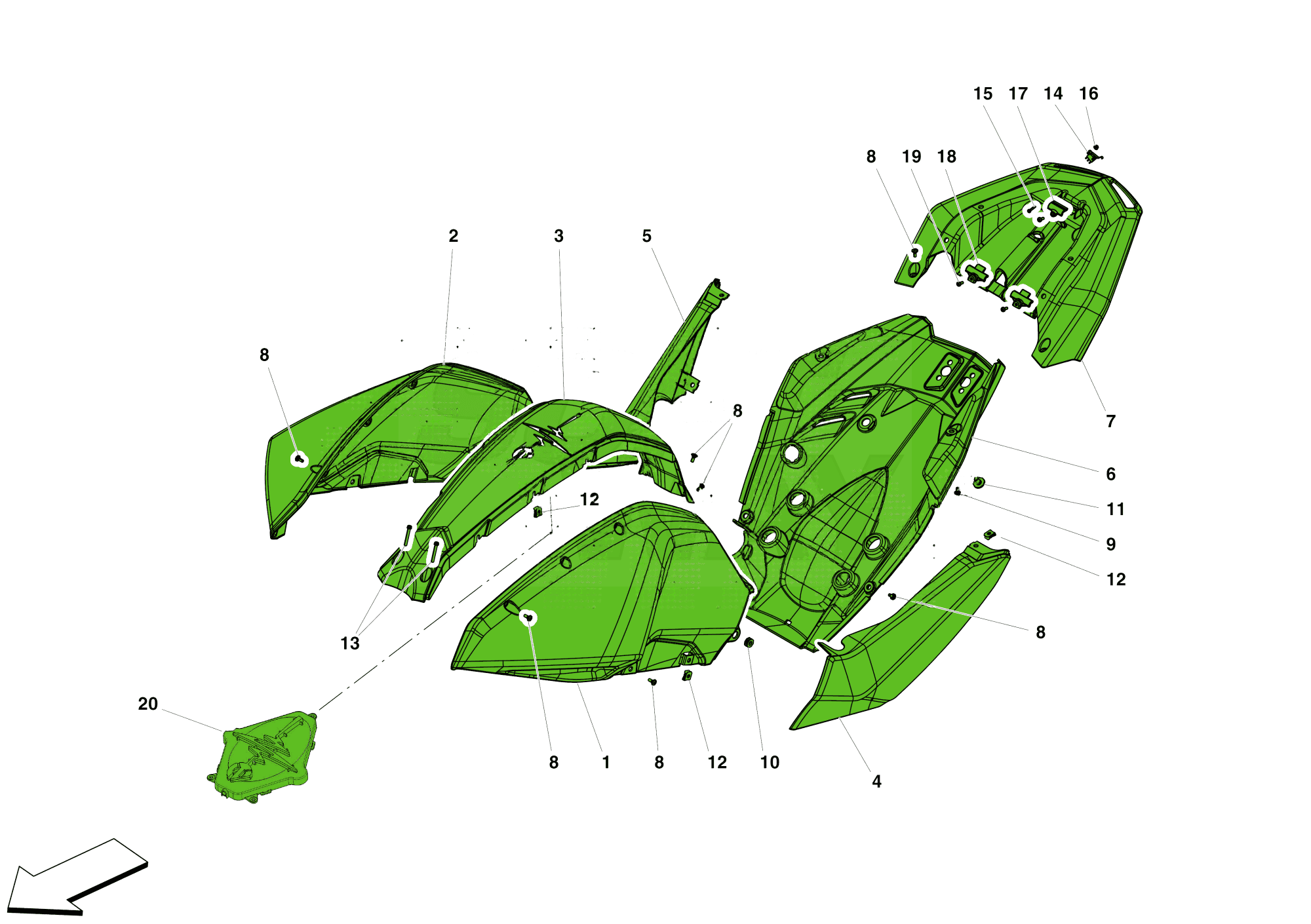

TANK FAIRING -TAIL FAIRING
024
TANK FAIRING -TAIL FAIRING

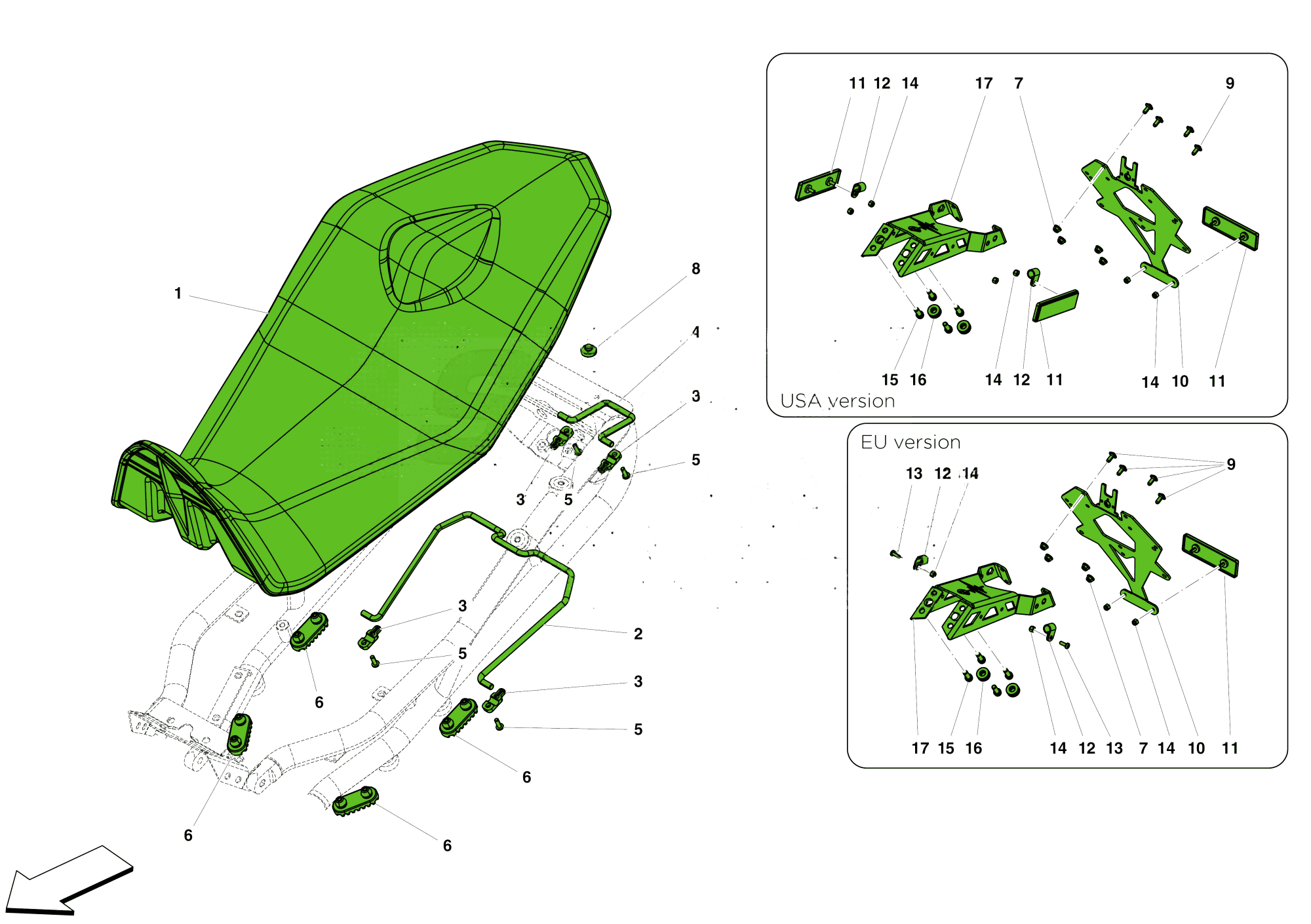

SEAT AND LICENSE PLATE HOLDER
025
SEAT AND LICENSE PLATE HOLDER

Electrical System and Instrumentation (8)

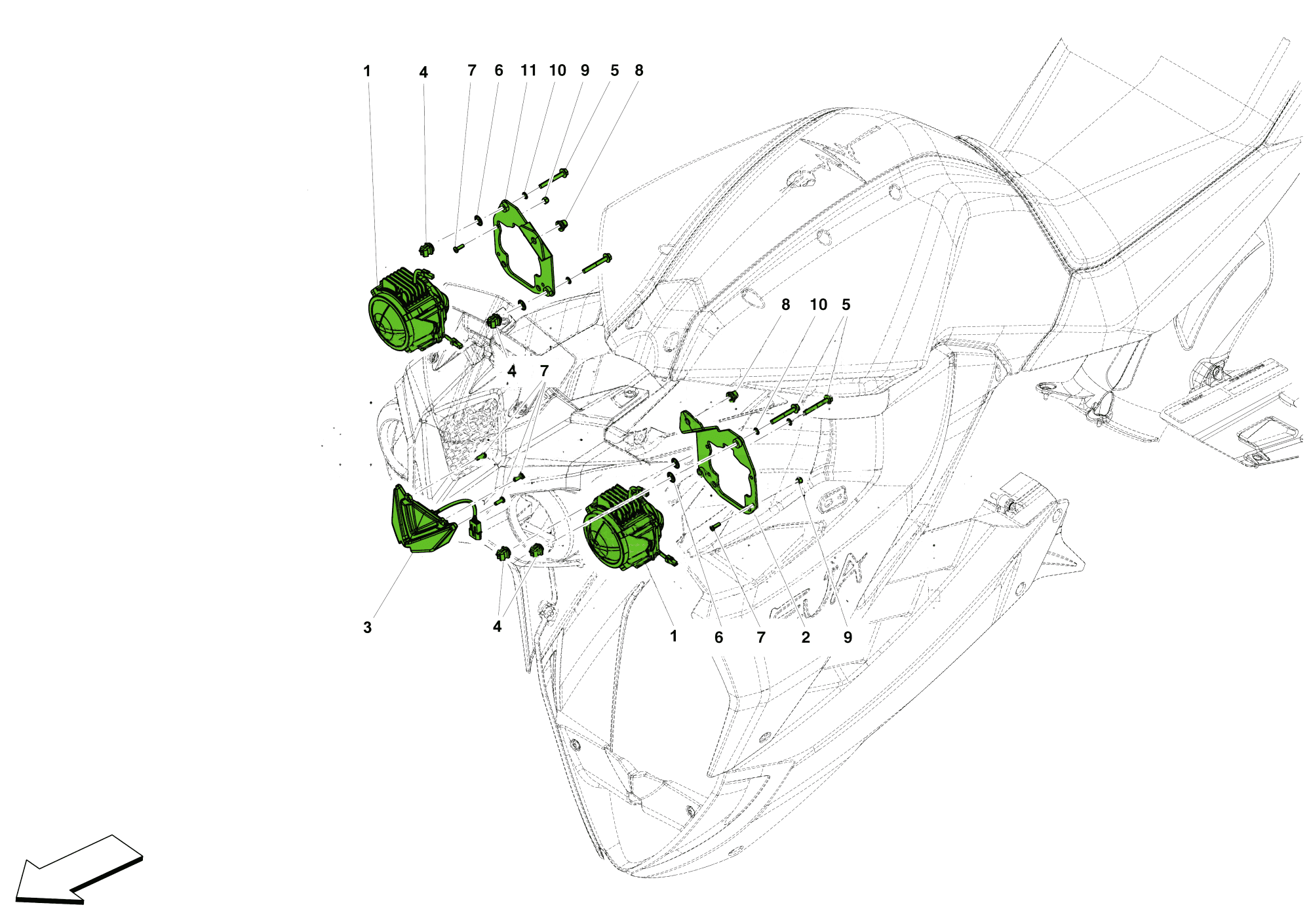

HEADLAMPS
026
HEADLAMPS

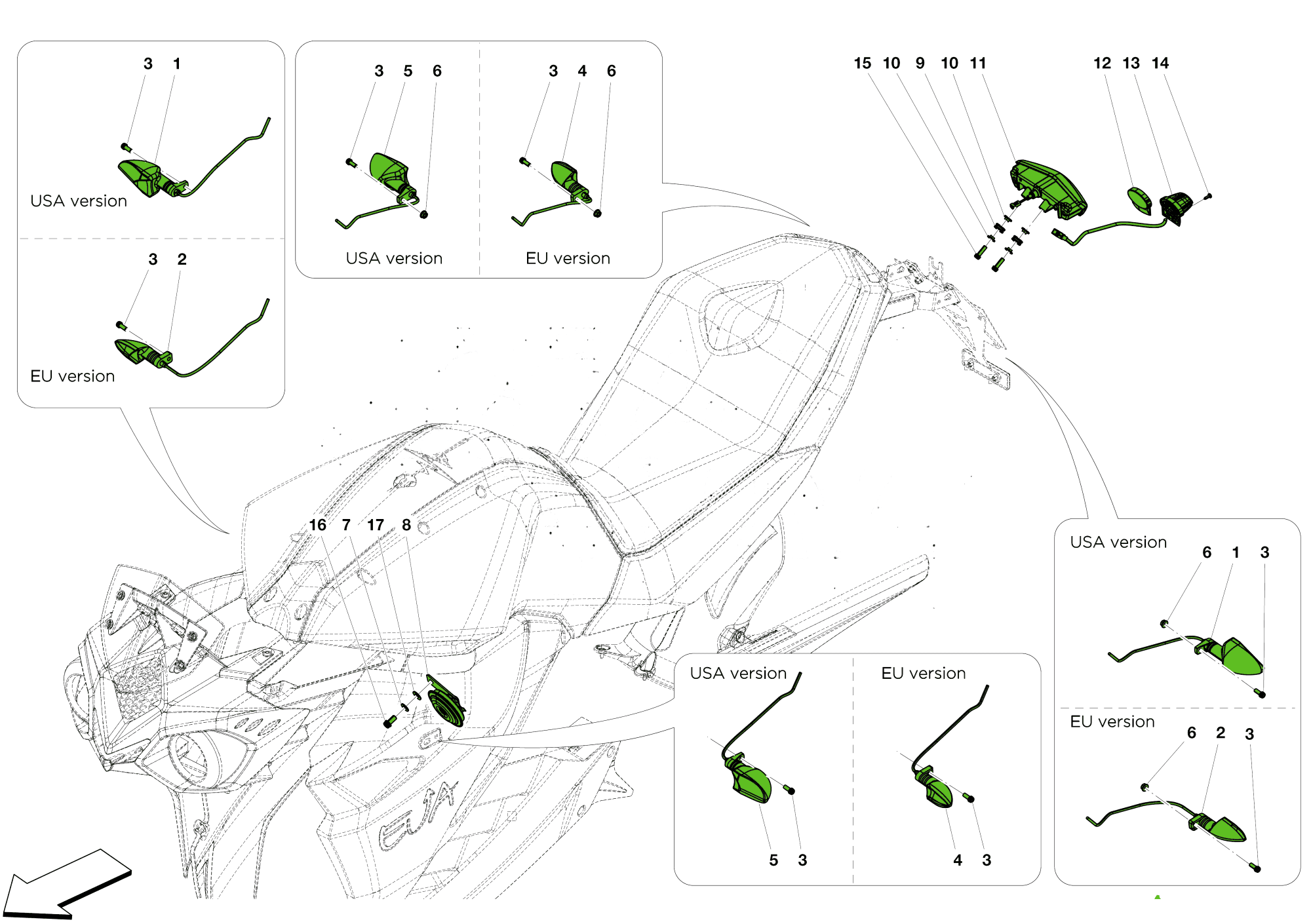

TURN INDICATORS
027
TURN INDICATORS

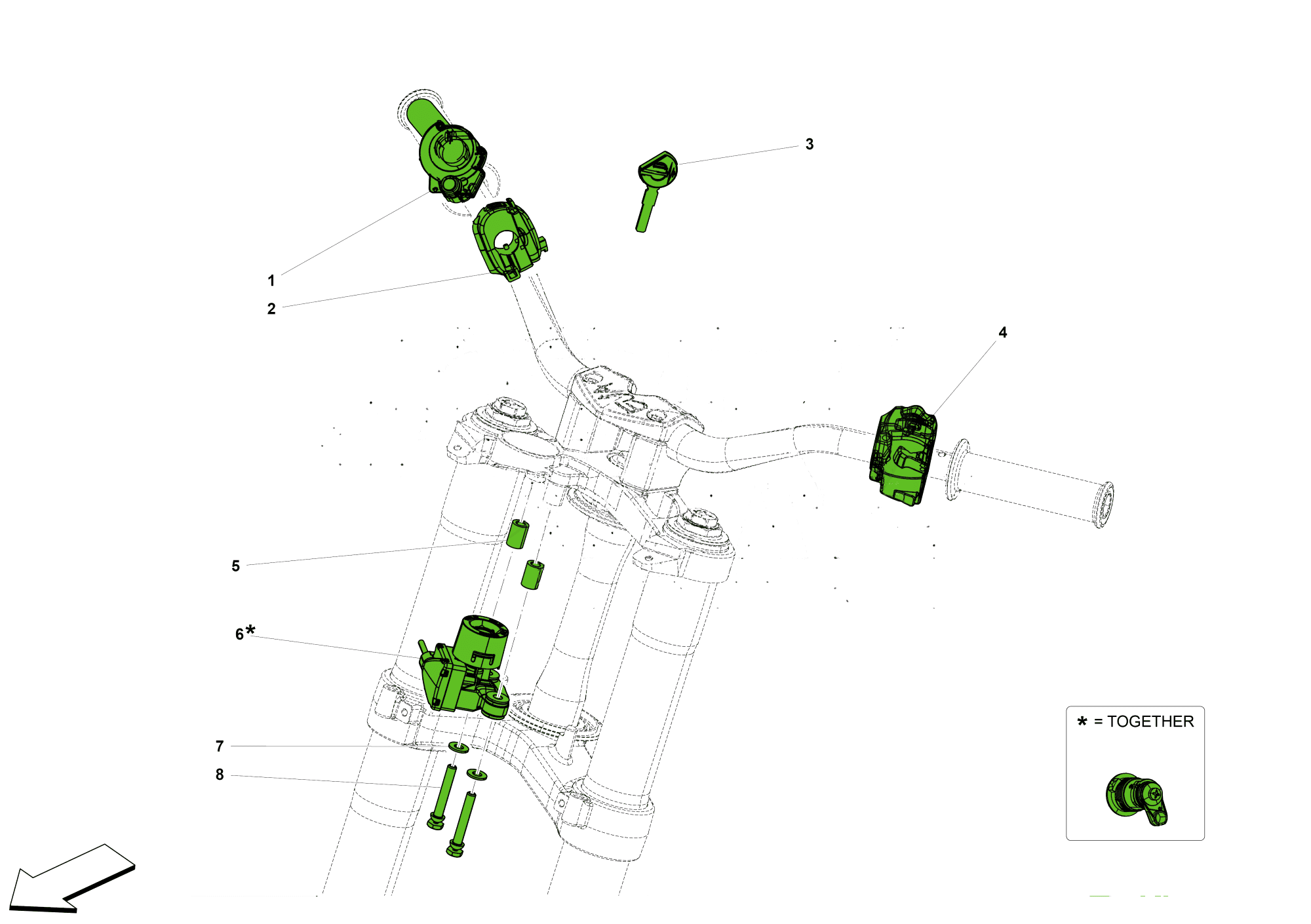

HANDLEBAR ELECTRONICS
028
HANDLEBAR ELECTRONICS

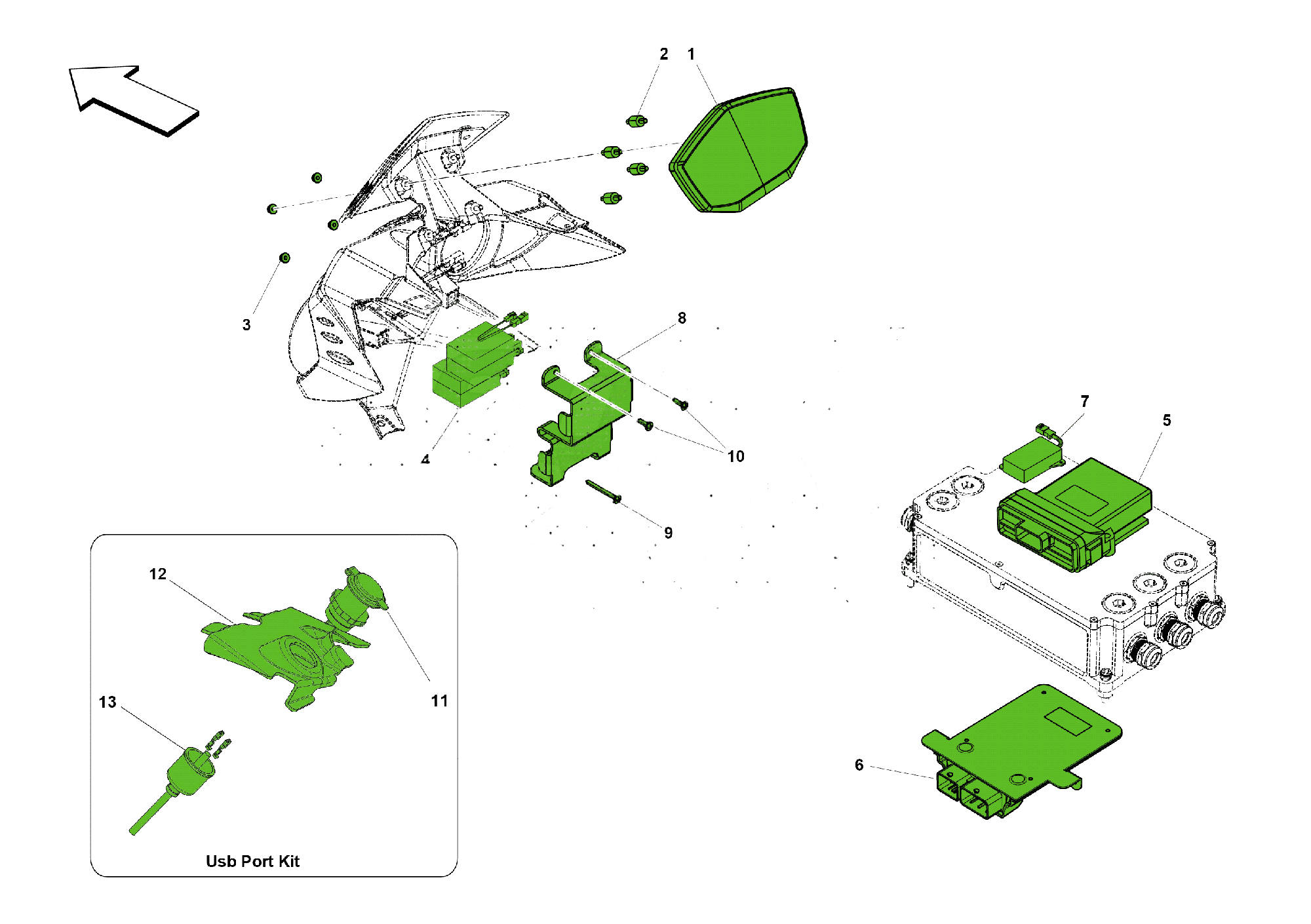

DASHBOARD
029
DASHBOARD

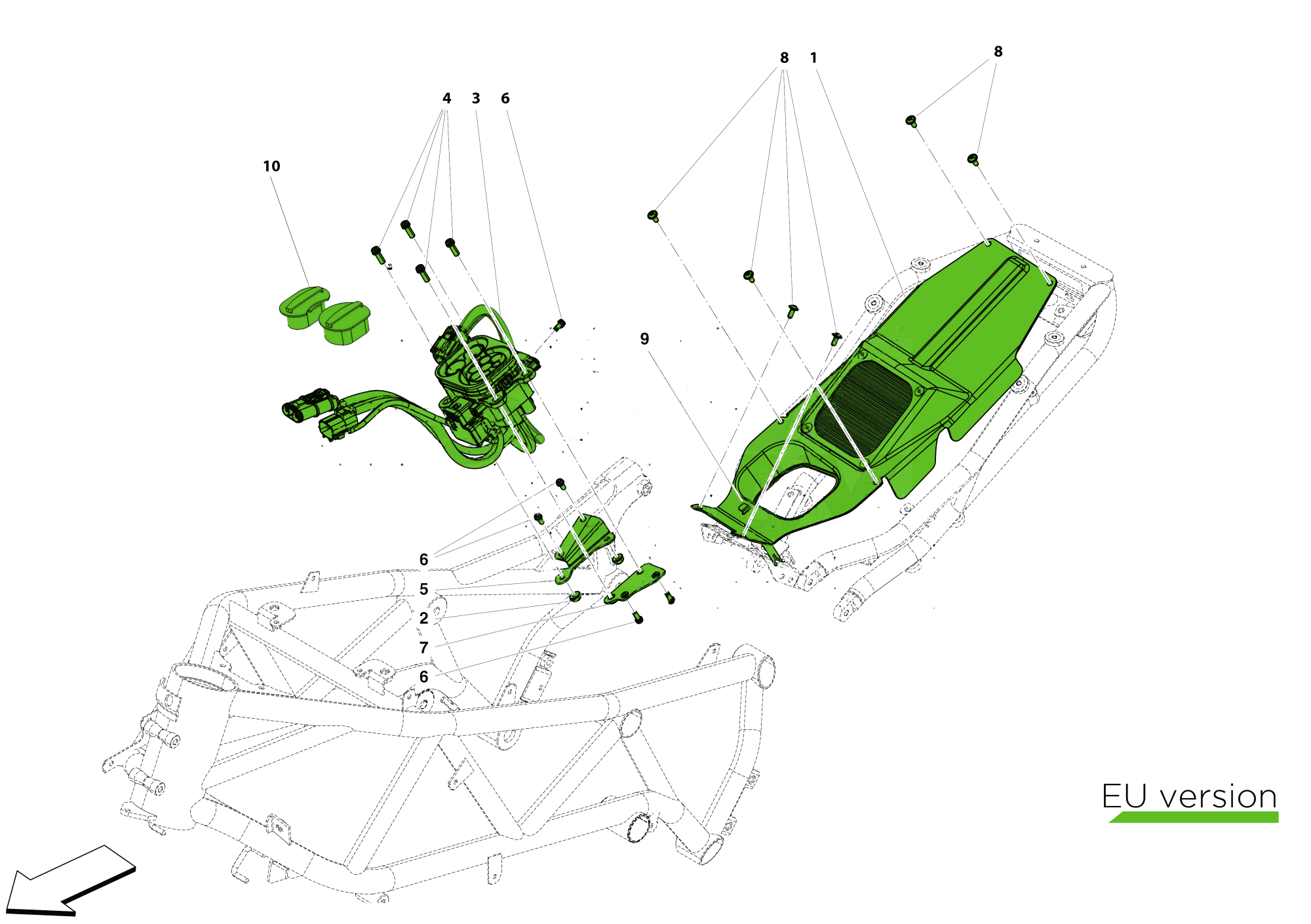

EU CHARGER CONNECTOR AND COVER
030
EU CHARGER CONNECTOR AND COVER

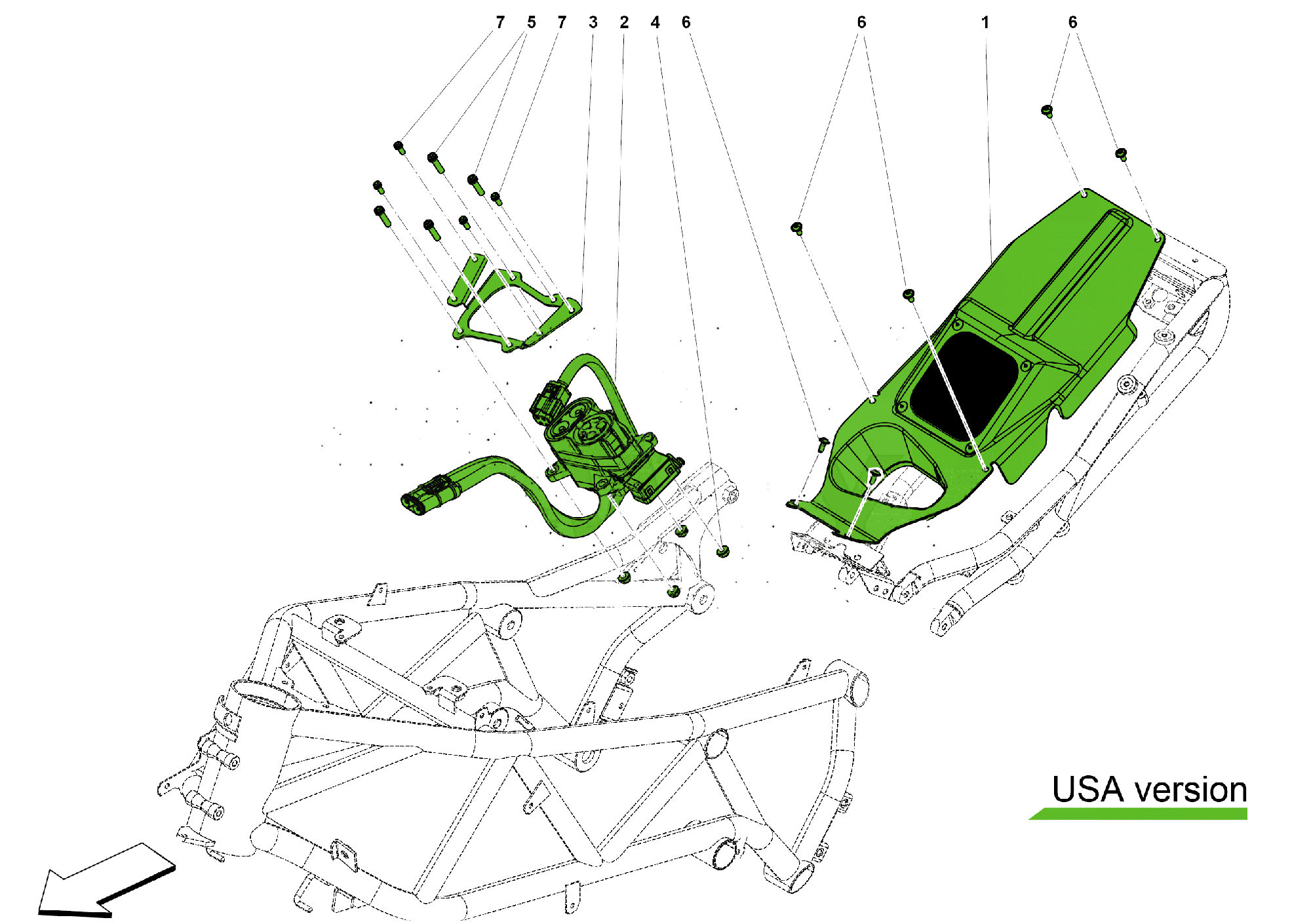

USA CHARGER CONNECTOR AND COVER
031
USA CHARGER CONNECTOR AND COVER

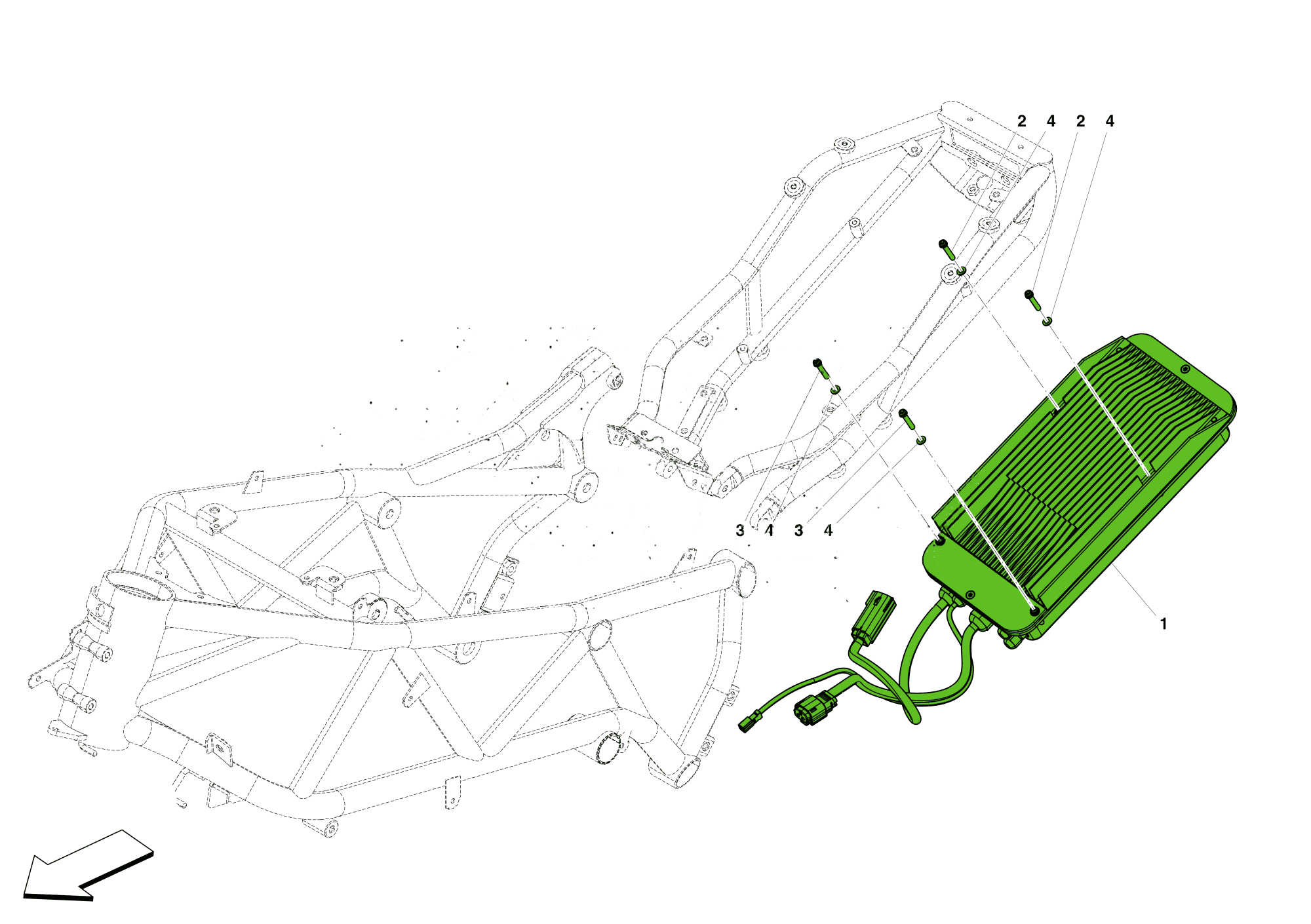

BATTERY CHARGE
032
BATTERY CHARGE
ELECTRICAL SYSTEM
033
ELECTRICAL SYSTEM

Motor (7)

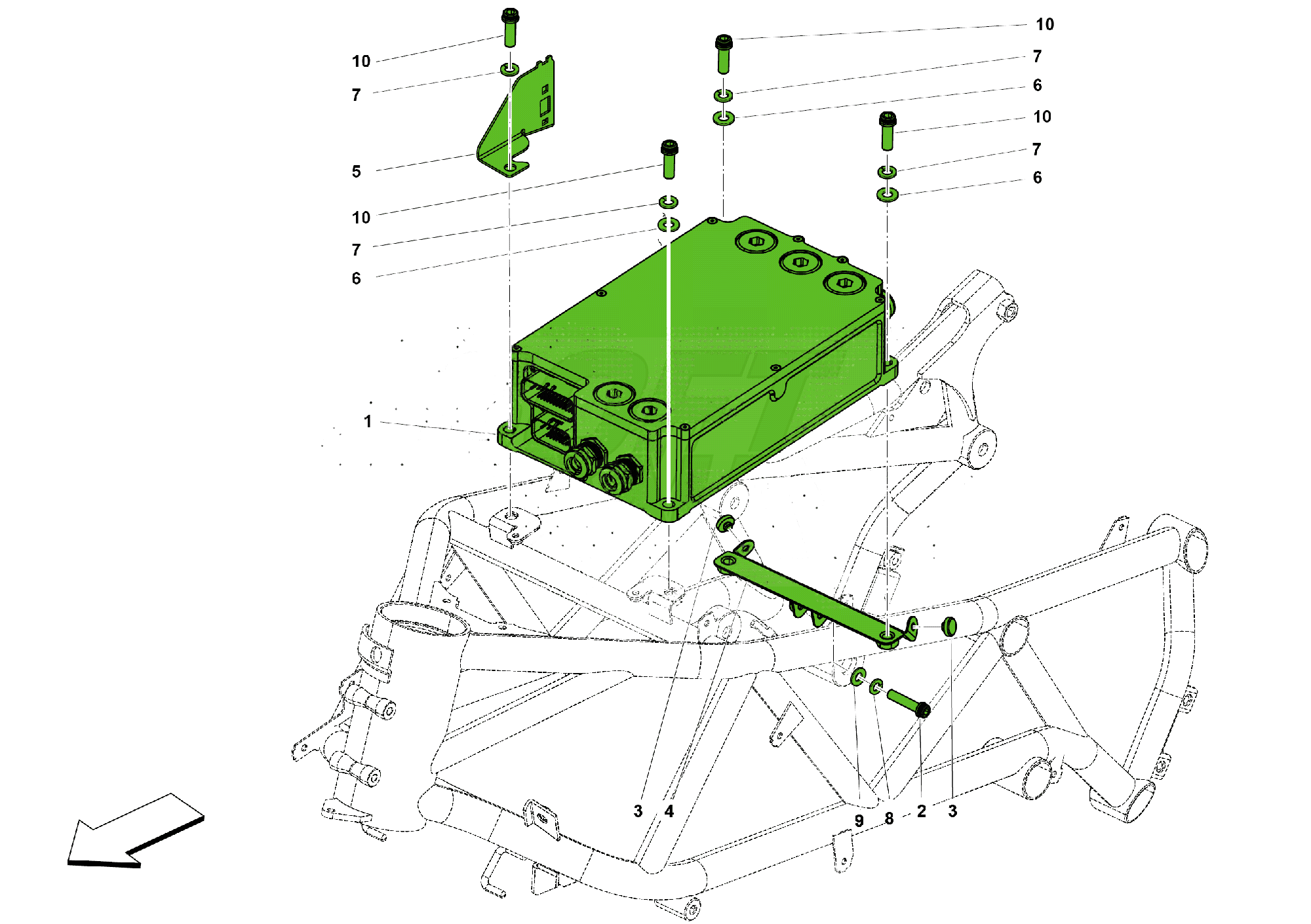

INVERTER
009
INVERTER

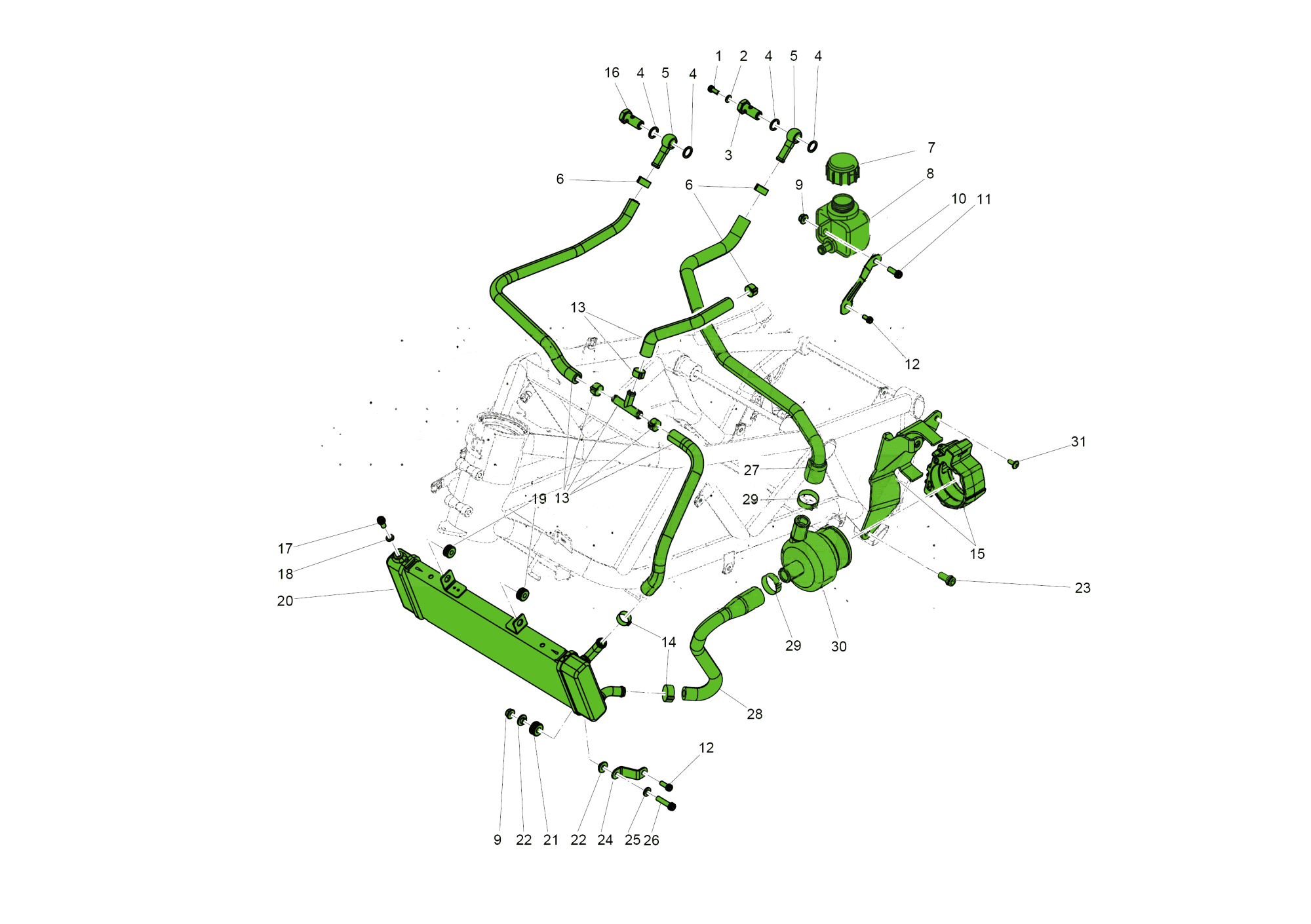

WATER RADIATOR
010
WATER RADIATOR

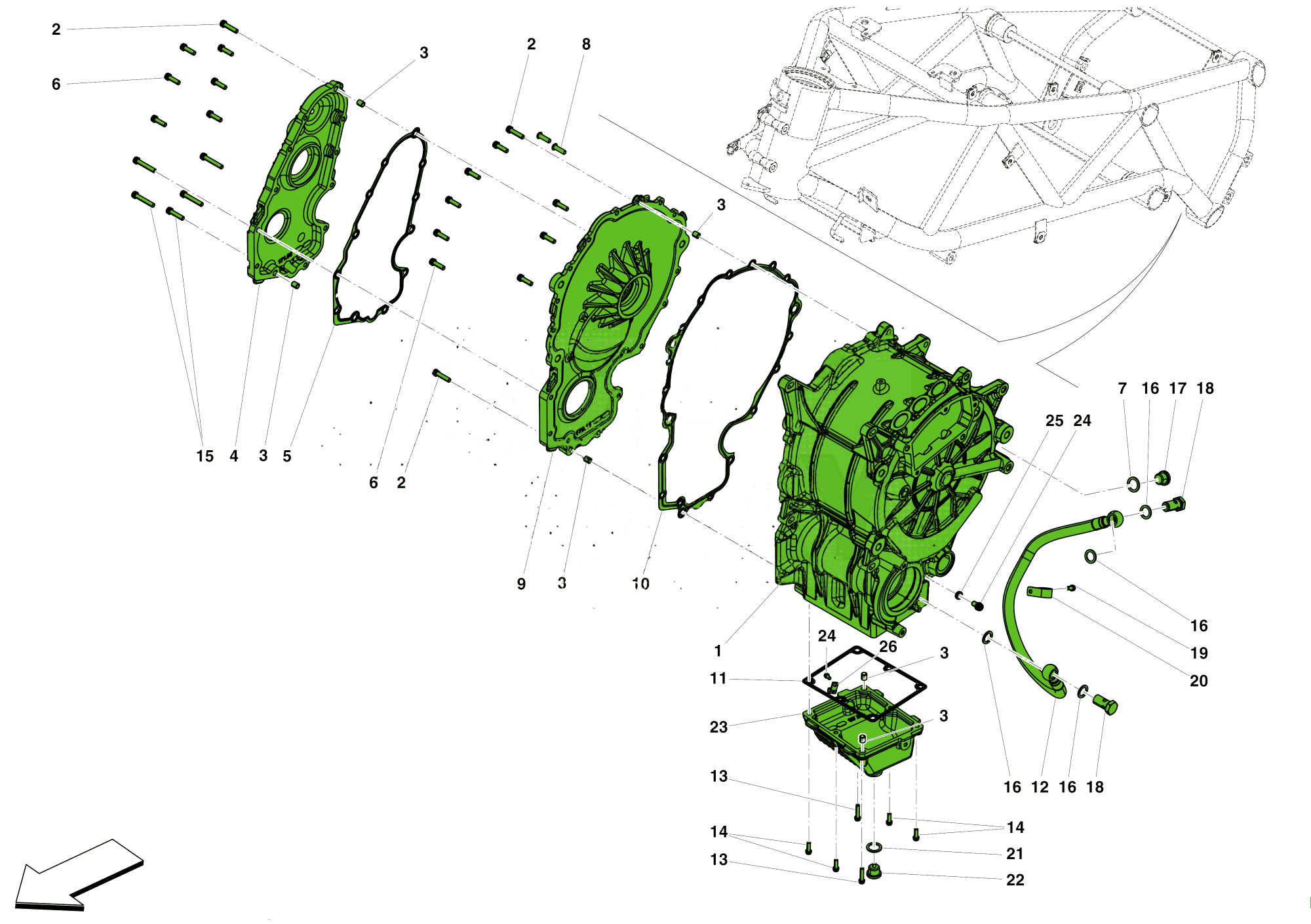

MOTOR HOUSINGS
017
MOTOR HOUSINGS

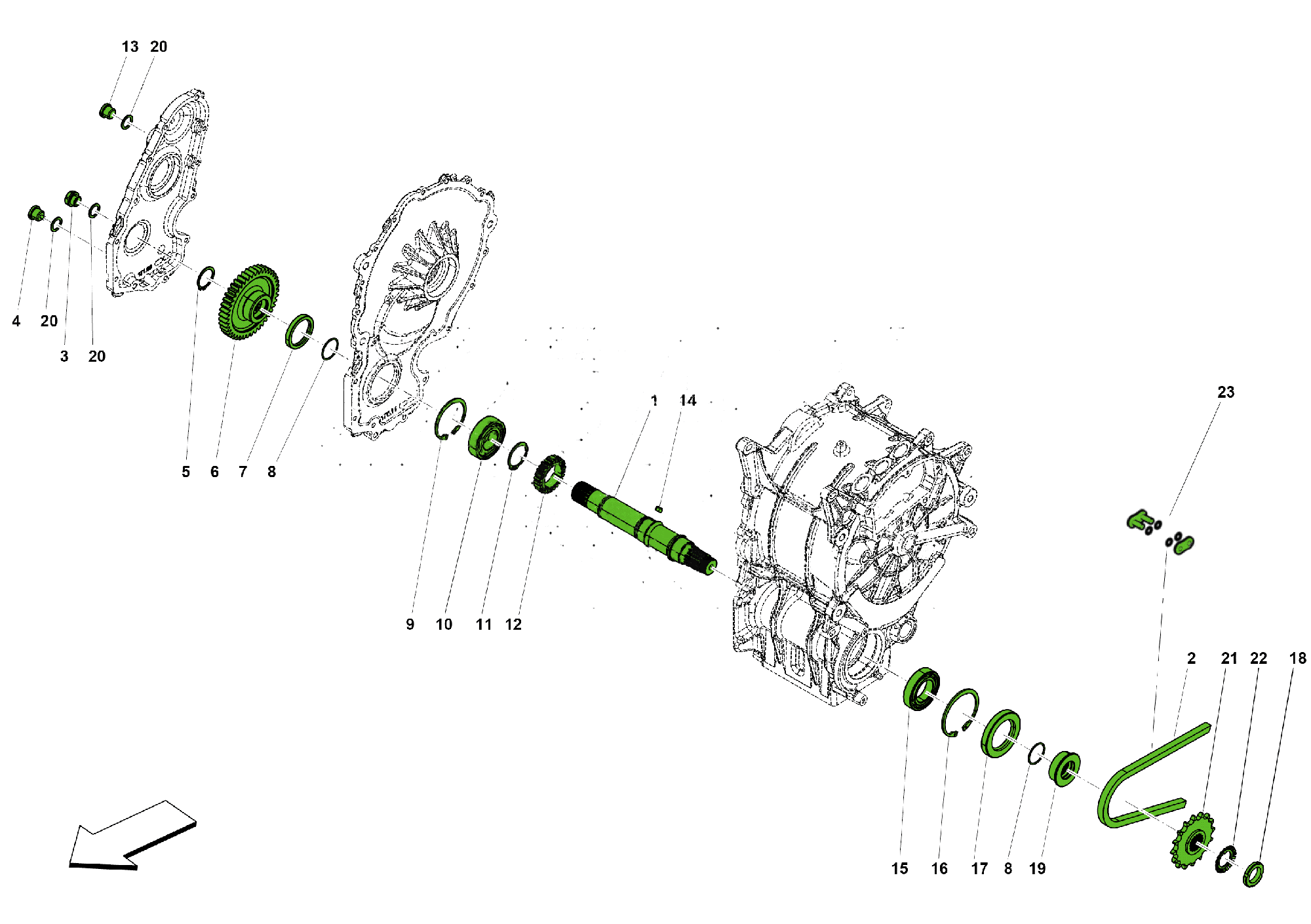

MOTOR TRANSMISSION
018
MOTOR TRANSMISSION
ELECTRIC MOTOR TRANSMISSION
019
ELECTRIC MOTOR TRANSMISSION

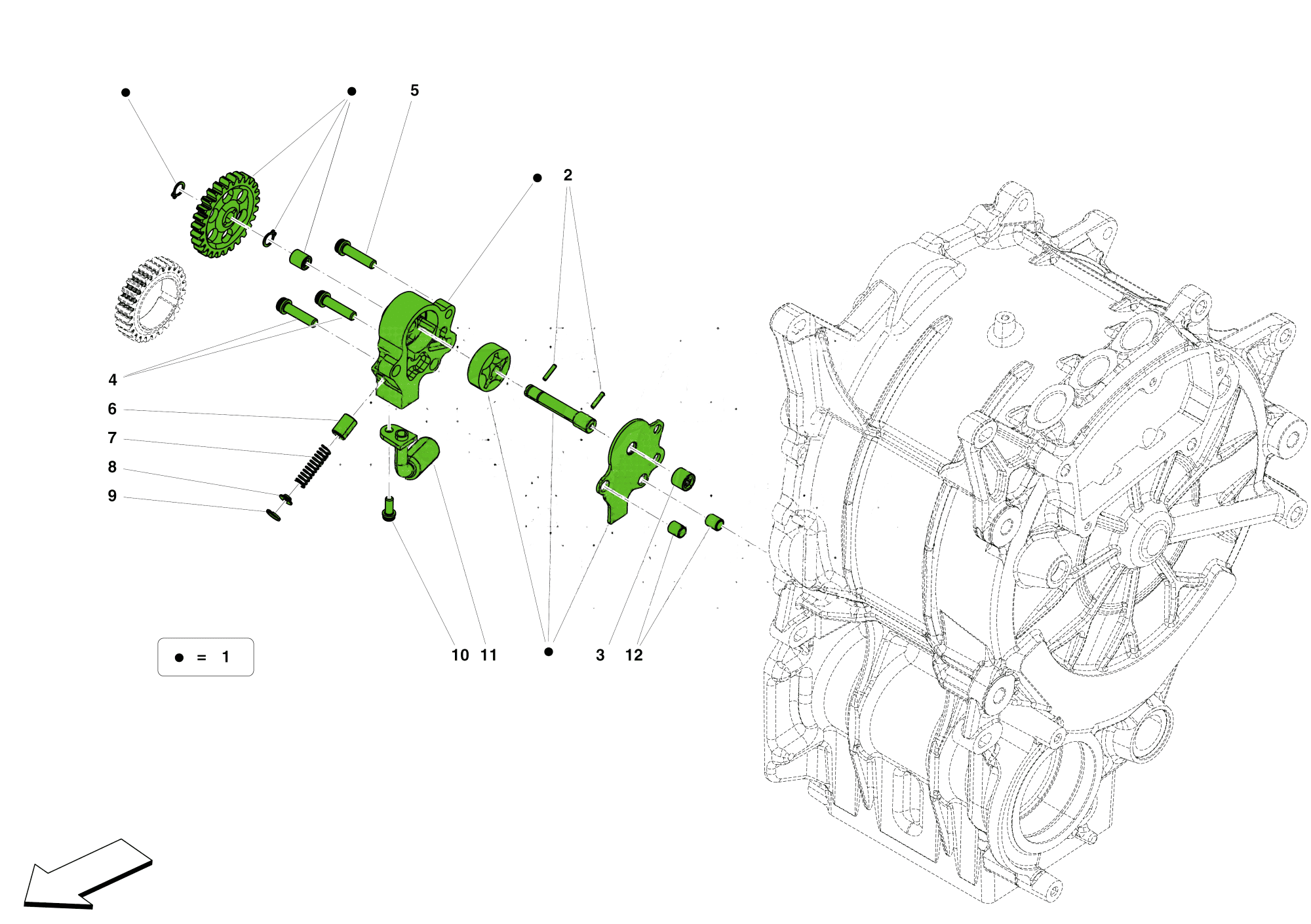

MOTOR OIL PUMP
020
MOTOR OIL PUMP

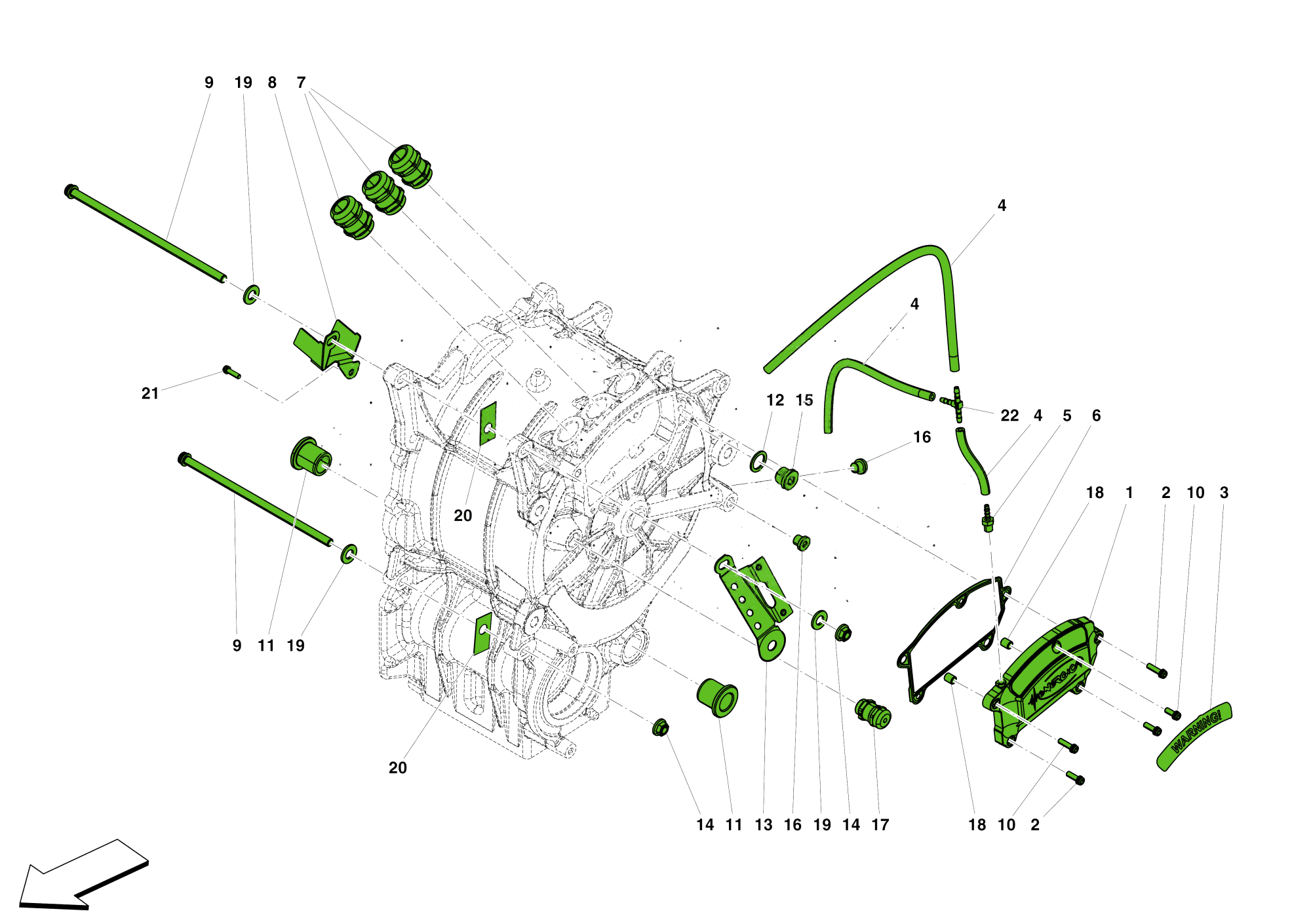

MOTOR COVER AND PLUGS
021
MOTOR COVER AND PLUGS

Frame (14)

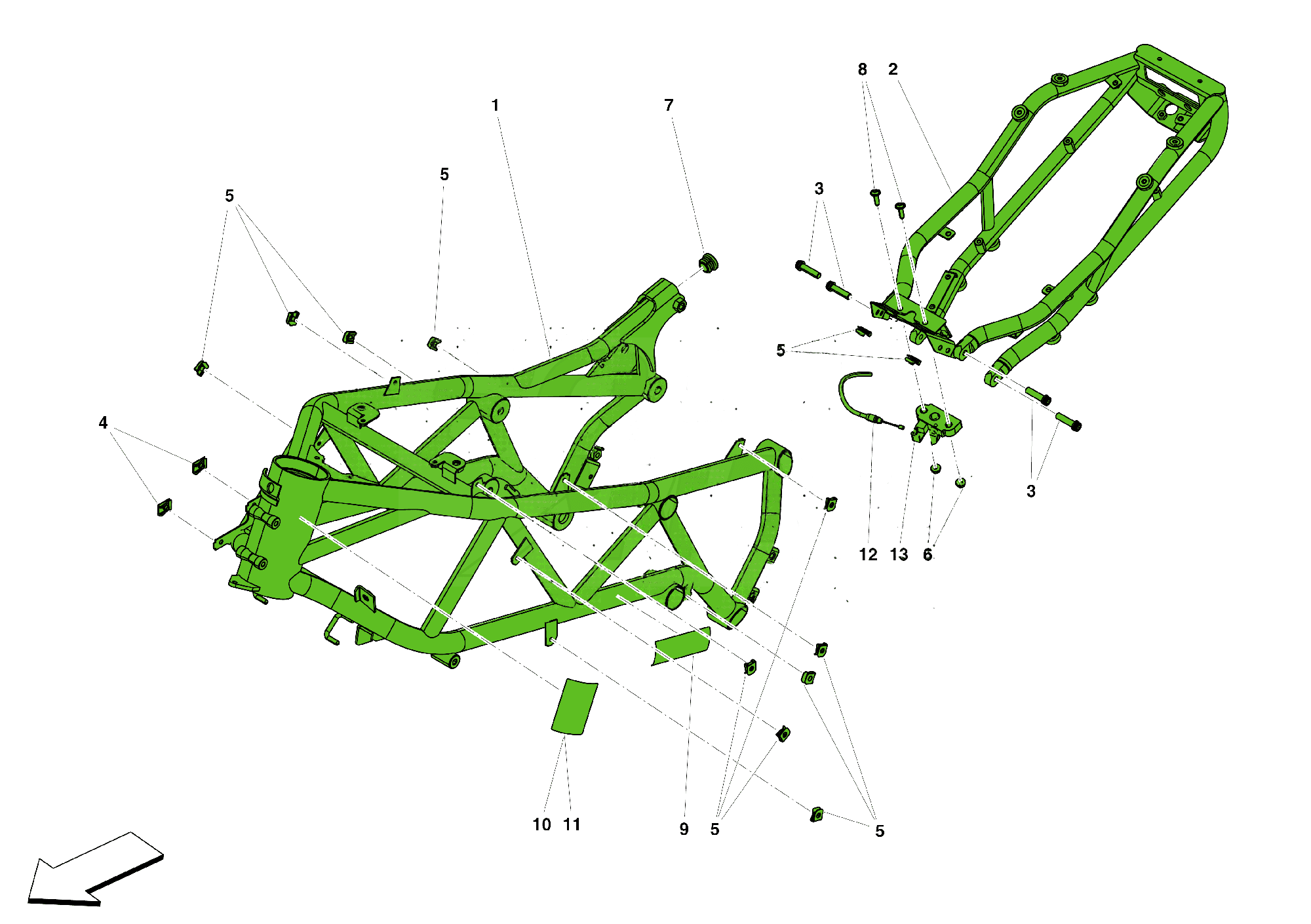

FRAME
001
FRAME

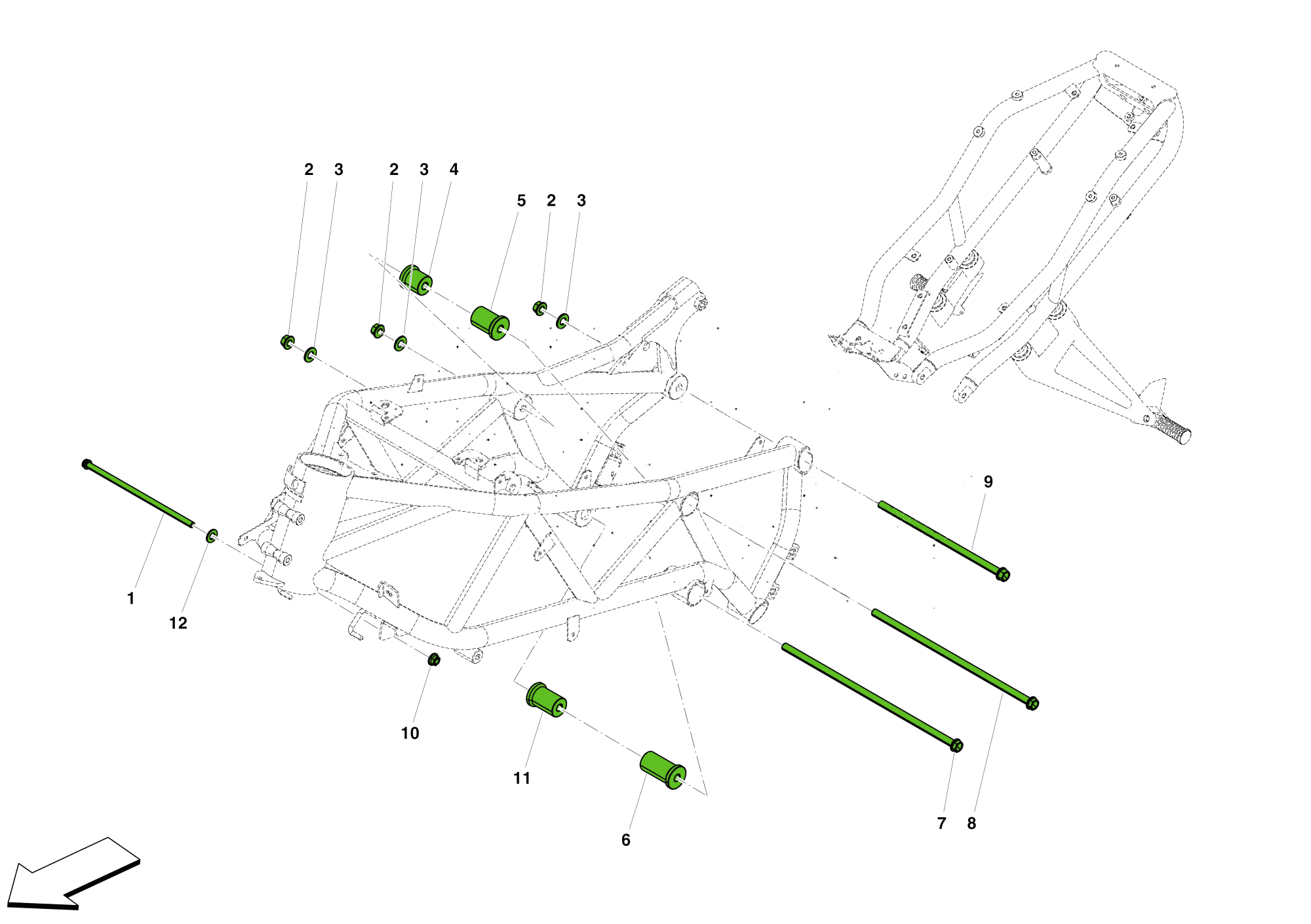

MAIN FRAME
002
MAIN FRAME

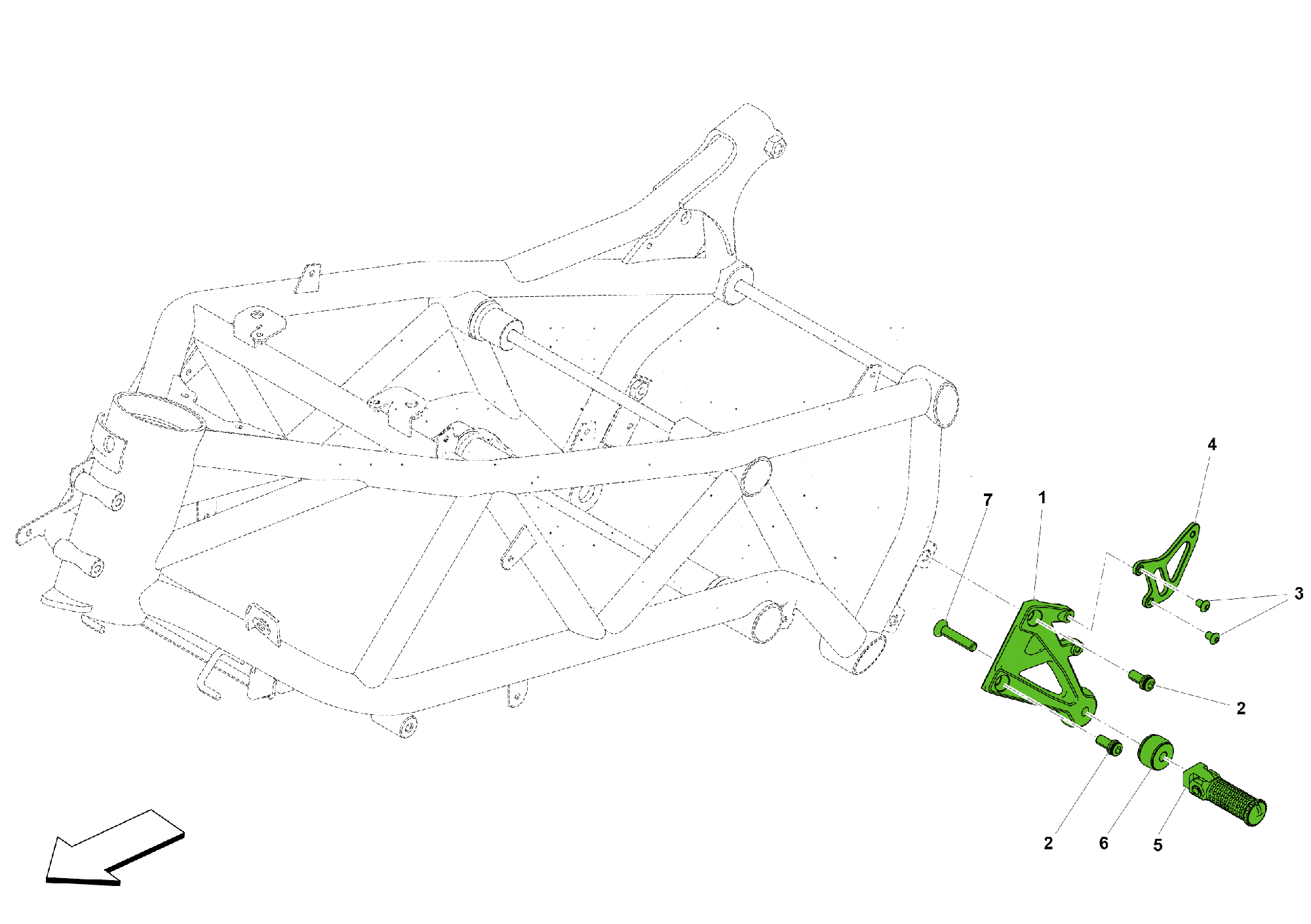

LH RIDER FOOTPEG
003
LH RIDER FOOTPEG

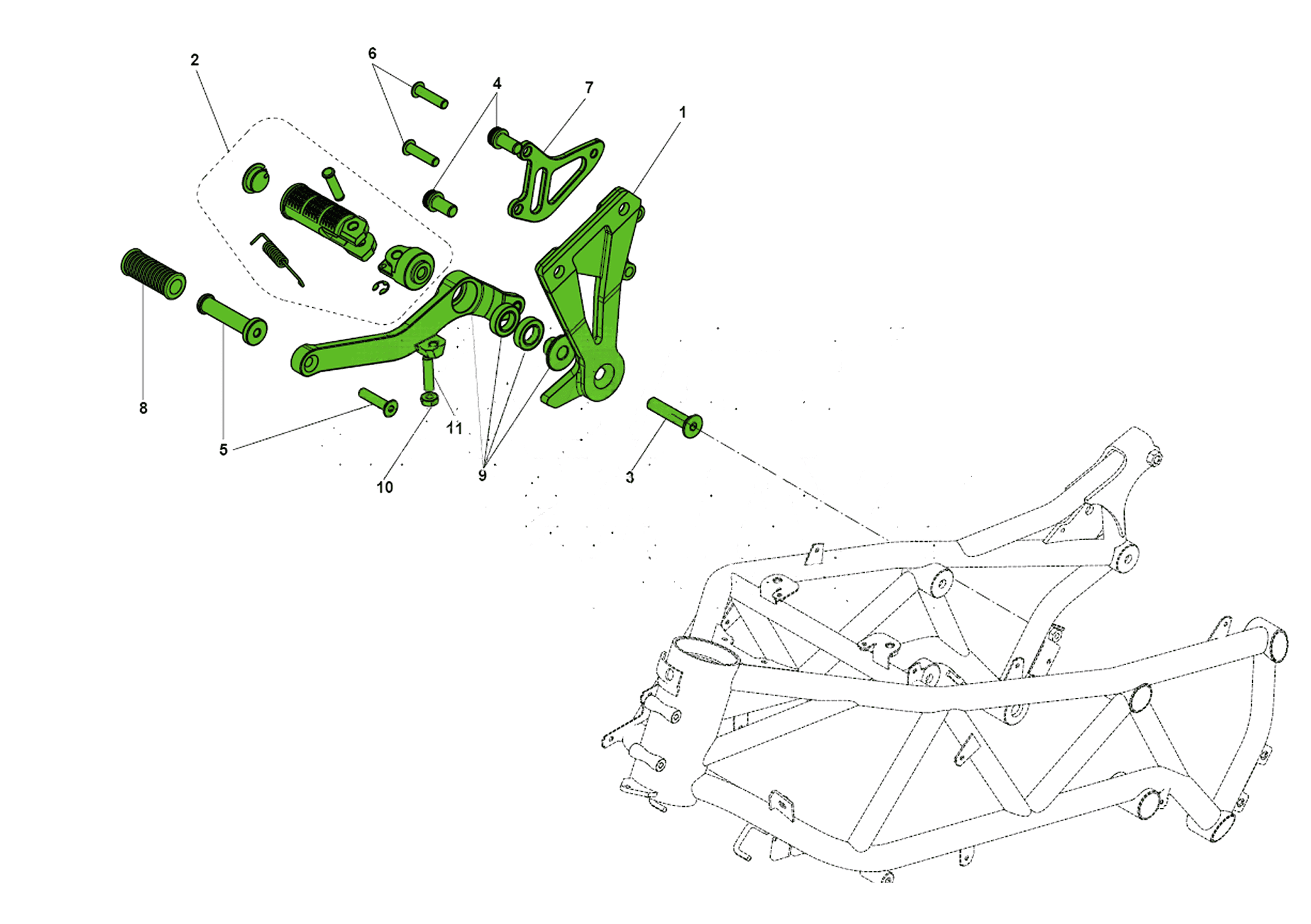

RH RIDER FOOTPEG
004
RH RIDER FOOTPEG

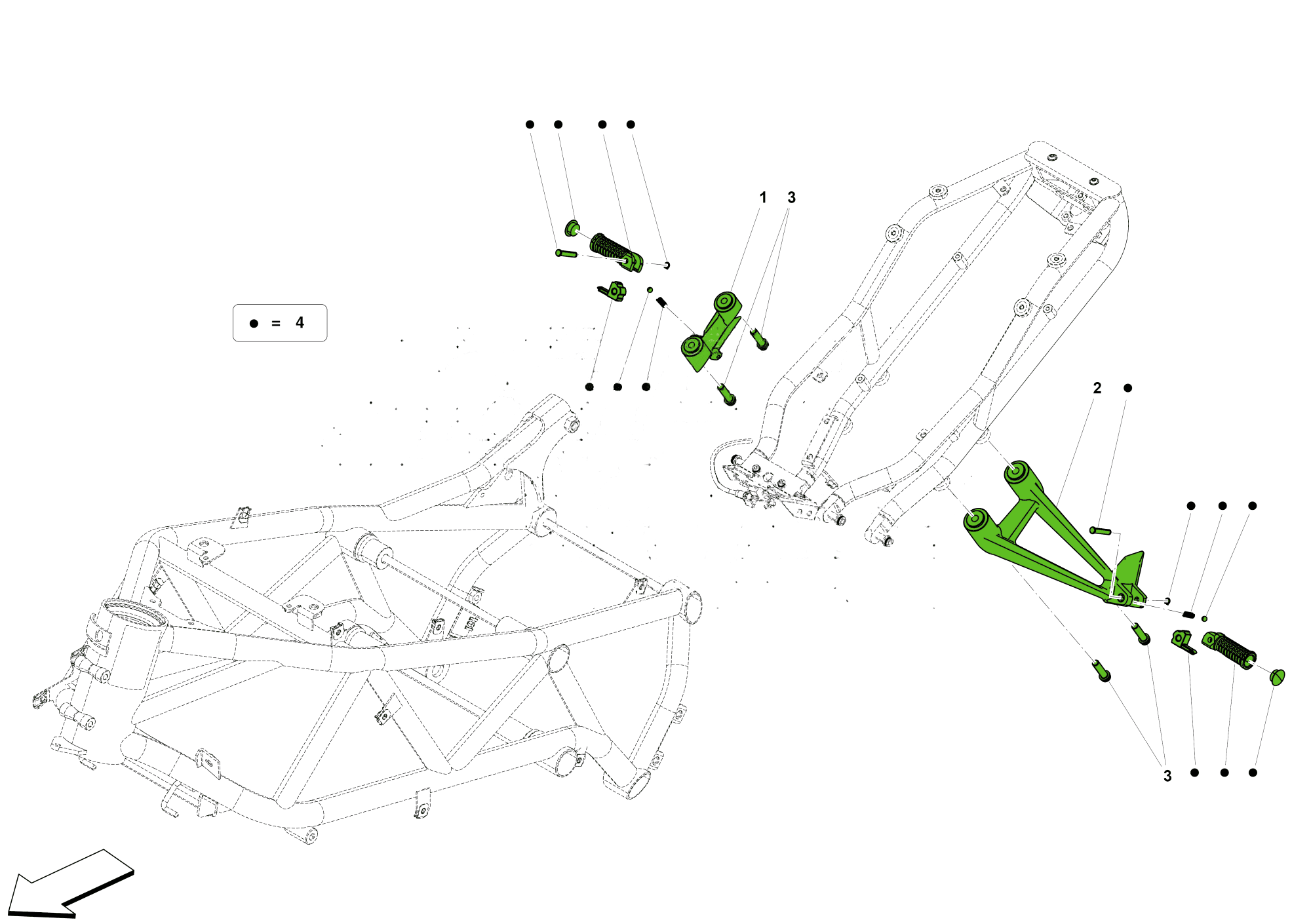

PASSENGER FOOTPEGS
005
PASSENGER FOOTPEGS

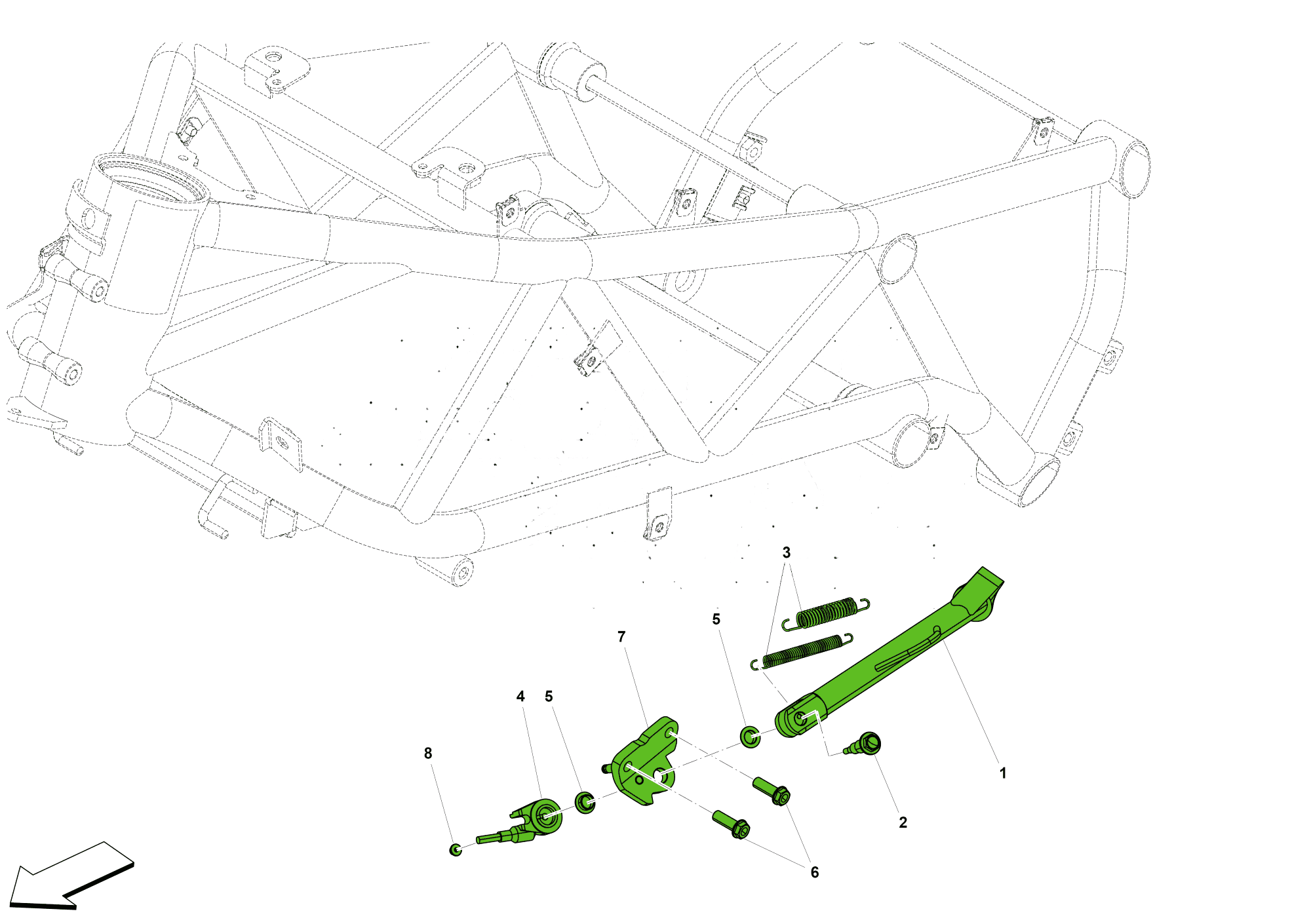

SIDE STAND
006
SIDE STAND

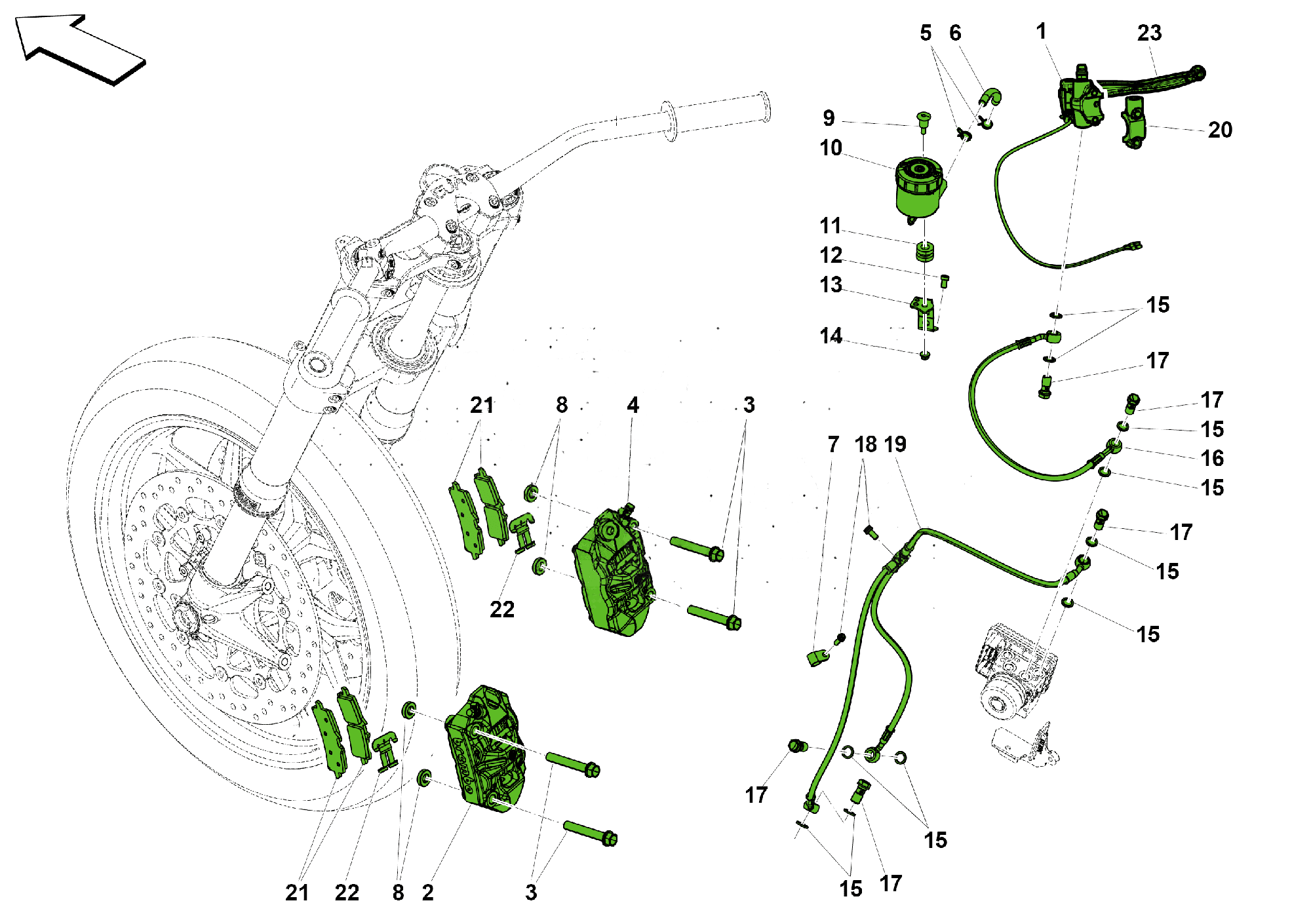

FRONT BRAKE
007
FRONT BRAKE

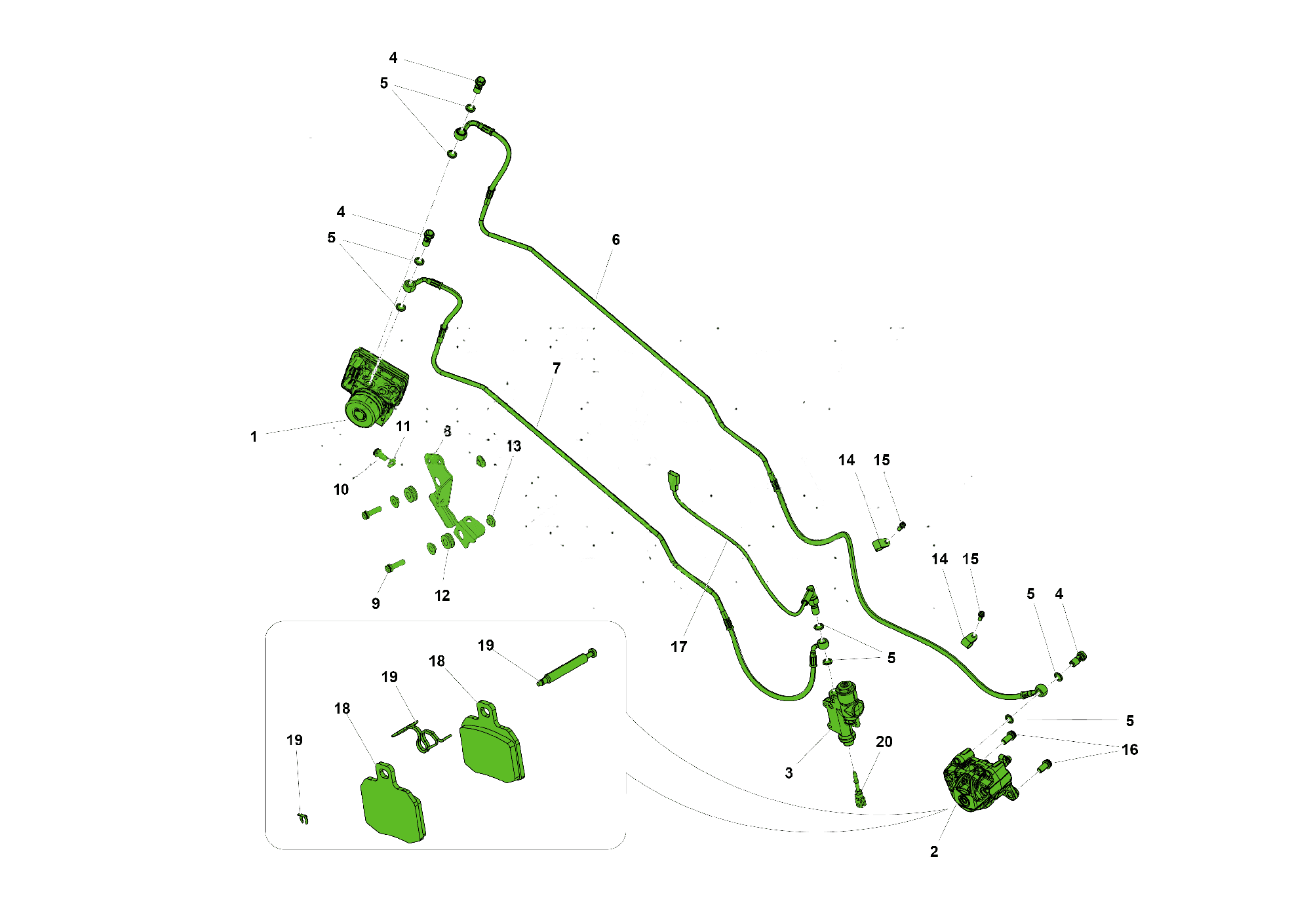

REAR BRAKE
008
REAR BRAKE

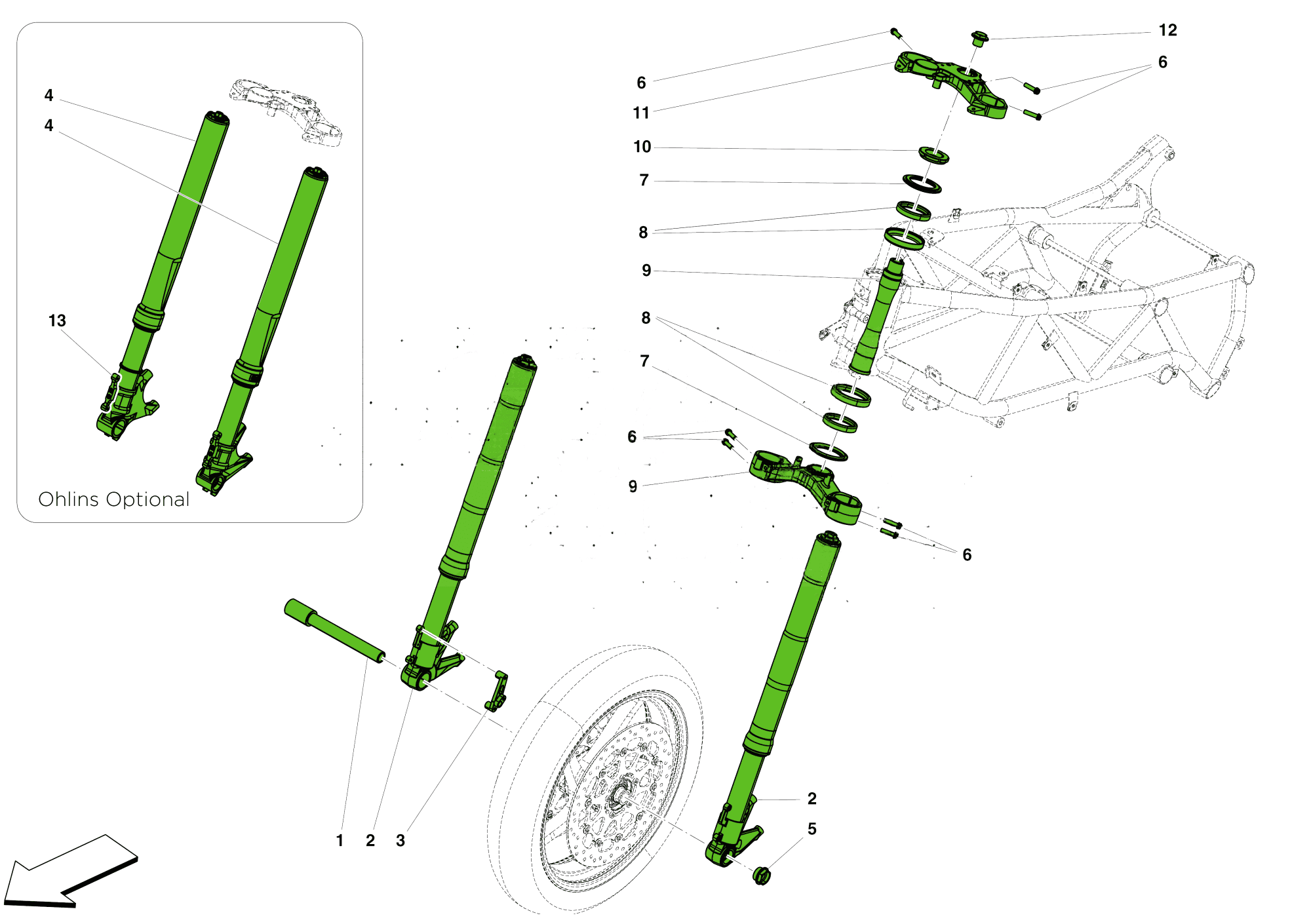

FRONT SUSPENSION
011
FRONT SUSPENSION

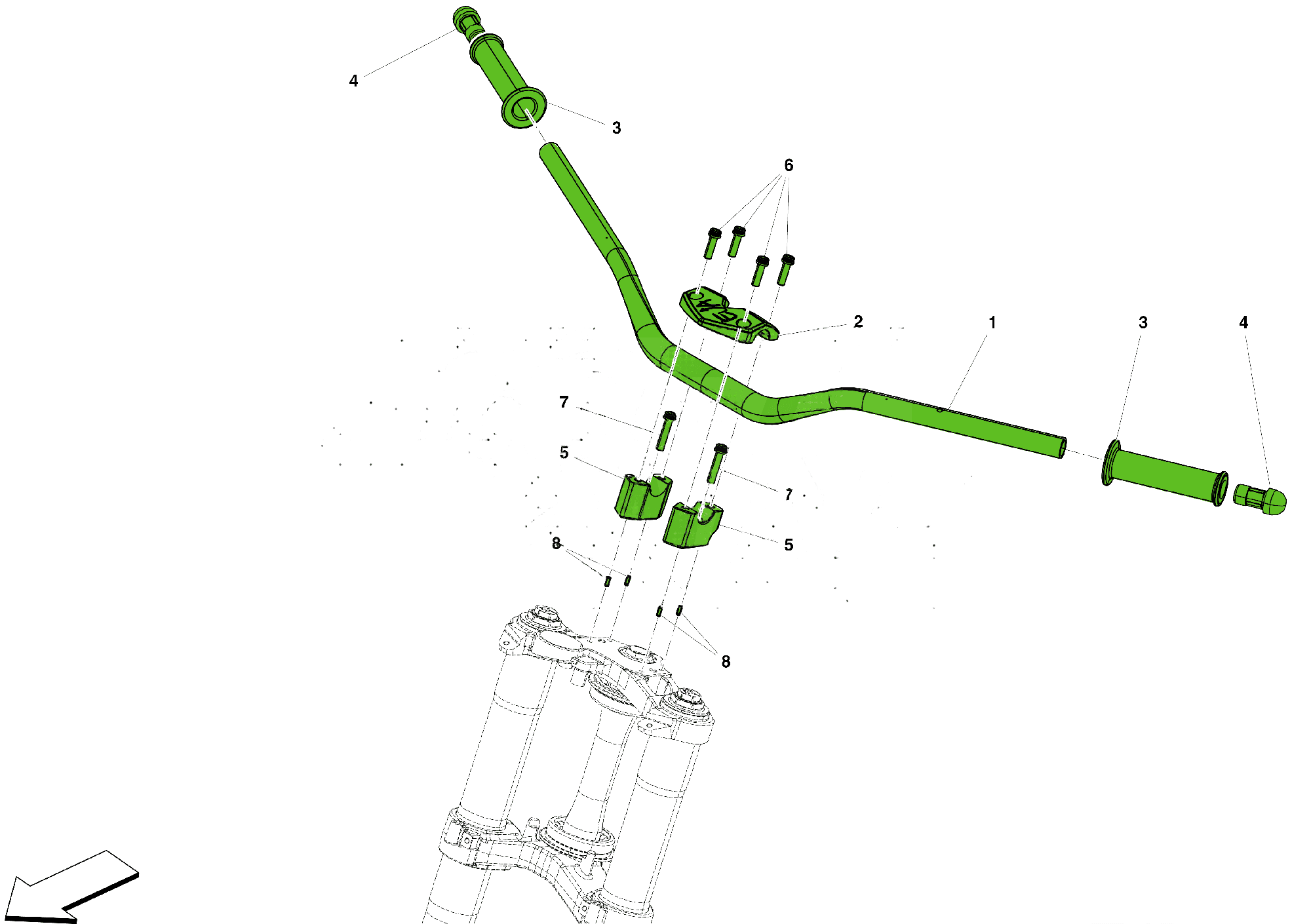

HANDLEBAR
012
HANDLEBAR

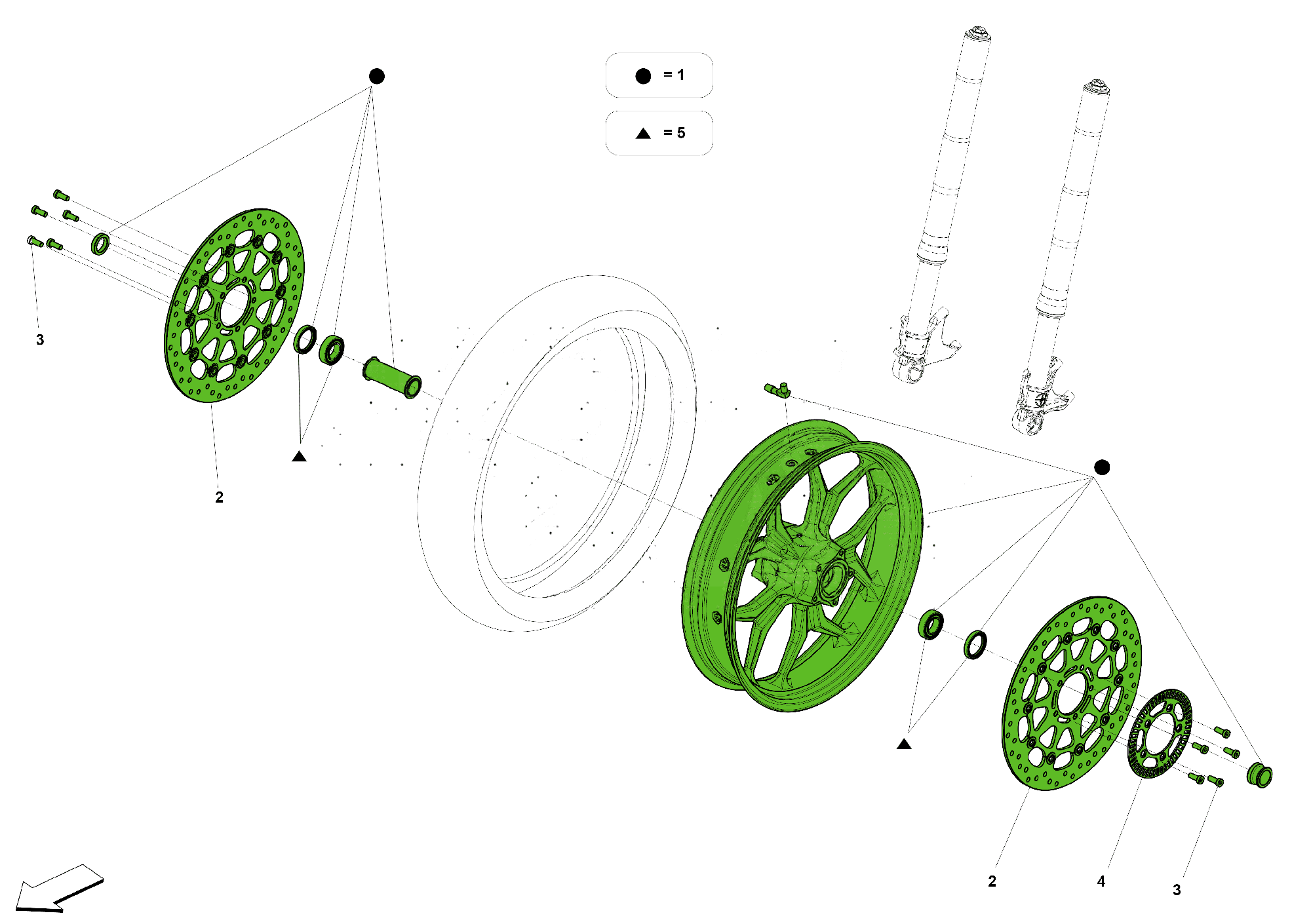

FRONT WHEEL
013
FRONT WHEEL

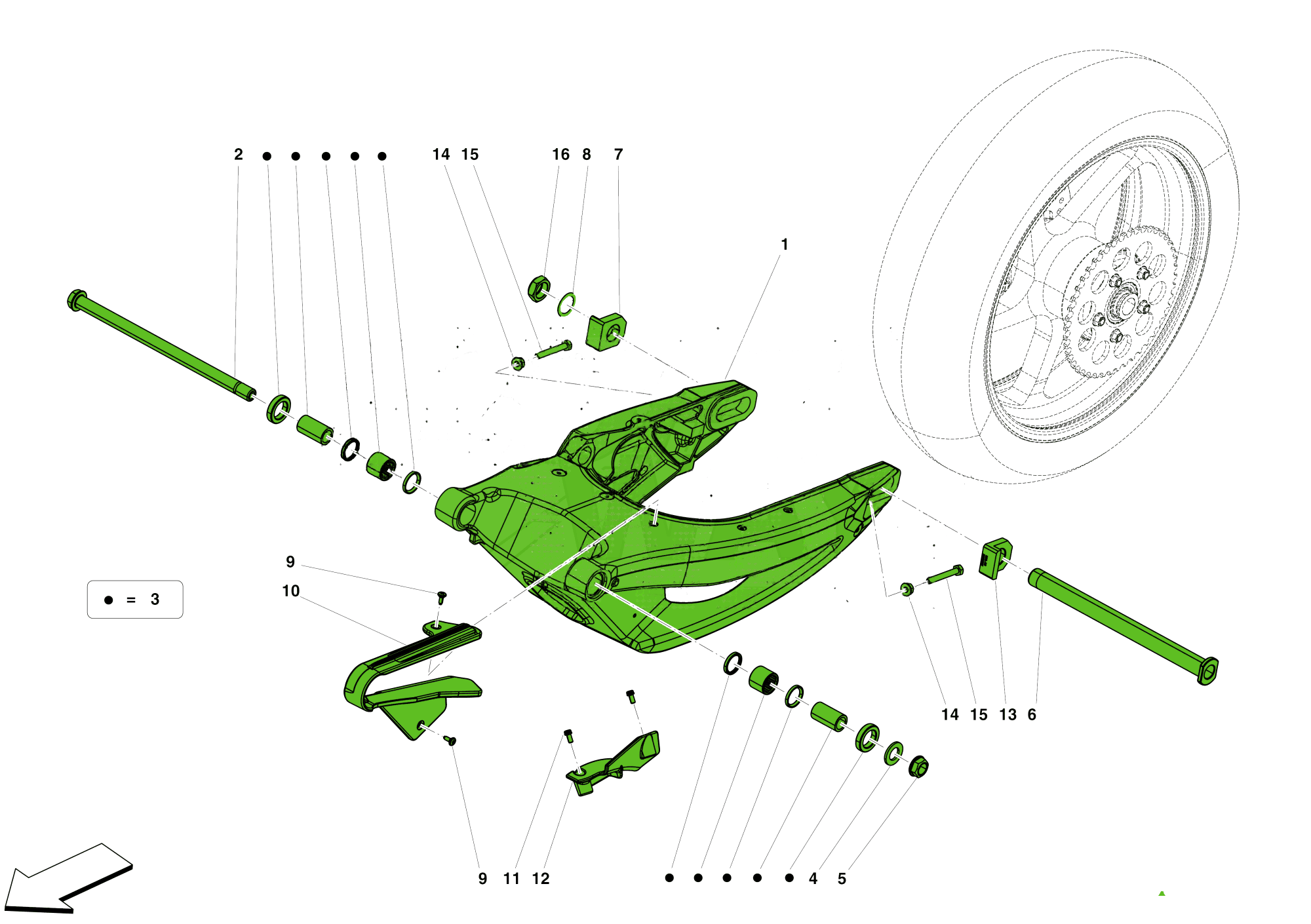

SWINGARM
014
SWINGARM

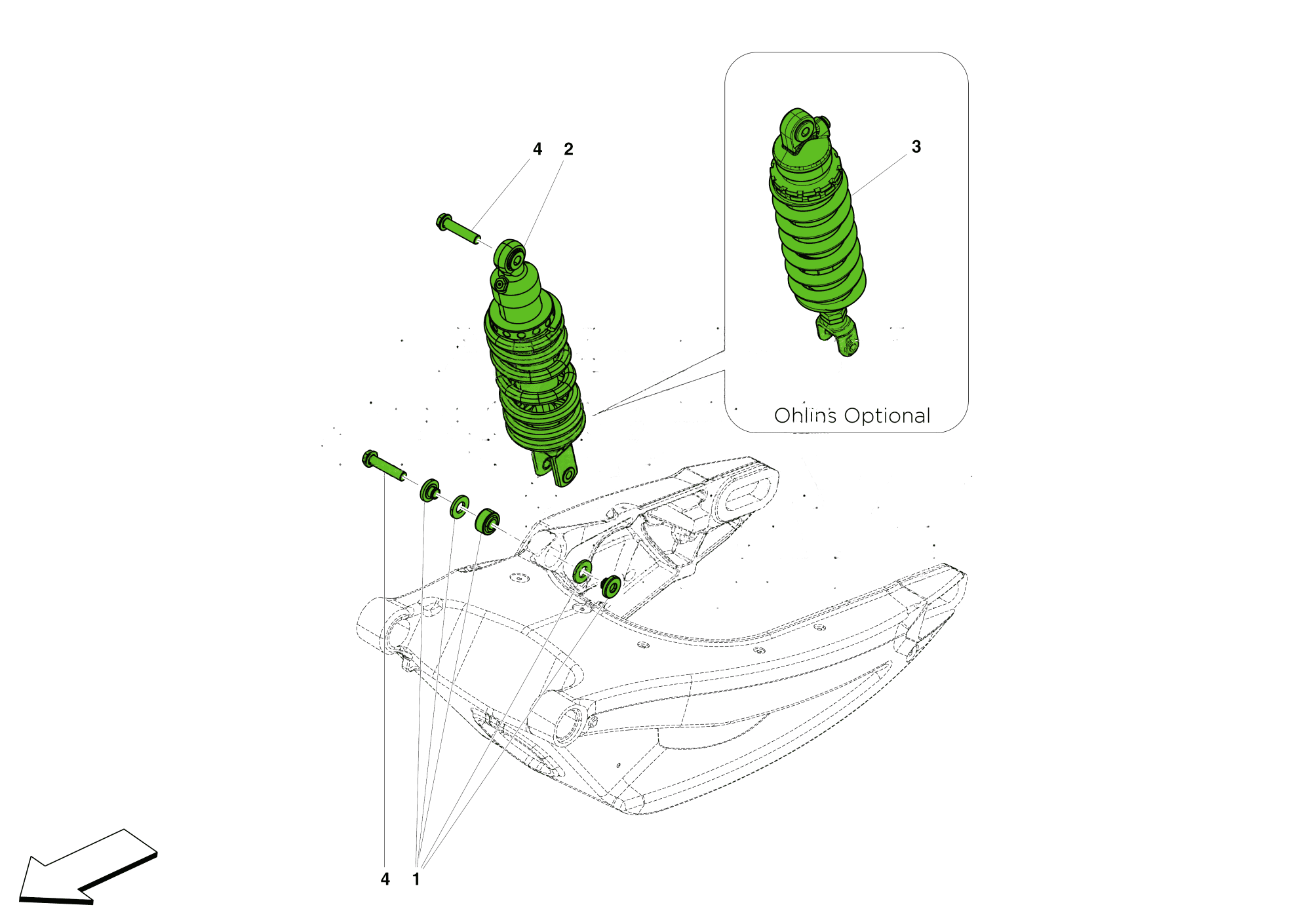

REAR SHOCK ABSORBER
015
REAR SHOCK ABSORBER

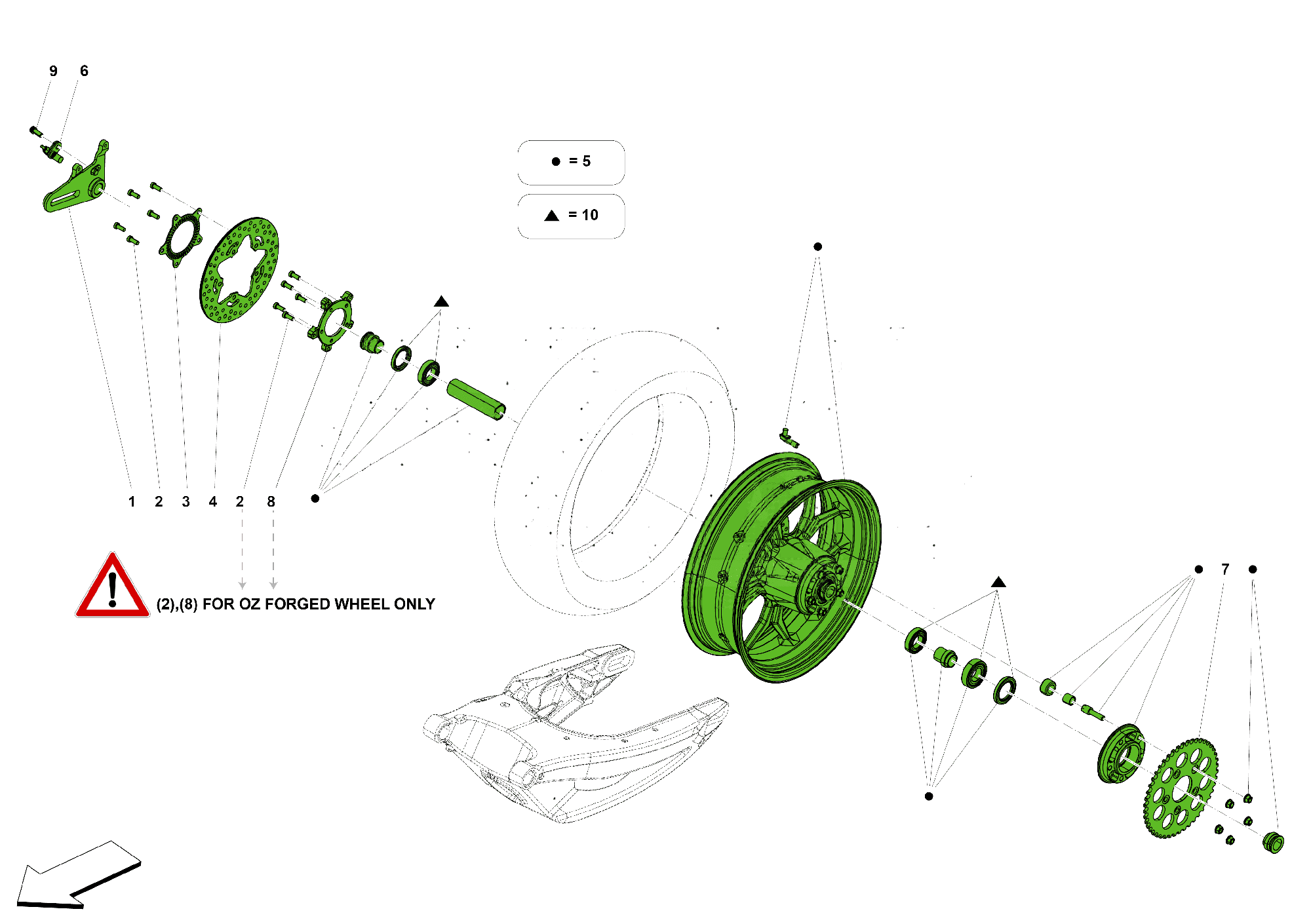

REAR WHEEL
016
REAR WHEEL

Variants (4)

Submodel Variant Notes Colour Power Years
ENA003272 EUR White frame/tank's sticker with "Energica" writing
TITAN GREY
2018
ENA003272 EUR White frame/tank's sticker with "Energica" writing
LUNAR WHITE
2018
ENA003273 USA White frame/tank's sticker with "Energica" writing
LUNAR WHITE
2018
ENA003273 USA White frame/tank's sticker with "Energica" writing
TITAN GREY
2018

VINs (43)

Chassis no. Submodel Seq. Engine range
ZNNV1A19XHM000049 ENA001600 1 —
ZNNV1A193HM000054 ENA001600 2 —
ZNNV1A197HM000039 ENA001600 3 —
ZNNV1A1A3JS000079 ENA002960 4 —
ZNNV1A1AXJS000080 ENA002960 5 —
ZNNV1A1A1JS000081 ENA002960 6 —
ZNNV1A1A3JS000082 ENA002960 7 —
ZNNV1A1A5JS000083 ENA002960 8 —
ZNNV1A1A9JS000085 ENA002960 9 —
ZNNV1A1A2JS000087 ENA002960 10 —
ZNNV1A1A6JS000089 ENA002960 11 —
ZNNV1A1A2JS000090 ENA002960 12 —
ZNNV1A1A4JS000091 ENA002960 13 —
ZNNV1A1A6JS000092 ENA002960 14 —
ZNNV1A1B0JS000095 ENA003272 16 —
ZNNV1A1B2JS000096 ENA003273 17 —
ZNNV1A1B4JS000097 ENA003273 18 —
ZNNV1A1B6JS000098 ENA003272 19 —
ZNNV1A1B8JS000099 ENA003272 20 —
ZNNV1A1B0JS000100 ENA003272 21 —
ZNNV1A1B2JS000101 ENA003272 22 —
ZNNV1A1B8JS000104 ENA003272 23 —
ZNNV1A1BXJS000105 ENA003272 24 —
ZNNV1A1B1JS000106 ENA003272 25 —
ZNNV1A1B1KS000107 ENA003273 26 —
ZNNV1A1B3KS000108 ENA003273 27 —
ZNNV1A1B5KS000109 ENA003273 28 —
ZNNV1A1B1KS000110 ENA003273 29 —
ZNNV1A1B3KS000111 ENA003273 30 —
ZNNV1A1B5KS000112 ENA003273 31 —
ZNNV1A1B7KS000113 ENA003273 32 —
ZNNV1A1B9KS000114 ENA003273 33 —
ZNNV1A1B8KS000122 ENA003272 34 —
ZNNV1A1B3KS000125 ENA003273 35 —
ZNNV1A1B5KS000126 ENA003273 36 —
ZNNV1A1A1KS000115 ENA002960 37 —
ZNNV1A1A3KS000116 ENA002960 38 —
ZNNV1A1A5KS000117 ENA002960 39 —
ZNNV1A1A7KS000118 ENA002960 40 —
ZNNV1A1A9KS000119 ENA002960 41 —
ZNNV1A1A5KS000120 ENA002960 42 —
ZNNV1A1A7KS000121 ENA002960 43 —
ZNNV1A1A2KS000124 ENA002960 44 —

Fitting accessories (86)

PARTS AND ACCESSORIES

A 34 accessories

PARTS AND ACCESSORIES

AA 34
(EVA AND SS9 MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
ENS008210
(EVA AND SS9 MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
€2.943,00
(EVA PRODUCTION YEAR =<2019) ERGAL KIT - GOLD
ENA002416
(EVA PRODUCTION YEAR =<2019) ERGAL KIT - GOLD
€256,00
ENERGICA LUGGAGES and RACK KIT (FOR EVA =<2019 /DOESN'T FIT ON RIBELLE MODEL)
ENA001885
ENERGICA LUGGAGES and RACK KIT (FOR EVA =<2019 /DOESN'T FIT ON RIBELLE MODEL)
€499,00
RISER KIT +20MM (EVA)
ENA010899
RISER KIT +20MM (EVA)
€70,00
RISER KIT +29mm (EVA)/+9mm (EXPERIA)
ENA010667
RISER KIT +29mm (EVA)/+9mm (EXPERIA)
€70,00
SPLASH GUARD EGO AND EVA (EVA =<2019 WITHOUT SIDE BAGS & RACK KIT ENA001885)
ENS008244
SPLASH GUARD EGO AND EVA (EVA =<2019 WITHOUT SIDE BAGS & RACK KIT ENA001885)
€85,00
SPLASH GUARD FOR EVA (EVA =<2019 EQUIPPED WITH SIDE BAGS & RACK KIT ENA001885)
ENS008247
SPLASH GUARD FOR EVA (EVA =<2019 EQUIPPED WITH SIDE BAGS & RACK KIT ENA001885)
€85,00
TANK BAG WITH TANK COVER (can hold a full-face helmet)
ENS008374
TANK BAG WITH TANK COVER (can hold a full-face helmet)
€256,00
WINDSCREEN KIT (EVA 80KW / EVA 107KW / EVA RIBELLE)
ENA004440
WINDSCREEN KIT (EVA 80KW / EVA 107KW / EVA RIBELLE)
€255,00
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008413
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008412
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
ENS007786
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
€165,00
ERGAL STAND BOBBINS
ENS002588
ERGAL STAND BOBBINS
€18,90 all models
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
ENS011754
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
€110,00 all models
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
ENS003355
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
€182,00
CARBON FIBER BATTERY COVERS (EVA)
ENS002814
CARBON FIBER BATTERY COVERS (EVA)
99 999+
CENTRAL TANK COVER SLEEK CARBON (EVA)
ENF002171
CENTRAL TANK COVER SLEEK CARBON (EVA)
€340,80
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
ENS010836
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
€340,00 all models
BEARINGS REPLACING KIT (BITUBO/OHLINS)
ENA006051
BEARINGS REPLACING KIT (BITUBO/OHLINS)
€160,00
GLOVES-HIGH VOLTAGE 1000V
ENS002235
GLOVES-HIGH VOLTAGE 1000V
€70,00 all models
HEXAGON SOCKET
ENS002237
HEXAGON SOCKET
€26,00
MOTOR AND TRANSMISSION MAINTENANCE KIT
ENA001869
MOTOR AND TRANSMISSION MAINTENANCE KIT
€34,00
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
ENS010173
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
€120,00 all models
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
ENF007774
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
€15,75
PCAN INTERFACE (VDB vehicle data bus)
ENS003005
PCAN INTERFACE (VDB vehicle data bus)
€210,00 all models
PINION TIGHTENING (15-16-17 TEETH)
ENA009890
PINION TIGHTENING (15-16-17 TEETH)
€80,00
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
ENS004854
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
€260,00 all models
SPROCKET SOCKET
ENS001870
SPROCKET SOCKET
€90,00 all models
STEERING SOCKET
ENS002130
STEERING SOCKET
€70,00
T-WRENCH HIGH VOLTAGE 1000V (6mm) (FOR PRE-EMCE INVERTERS)
ENS002239
T-WRENCH HIGH VOLTAGE 1000V (6mm) (FOR PRE-EMCE INVERTERS)
€44,00
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
ENS003004
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
€17,00 all models
CARBON WHEELS
ENS009532
CARBON WHEELS
€3.290,00
CAST ALUMINIUM WHEELS WITH RED DETAILS
ENS009533
CAST ALUMINIUM WHEELS WITH RED DETAILS
€322,00
OZ ALUMINUM FORGED WHEELS
ENS006842
OZ ALUMINUM FORGED WHEELS
€2.645,00 all models

MANUALS (PRINTED VERSION)

C 10 accessories

OWNER MANUALS

CA 10
CZECH - Příručka k použití a údržbě
END003550
CZECH - Příručka k použití a údržbě
DUTCH - Gebruiks- en onderhoudshandleiding
ENF003094
DUTCH - Gebruiks- en onderhoudshandleiding
ENGLISH - Owner Manual
ENF003100
ENGLISH - Owner Manual
FRENCH - Livret d'utilisation et d'entretien
ENF003097
FRENCH - Livret d'utilisation et d'entretien
GERMAN - Betriebs- und Wartungsanleitung
ENF003088
GERMAN - Betriebs- und Wartungsanleitung
ITALIAN - Libretto di Uso e Manutenzione
ENF003082
ITALIAN - Libretto di Uso e Manutenzione
NORWEGIAN - Håndbok for bruk og vedlikehold
ENF003103
NORWEGIAN - Håndbok for bruk og vedlikehold
PORTUGUESE - Manual de utilização e manutenção
ENF003091
PORTUGUESE - Manual de utilização e manutenção
SPANISH - Manual de uso y mantenimiento
ENF003085
SPANISH - Manual de uso y mantenimiento
SWEDISH - Användar - och underhållsmanual
ENF003106
SWEDISH - Användar - och underhållsmanual

DEALER IDENTITY

D 42 accessories

VISUAL & MERCHANDISING

DA 42
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
MKT000041
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
€28,50 all models
Bamboo smartphone stand. Minimum batch: 3 pieces
MKT000042
Bamboo smartphone stand. Minimum batch: 3 pieces
€10,50 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
MKT000046
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
€22,00 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
MKT000047
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
€22,00 all models
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
MKT000057
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
€58,00 all models
Energica Towel Package of 3 pieces Minimum batch: 3 piece
MKT000059
Energica Towel Package of 3 pieces Minimum batch: 3 piece
€30,00 all models
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
MKT000043
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
€29,70 all models
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
MKT000040
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
€24,00 all models
(326CM) – BEACH FLAG POLE + FLAG (72X285)
MKT000066
(326CM) – BEACH FLAG POLE + FLAG (72X285)
€119,00 all models
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
MKT000065
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
MKT000072
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
MKT000091
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
€399,00 all models
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
MKT000073
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
€249,00 all models
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
MKT000090
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
€349,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
MKT000077
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
€899,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
MKT000076
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
€599,00 all models
MKT000075
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM PVC LIGHT 15MM
€249,00 all models
100X200 ROLL UP PRINT + STRUCTURE
MKT000074
100X200 ROLL UP PRINT + STRUCTURE
€99,00 all models
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
MKT000082
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
€1.999,00 all models
MKT000093
100x200 15MM THICK LIGHT PVC PANEL PRINTED DOUBLE-SIDED
€249,00 all models
MKT000092
100x200 LIGHT PVC PANEL 19MM THICK PRINTED SINGLE SIDED, COMPLETE WITH PAIR OF SUPPORTS
€599,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
MKT000085
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
€839,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
MKT000084
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
€529,00 all models
MKT000083
110X270 BASIC PLATFORM MELAMINE FACED CHIPBOARD 18MM THICK + LOGO
€329,00 all models
MKT000086
120X240 EASY PLATFORM+PVC PANEL MELAMINE FACED CHIPBOARD 18MM THICK+LOGO
€649,00 all models
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
MKT000088
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
€1.399,00 all models
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
MKT000071
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
€64,00 all models
180X270X60 MERCHANDISING CORNER (BIG VERSION)
MKT000087
180X270X60 MERCHANDISING CORNER (BIG VERSION)
€2.799,00 all models
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000061
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.099,00 all models
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
MKT000070
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
€1.599,00 all models
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000060
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.599,00 all models
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
MKT000062
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
€499,00 all models
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
MKT000063
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
€649,00 all models
70X100 POSTER DIGITAL PRINT
MKT000078
70X100 POSTER DIGITAL PRINT
€8,99 all models
94X90X60 MERCHANDISING CORNER (EASY VERSION)
MKT000089
94X90X60 MERCHANDISING CORNER (EASY VERSION)
€499,00 all models
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
MKT000069
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
€69,00 all models
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
MKT000067
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
€29,00 all models
DESK DISPLAY IN TRANSPARENT METHACRYLATE
MKT000081
DESK DISPLAY IN TRANSPARENT METHACRYLATE
€9,99 all models
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
MKT000080
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
€99,00 all models
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
MKT000058
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
€184,00 all models
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
MKT000068
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
€64,00 all models
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
MKT000079
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
€69,00 all models
