005 2019 107 kW

EGO 3rd series

34
Drawings
6
Variants
30
VINs
87
Accessories

Drawings

Body (5)

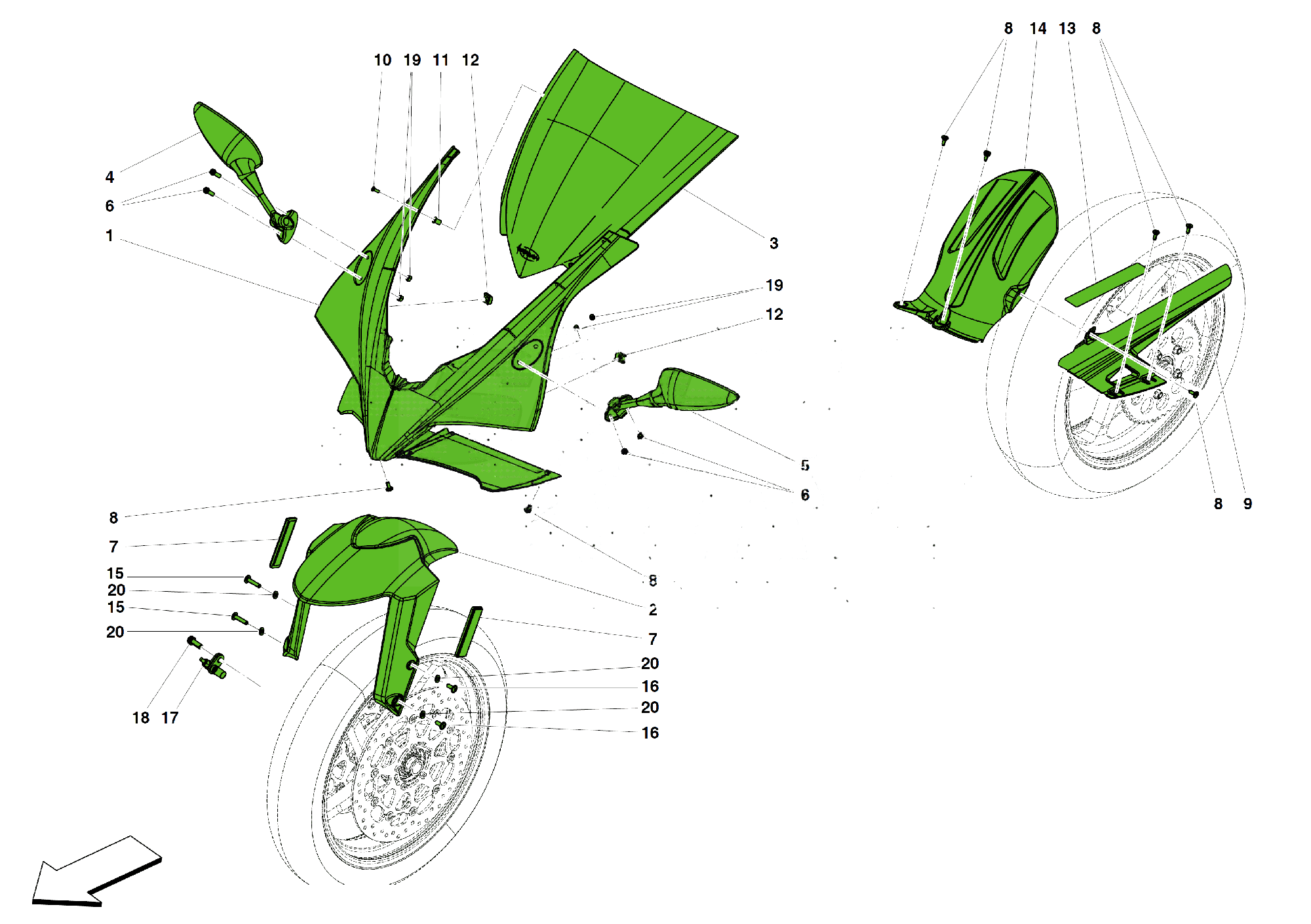

FRONT FAIRING AND MUDGUARDS
022
FRONT FAIRING AND MUDGUARDS

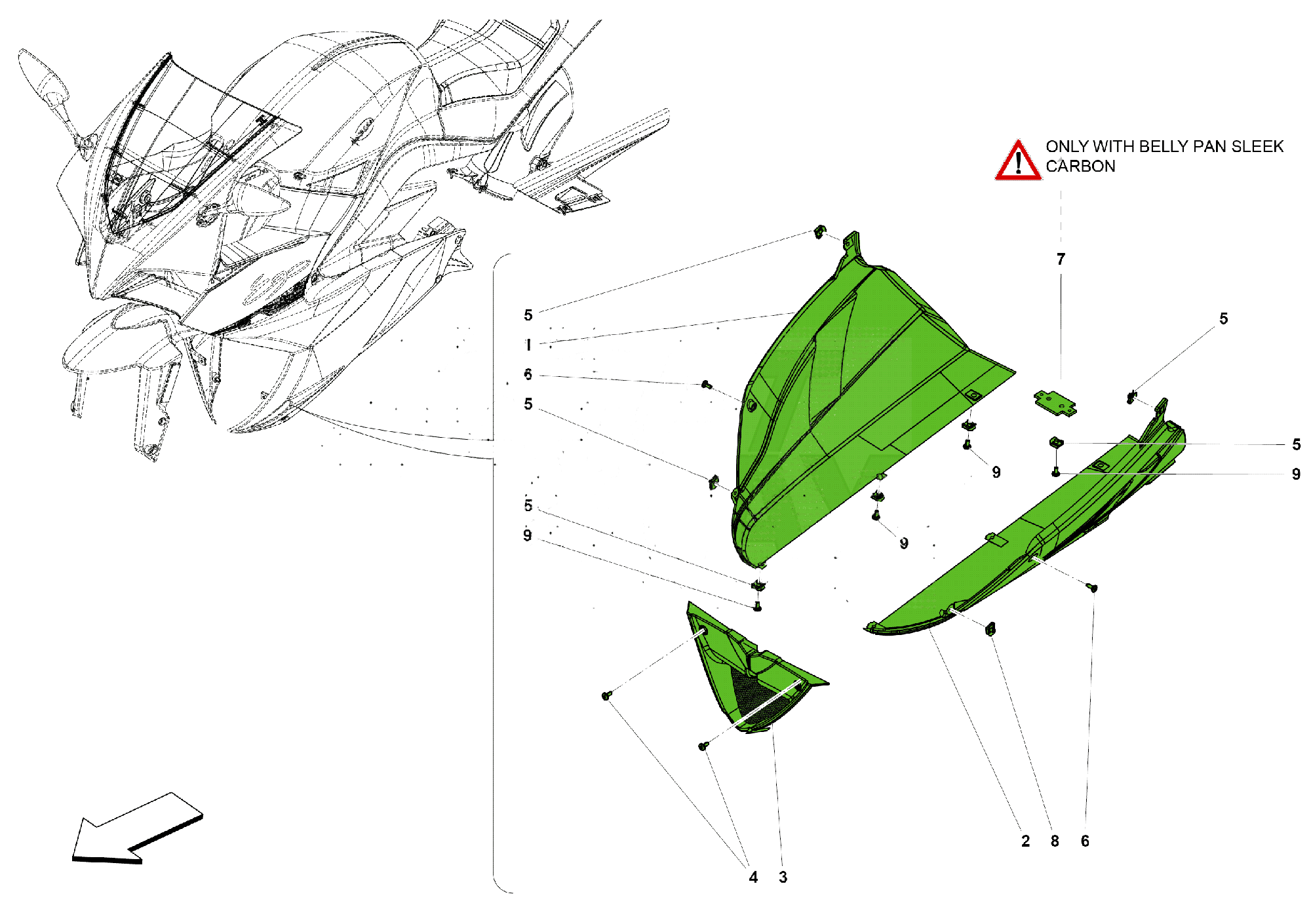

FAIRING - BELLY PAN
023
FAIRING - BELLY PAN

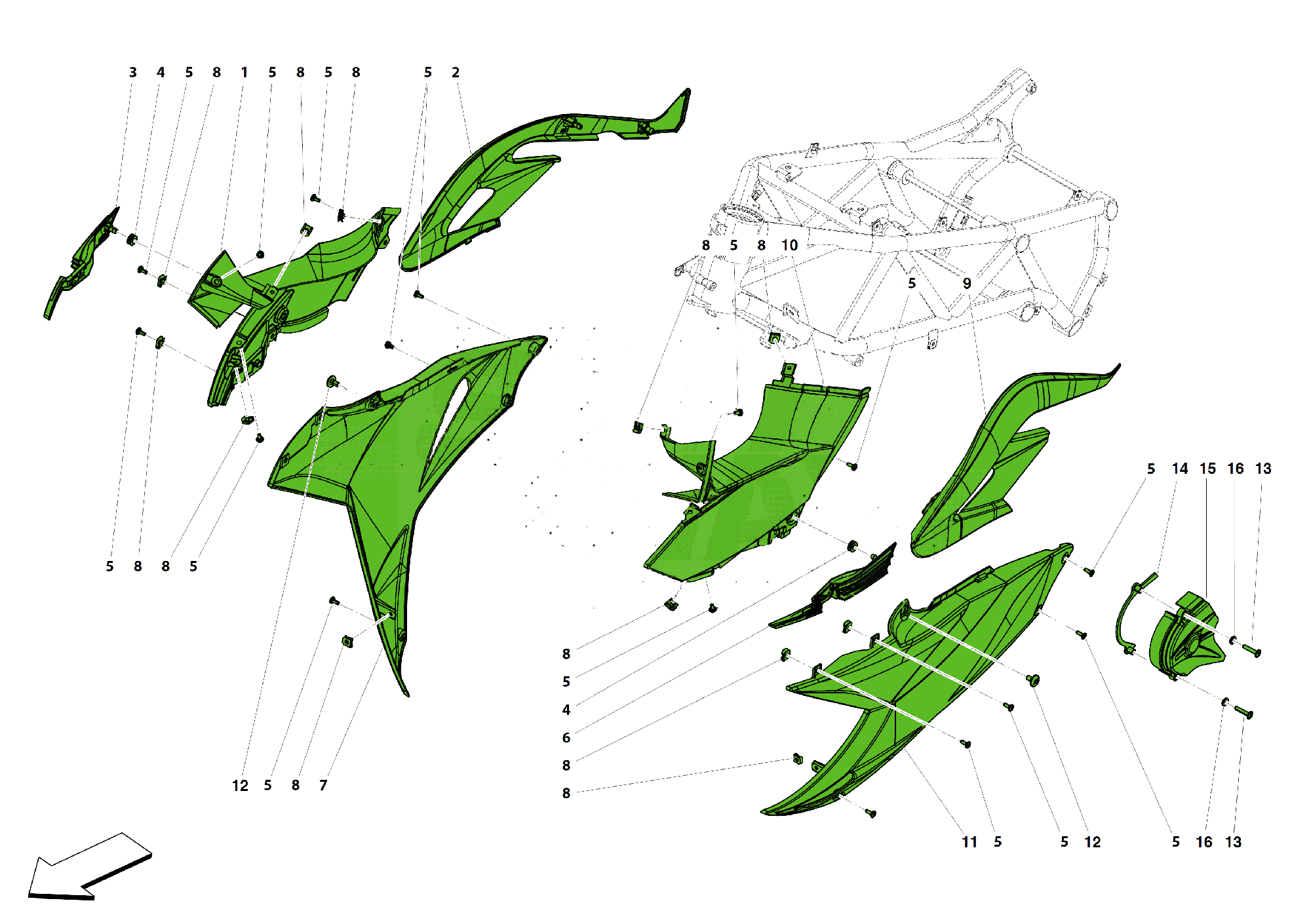

SIDE FAIRING LH - RH
024
SIDE FAIRING LH - RH

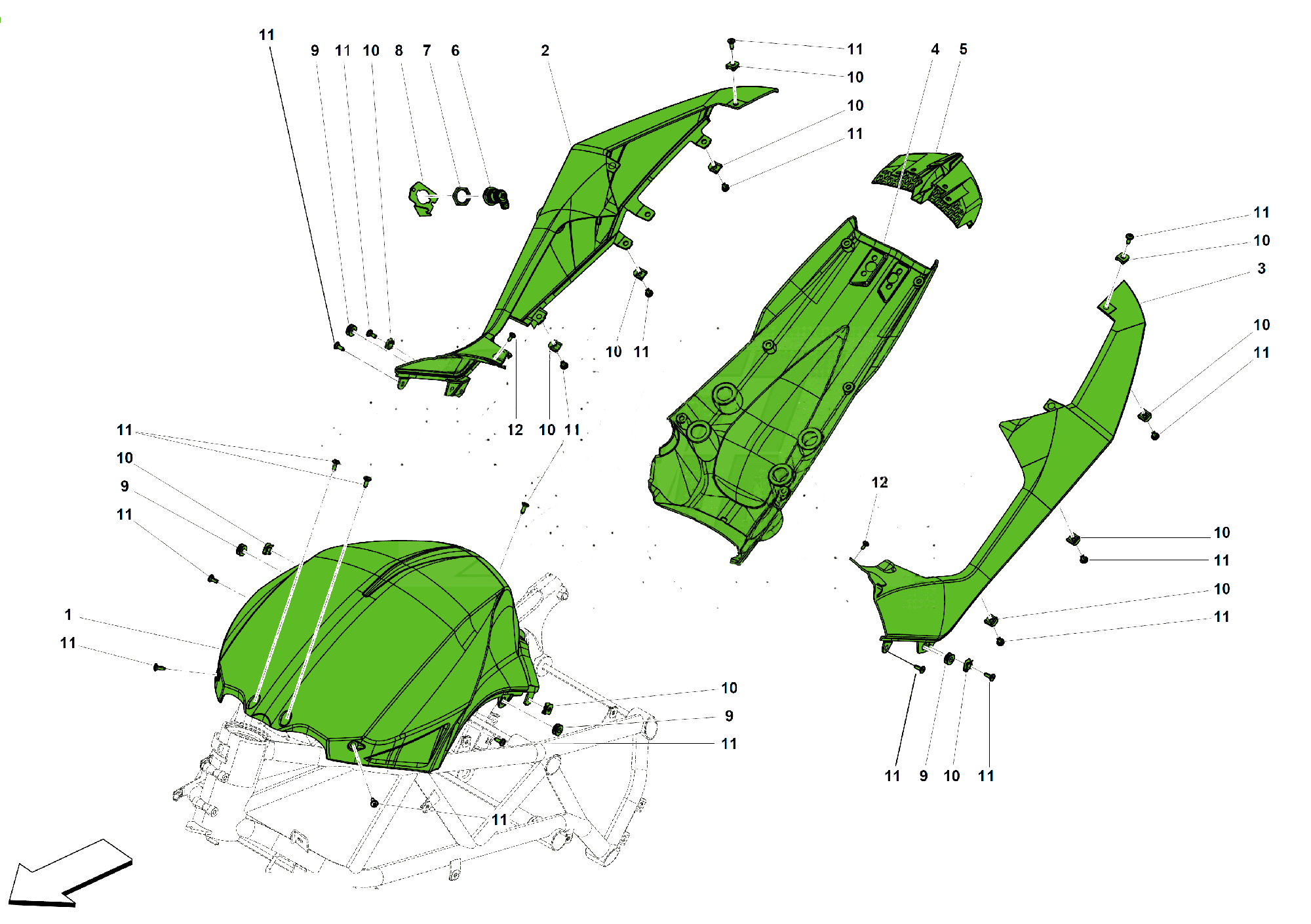

TANK FAIRING - TAIL FAIRING
025
TANK FAIRING - TAIL FAIRING

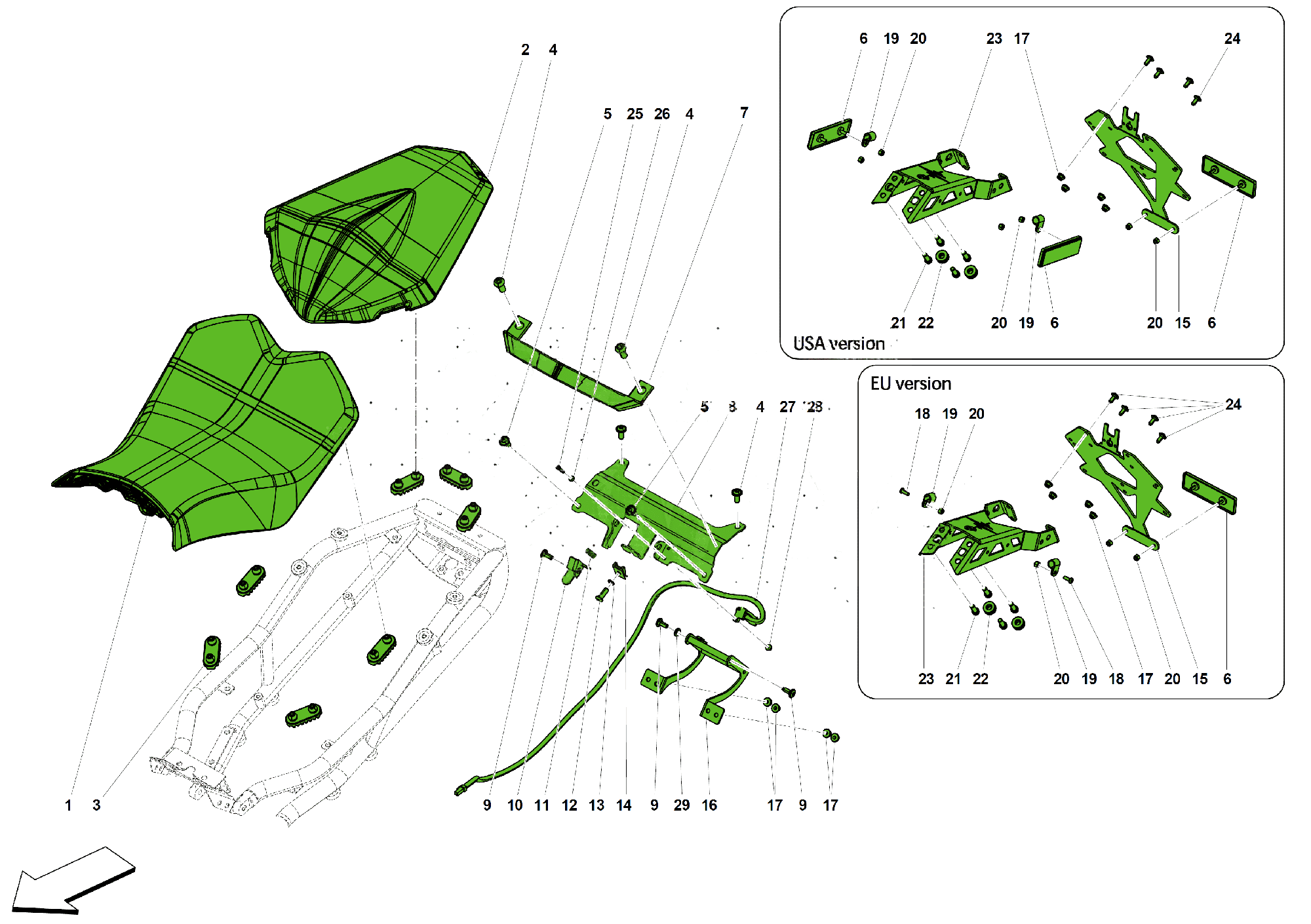

SEAT AND LICENSE PLATE HOLDER
026
SEAT AND LICENSE PLATE HOLDER

Electrical System and Instrumentation (8)

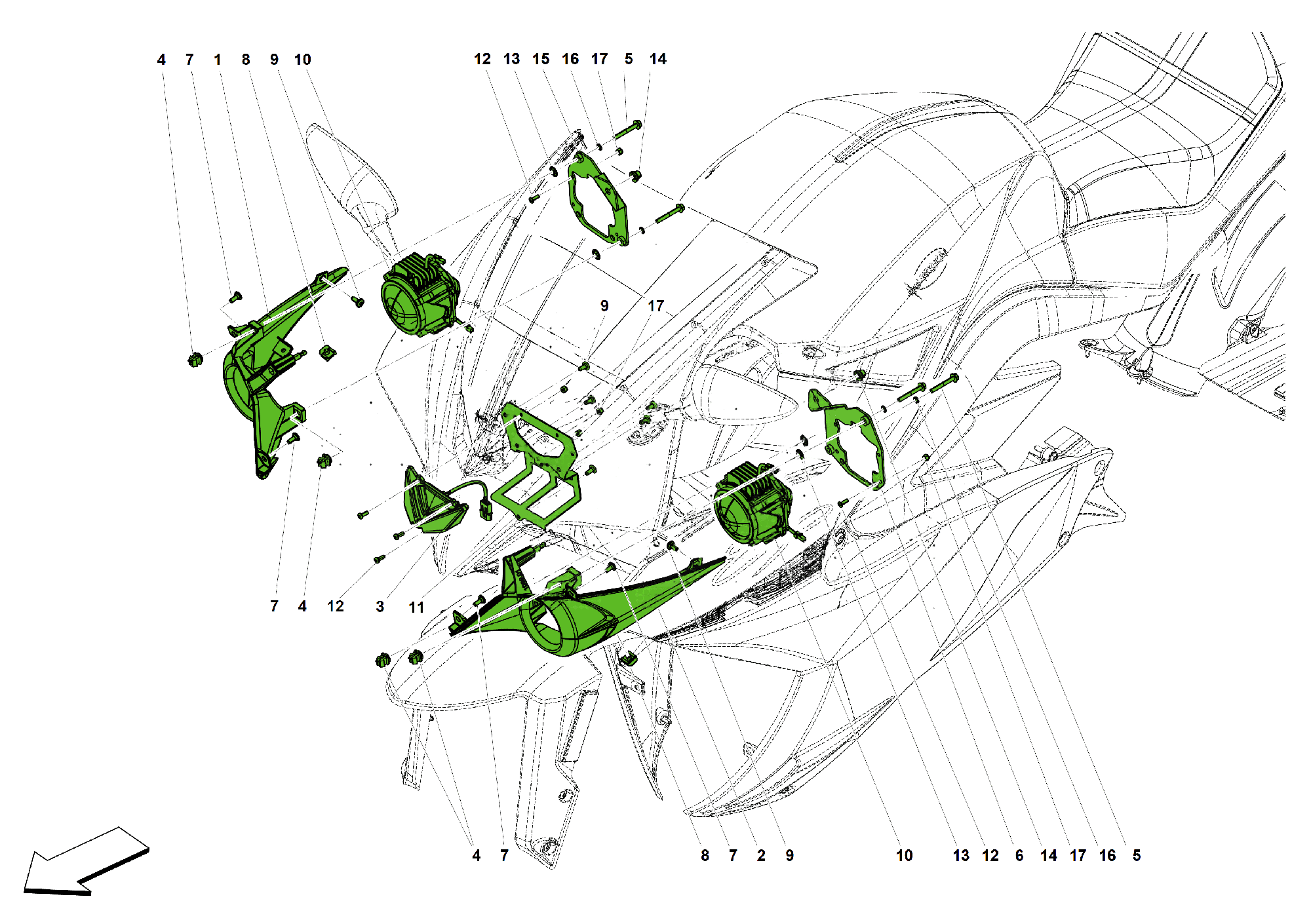

HEADLAMPS
027
HEADLAMPS

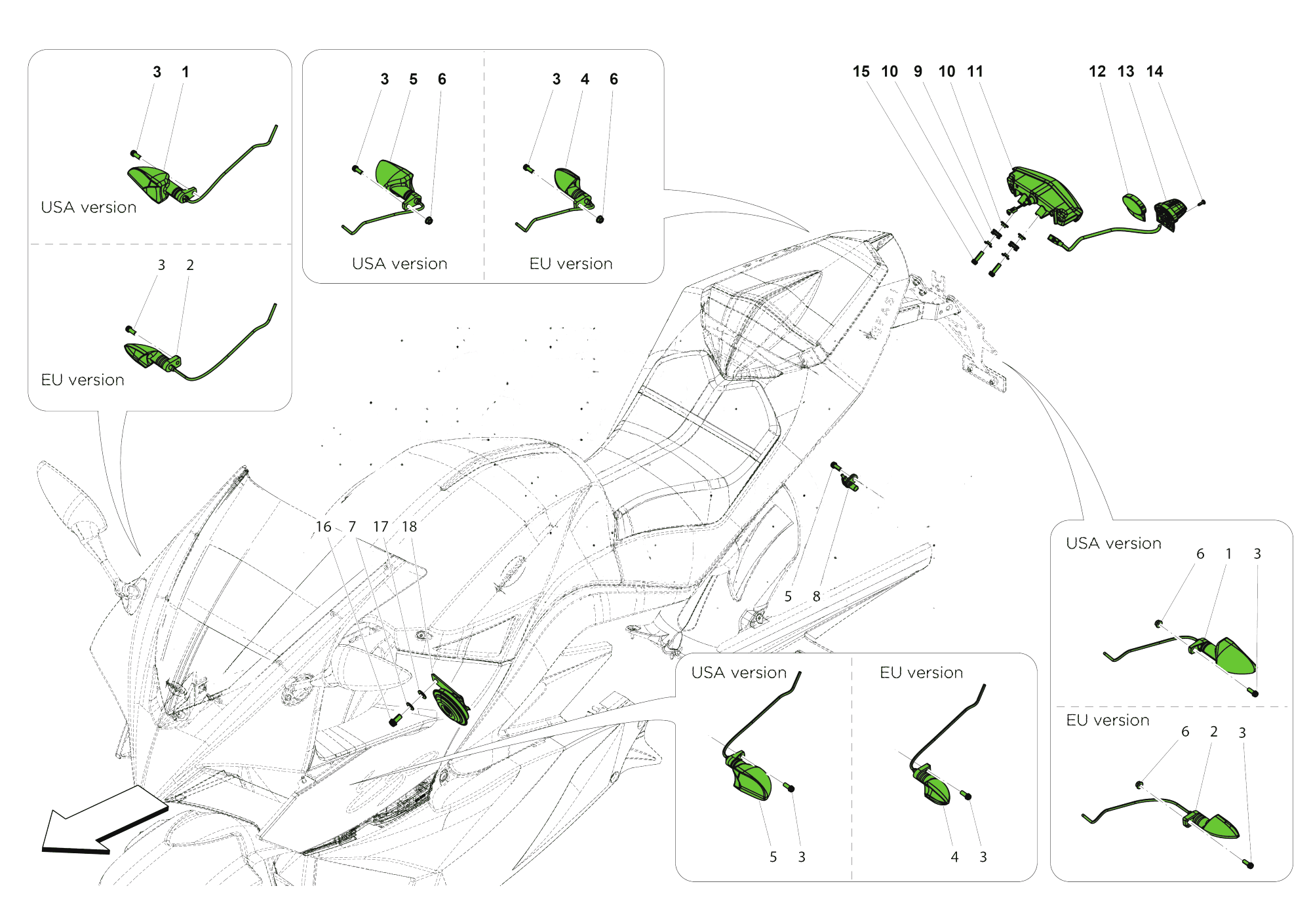

TURN INDICATORS
028
TURN INDICATORS

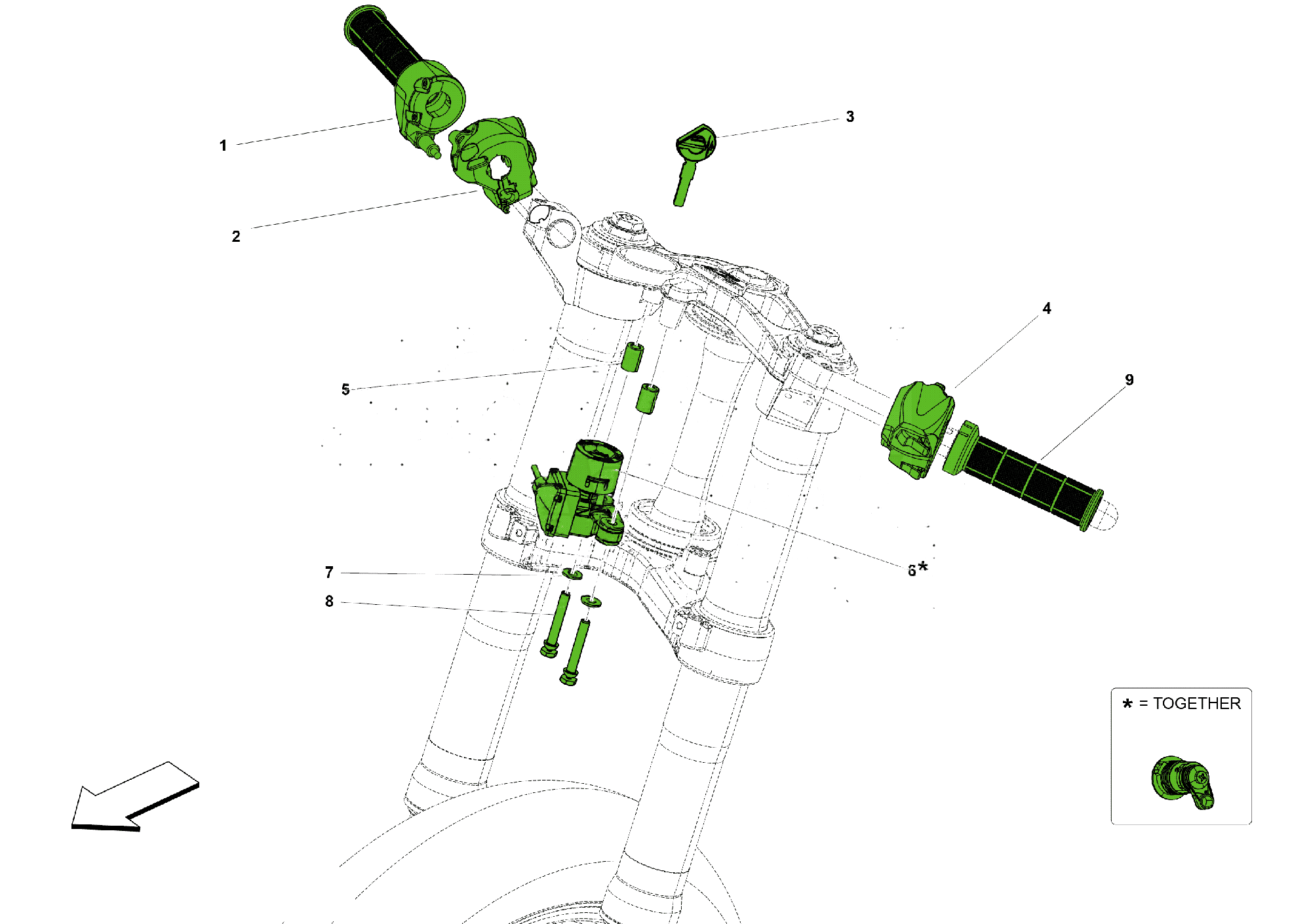

HANDLEBAR ELECTRONICS
029
HANDLEBAR ELECTRONICS

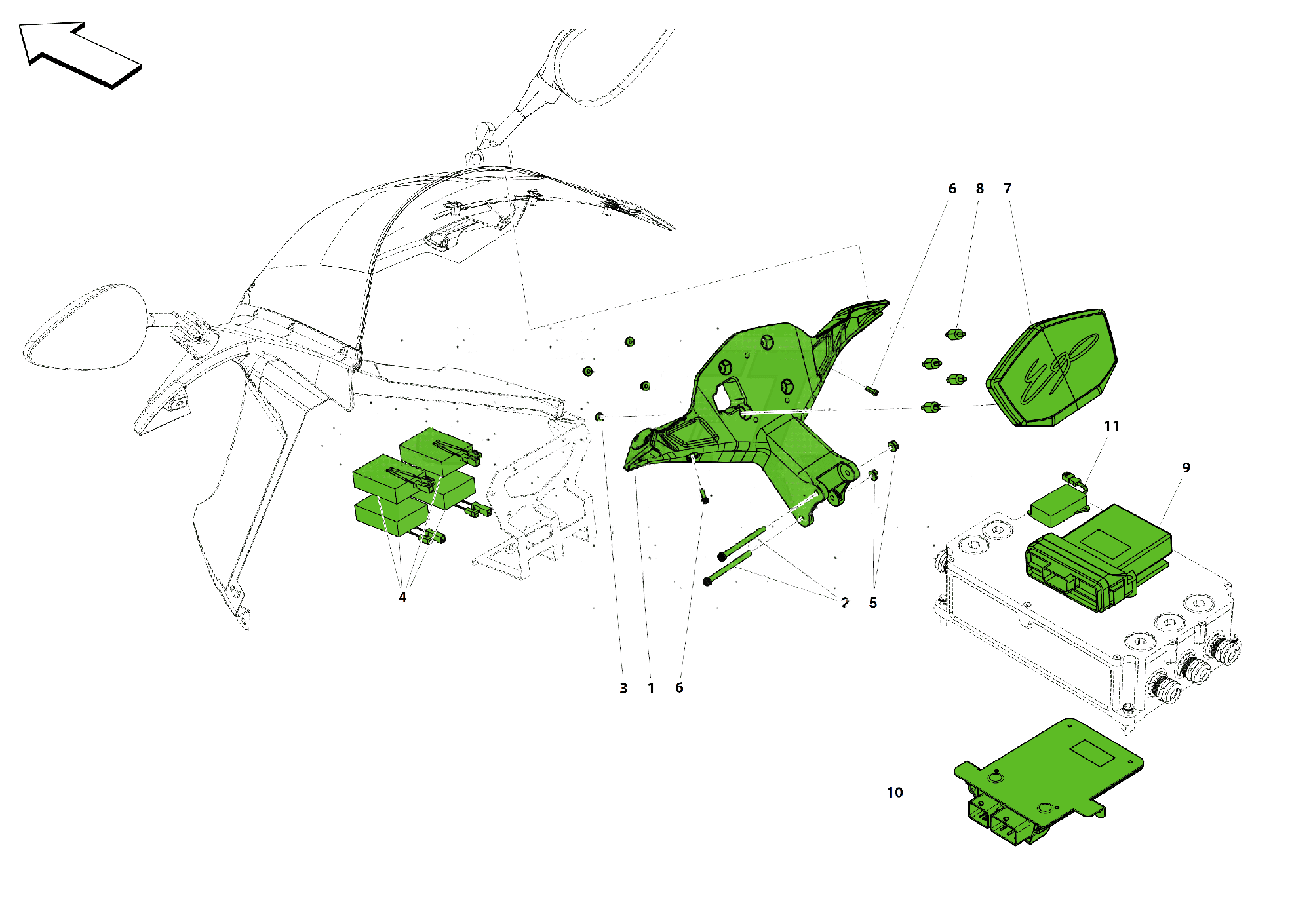

DASHBOARD-CHARGER MANAGER -VCU-HEADLAMP DRIVER
030
DASHBOARD-CHARGER MANAGER -VCU-HEADLAMP DRIVER

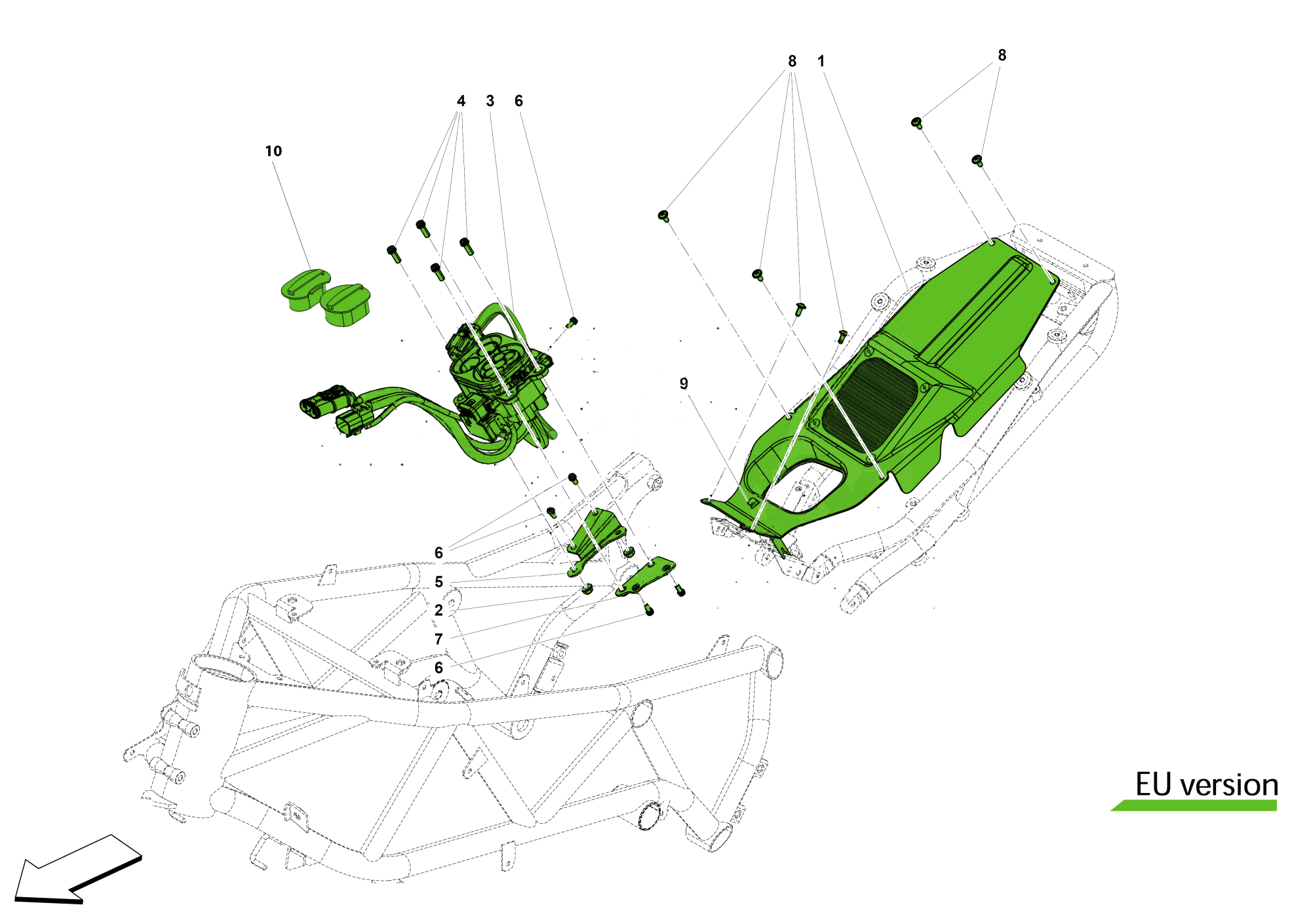

EU CHARGER CONNECTOR AND COVER
031
EU CHARGER CONNECTOR AND COVER

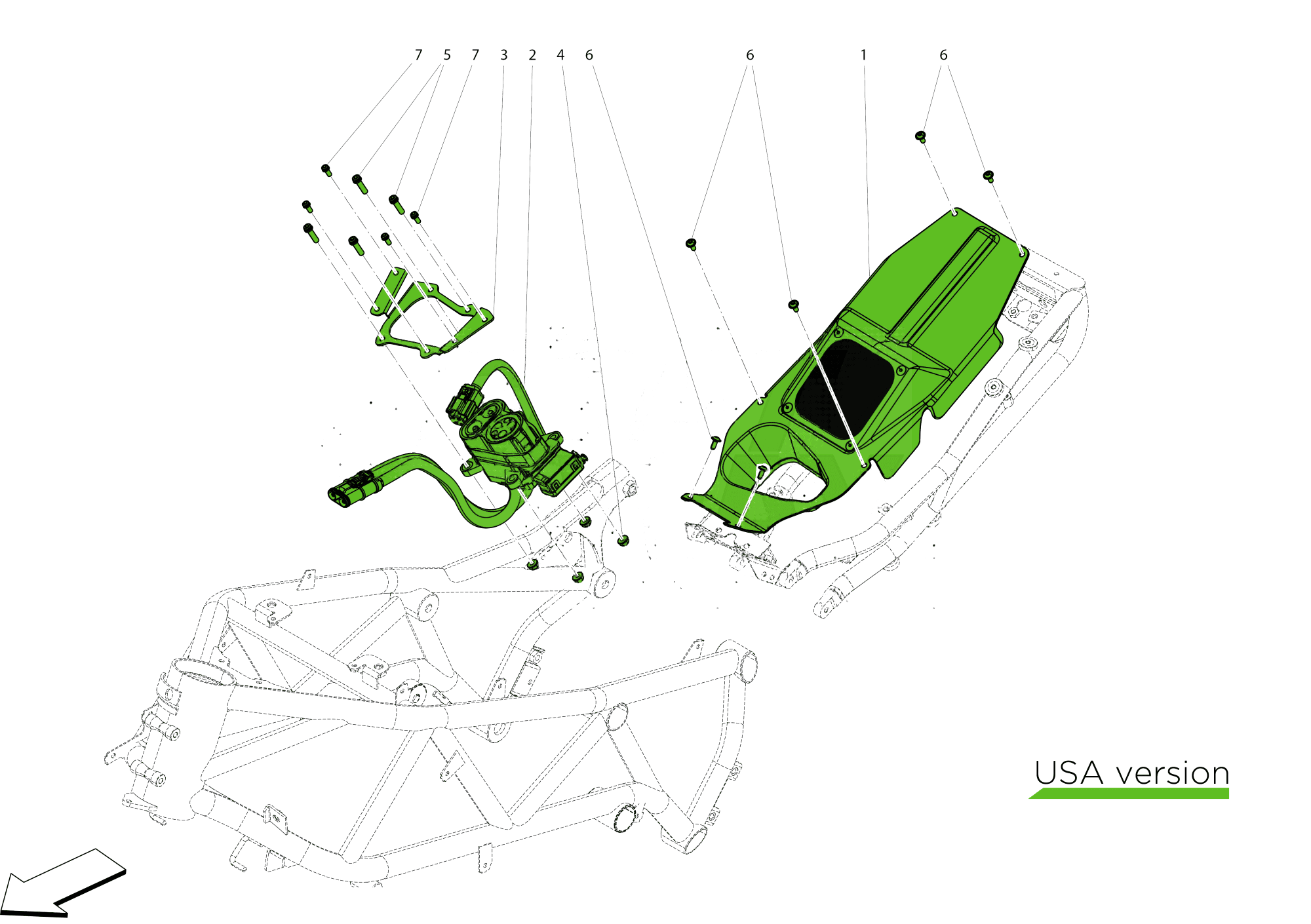

USA CHARGER CONNECTOR AND COVER
032
USA CHARGER CONNECTOR AND COVER

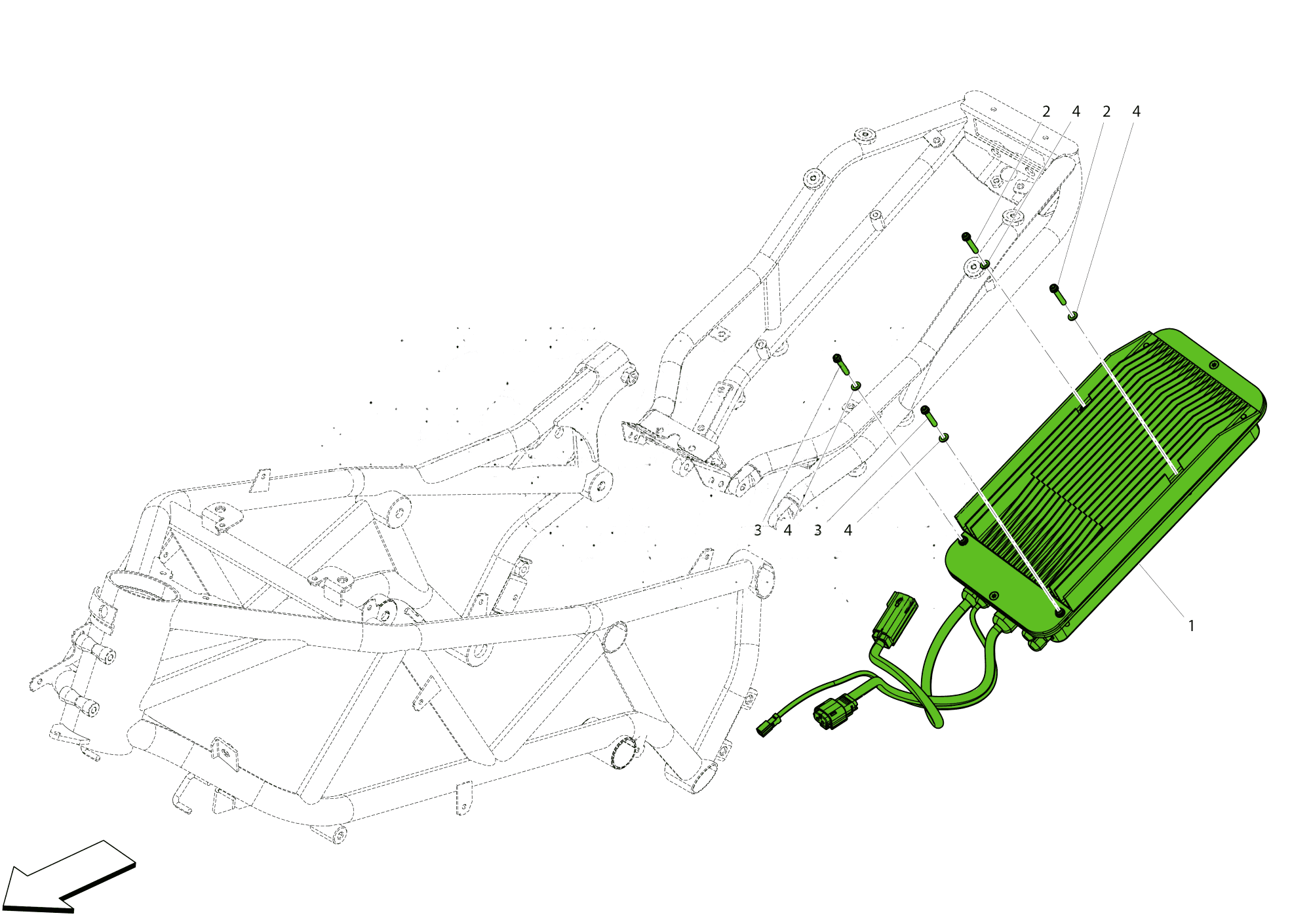

BATTERY CHARGER
033
BATTERY CHARGER

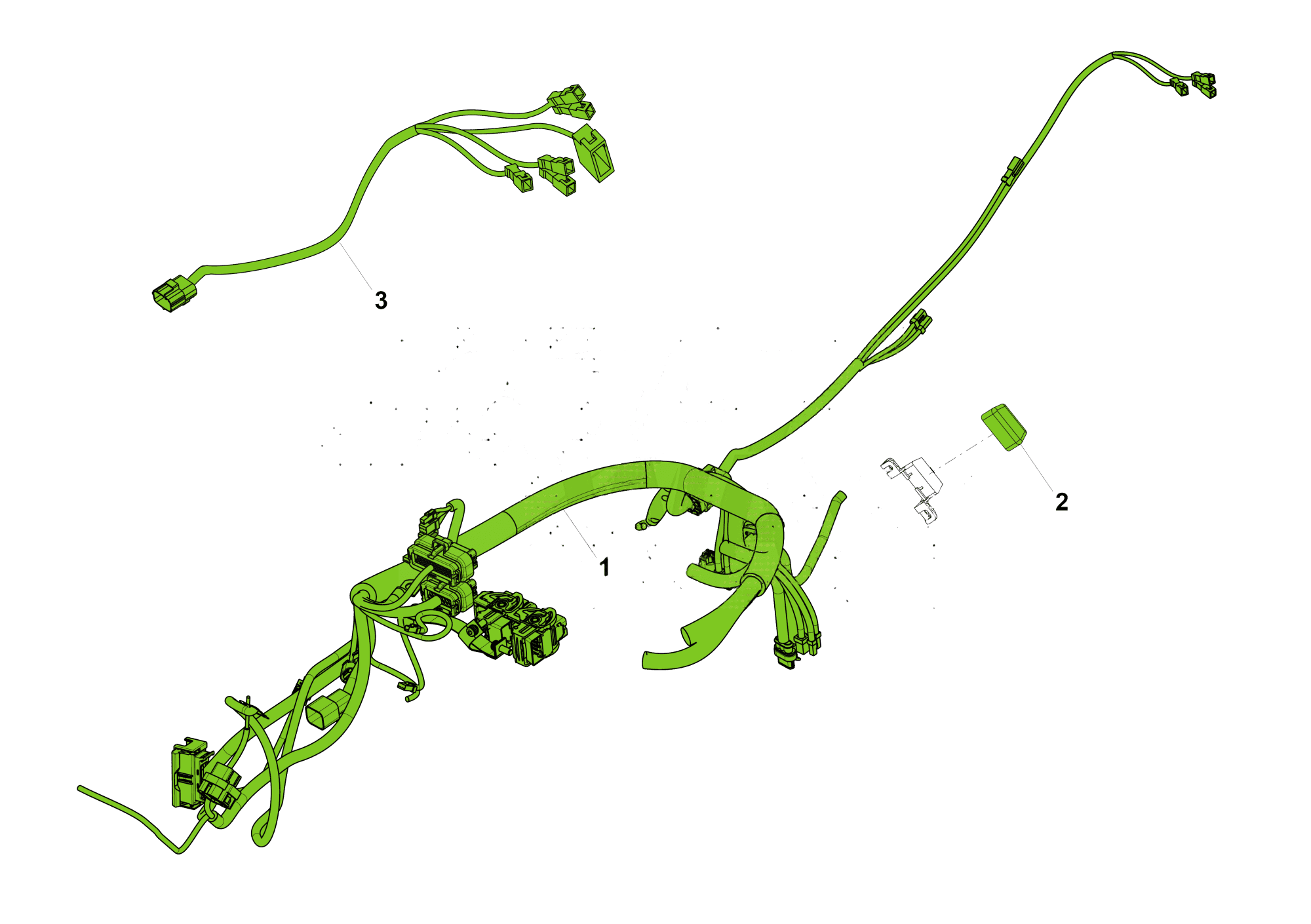

ELECTRICAL SYSTEM
034
ELECTRICAL SYSTEM

Motor (7)

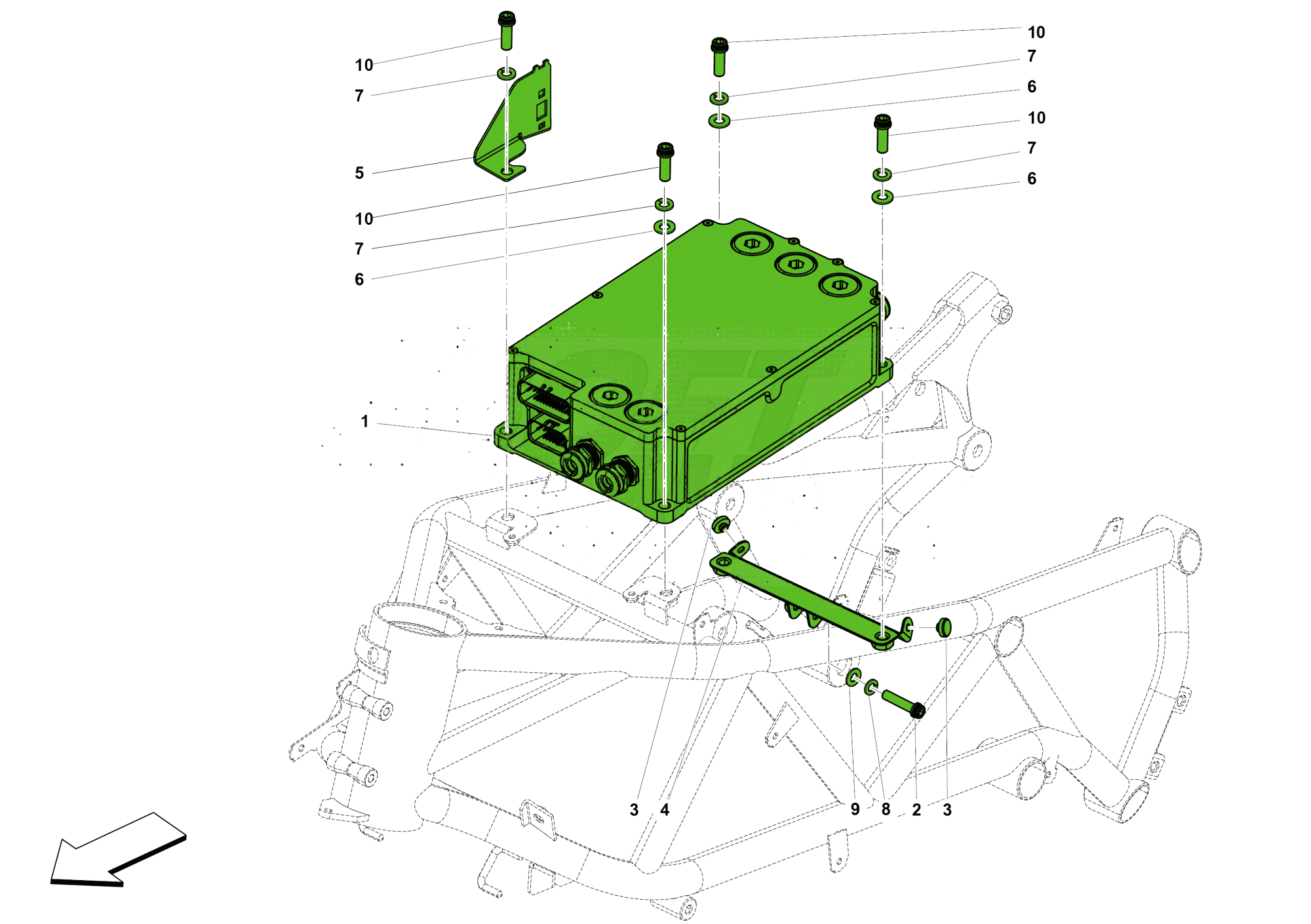

INVERTER
009
INVERTER

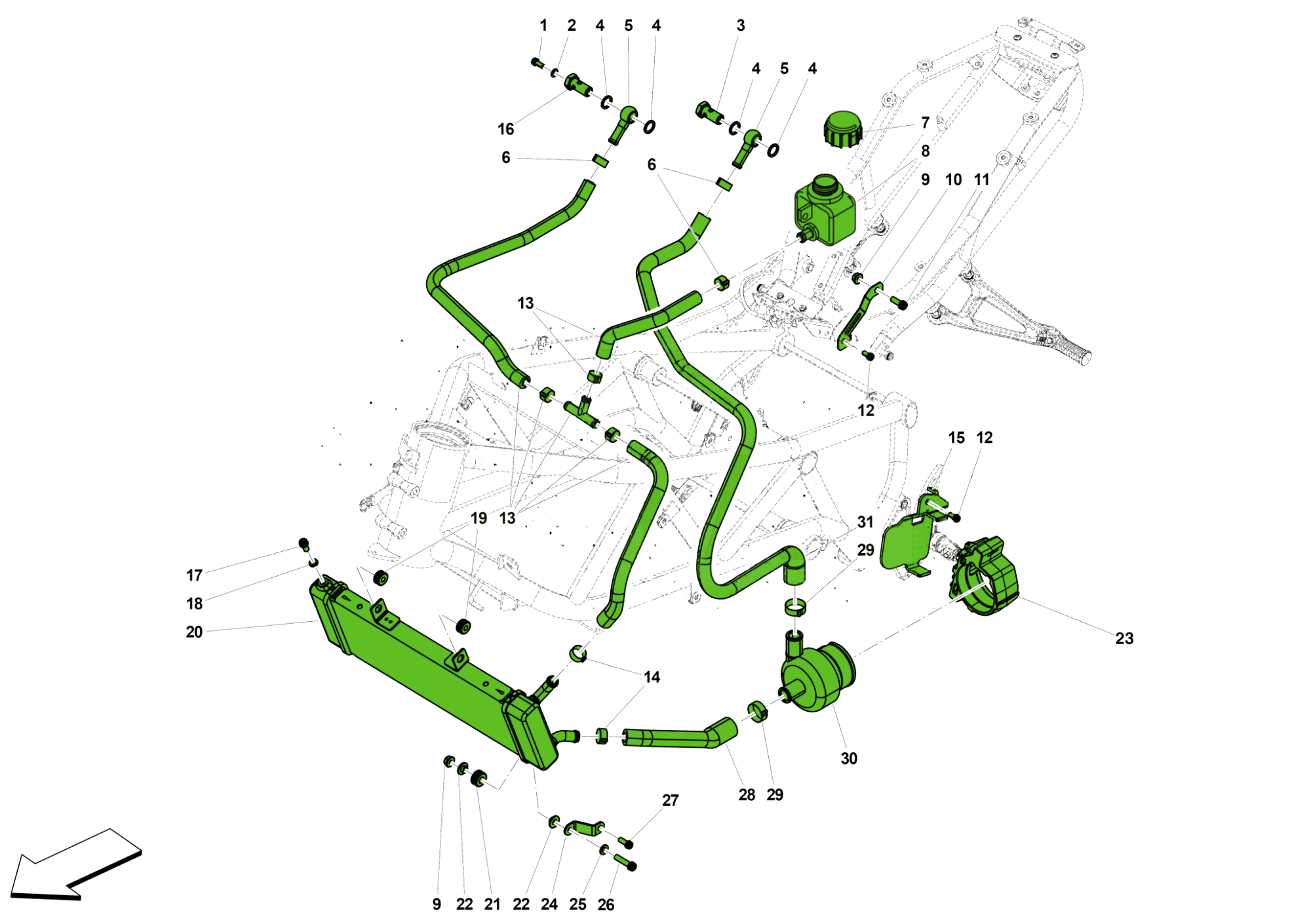

WATER RADIATOR
010
WATER RADIATOR

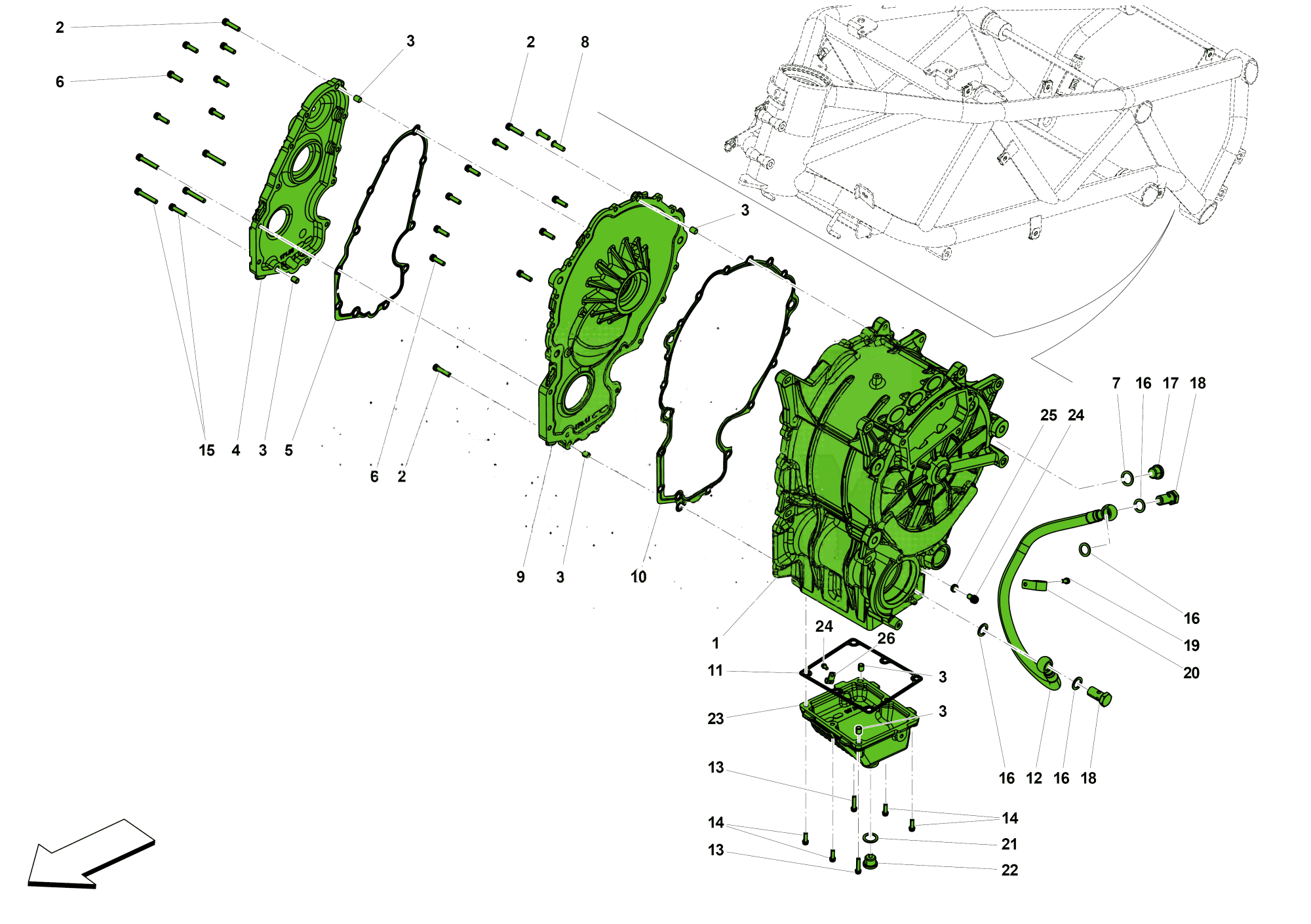

MOTOR HOUSINGS
017
MOTOR HOUSINGS

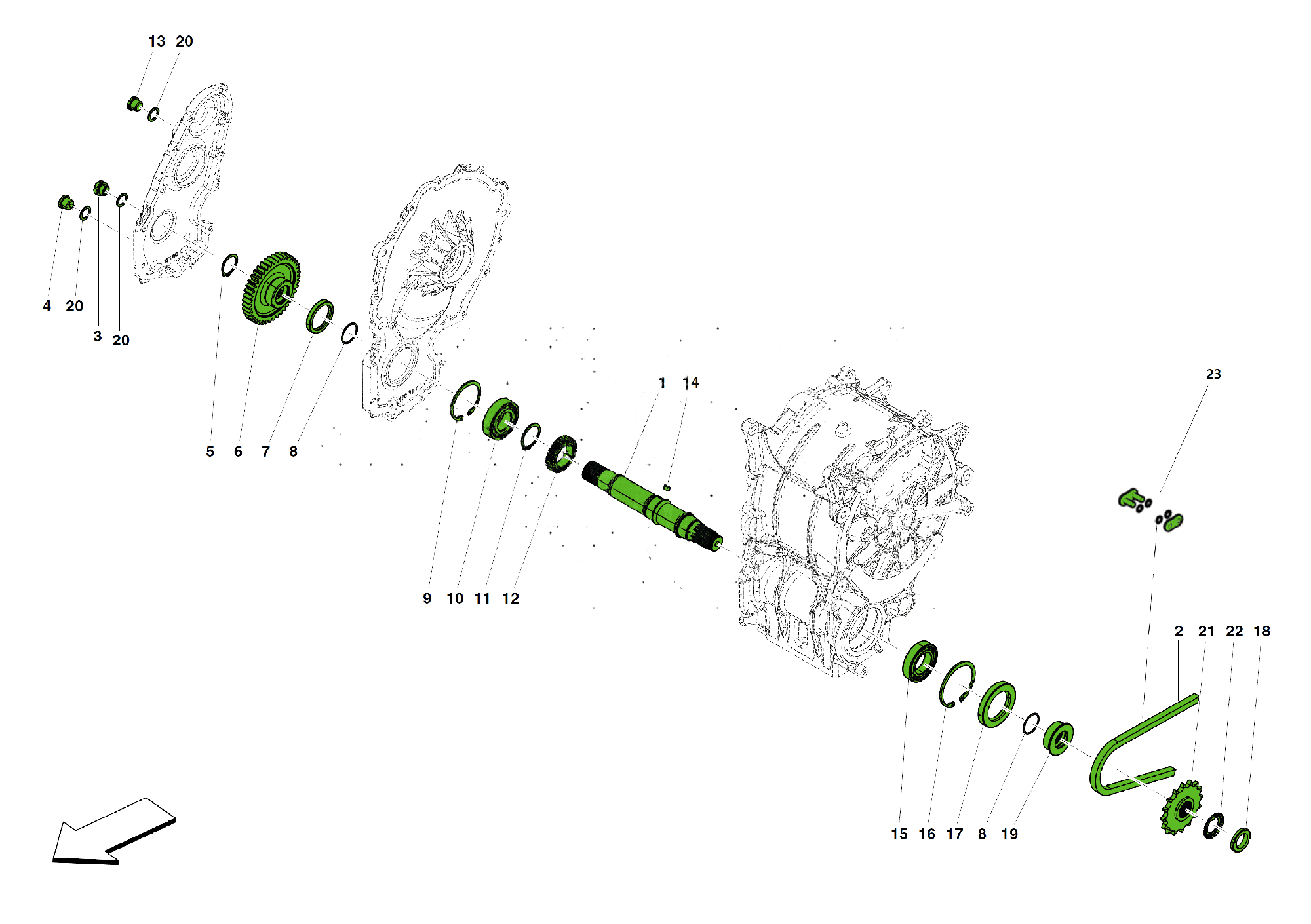

MOTOR TRANSMISSION
018
MOTOR TRANSMISSION

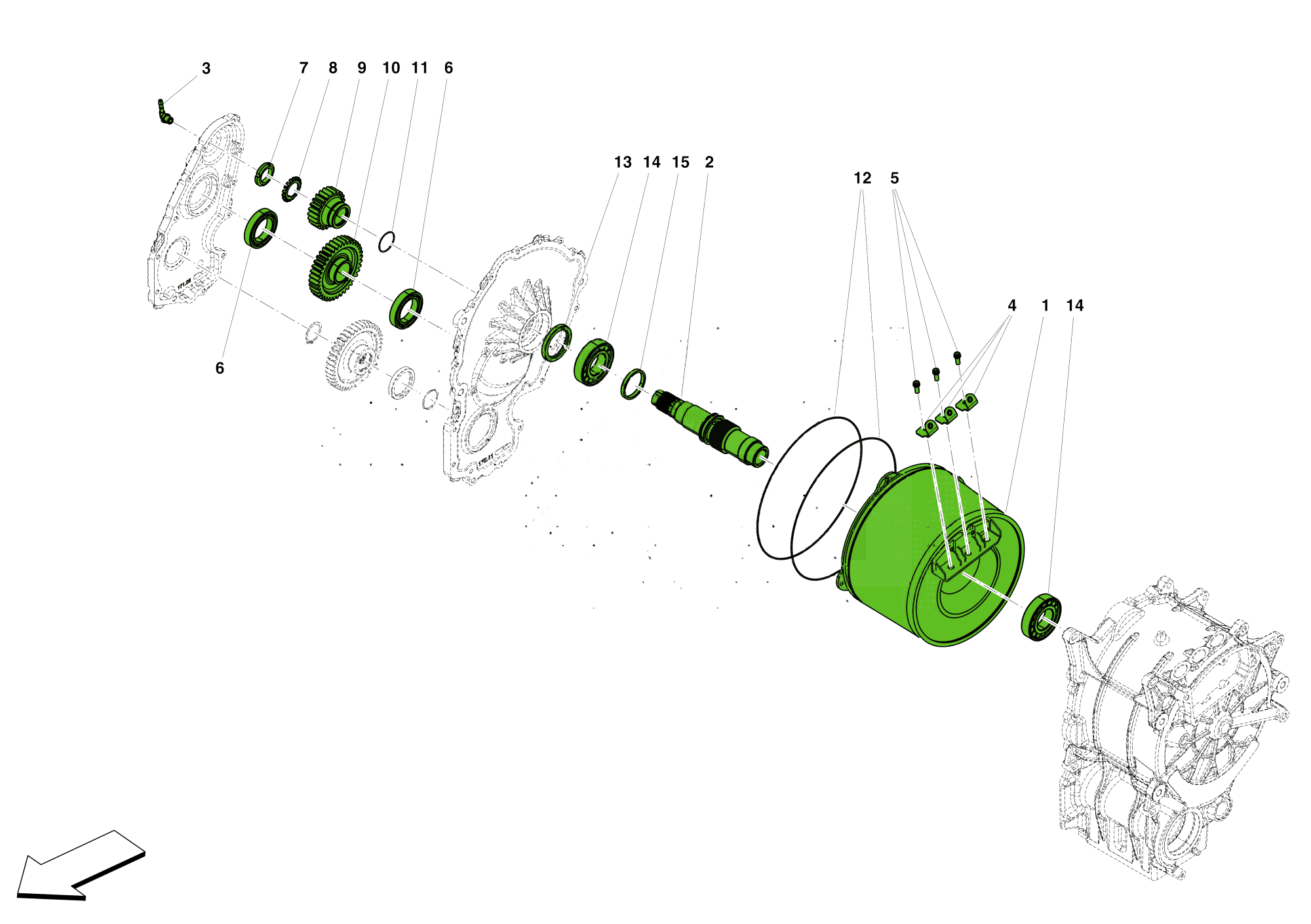

ELECTRIC MOTOR TRANSMISSION
019
ELECTRIC MOTOR TRANSMISSION

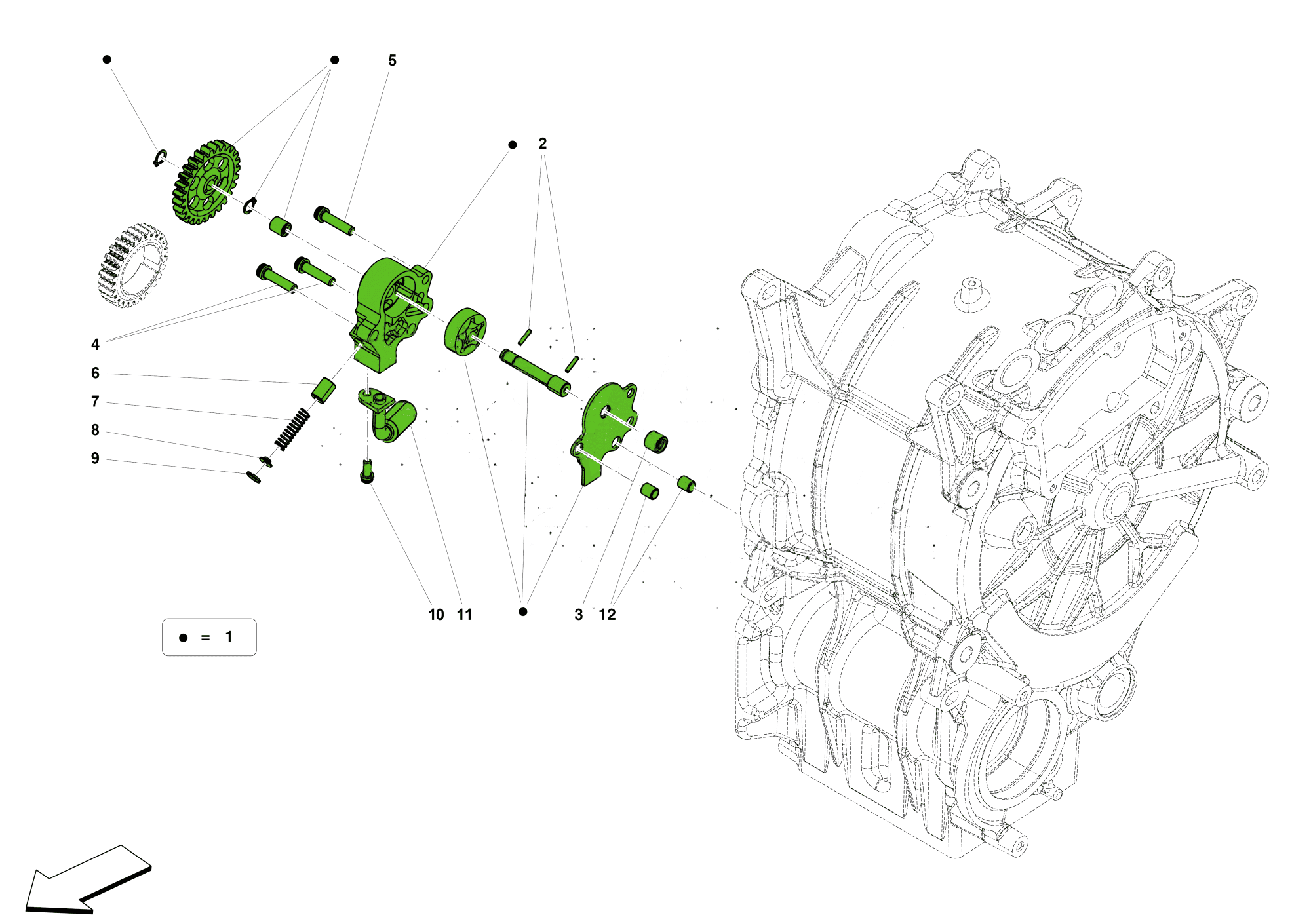

MOTOR OIL PUMP
020
MOTOR OIL PUMP

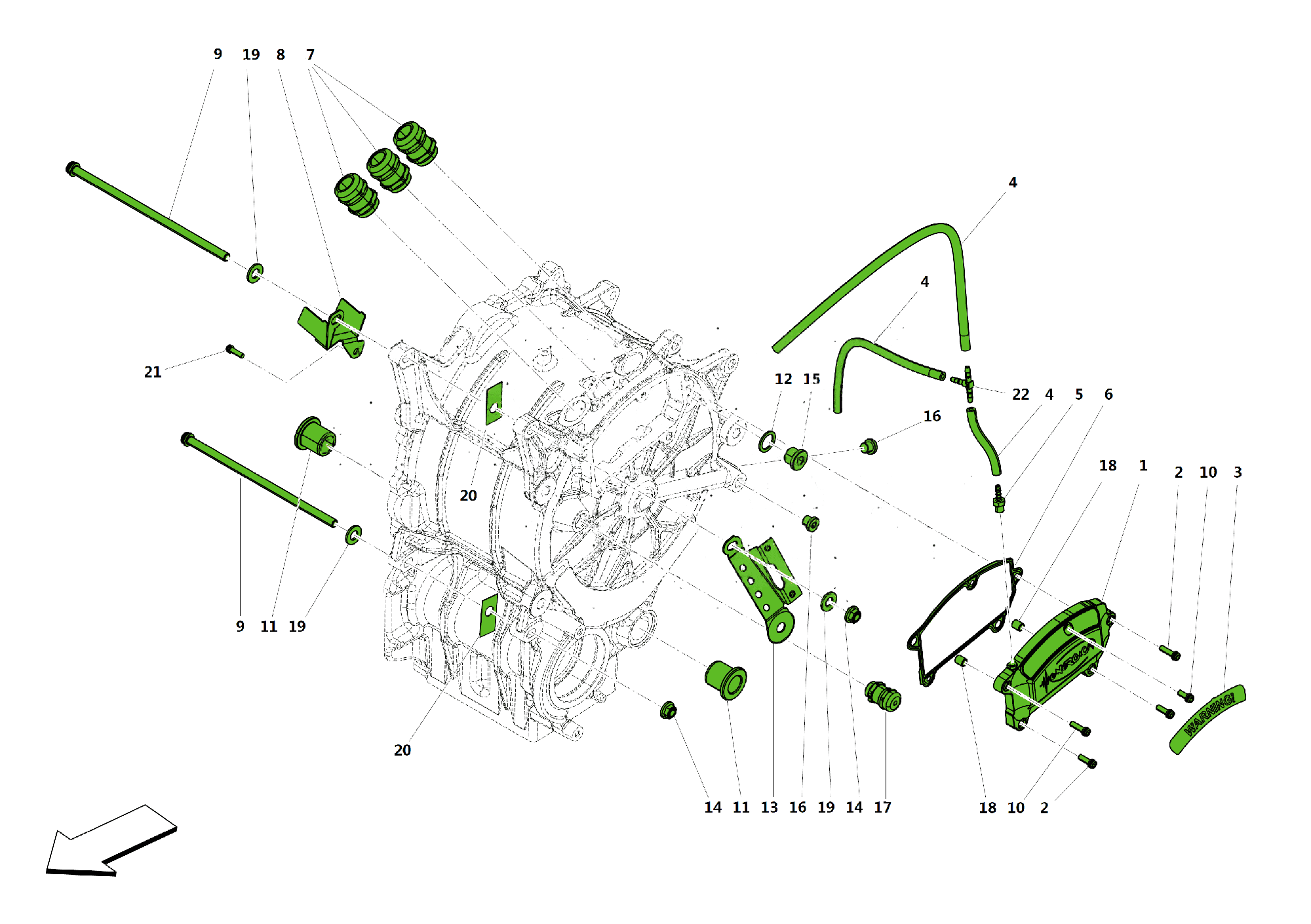

MOTOR COVER AND PLUGS
021
MOTOR COVER AND PLUGS

Frame (14)

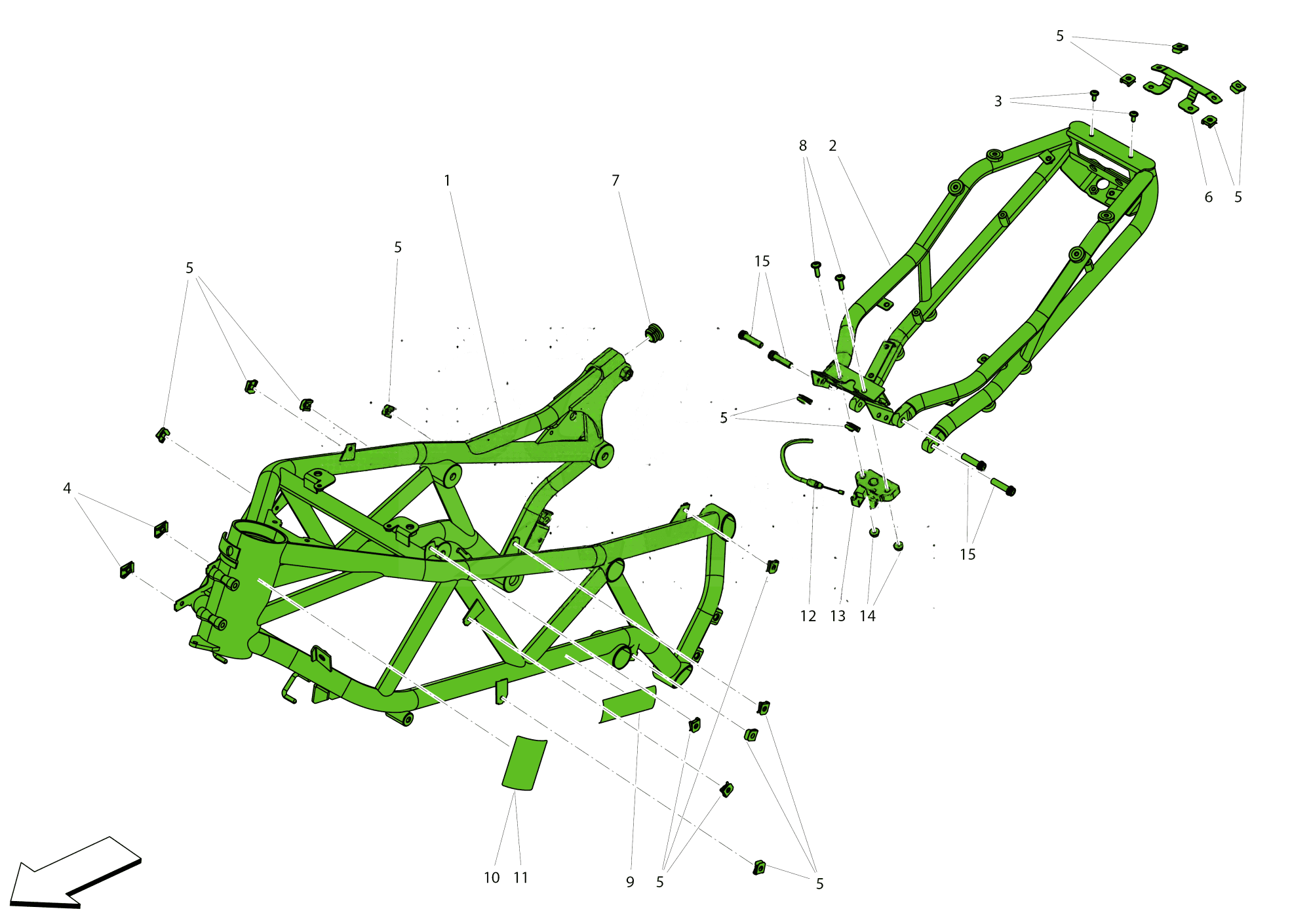

FRAME
001
FRAME

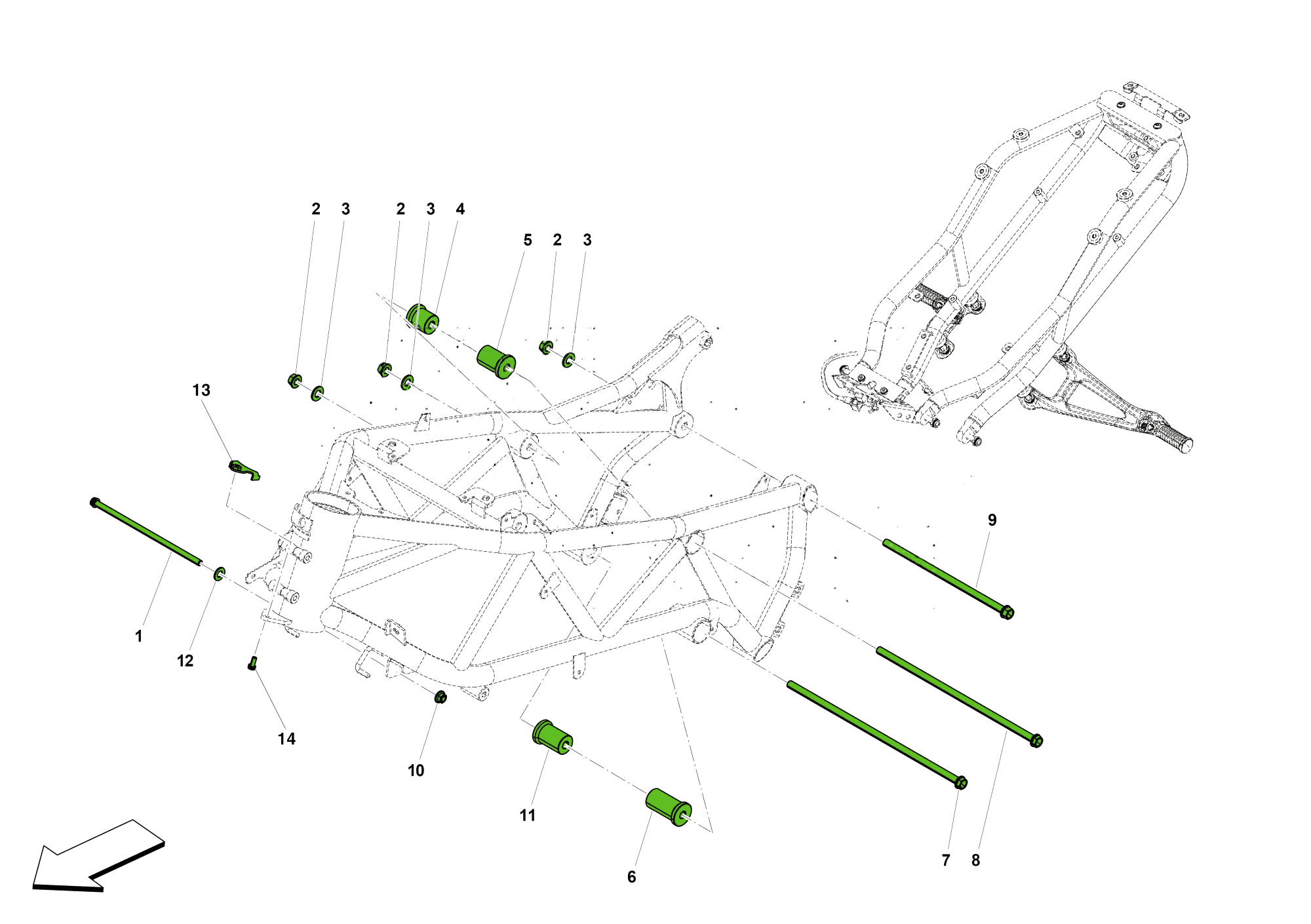

MAIN FRAME PINS
002
MAIN FRAME PINS

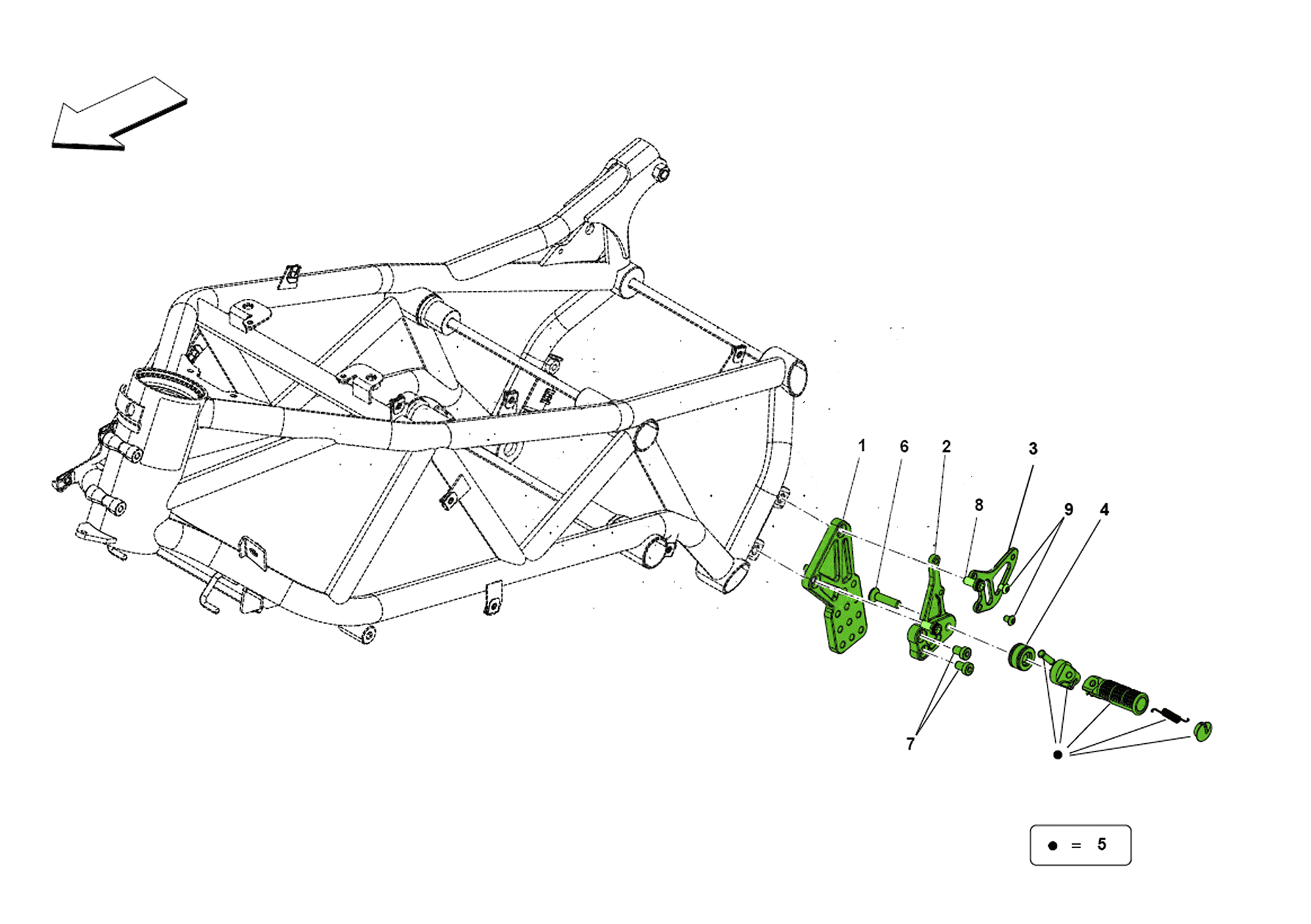

LH RIDER FOOTPEG
003
LH RIDER FOOTPEG

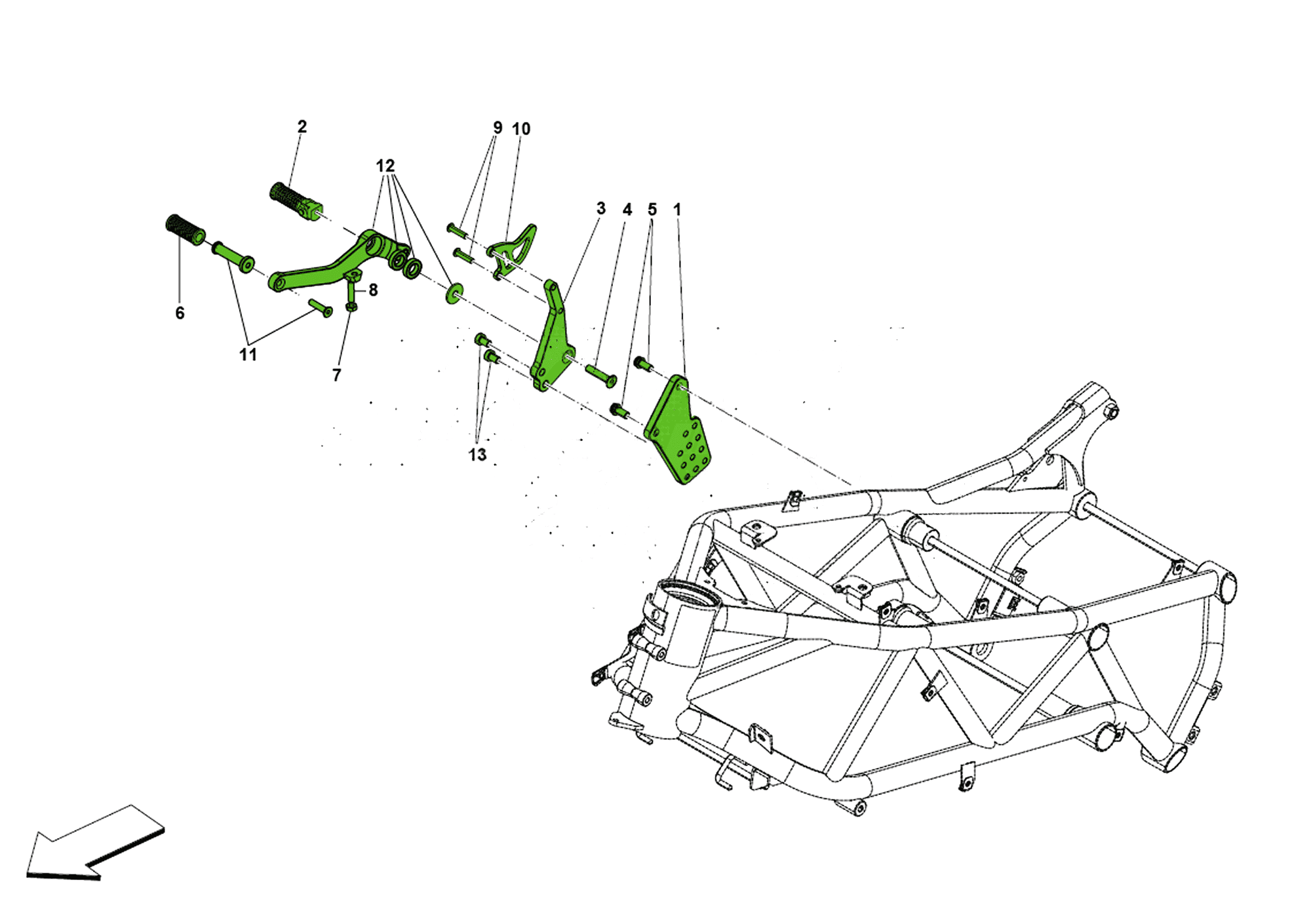

RH RIDER FOOTPEG
004
RH RIDER FOOTPEG

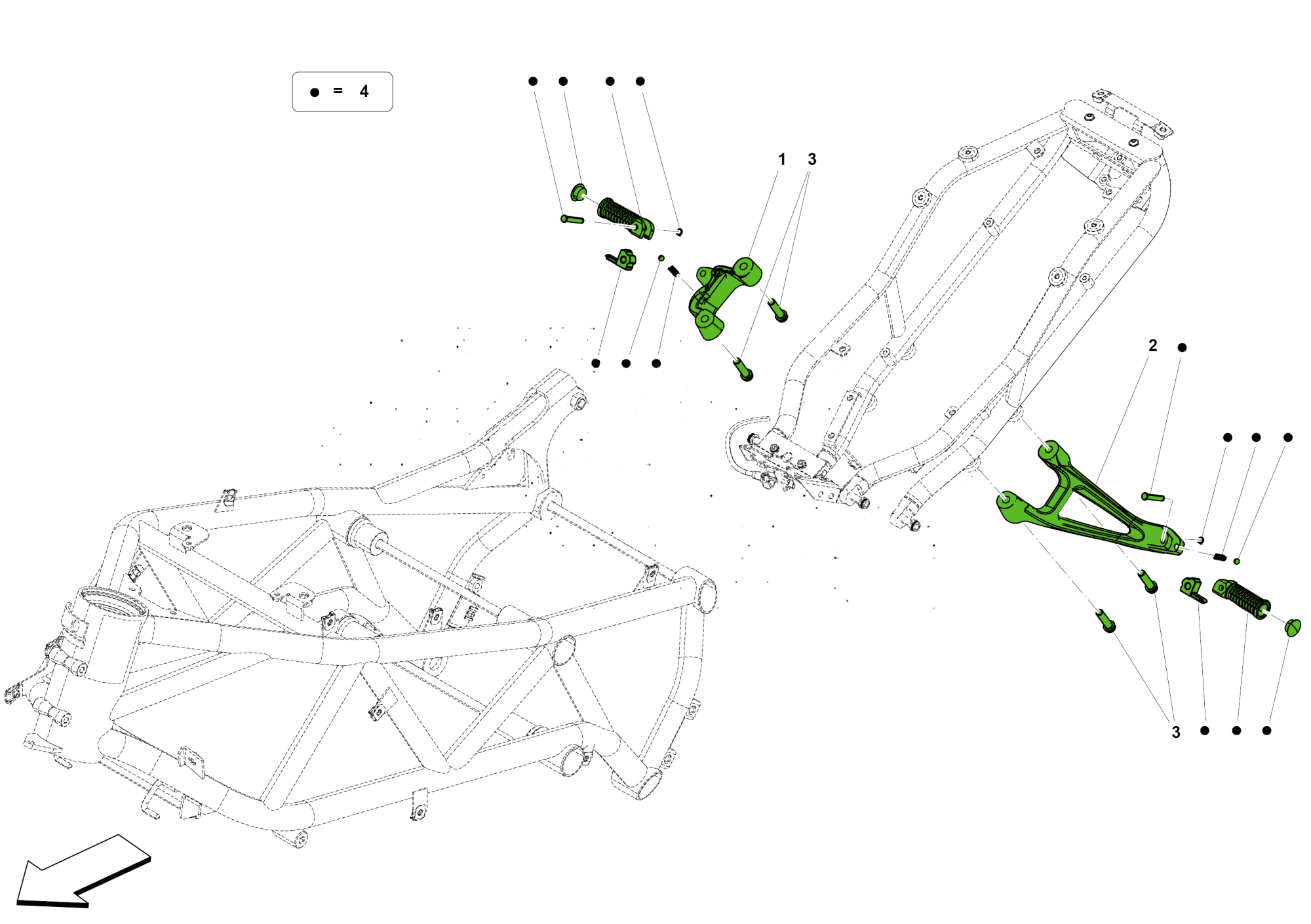

PASSENGER FOOTPEGS
005
PASSENGER FOOTPEGS

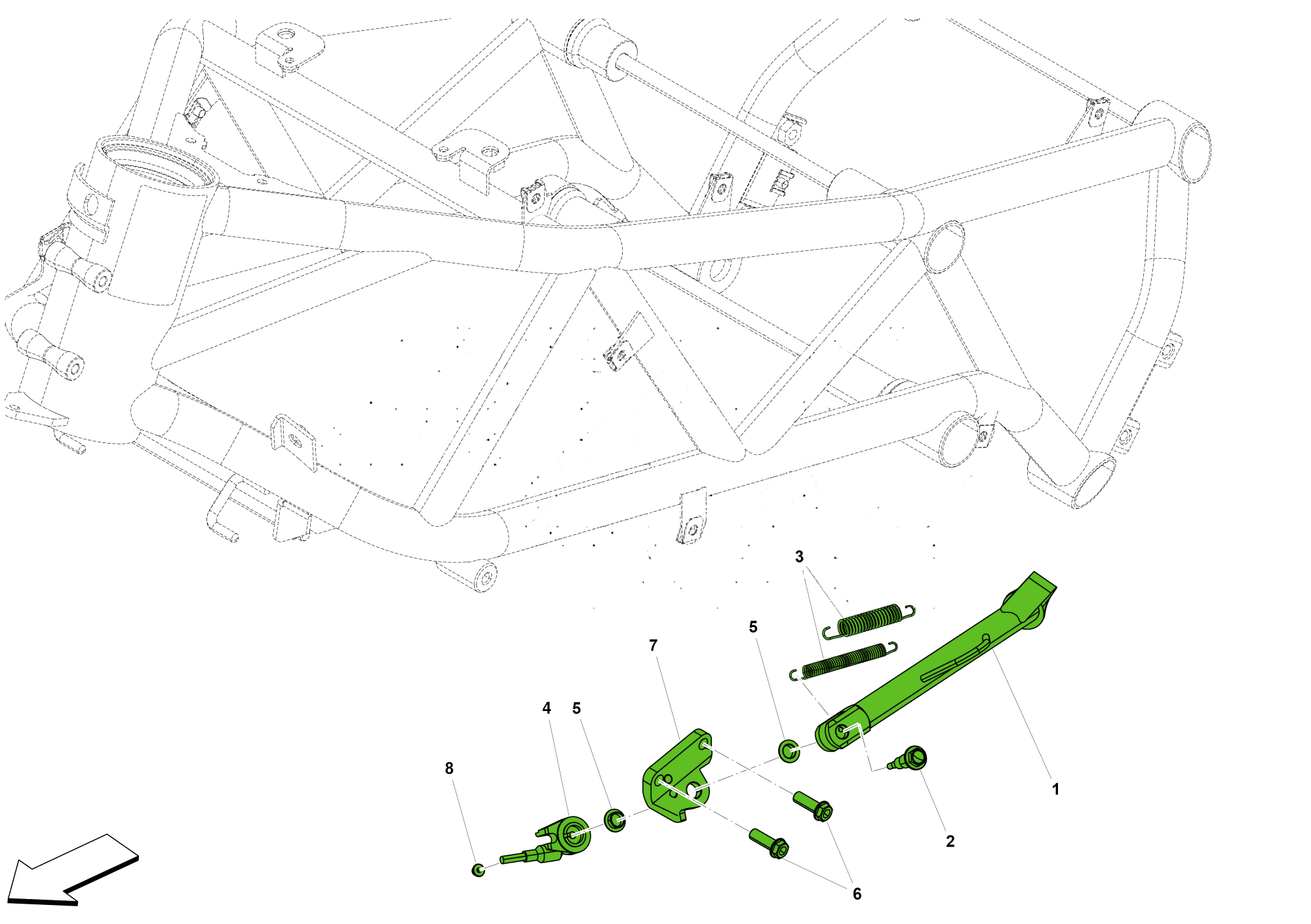

SIDE STAND
006
SIDE STAND

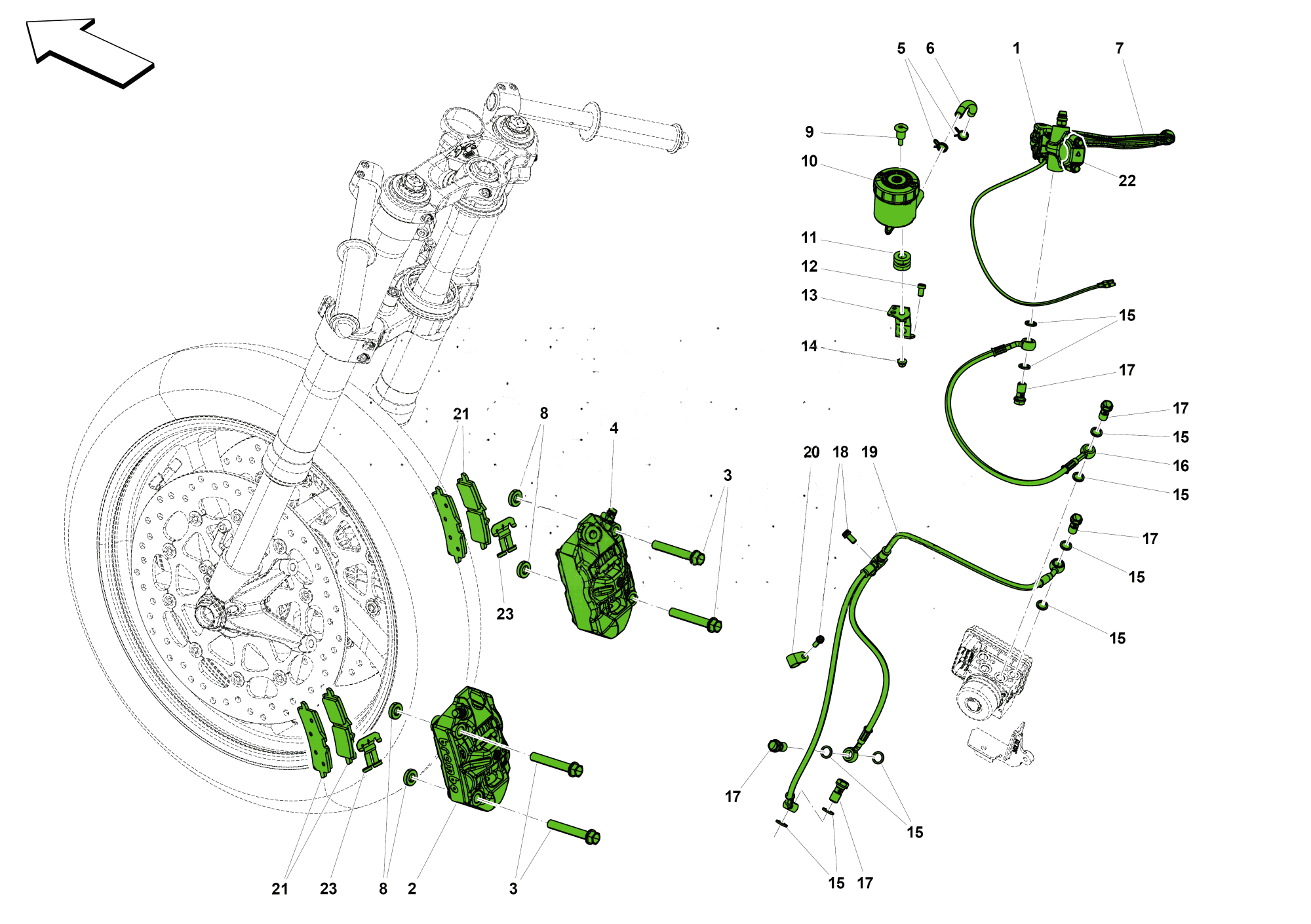

FRONT BRAKE SYSTEM
007
FRONT BRAKE SYSTEM

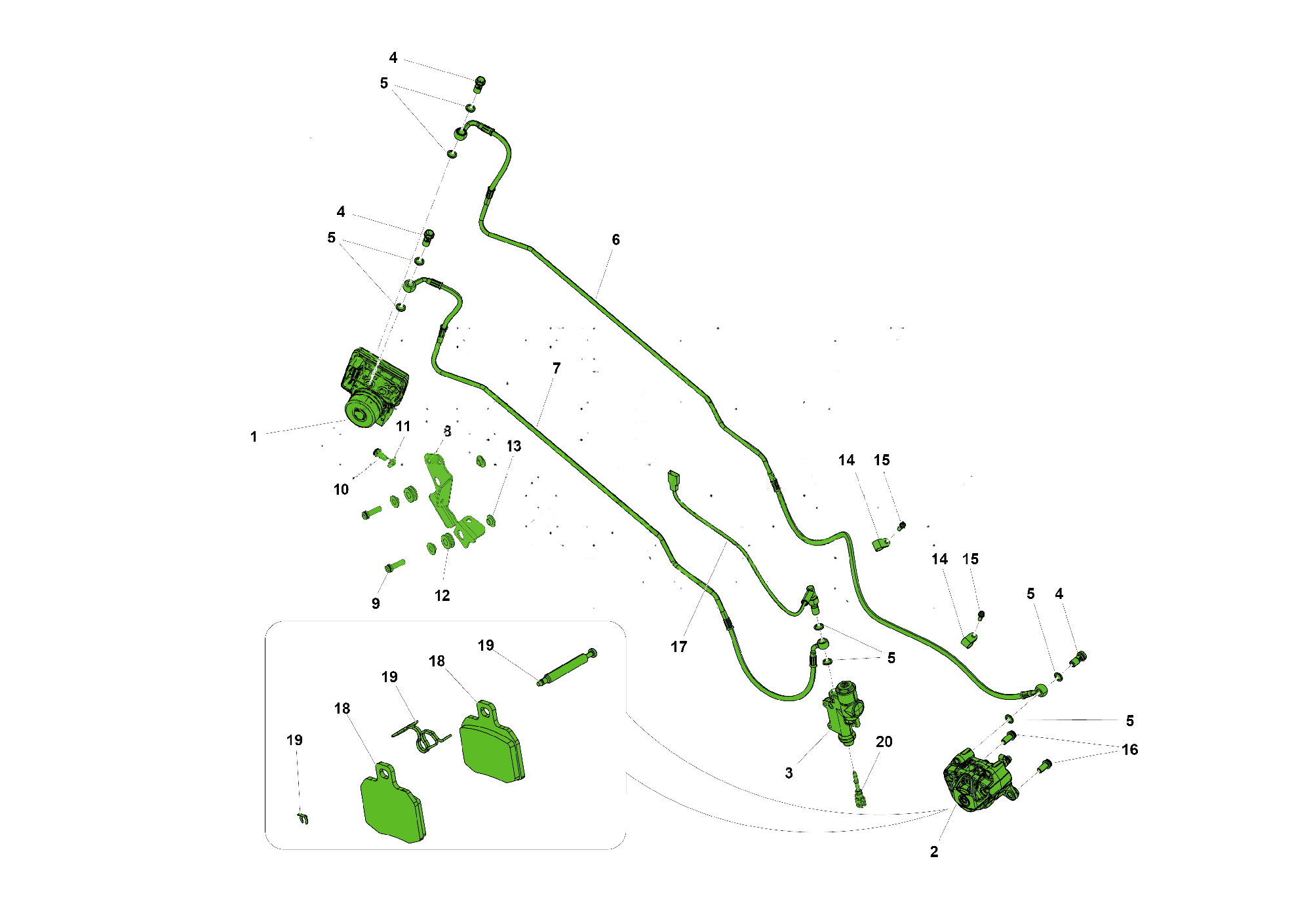

REAR BRAKE SYSTEM
008
REAR BRAKE SYSTEM

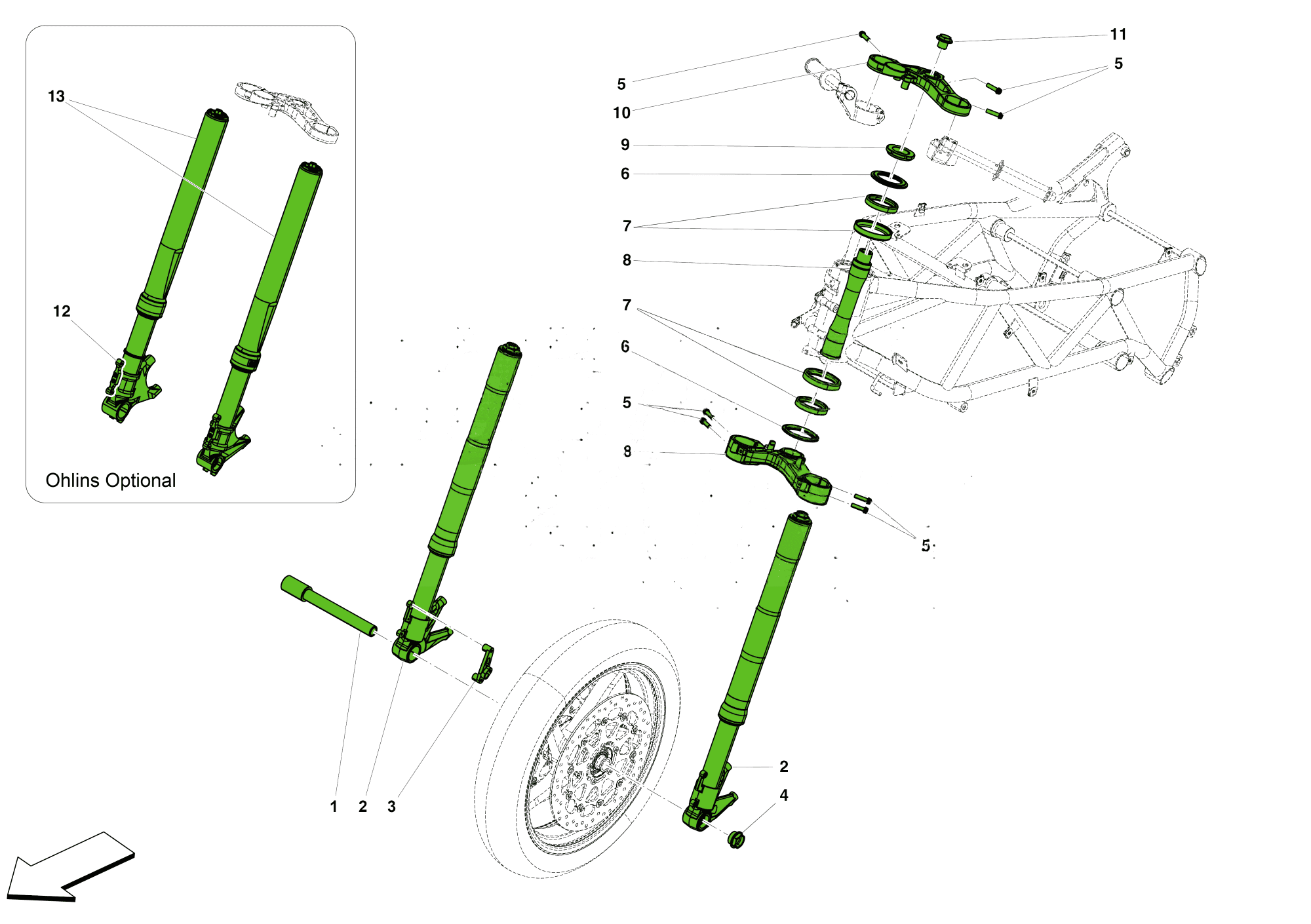

FRONT SUSPENSION
011
FRONT SUSPENSION

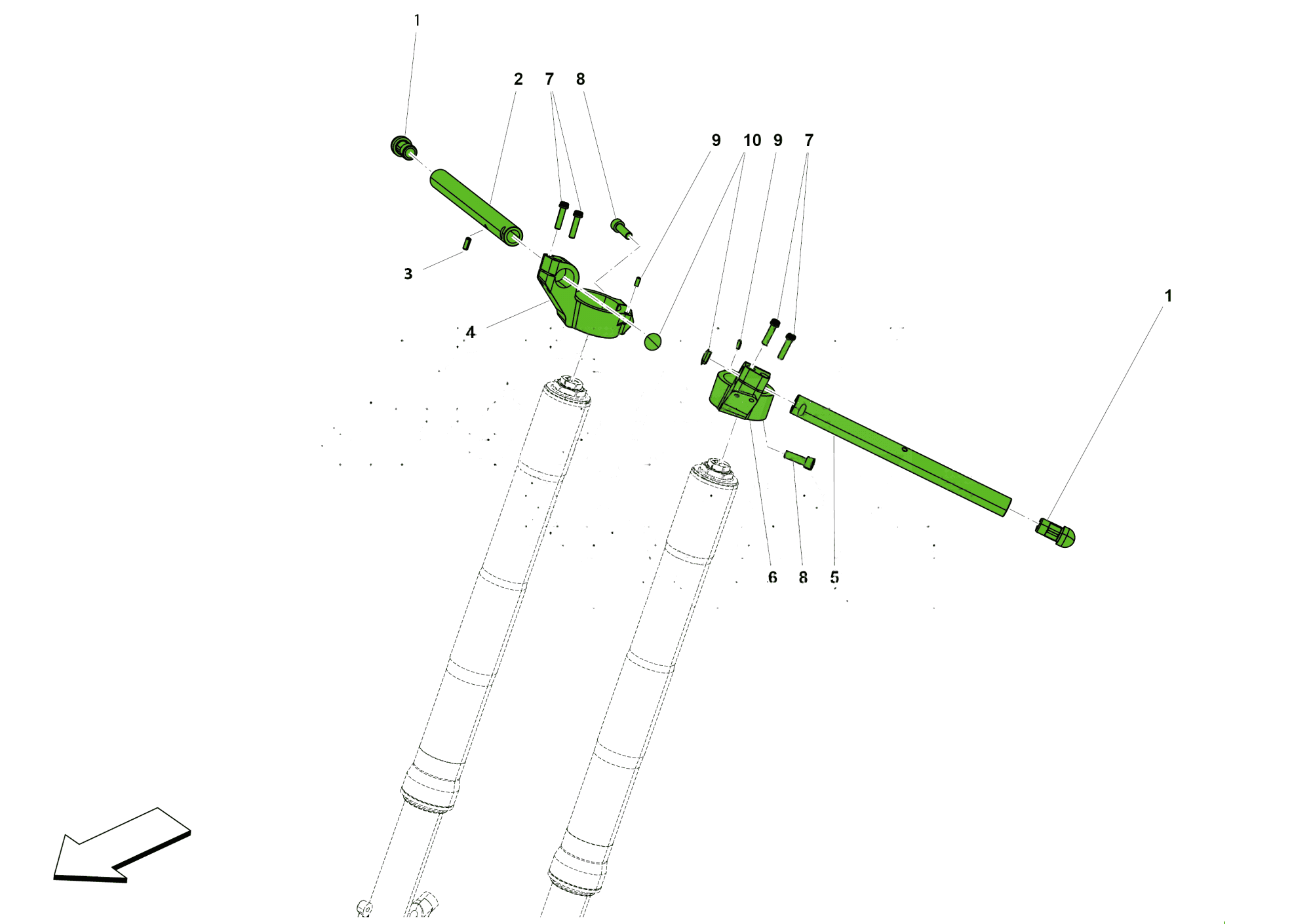

SEMI-HANDLEBARS
012
SEMI-HANDLEBARS

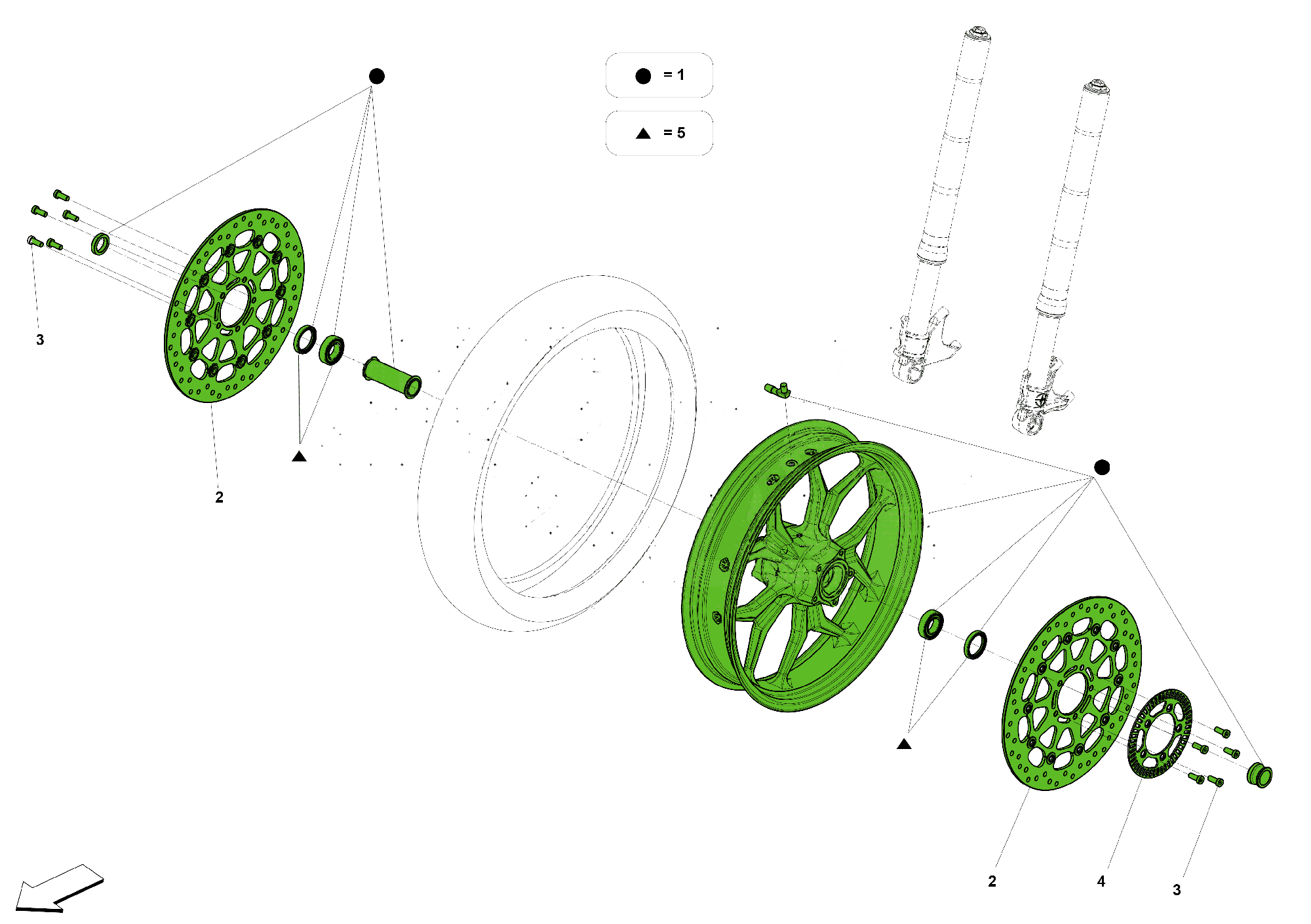

FRONT WHEEL
013
FRONT WHEEL

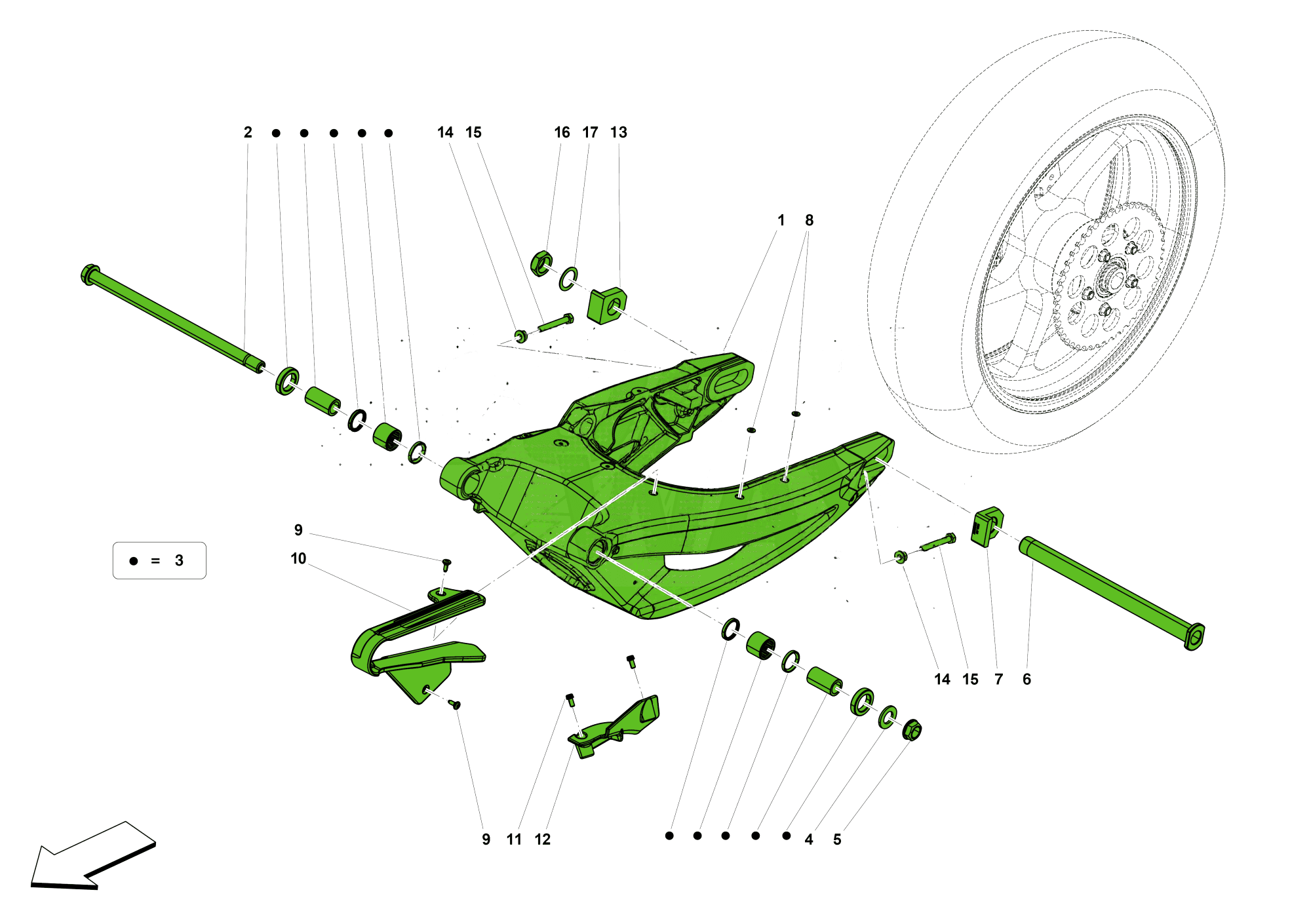

SWINGARM
014
SWINGARM

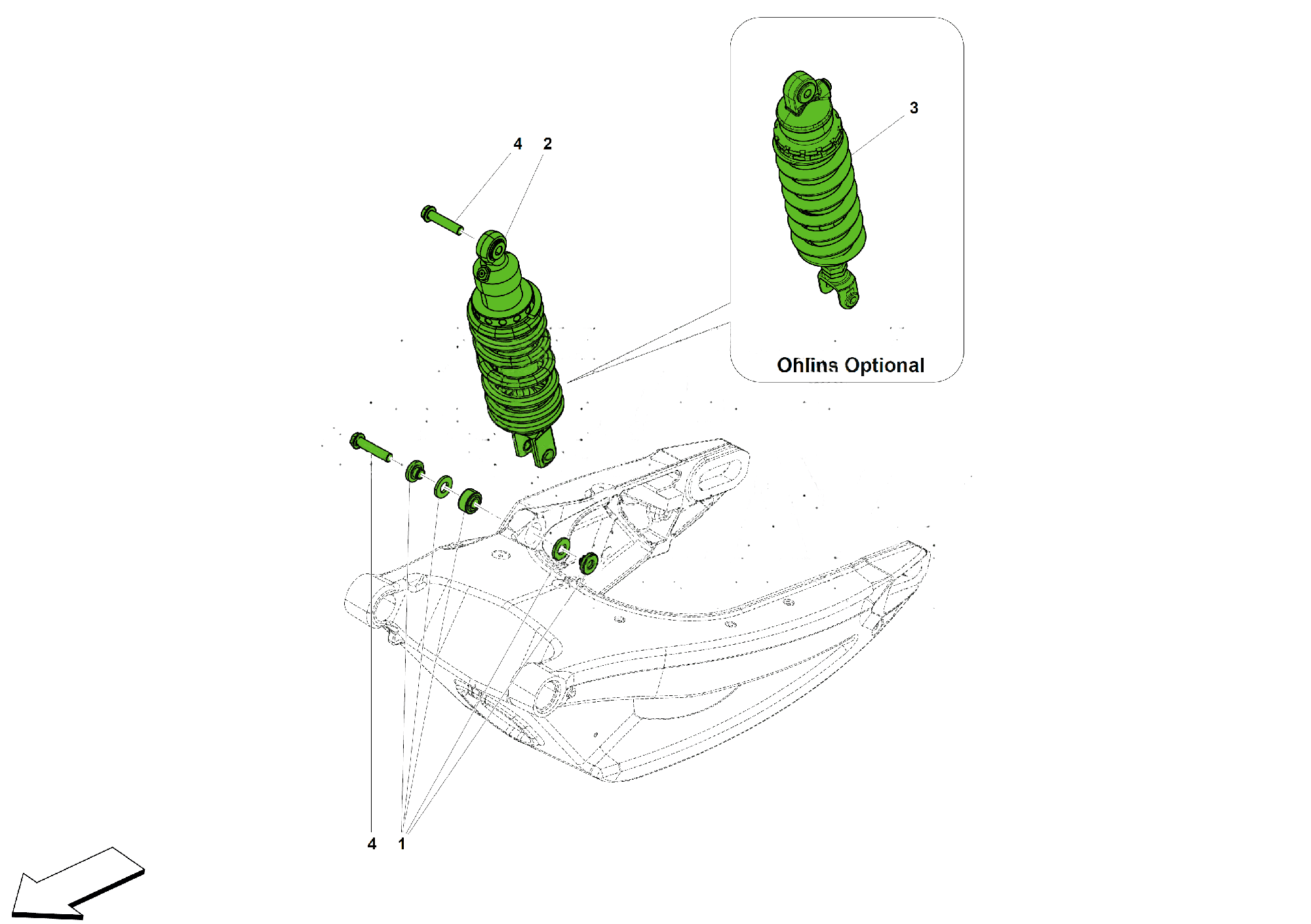

REAR SHOCK ABSORBER
015
REAR SHOCK ABSORBER

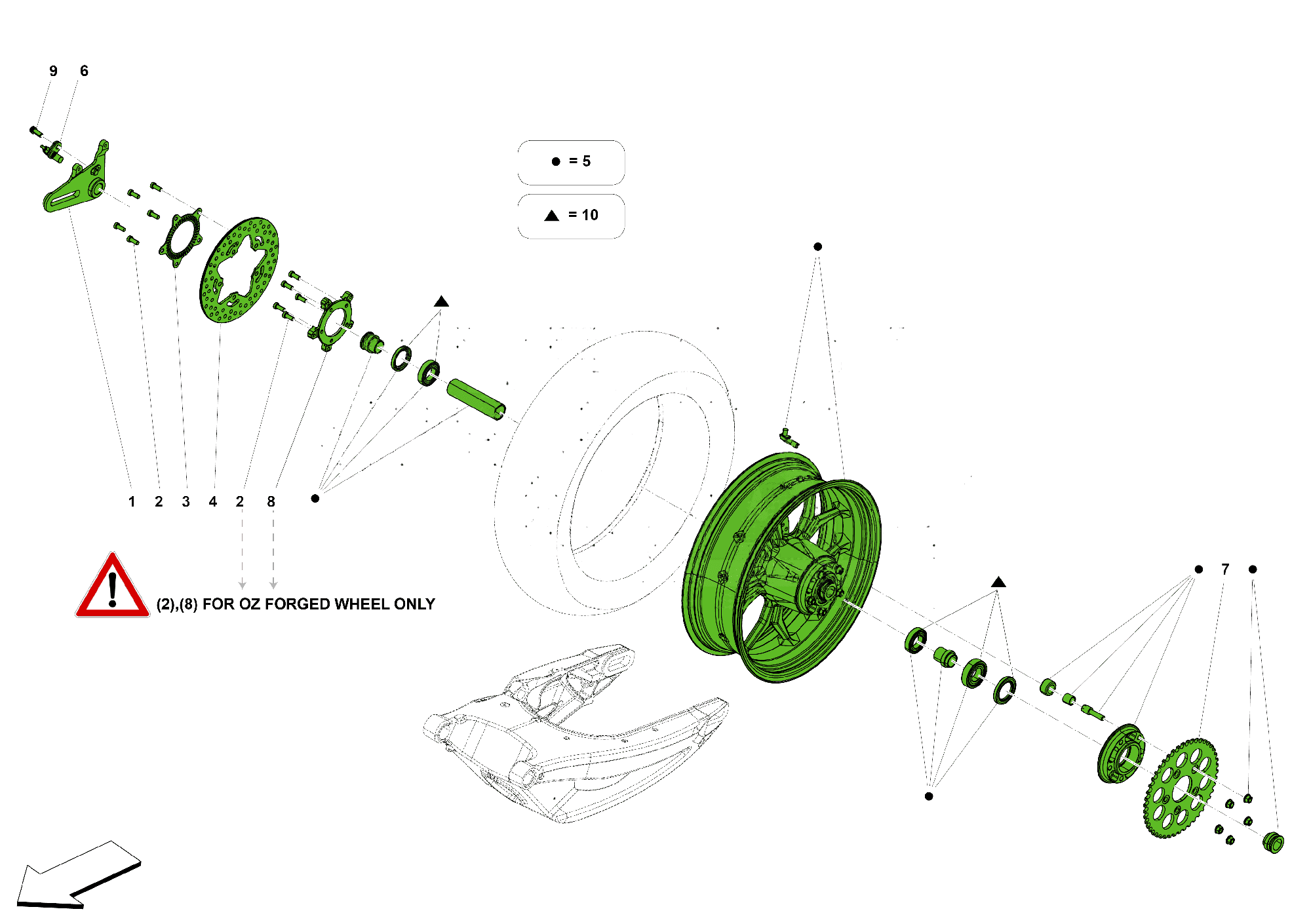

REAR WHEEL
016
REAR WHEEL

Variants (6)

Submodel Variant Notes Colour Power Years
ENA004418 EUR Red frame/Cruise Control/Traction Control/tank's sticker with "Energica electric beat" logo
SPORT BLACK EN12
2019
ENA004418 EUR Red frame/Cruise Control/Traction Control/tank's sticker with "Energica electric beat" logo
LUNAR WHITE - TITAN GREY
2019
ENA004418 EUR Red frame/Cruise Control/Traction Control/tank's sticker with "Energica electric beat" logo
RED PASSION - TITAN GREY
2019
ENA004419 USA Red frame/Cruise Control/Traction Control/tank's sticker with "Energica electric beat" logo
SPORT BLACK EN12
2019
ENA004419 USA Red frame/Cruise Control/Traction Control/tank's sticker with "Energica electric beat" logo
LUNAR WHITE - TITAN GREY
2019
ENA004419 USA Red frame/Cruise Control/Traction Control/tank's sticker with "Energica electric beat" logo
RED PASSION - TITAN GREY
2019

VINs (30)

Chassis no. Submodel Seq. Engine range
ZNNG1A1B0KS000155 ENA004418 3 —
ZNNG1A1BXJS000114 ENA004418 4 —
ZNNG1A1B6LS000162 ENA004418 5 —
ZNNG1A1B8LS000163 ENA004419 6 —
ZNNG1A1BXLS000164 ENA004419 7 —
ZNNG1A1B1LS000165 ENA004419 8 —
ZNNG1A1B3LS000166 ENA004419 9 —
ZNNG1A1B5LS000167 ENA004418 10 —
ZNNG1A1B7LS000168 ENA004418 11 —
ZNNG1A1B9LS000169 ENA004418 12 —
ZNNG1A1B5LS000170 ENA004419 13 —
ZNNG1A1B7LS000171 ENA004418 14 —
ZNNG1A1B9LS000172 ENA004418 15 —
ZNNG1A1B0LS000173 ENA004418 16 —
ZNNG1A1B2LS000174 ENA004419 17 —
ZNNG1A1B4LS000175 ENA004418 18 —
ZNNG1A1B6LS000176 ENA004418 19 —
ZNNG1A1B8LS000177 ENA004418 20 —
ZNNG1A1BXLS000178 ENA004419 21 —
ZNNG1A1B1LS000179 ENA004419 22 —
ZNNG1A1B8LS000180 ENA004419 23 —
ZNNG1A1B5LS000184 ENA004418 24 —
ZNNG1A1B1LS000182 ENA004419 25 —
ZNNG1A1B3LS000183 ENA004419 26 —
ZNNG1A1BXLS000181 ENA004419 27 —
ZNNG1A1B7LS000185 ENA004418 28 —
ZNNG1A1B0LS000187 ENA004418 29 —
ZNNG1A1B9LS000186 ENA004418 30 —
ZNNG1A1B2LS000191 ENA004418 31 —
ZNNG1A1B4NS000129 ENA004418 32 —

Fitting accessories (87)

PARTS AND ACCESSORIES

A 37 accessories

PARTS AND ACCESSORIES

AA 37
(EGO MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
ENS008209
(EGO MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
€2.943,00
(EGO) ERGAL KIT - BLACK
ENA002642
(EGO) ERGAL KIT - BLACK
€315,00
(EGO) ERGAL KIT - GOLD
ENA002417
(EGO) ERGAL KIT - GOLD
€315,00
EGO REAR SEAT COVER ASTEROID GREY - CORSA CLIENTI -
ENA006844
EGO REAR SEAT COVER ASTEROID GREY - CORSA CLIENTI -
€256,00

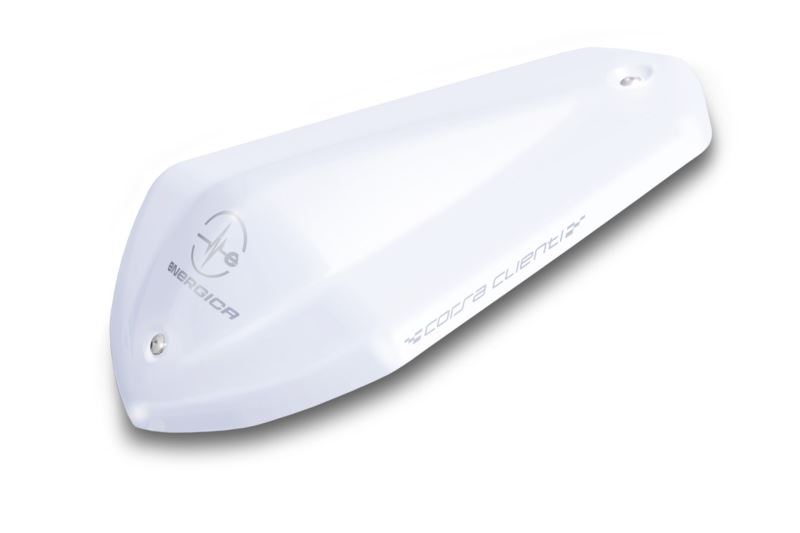

EGO REAR SEAT COVER LUNAR WHITE - CORSA CLIENTI KIT -
ENA004724
EGO REAR SEAT COVER LUNAR WHITE - CORSA CLIENTI KIT -
€256,00
EGO REAR SEAT COVER METAL BLACK - CORSA CLIENTI KIT -
ENA004720
EGO REAR SEAT COVER METAL BLACK - CORSA CLIENTI KIT -
€256,00
EGO REAR SEAT COVER ROSSO CORSA - CORSA CLIENTI KIT -
ENA007157
EGO REAR SEAT COVER ROSSO CORSA - CORSA CLIENTI KIT -
€256,00
HEATED HANDGRIPS KIT
ENA004617
HEATED HANDGRIPS KIT
€230,00
SPLASH GUARD EGO AND EVA (EVA =<2019 WITHOUT SIDE BAGS & RACK KIT ENA001885)
ENS008244
SPLASH GUARD EGO AND EVA (EVA =<2019 WITHOUT SIDE BAGS & RACK KIT ENA001885)
€85,00
TANK BAG WITH TANK COVER (can hold a full-face helmet)
ENS008374
TANK BAG WITH TANK COVER (can hold a full-face helmet)
€256,00

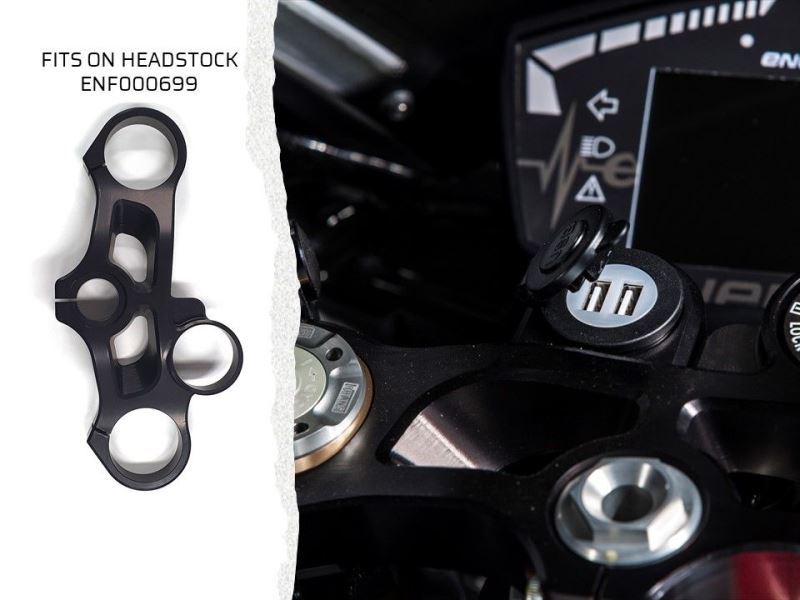

USB PORT KIT (EGO) FOR HEADSTOCK ENF000699
ENA003221
USB PORT KIT (EGO) FOR HEADSTOCK ENF000699
€134,00
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008413
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008412
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
ENS007786
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
€165,00
ERGAL STAND BOBBINS
ENS002588
ERGAL STAND BOBBINS
€18,90 all models
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
ENS011754
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
€110,00 all models
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
ENS003355
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
€182,00
CARBON FIBER BELLY PAN (EGO)
ENS002812
CARBON FIBER BELLY PAN (EGO)
€588,00
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
ENS010836
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
€340,00 all models
EGO TECH SEAT
ENS002692
EGO TECH SEAT
99 999+

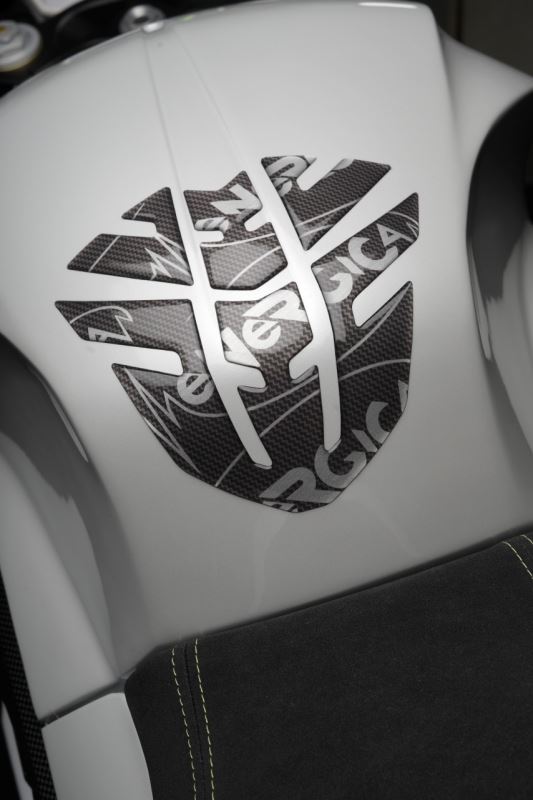

ENERGICA EGO TANK PAD
ENF002550
ENERGICA EGO TANK PAD
€21,00
BEARINGS REPLACING KIT (BITUBO/OHLINS)
ENA006051
BEARINGS REPLACING KIT (BITUBO/OHLINS)
€160,00
GLOVES-HIGH VOLTAGE 1000V
ENS002235
GLOVES-HIGH VOLTAGE 1000V
€70,00 all models
HEXAGON SOCKET
ENS002237
HEXAGON SOCKET
€26,00
MOTOR AND TRANSMISSION MAINTENANCE KIT
ENA001869
MOTOR AND TRANSMISSION MAINTENANCE KIT
€34,00
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
ENS010173
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
€120,00 all models
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
ENF007774
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
€15,75
PCAN INTERFACE (VDB vehicle data bus)
ENS003005
PCAN INTERFACE (VDB vehicle data bus)
€210,00 all models
PINION TIGHTENING (15-16-17 TEETH)
ENA009890
PINION TIGHTENING (15-16-17 TEETH)
€80,00
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
ENS004854
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
€260,00 all models
SPROCKET SOCKET
ENS001870
SPROCKET SOCKET
€90,00 all models
STEERING SOCKET
ENS002130
STEERING SOCKET
€70,00
T-WRENCH HIGH VOLTAGE 1000V (6mm) (FOR PRE-EMCE INVERTERS)
ENS002239
T-WRENCH HIGH VOLTAGE 1000V (6mm) (FOR PRE-EMCE INVERTERS)
€44,00
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
ENS003004
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
€17,00 all models
CARBON WHEELS
ENS009532
CARBON WHEELS
€3.290,00
CAST ALUMINIUM WHEELS WITH RED DETAILS
ENS009533
CAST ALUMINIUM WHEELS WITH RED DETAILS
€322,00
OZ ALUMINUM FORGED WHEELS
ENS006842
OZ ALUMINUM FORGED WHEELS
€2.645,00 all models

MANUALS (PRINTED VERSION)

C 8 accessories

OWNER MANUALS

CA 8
CZECH - Příručka k použití a údržbě
END004896
CZECH - Příručka k použití a údržbě
DUTCH - Gebruiks- en onderhoudshandleiding
END004828
DUTCH - Gebruiks- en onderhoudshandleiding
ENGLISH - Owner Manual
END004893
ENGLISH - Owner Manual
FRENCH - Livret d'utilisation et d'entretien
END004890
FRENCH - Livret d'utilisation et d'entretien
GERMAN - Betriebs- und Wartungsanleitung
END004827
GERMAN - Betriebs- und Wartungsanleitung
ITALIAN - Libretto di Uso e Manutenzione
END004822
ITALIAN - Libretto di Uso e Manutenzione
SPANISH - Manual de uso y mantenimiento
END004887
SPANISH - Manual de uso y mantenimiento
SWEDISH - Användar - och underhållsmanual
END004899
SWEDISH - Användar - och underhållsmanual

DEALER IDENTITY

D 42 accessories

VISUAL & MERCHANDISING

DA 42
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
MKT000041
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
€28,50 all models
Bamboo smartphone stand. Minimum batch: 3 pieces
MKT000042
Bamboo smartphone stand. Minimum batch: 3 pieces
€10,50 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
MKT000046
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
€22,00 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
MKT000047
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
€22,00 all models
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
MKT000057
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
€58,00 all models
Energica Towel Package of 3 pieces Minimum batch: 3 piece
MKT000059
Energica Towel Package of 3 pieces Minimum batch: 3 piece
€30,00 all models
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
MKT000043
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
€29,70 all models
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
MKT000040
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
€24,00 all models
(326CM) – BEACH FLAG POLE + FLAG (72X285)
MKT000066
(326CM) – BEACH FLAG POLE + FLAG (72X285)
€119,00 all models
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
MKT000065
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
MKT000072
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
MKT000091
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
€399,00 all models
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
MKT000073
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
€249,00 all models
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
MKT000090
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
€349,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
MKT000077
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
€899,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
MKT000076
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
€599,00 all models
MKT000075
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM PVC LIGHT 15MM
€249,00 all models
100X200 ROLL UP PRINT + STRUCTURE
MKT000074
100X200 ROLL UP PRINT + STRUCTURE
€99,00 all models
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
MKT000082
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
€1.999,00 all models
MKT000093
100x200 15MM THICK LIGHT PVC PANEL PRINTED DOUBLE-SIDED
€249,00 all models
MKT000092
100x200 LIGHT PVC PANEL 19MM THICK PRINTED SINGLE SIDED, COMPLETE WITH PAIR OF SUPPORTS
€599,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
MKT000085
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
€839,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
MKT000084
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
€529,00 all models
MKT000083
110X270 BASIC PLATFORM MELAMINE FACED CHIPBOARD 18MM THICK + LOGO
€329,00 all models
MKT000086
120X240 EASY PLATFORM+PVC PANEL MELAMINE FACED CHIPBOARD 18MM THICK+LOGO
€649,00 all models
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
MKT000088
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
€1.399,00 all models
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
MKT000071
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
€64,00 all models
180X270X60 MERCHANDISING CORNER (BIG VERSION)
MKT000087
180X270X60 MERCHANDISING CORNER (BIG VERSION)
€2.799,00 all models
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000061
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.099,00 all models
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
MKT000070
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
€1.599,00 all models
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000060
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.599,00 all models
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
MKT000062
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
€499,00 all models
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
MKT000063
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
€649,00 all models
70X100 POSTER DIGITAL PRINT
MKT000078
70X100 POSTER DIGITAL PRINT
€8,99 all models
94X90X60 MERCHANDISING CORNER (EASY VERSION)
MKT000089
94X90X60 MERCHANDISING CORNER (EASY VERSION)
€499,00 all models
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
MKT000069
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
€69,00 all models
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
MKT000067
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
€29,00 all models
DESK DISPLAY IN TRANSPARENT METHACRYLATE
MKT000081
DESK DISPLAY IN TRANSPARENT METHACRYLATE
€9,99 all models
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
MKT000080
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
€99,00 all models
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
MKT000058
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
€184,00 all models
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
MKT000068
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
€64,00 all models
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
MKT000079
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
€69,00 all models
