Energica Catalog
data/catalog.sqlite
001 2016 107 kW

EGO 1st series

34
Drawings
5
Variants
68
VINs
86
Accessories

Drawings

Body (5)

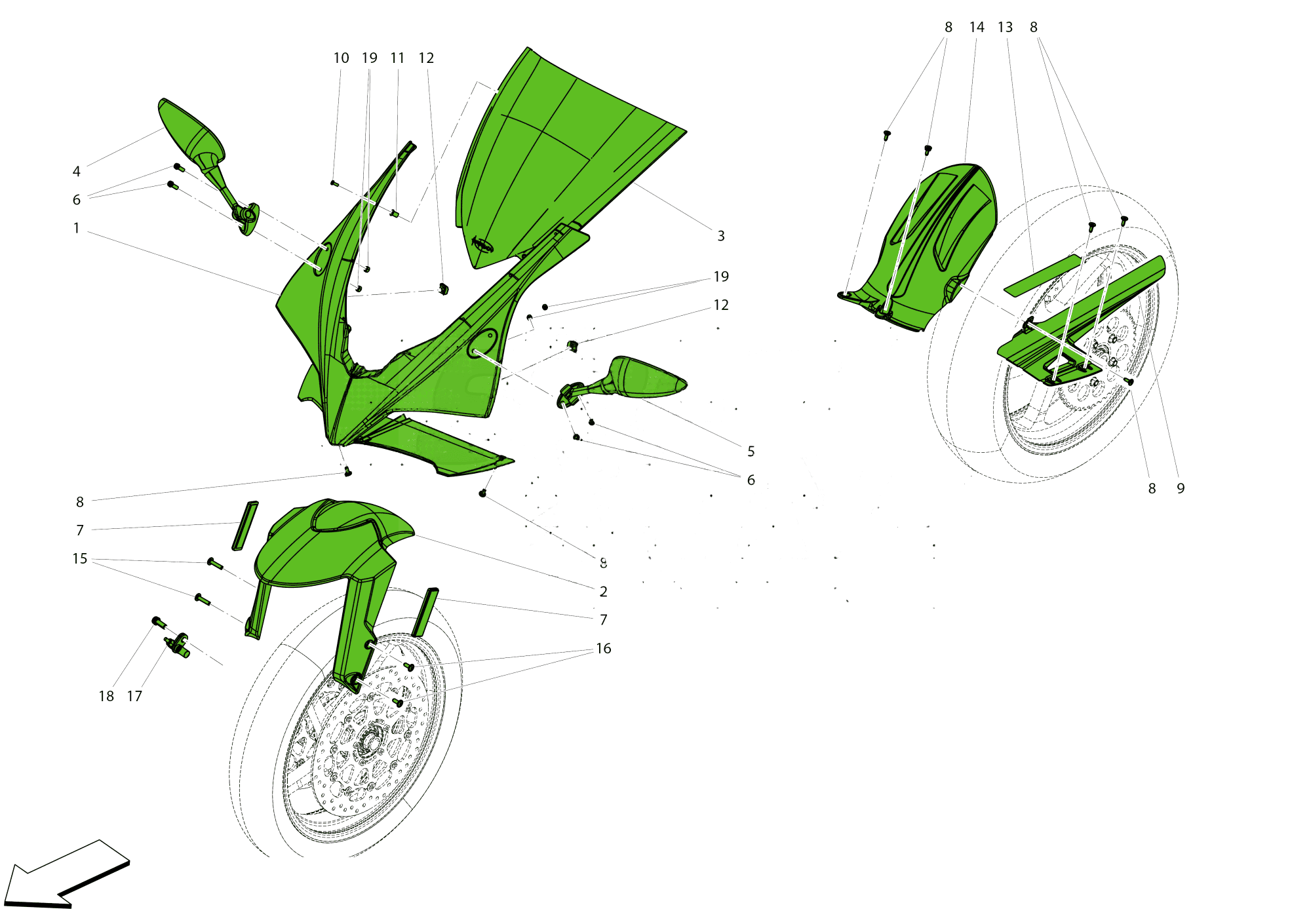

FRONT FAIRING AND MUDGUARDS
022
FRONT FAIRING AND MUDGUARDS

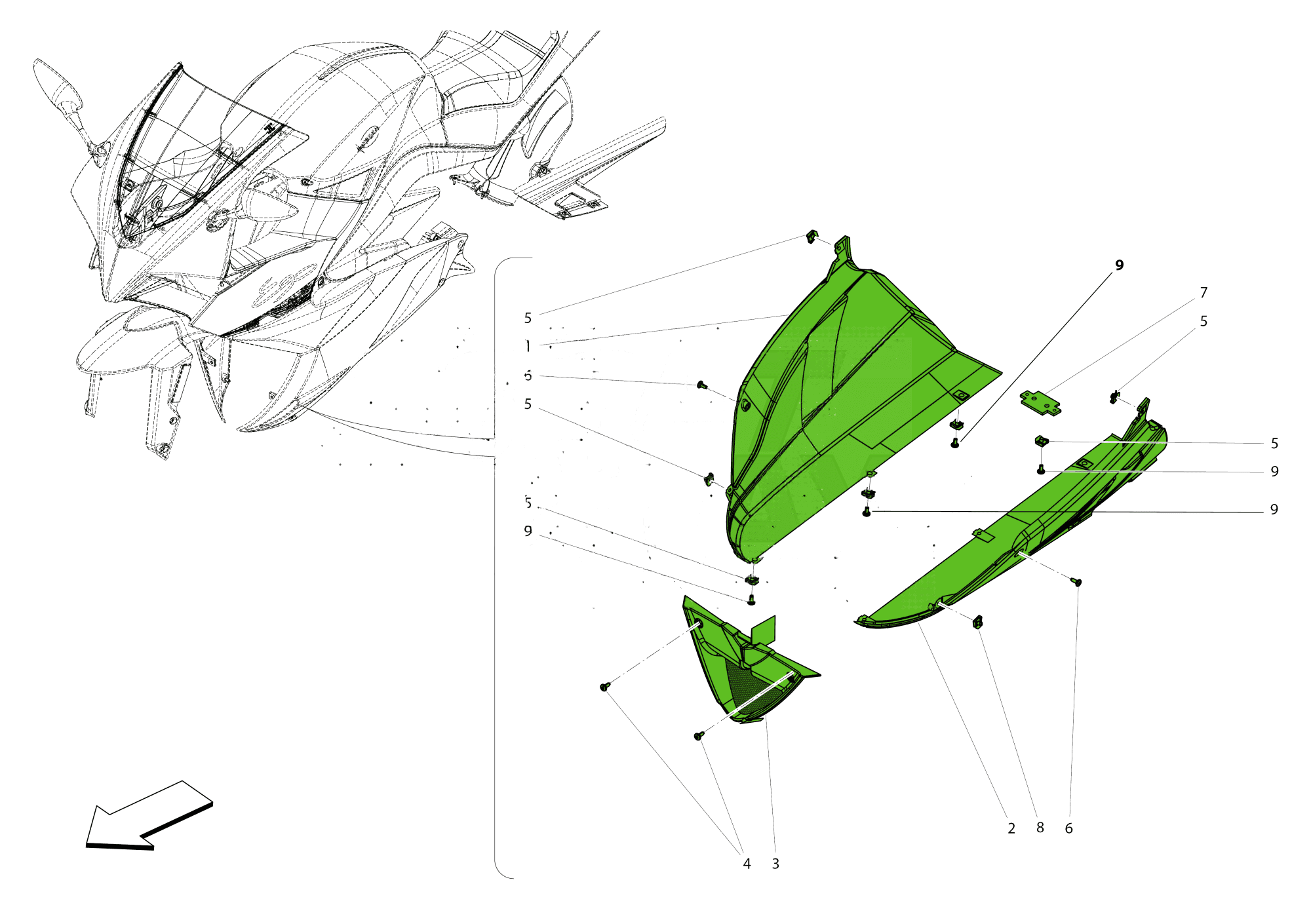

FAIRING - BELLY PAN
023
FAIRING - BELLY PAN

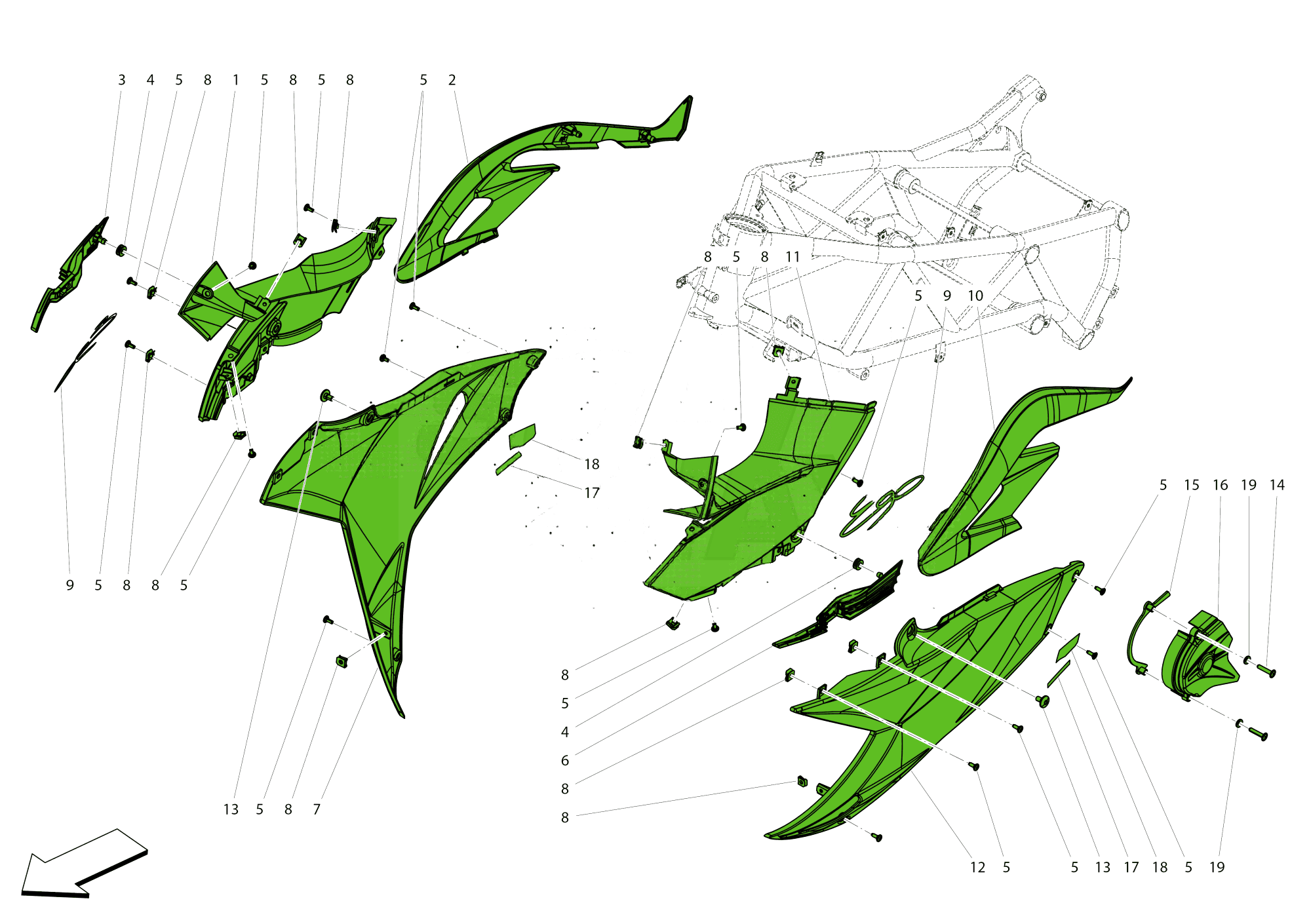

SIDE FAIRINGS
024
SIDE FAIRINGS

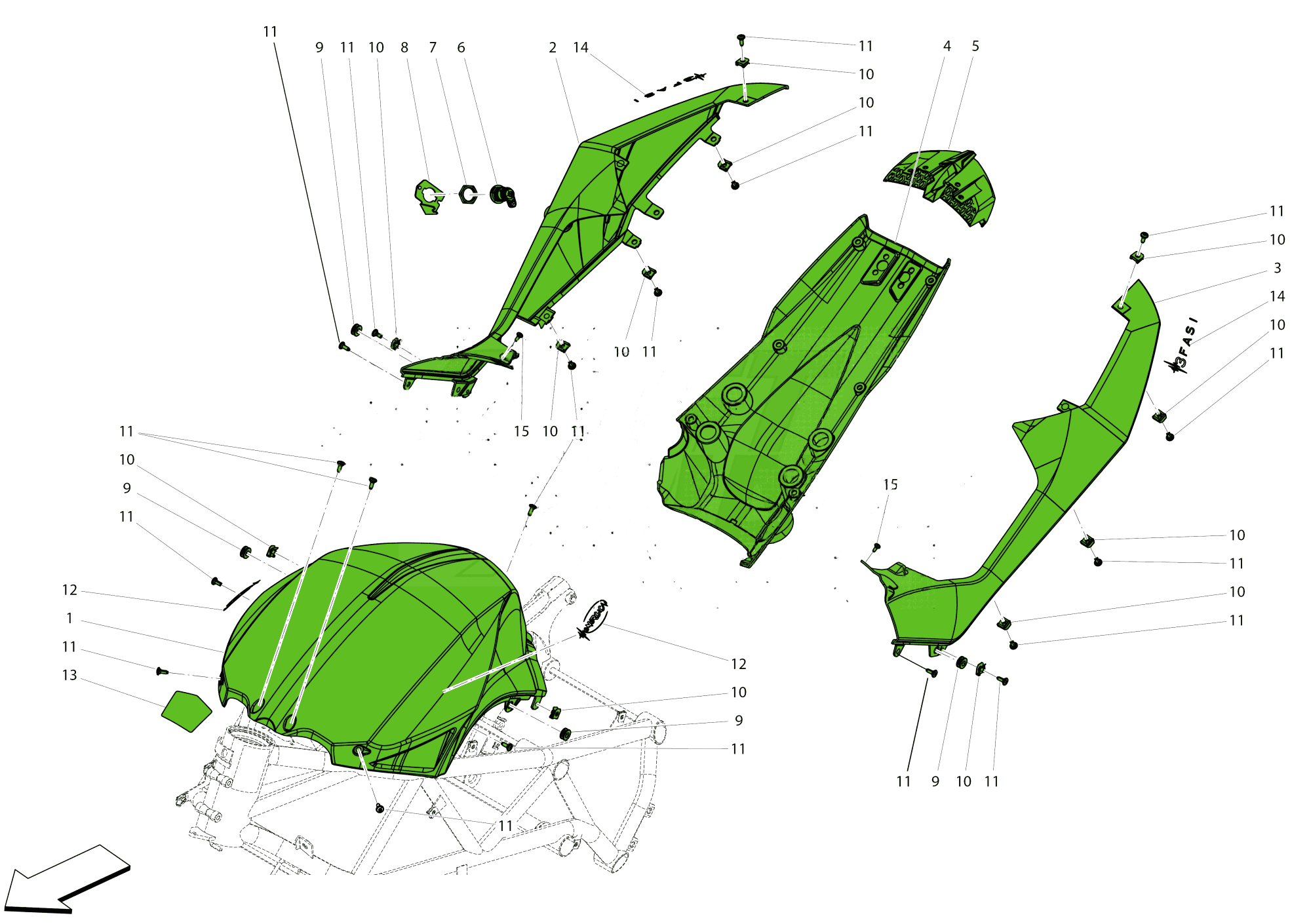

TANK FAIRING - TAIL FAIRING
025
TANK FAIRING - TAIL FAIRING

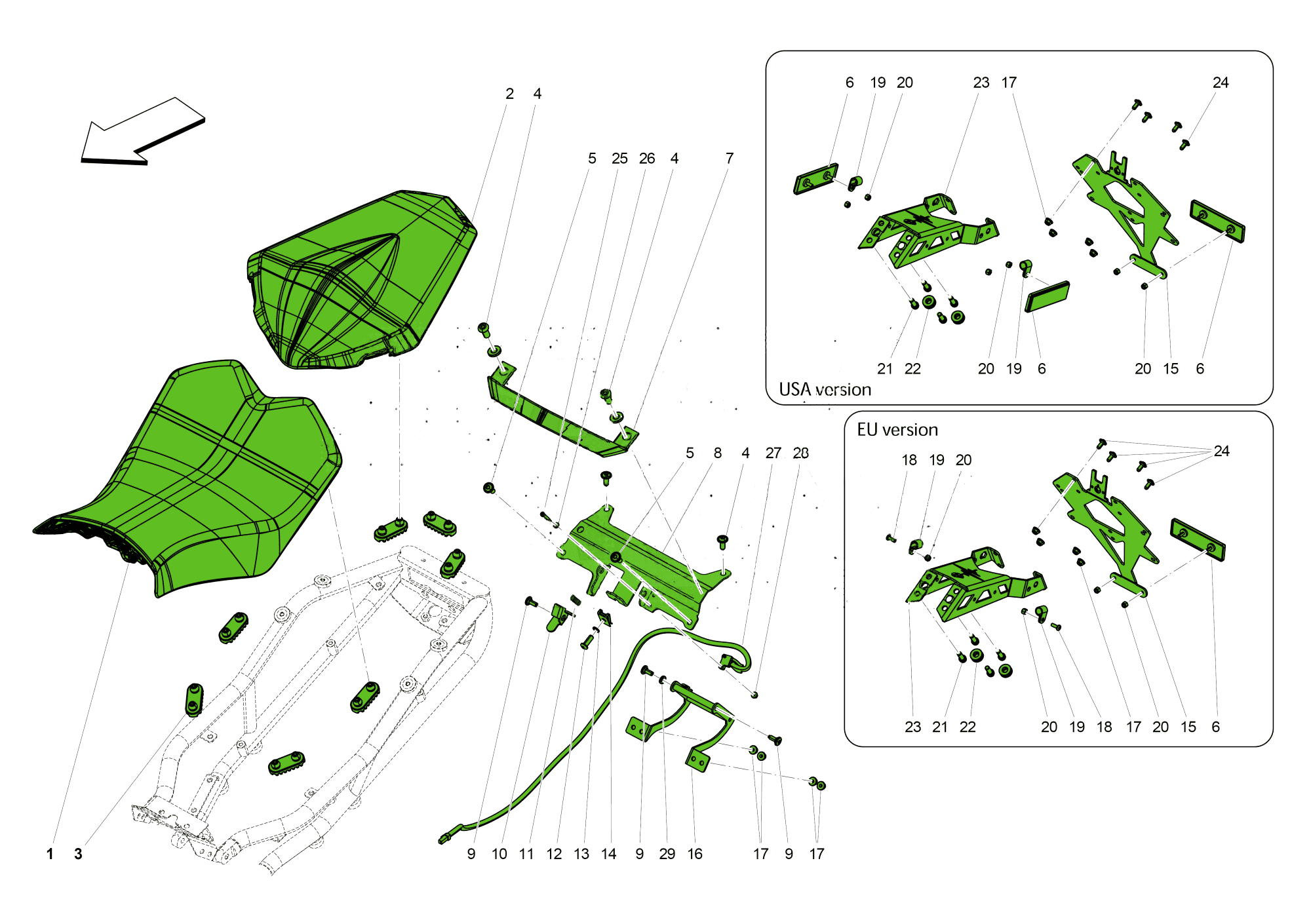

SADDLES AND LICENSE PLATE HOLDER
026
SADDLES AND LICENSE PLATE HOLDER

Electrical System and Instrumentation (8)

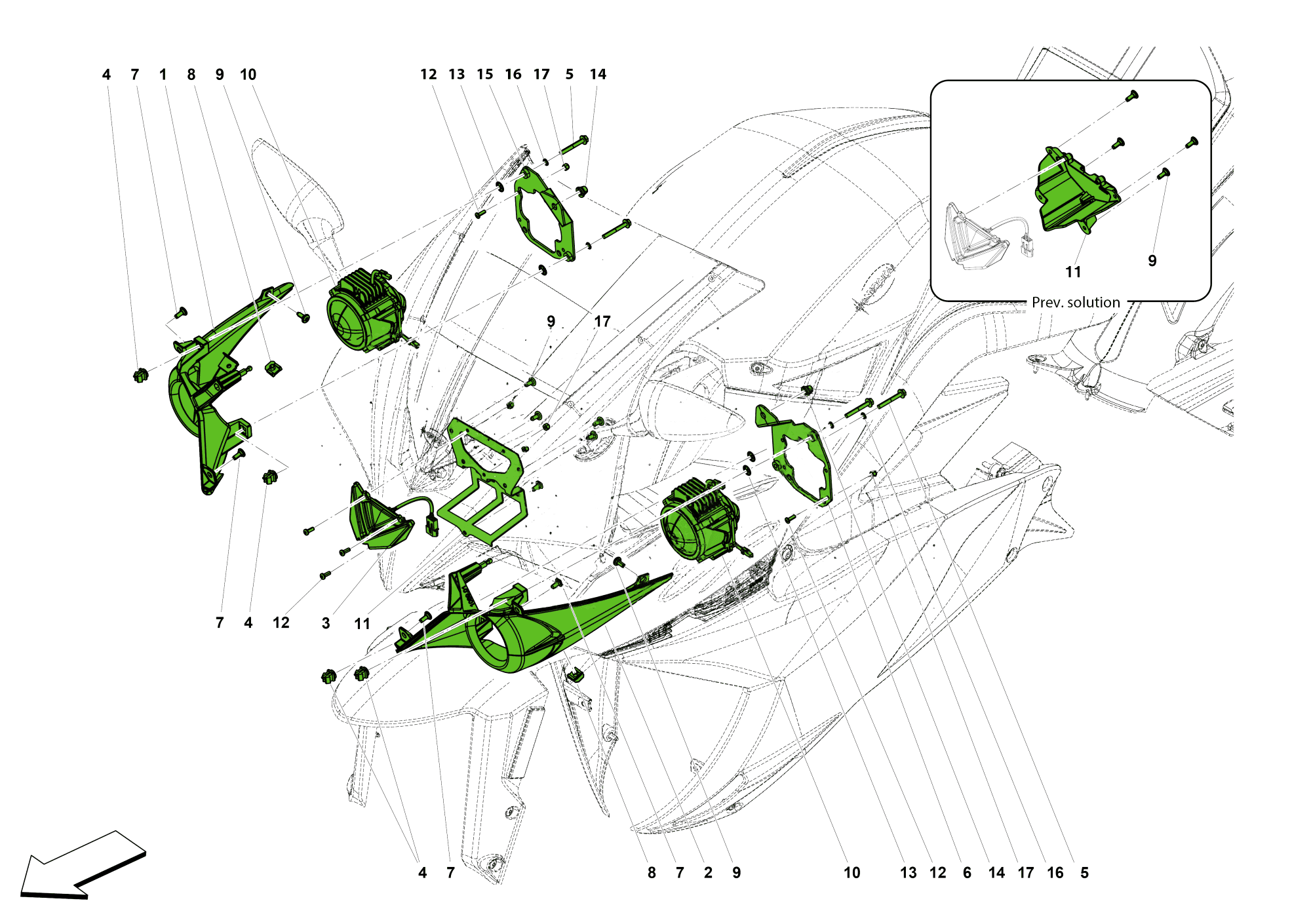

HEADLAMPS
027
HEADLAMPS

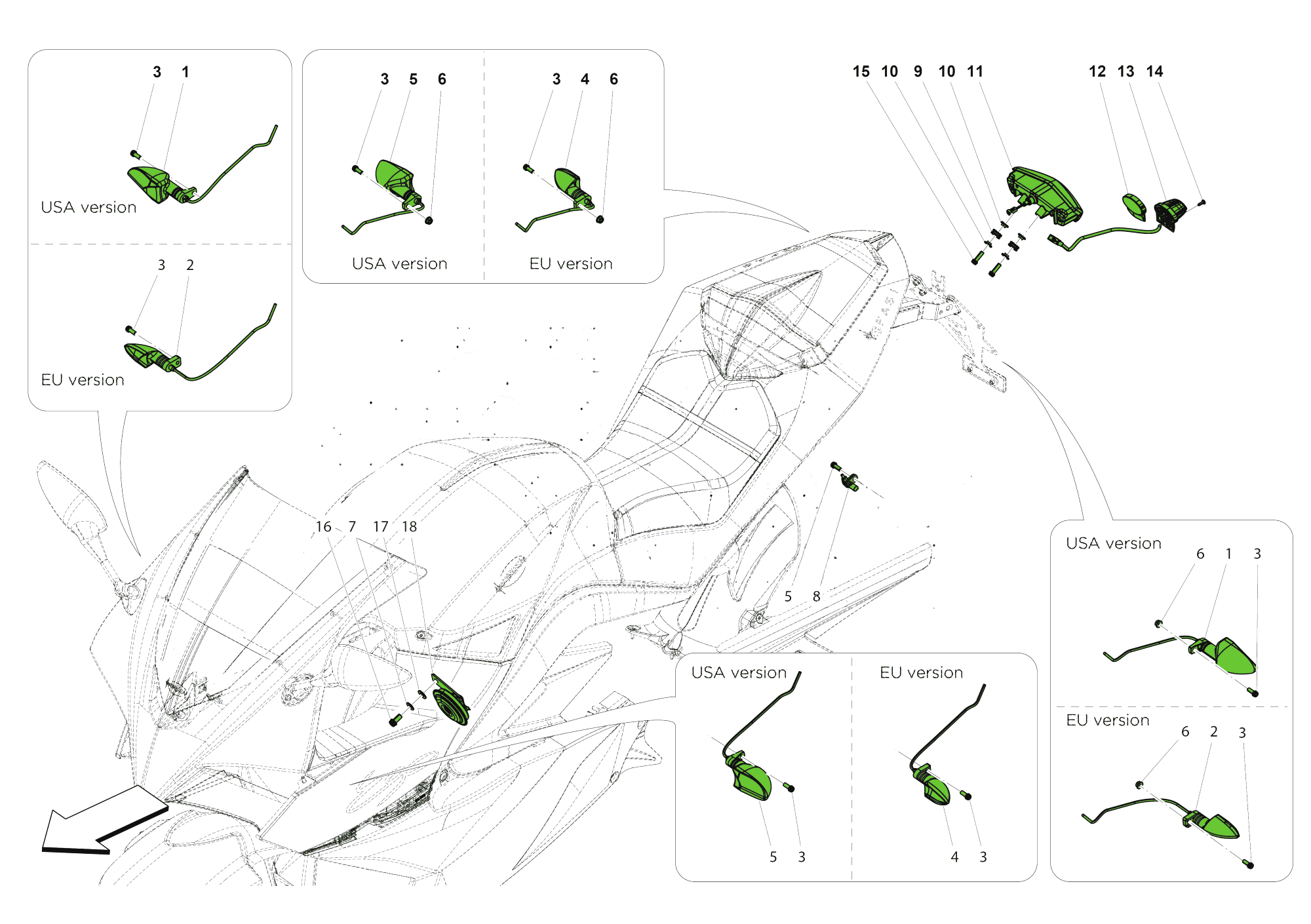

TURN INDICATORS
028
TURN INDICATORS

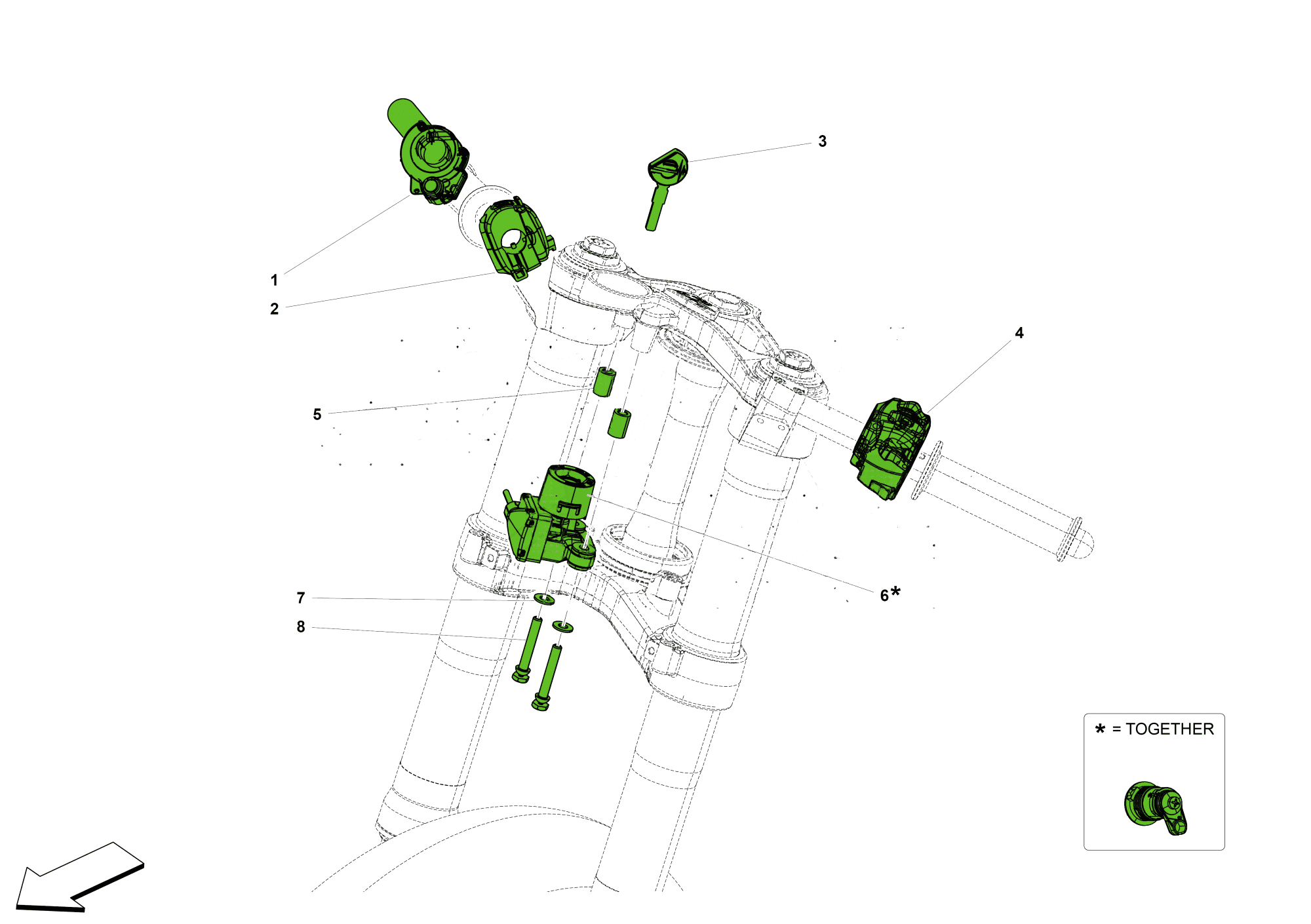

HANDLEBAR ELECTRONICS
029
HANDLEBAR ELECTRONICS

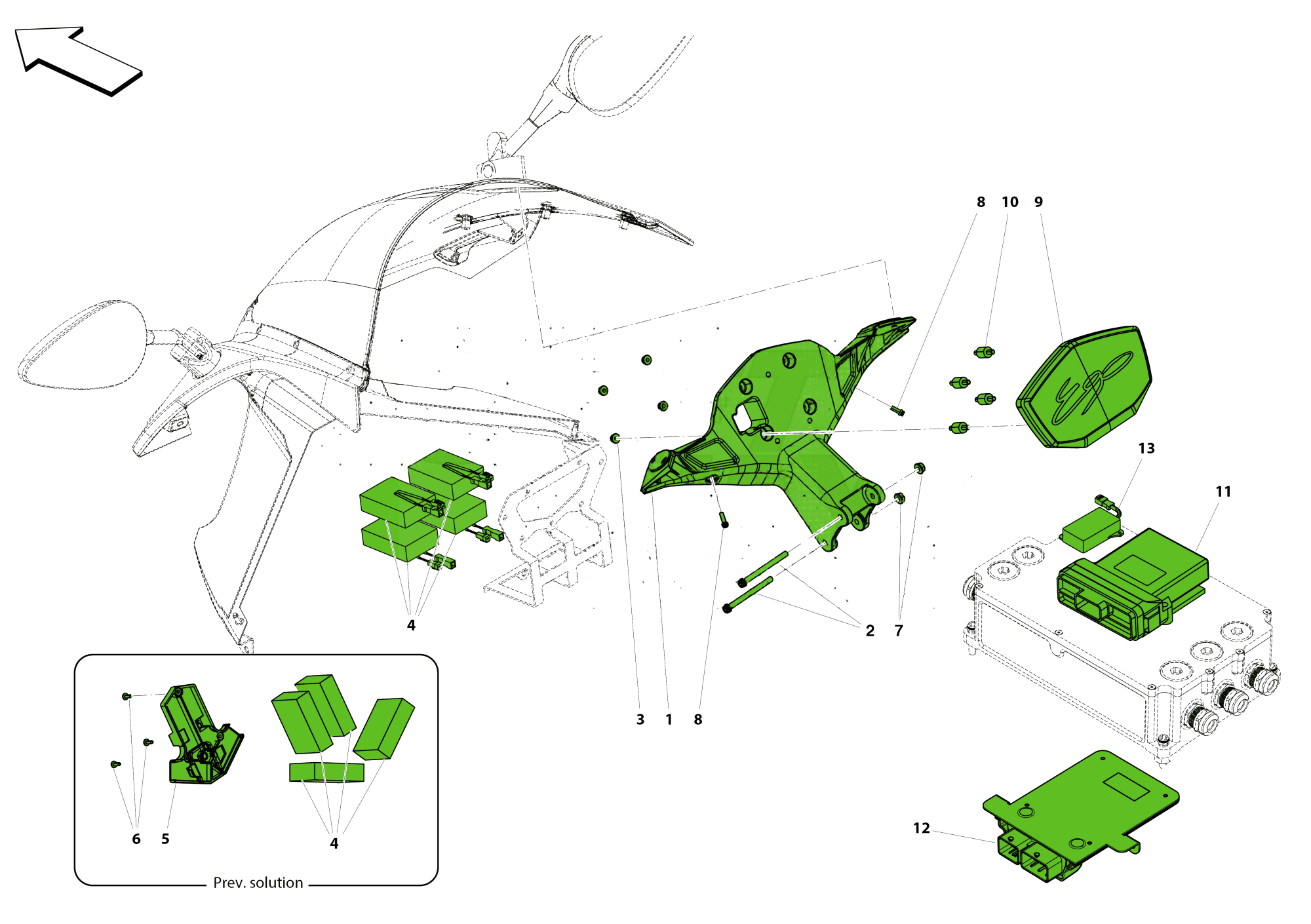

DASHBOARD-CHARGER MANAGER -VCU-HEADLAMP DRIVER
030
DASHBOARD-CHARGER MANAGER -VCU-HEADLAMP DRIVER

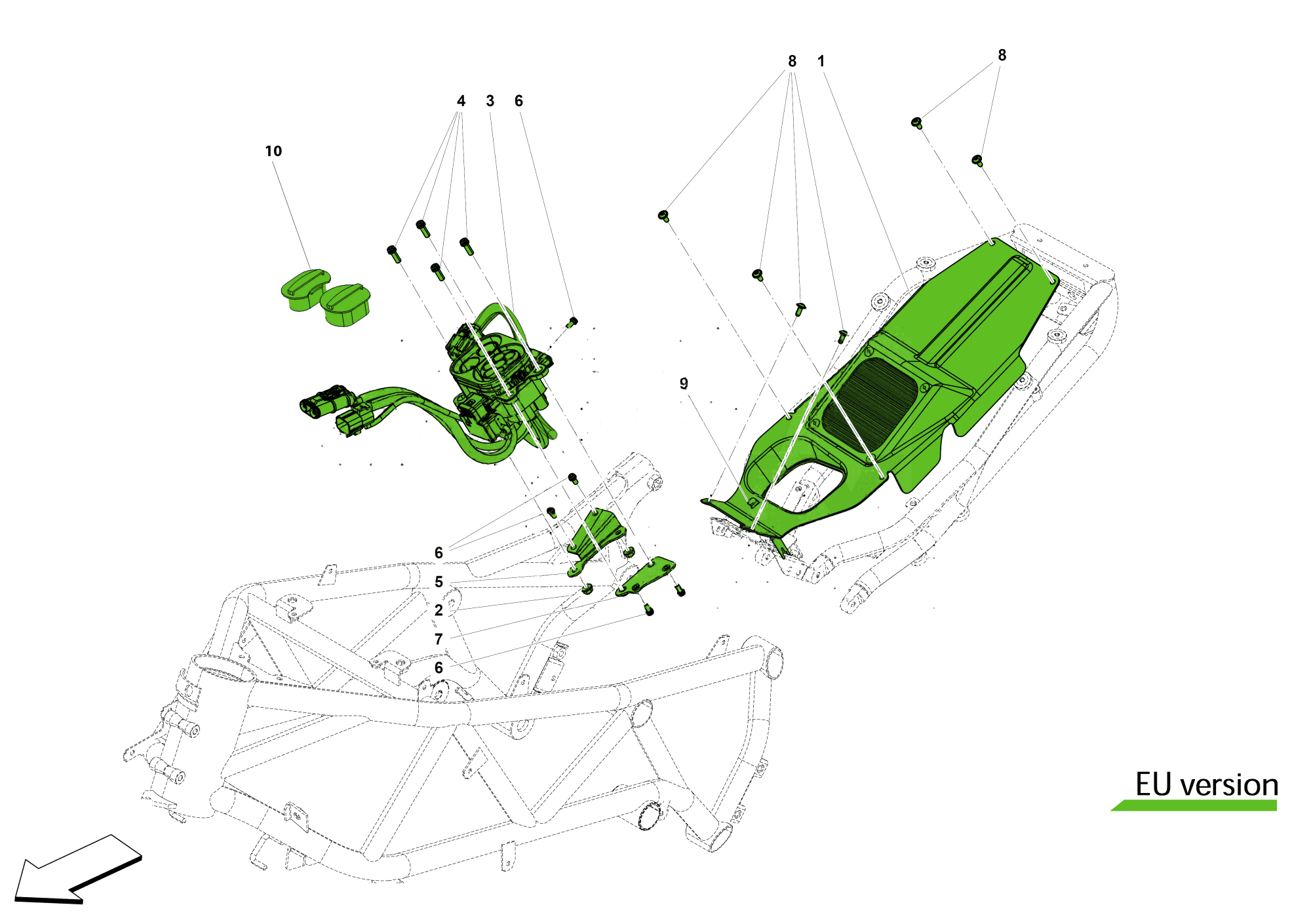

EU CHARGER CONNECTOR AND COVER
031
EU CHARGER CONNECTOR AND COVER

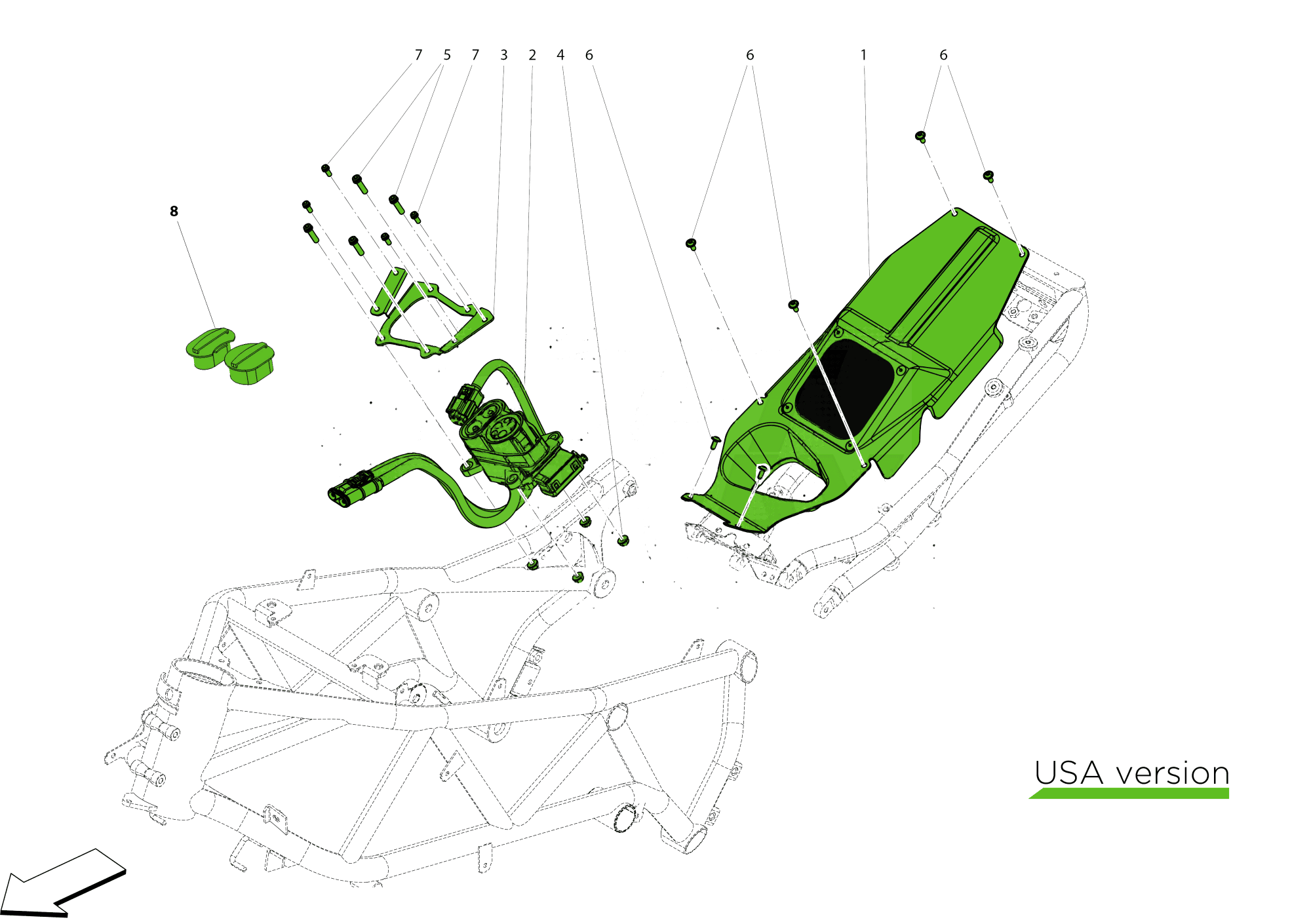

USA CHARGER CONNECTOR AND COVER
032
USA CHARGER CONNECTOR AND COVER

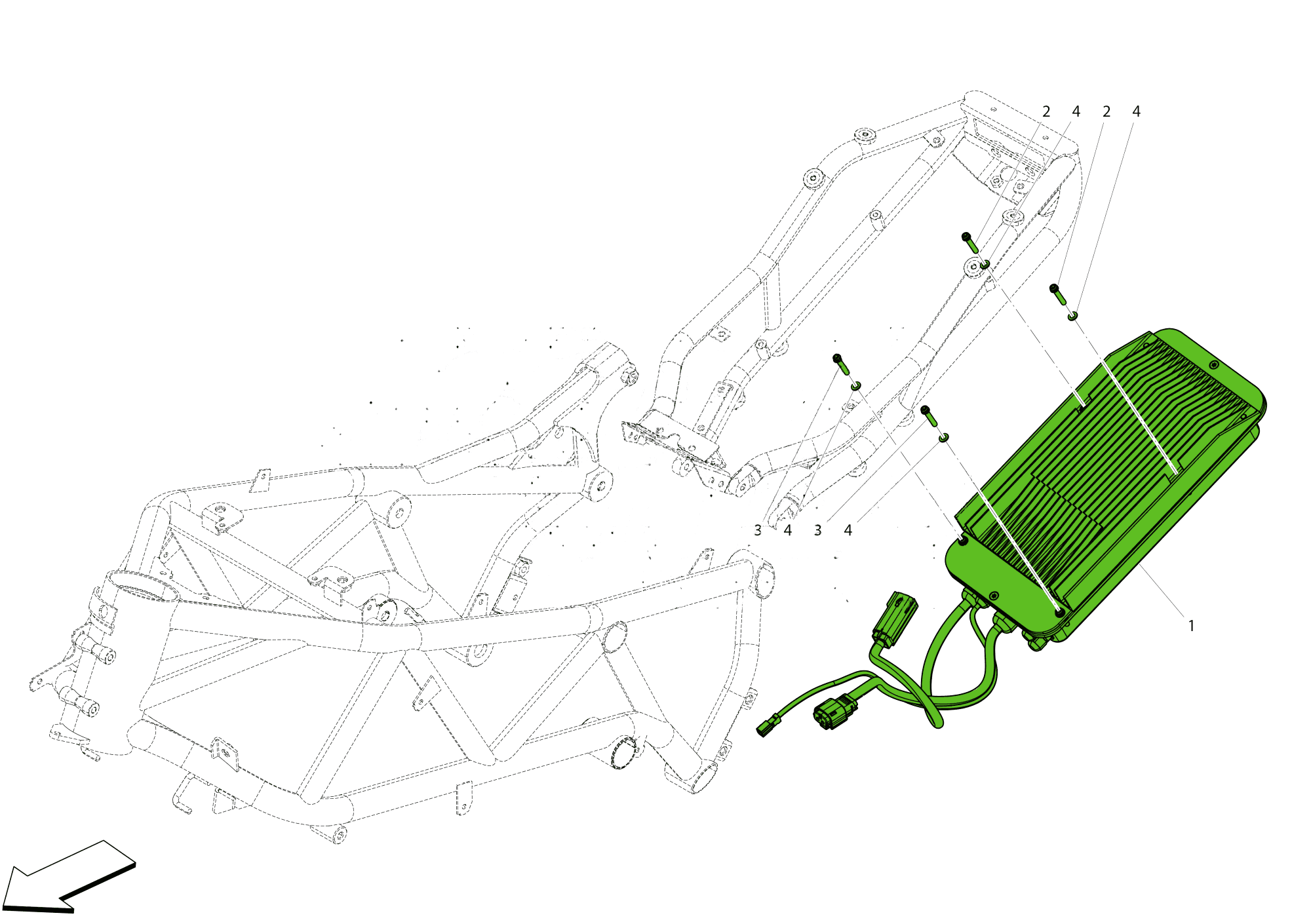

BATTERY CHARGER
033
BATTERY CHARGER

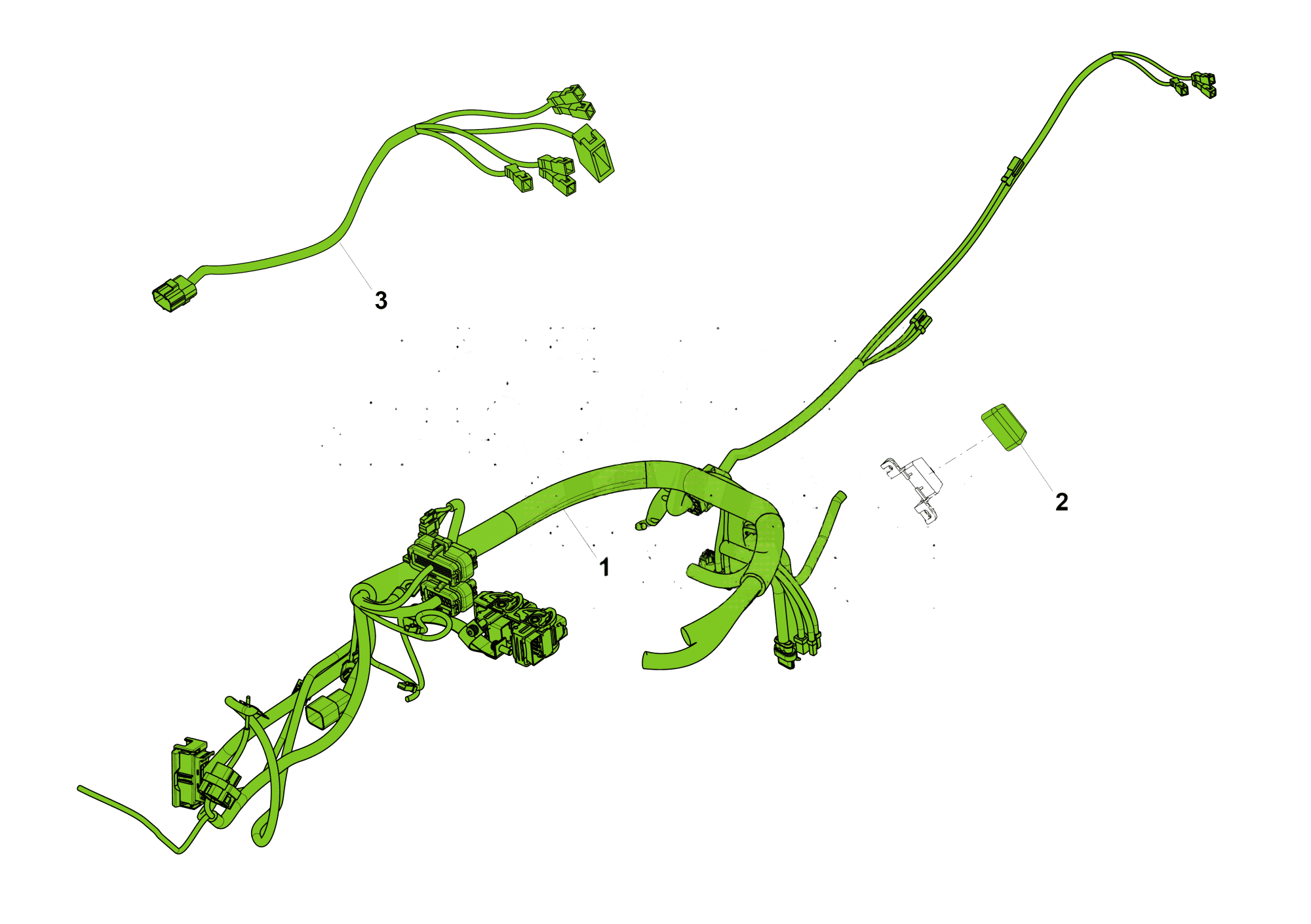

ELECTRICAL SYSTEM
034
ELECTRICAL SYSTEM

Motor (7)

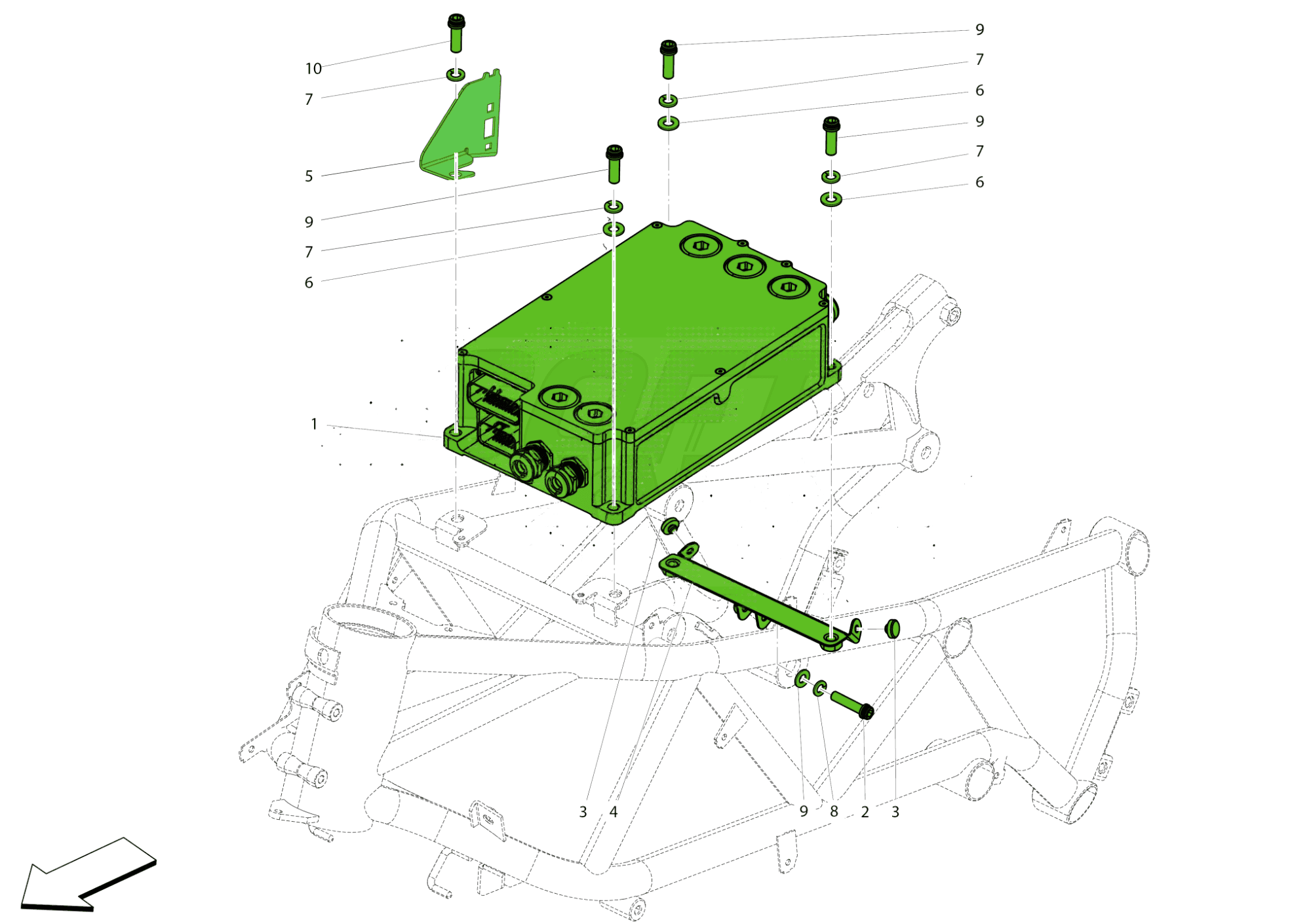

INVERTER
009
INVERTER

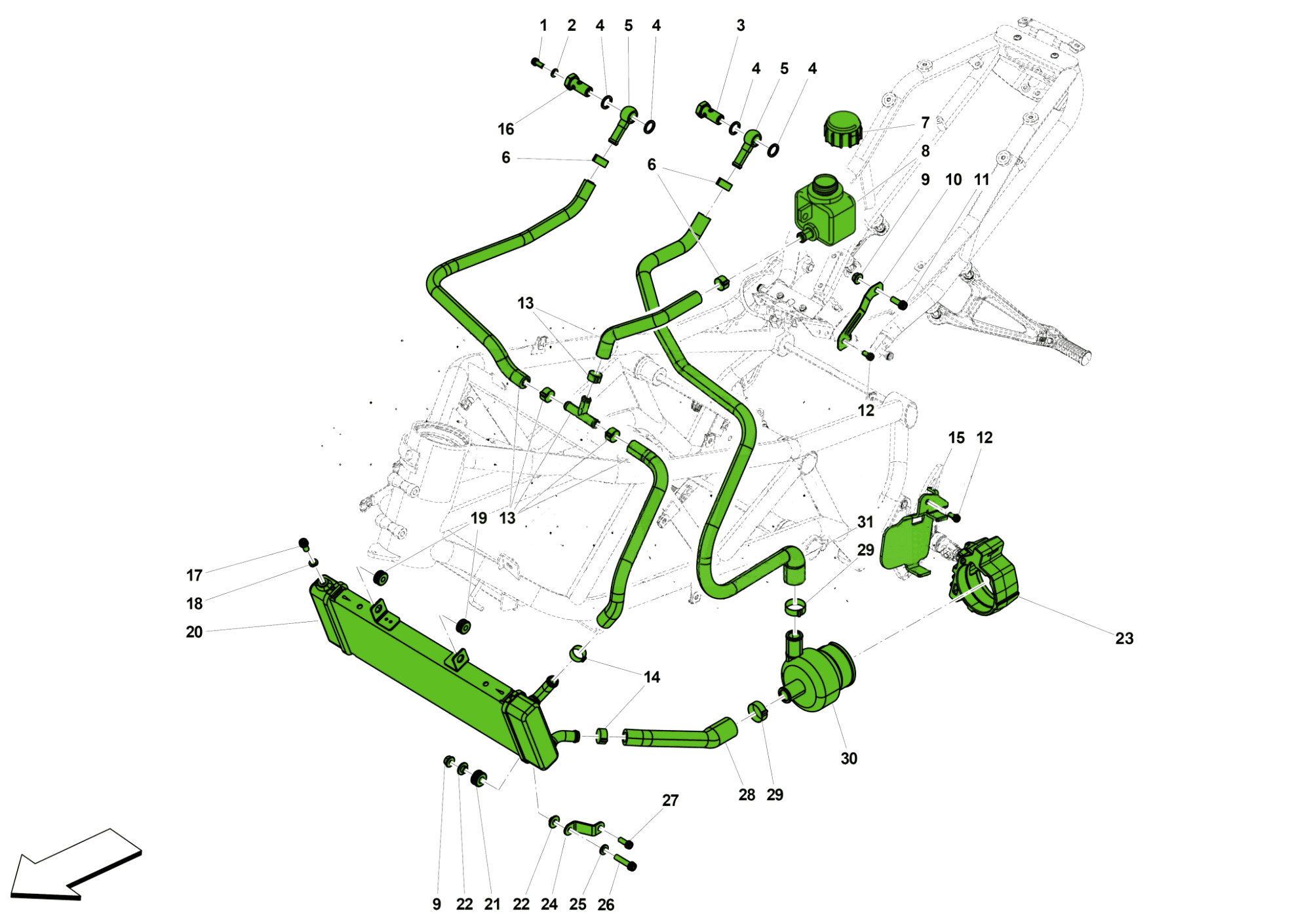

WATER RADIATOR
010
WATER RADIATOR

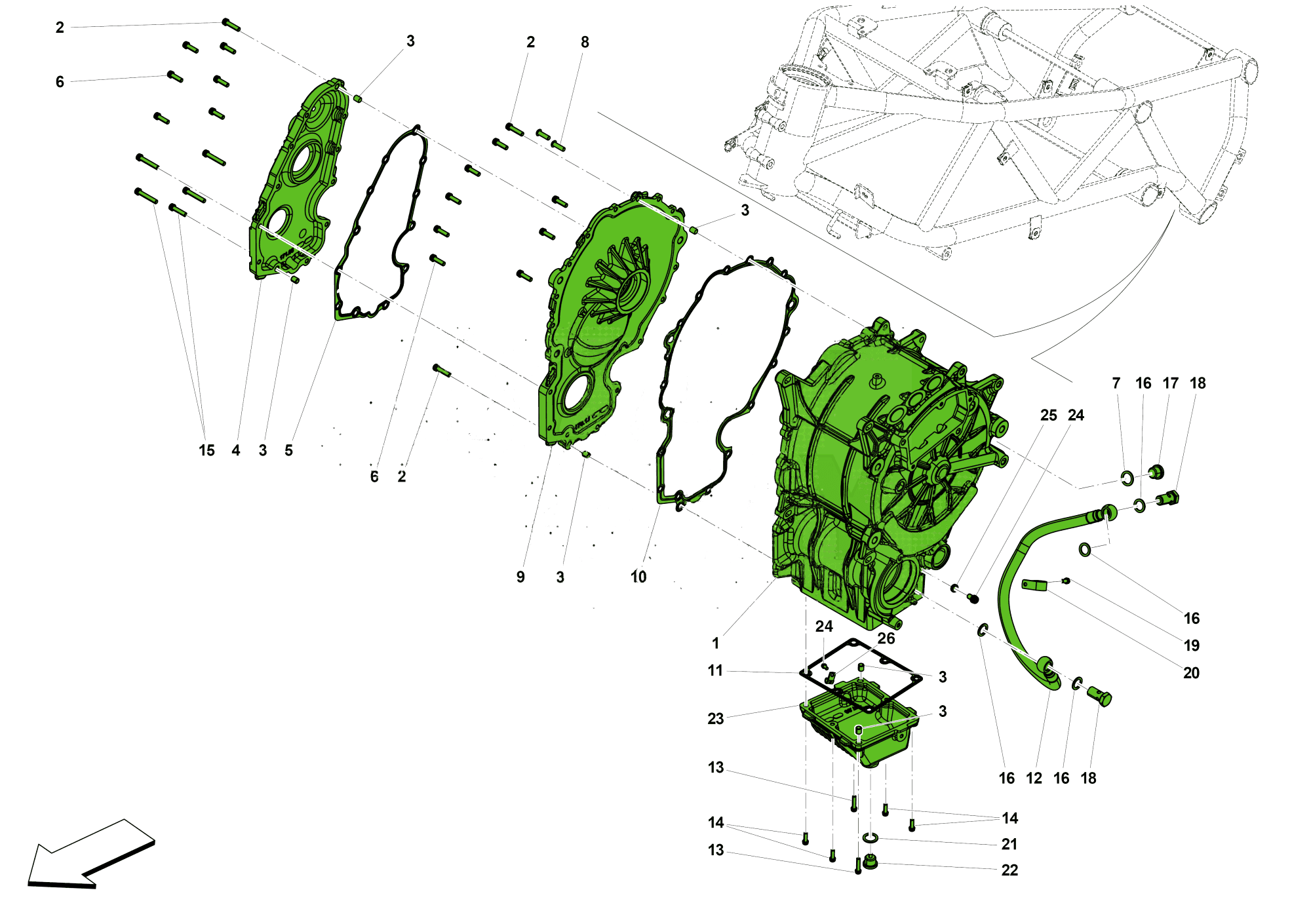

MOTOR HOUSINGS
017
MOTOR HOUSINGS

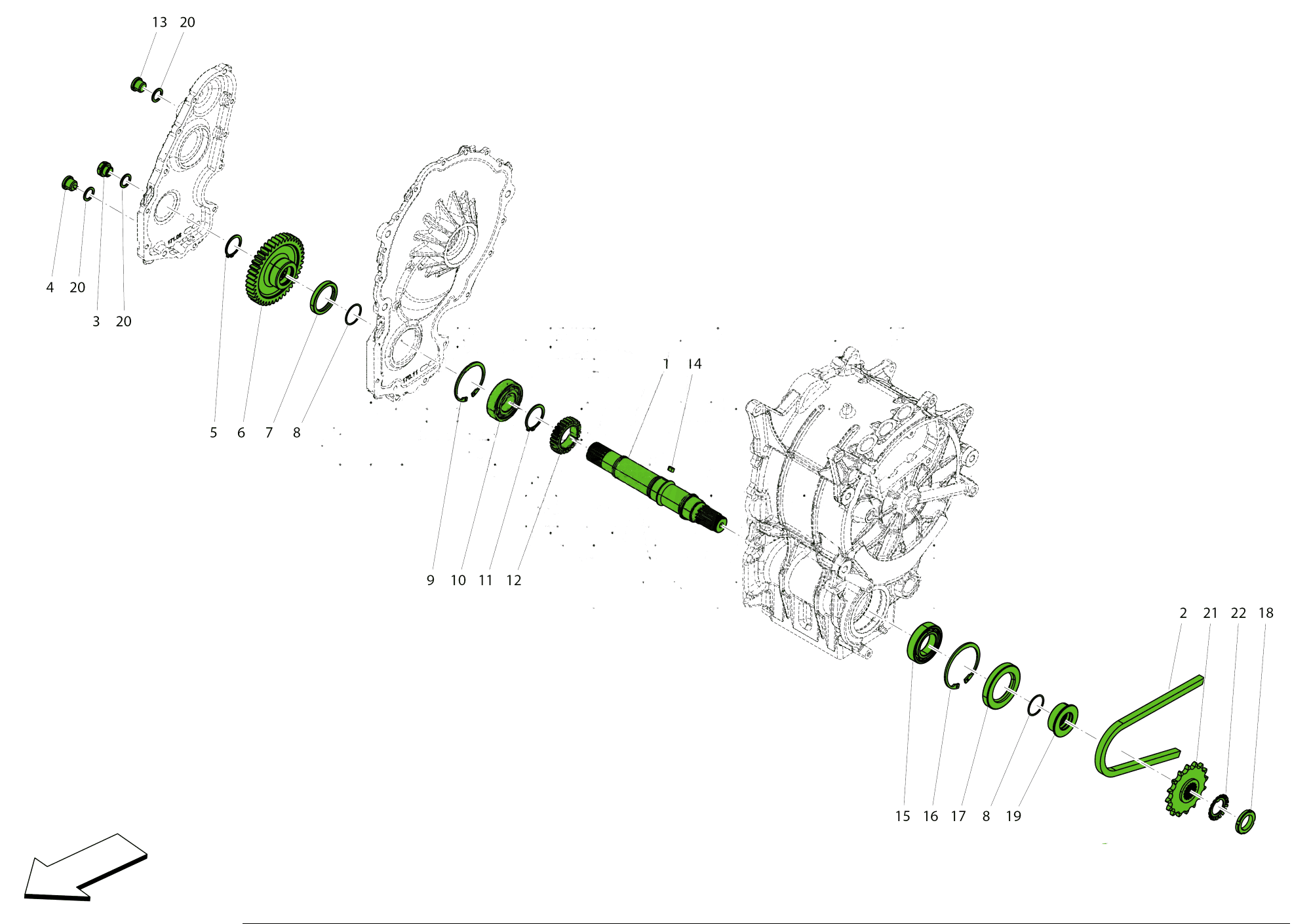

MOTOR TRANSMISSION
018
MOTOR TRANSMISSION

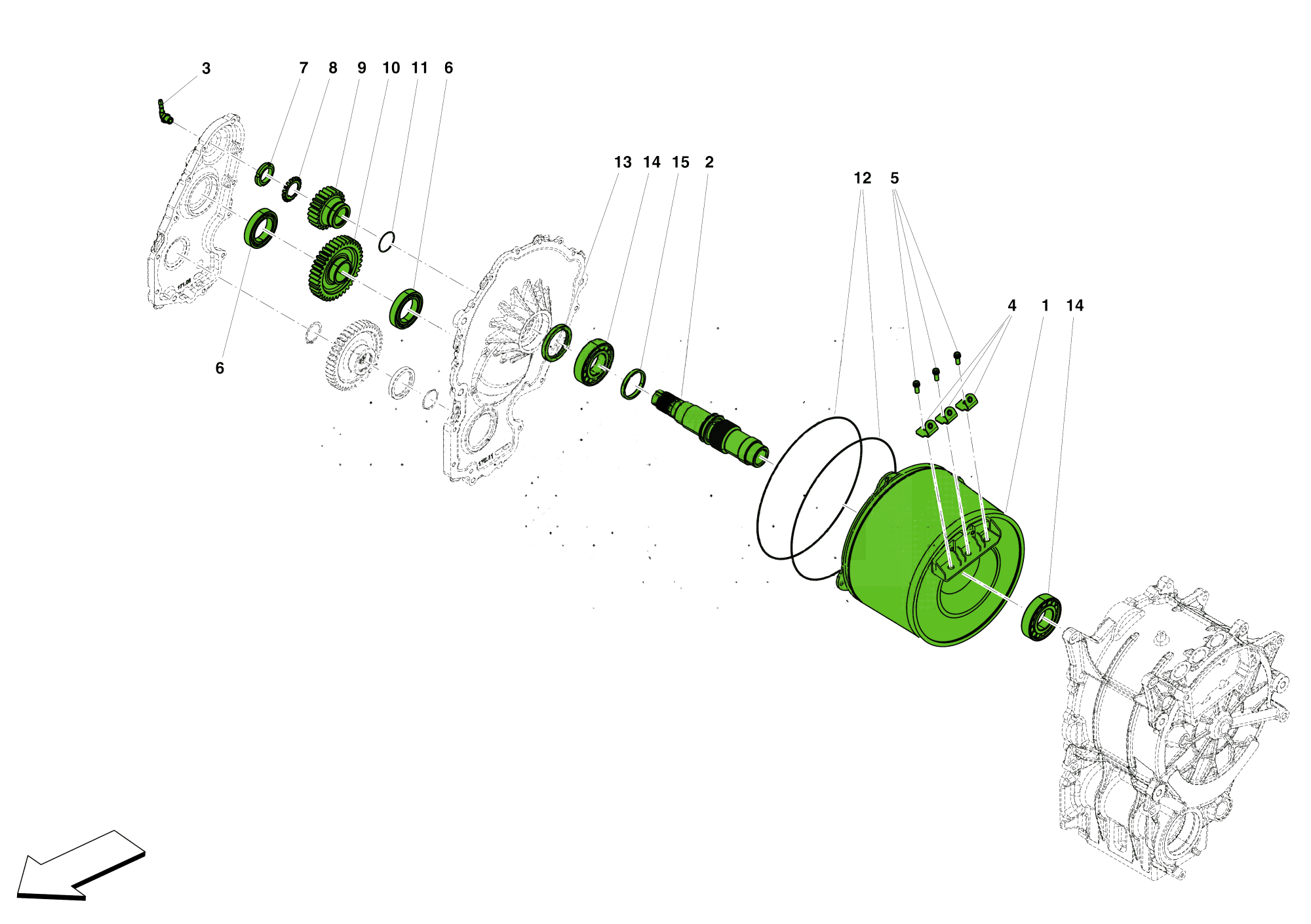

ELECTRIC MOTOR TRANSMISSION
019
ELECTRIC MOTOR TRANSMISSION

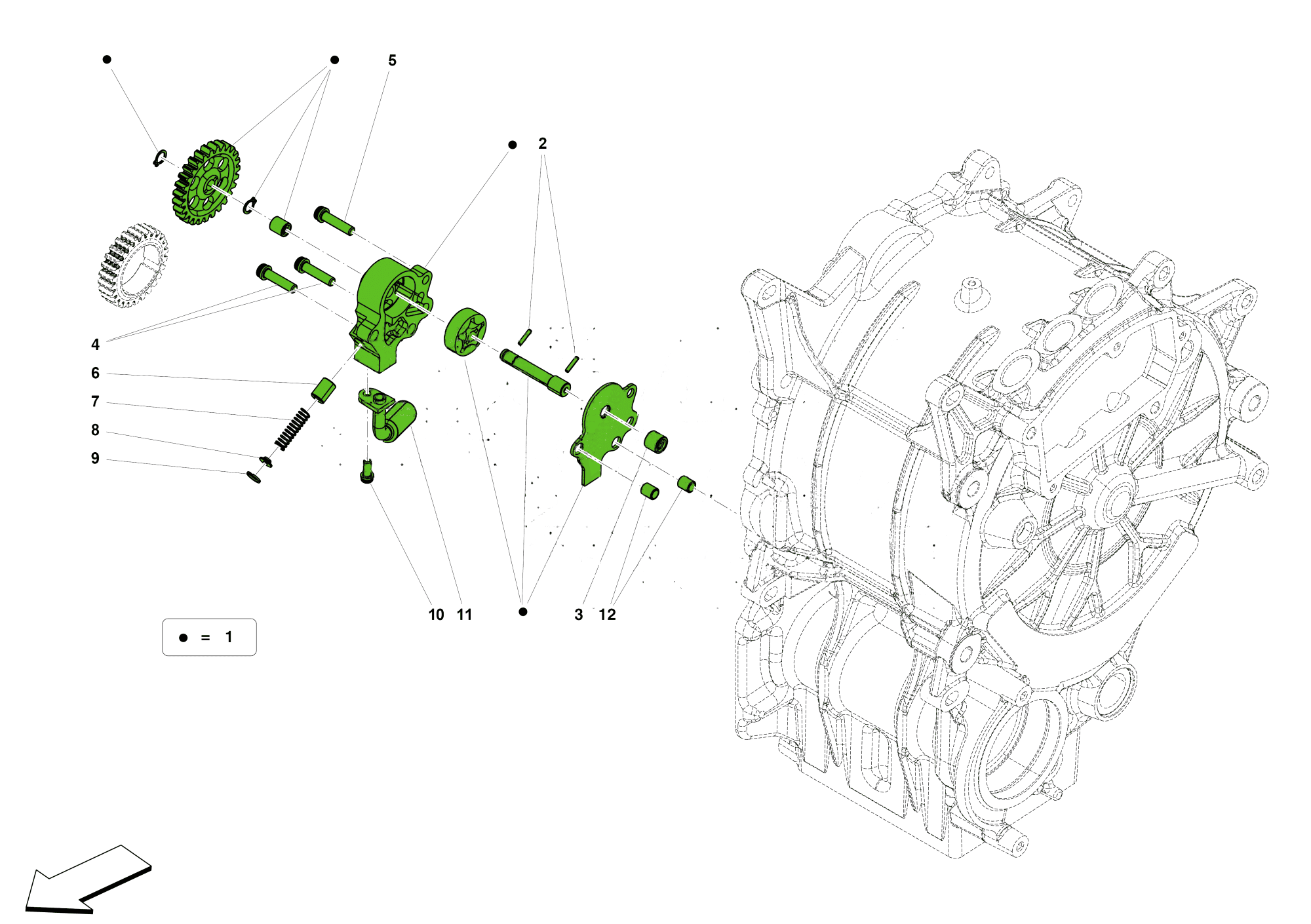

MOTOR OIL PUMP
020
MOTOR OIL PUMP

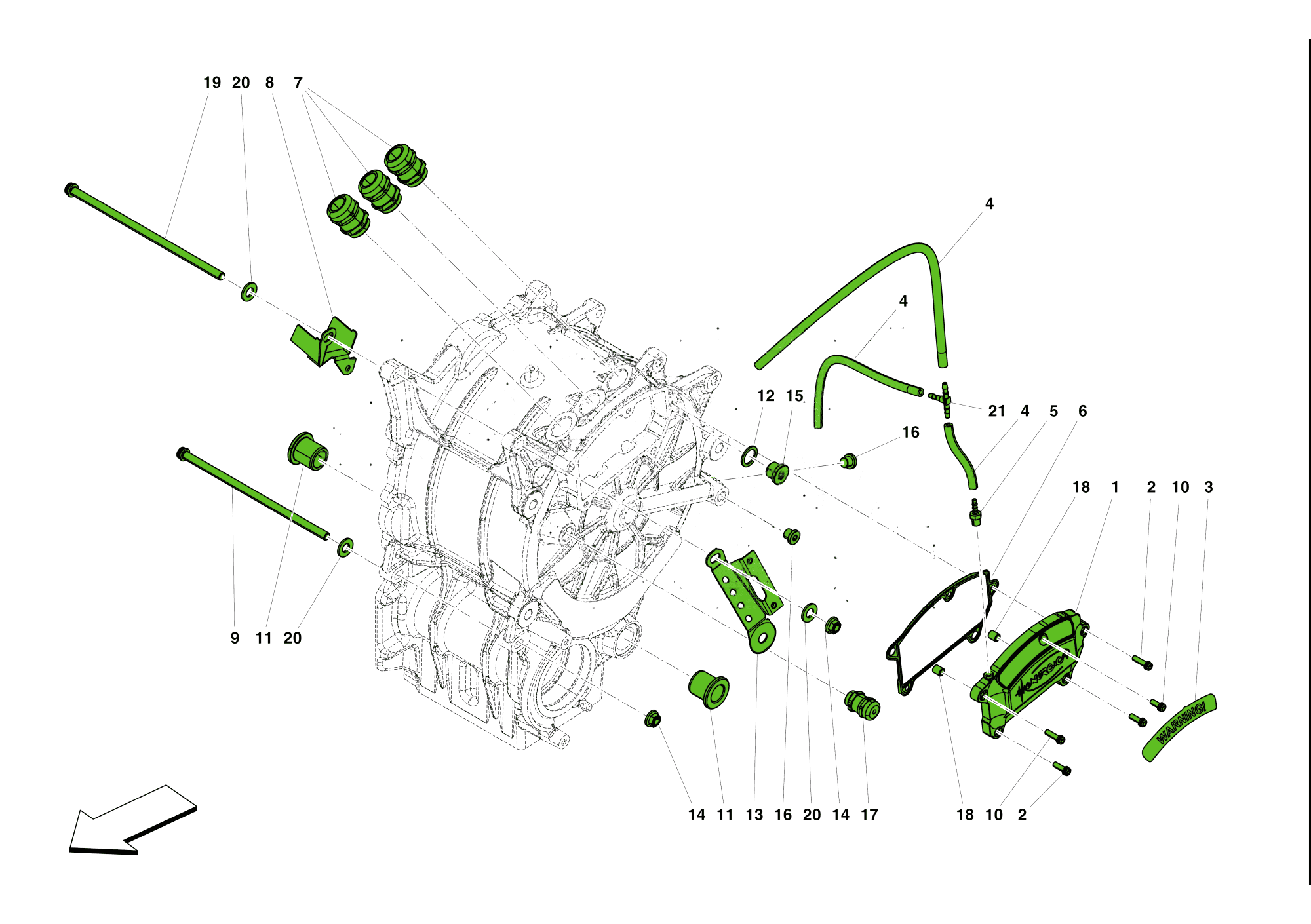

MOTOR COVER AND PLUGS
021
MOTOR COVER AND PLUGS

Frame (14)

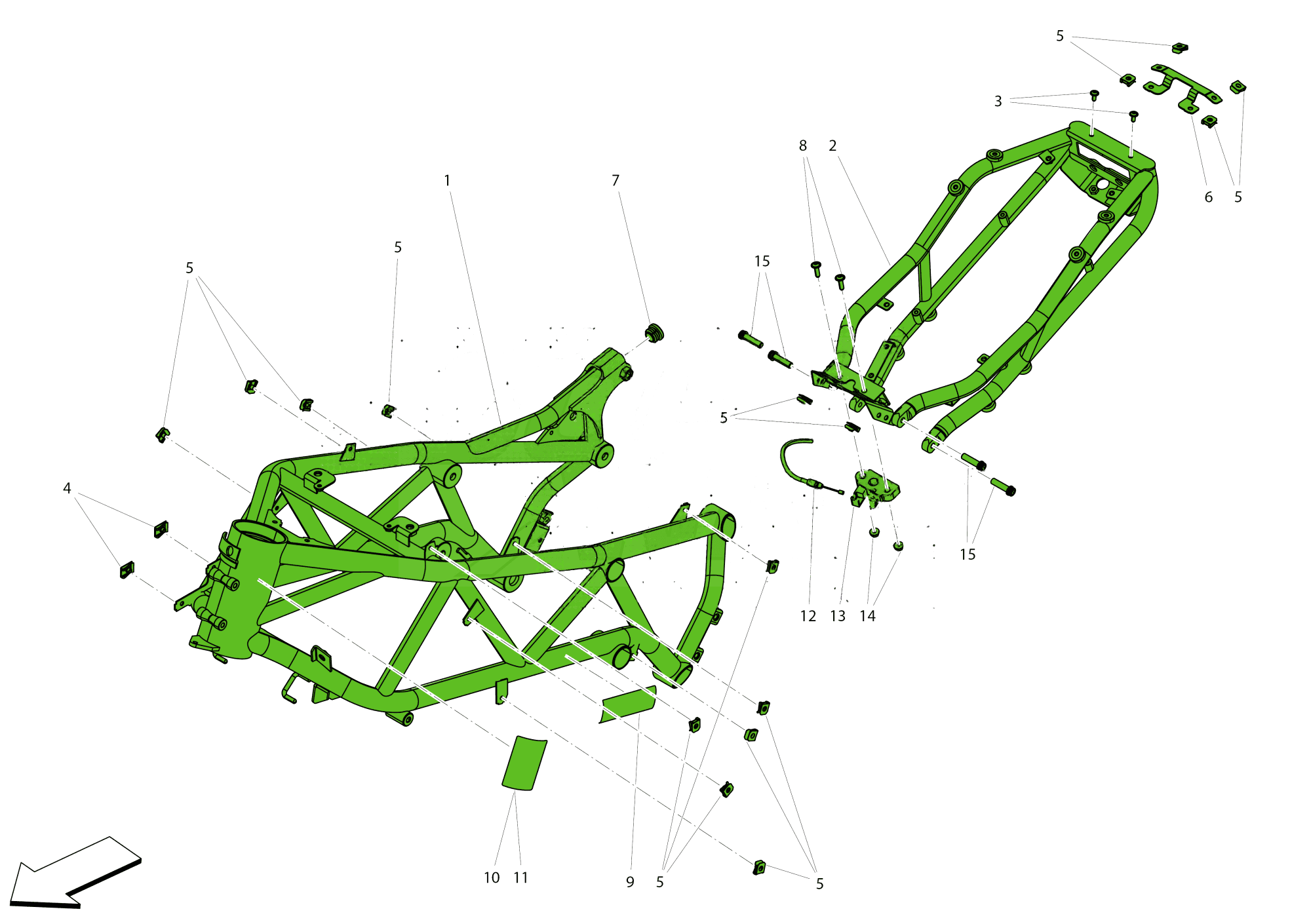

FRAME
001
FRAME

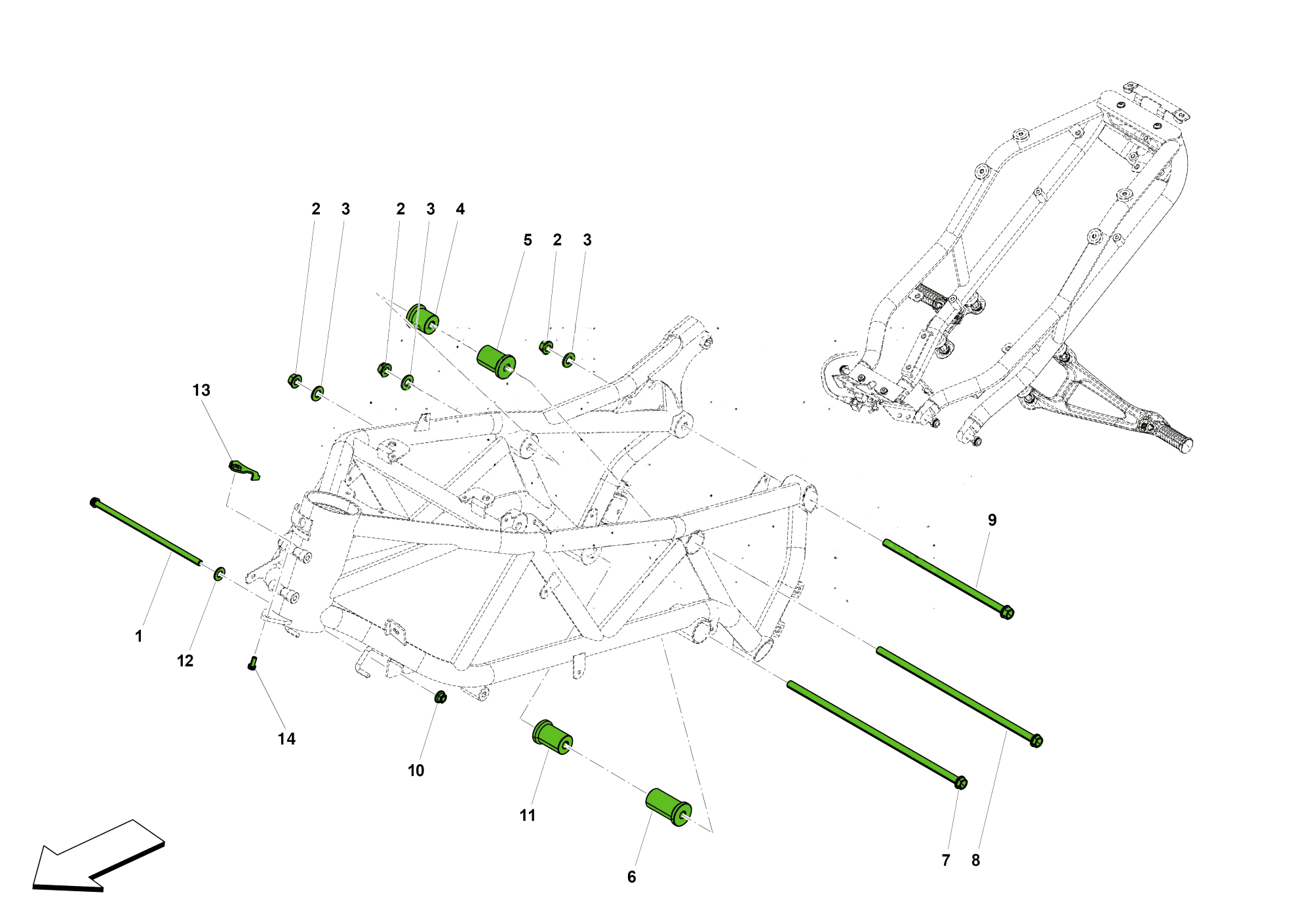

MAIN FRAME PINS
002
MAIN FRAME PINS

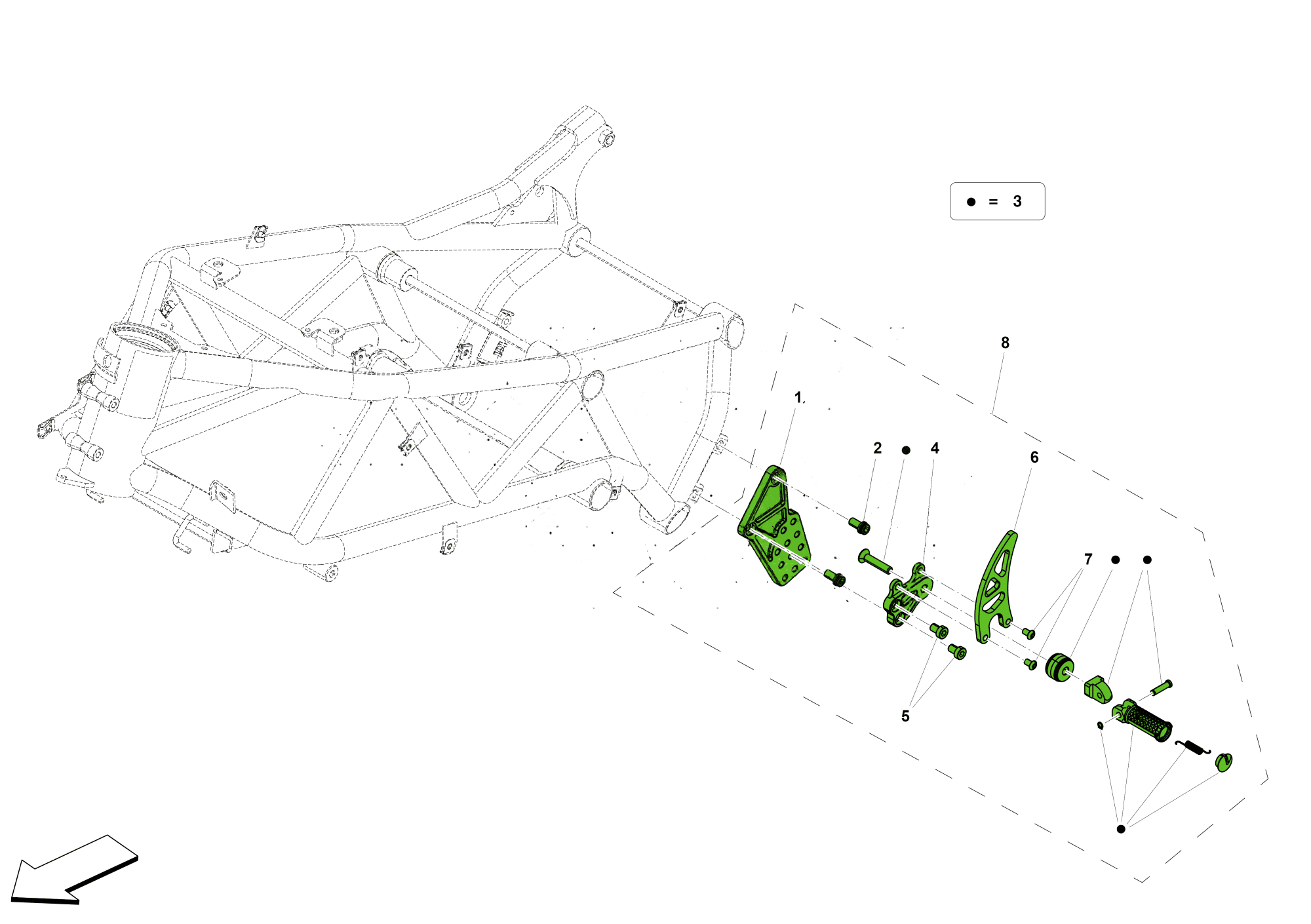

LH RIDER FOOTPEG
003
LH RIDER FOOTPEG

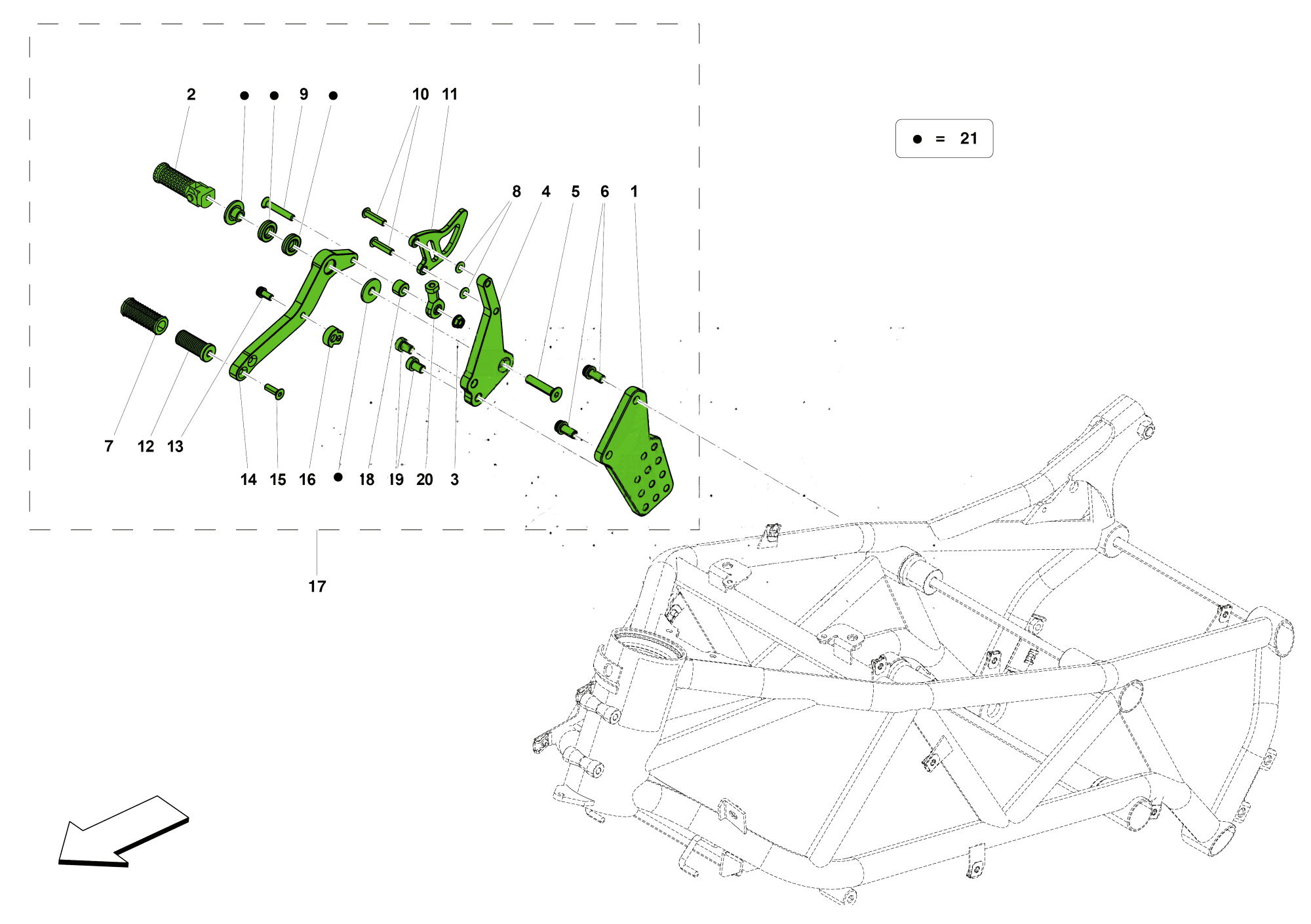

RH RIDER FOOTPEG
004
RH RIDER FOOTPEG

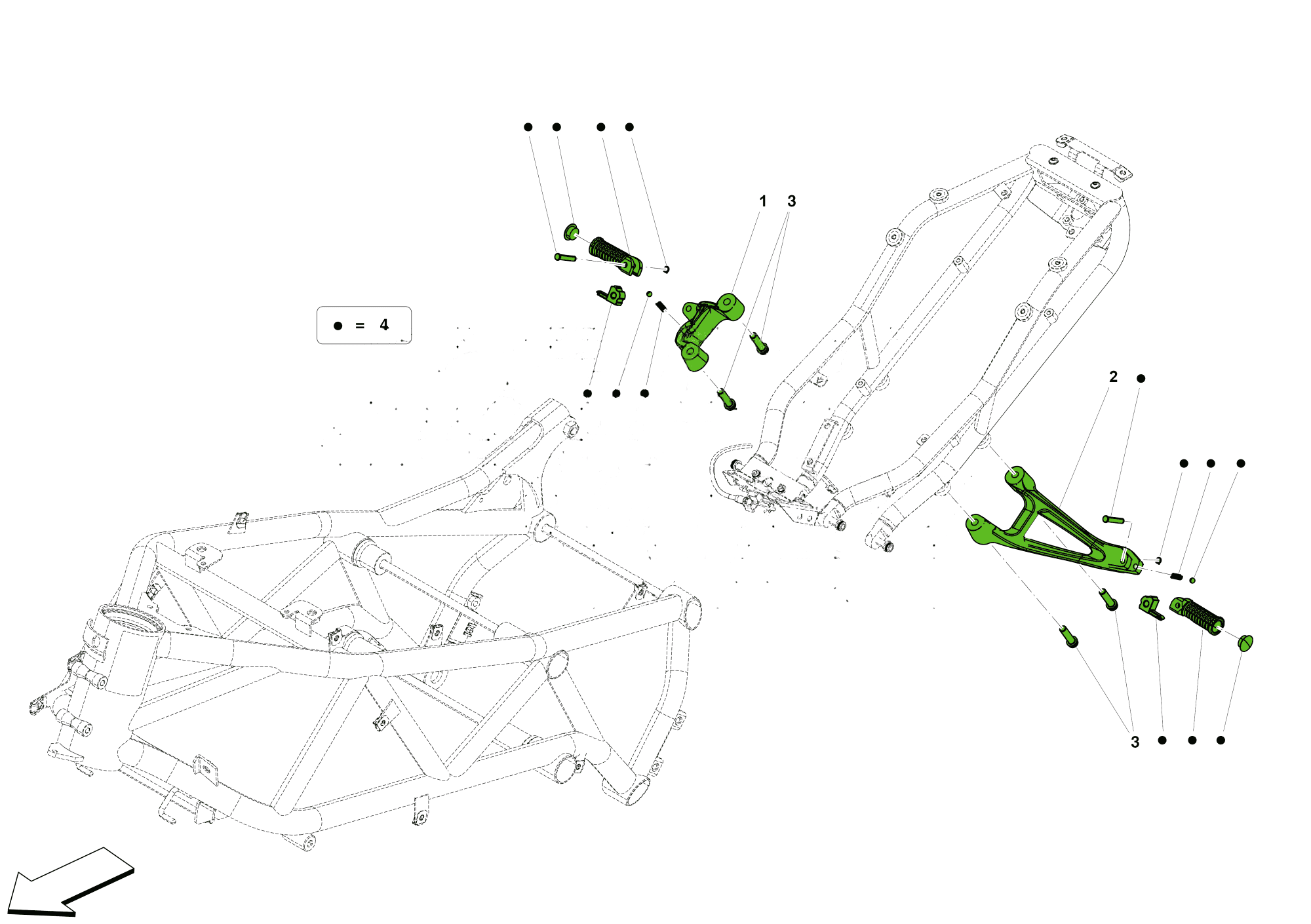

PASSENGER FOOTPEGS
005
PASSENGER FOOTPEGS
SIDE STAND
006
SIDE STAND

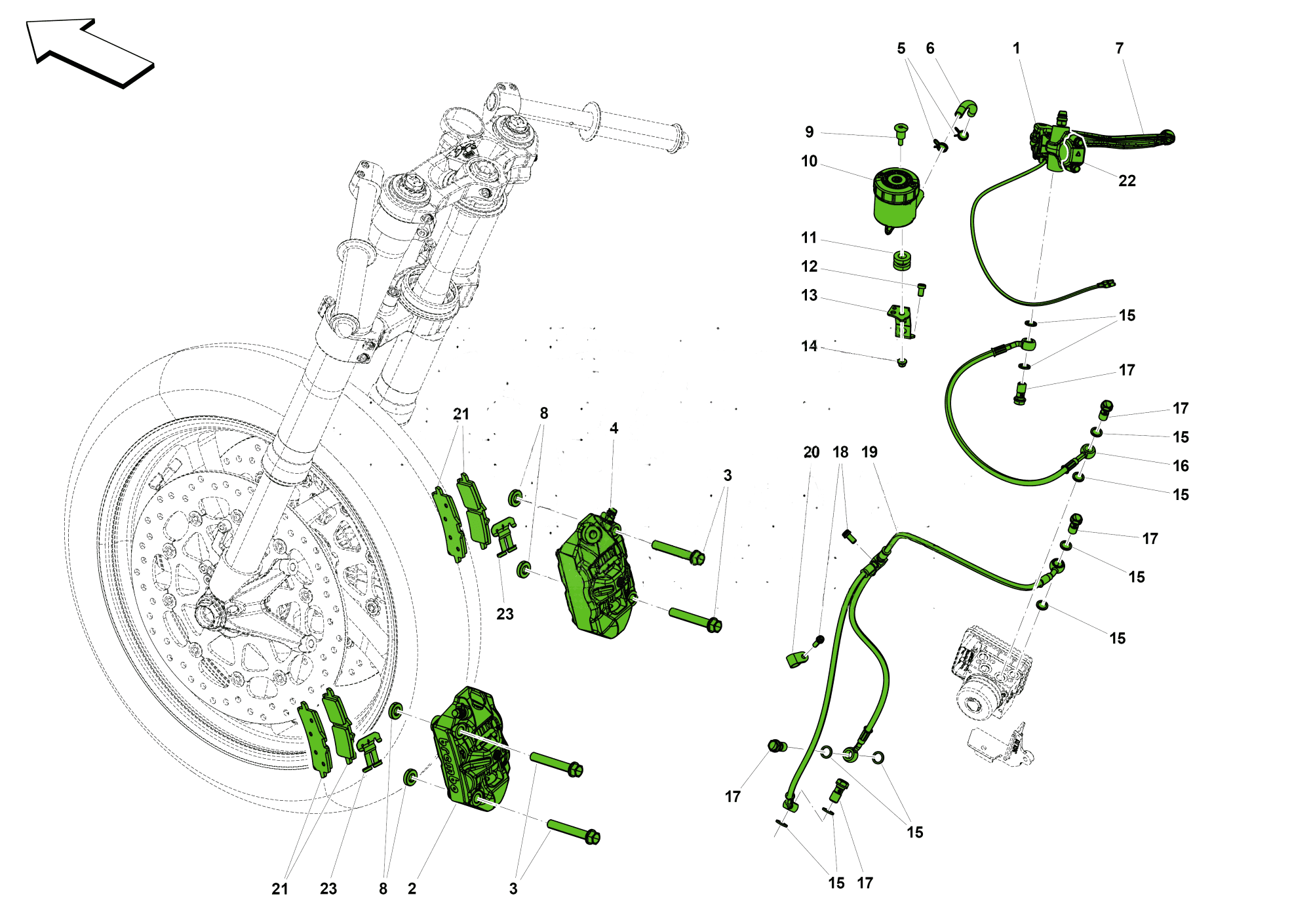

FRONT BRAKE SYSTEM
007
FRONT BRAKE SYSTEM

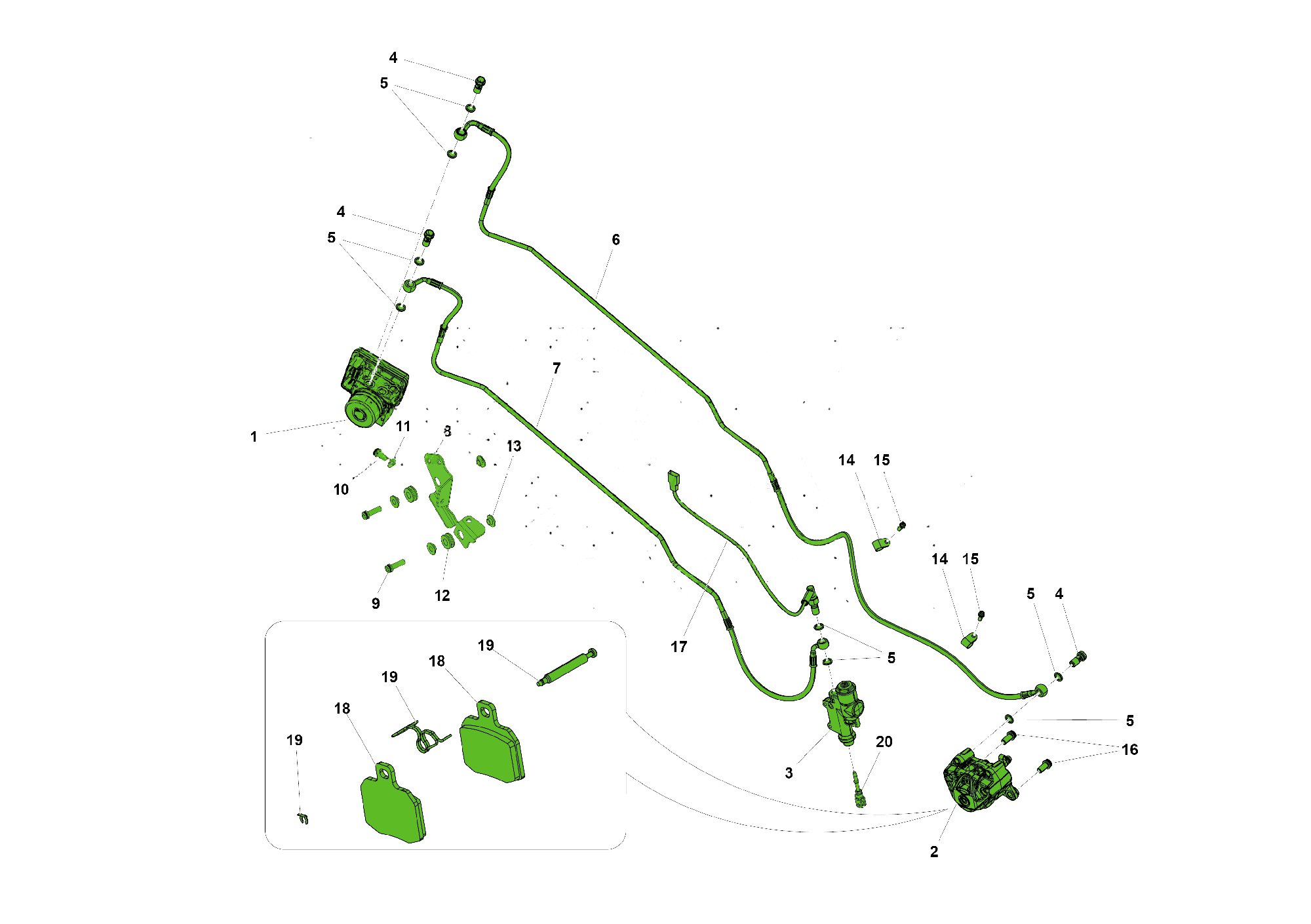

REAR BRAKE SYSTEM
008
REAR BRAKE SYSTEM

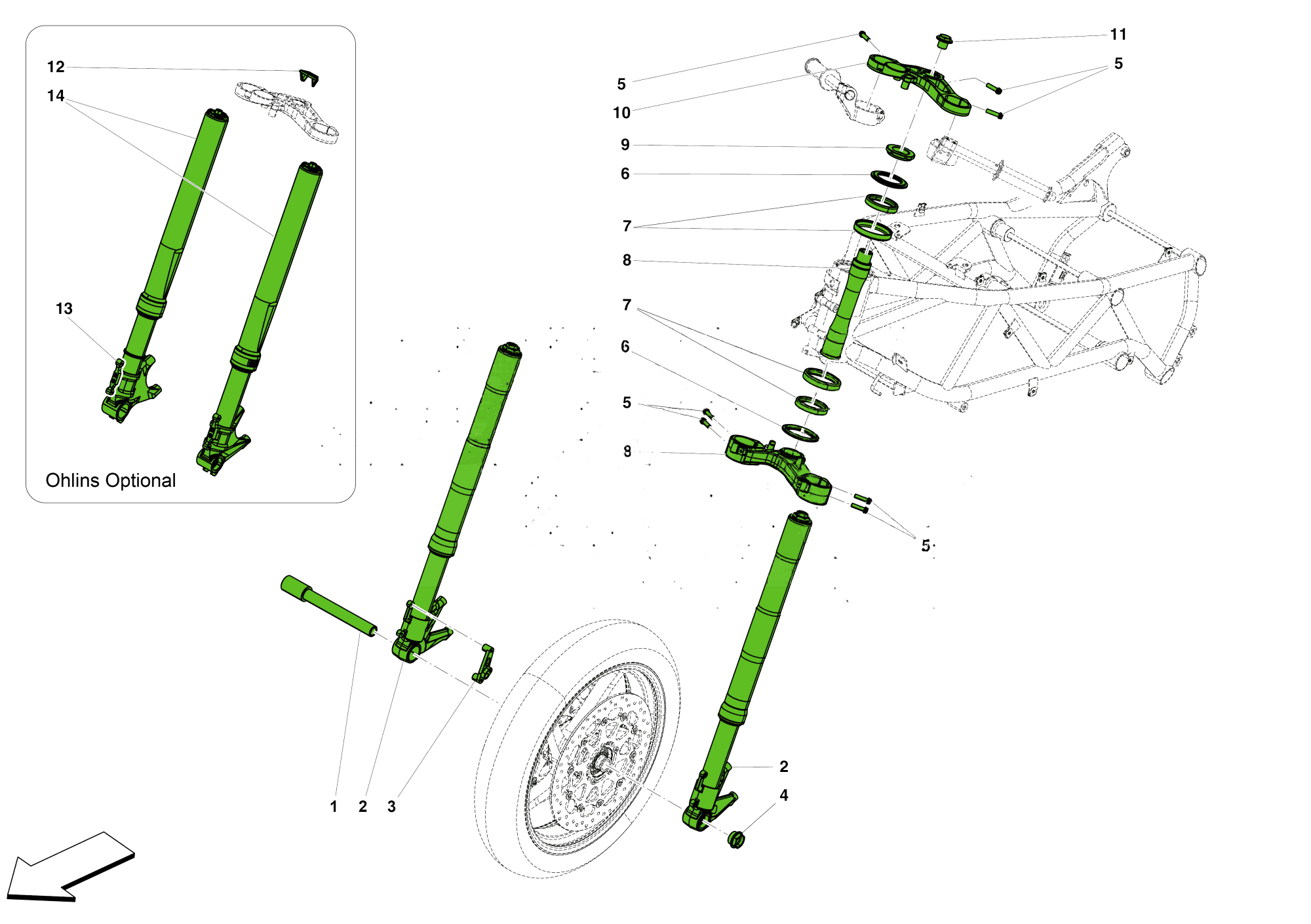

FRONT SUSPENSION
011
FRONT SUSPENSION

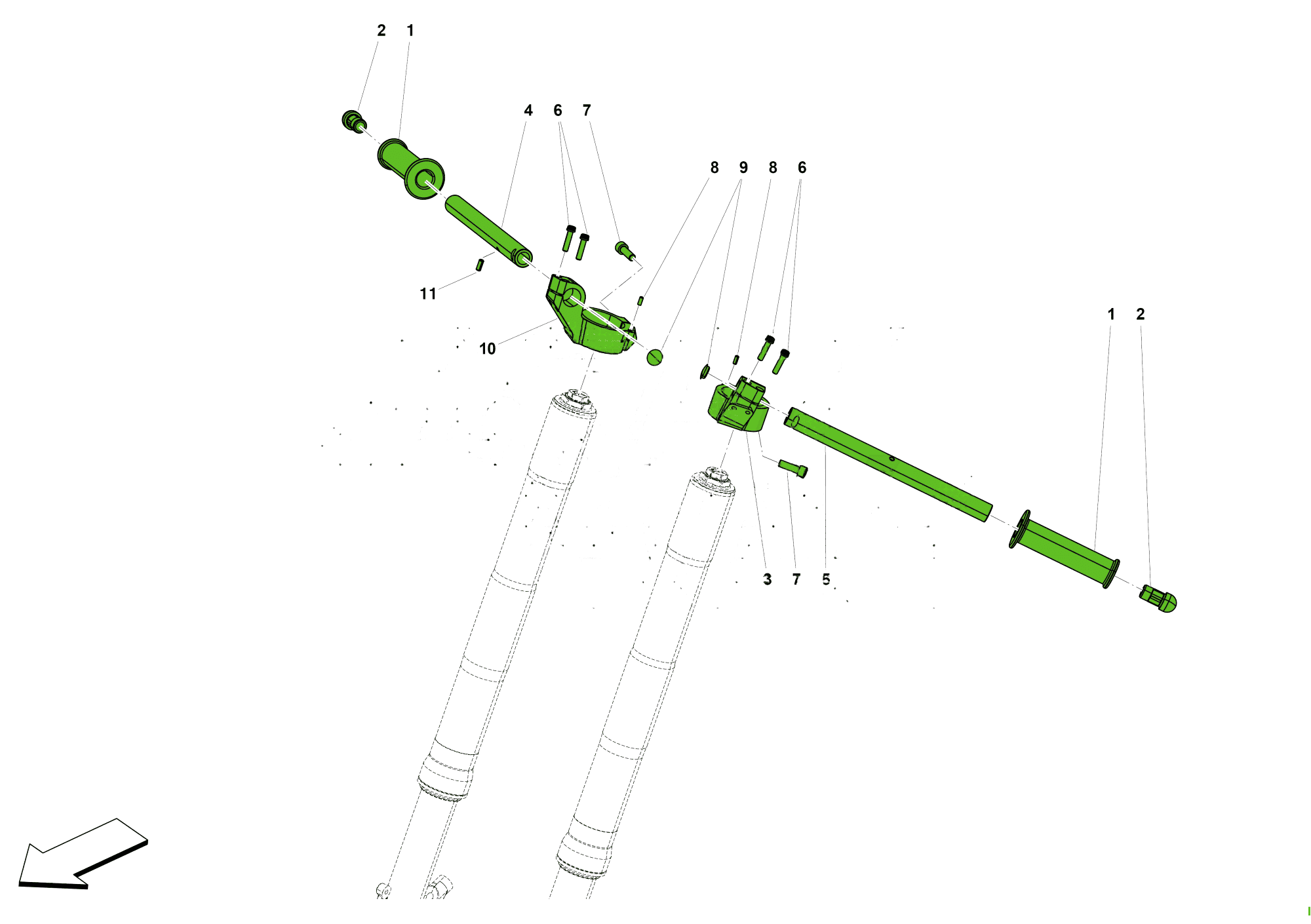

SEMI-HANDLEBARS
012
SEMI-HANDLEBARS

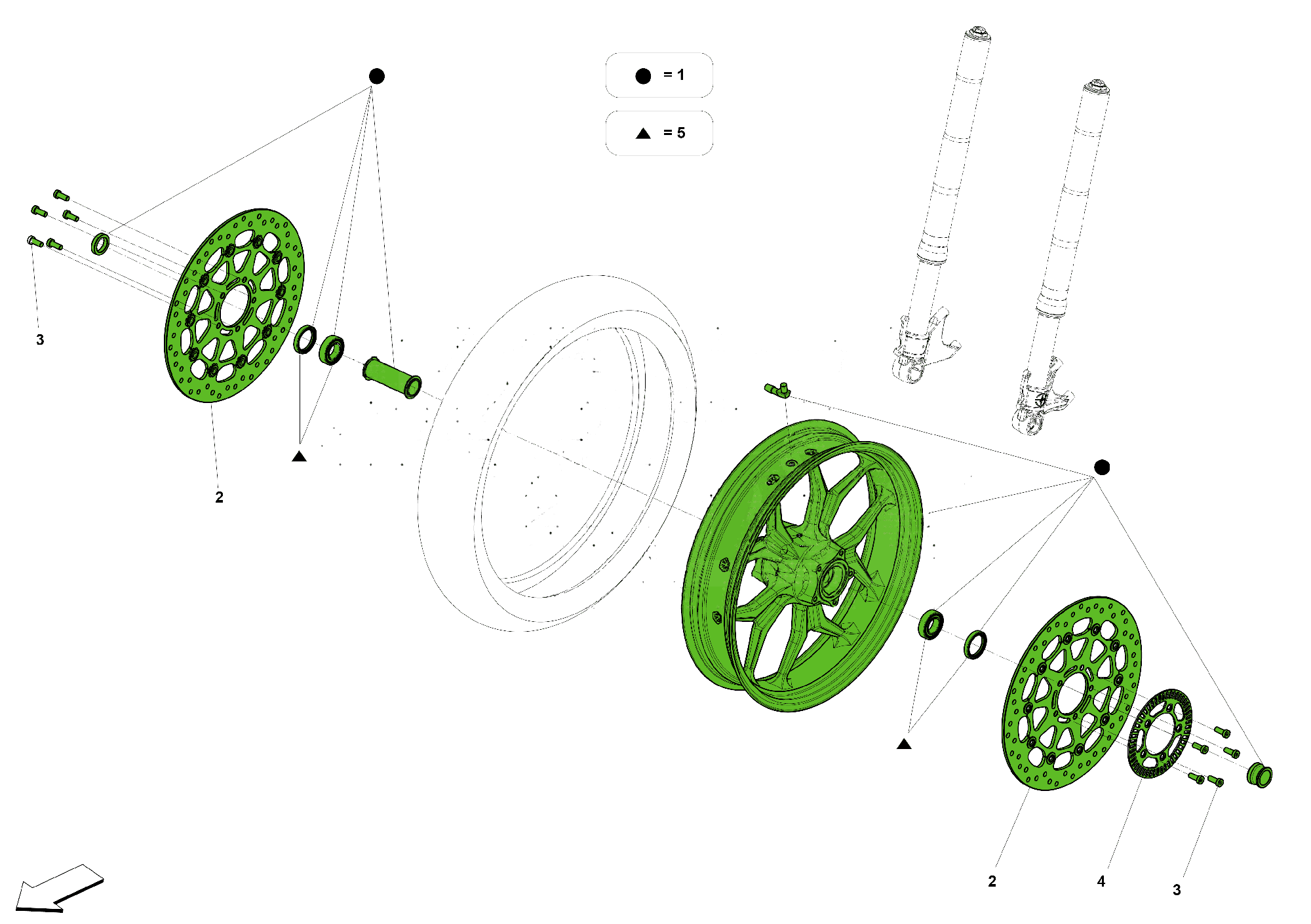

FRONT WHEEL
013
FRONT WHEEL

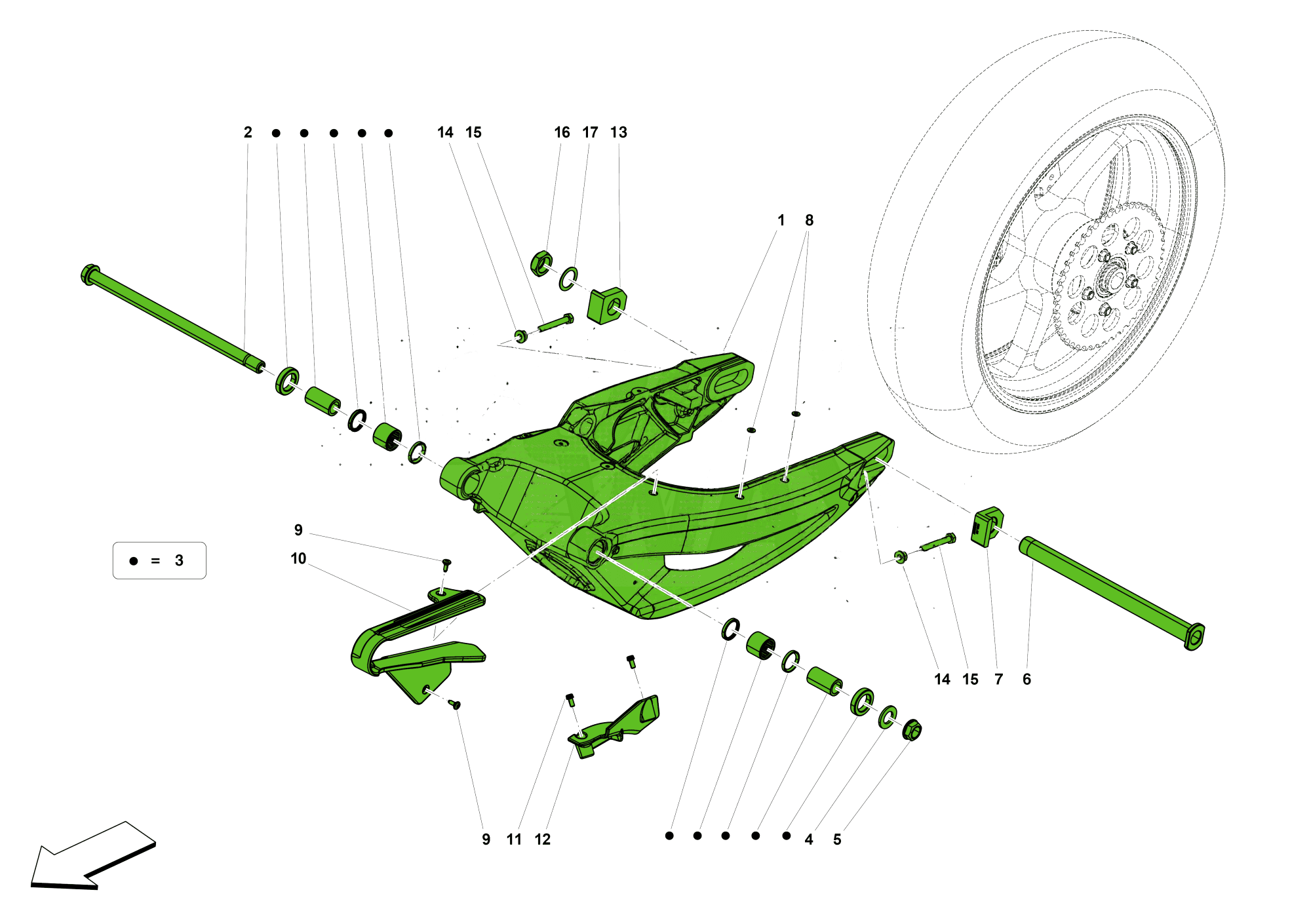

SWINGARM
014
SWINGARM

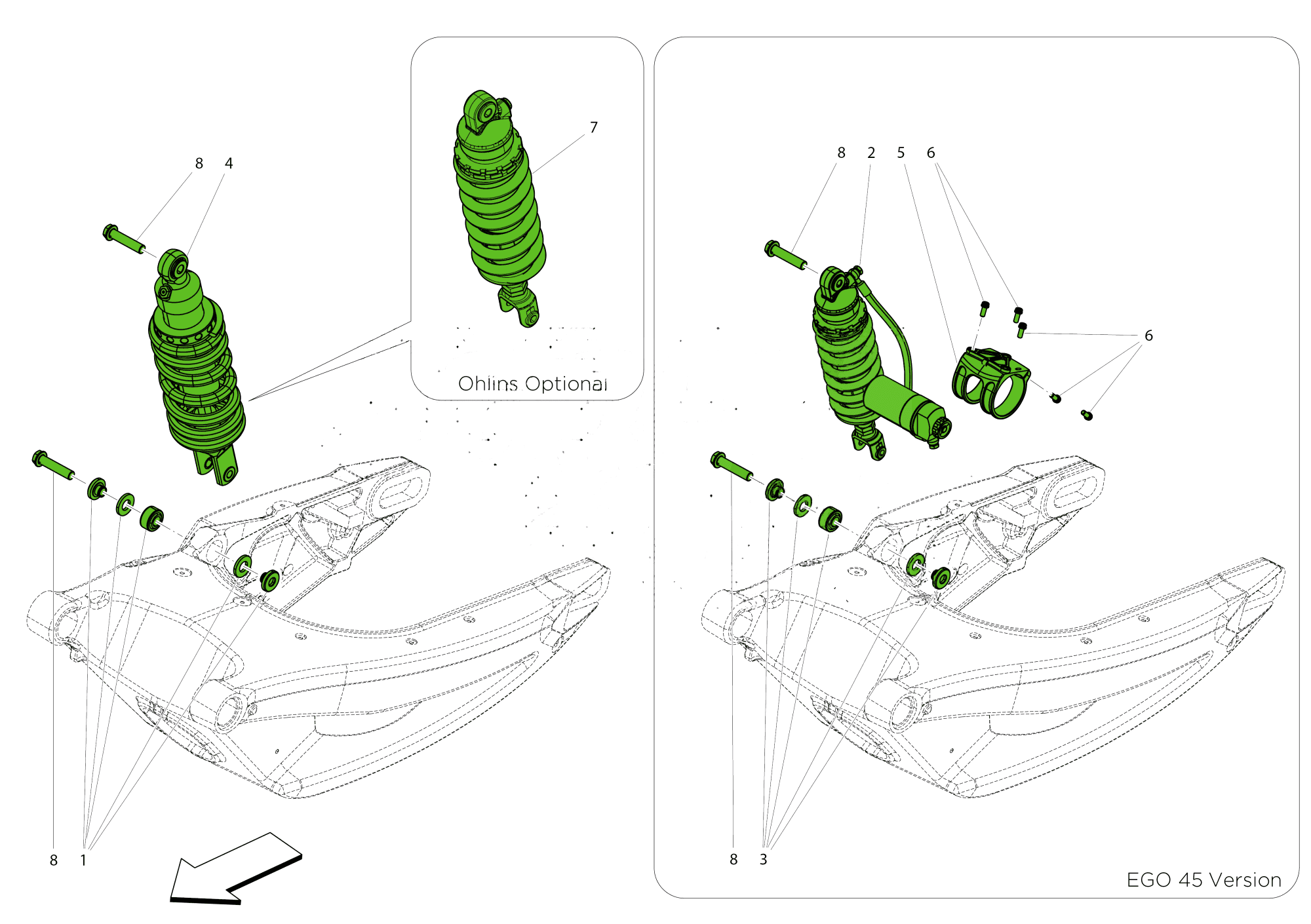

REAR SHOCK ABSORBER
015
REAR SHOCK ABSORBER

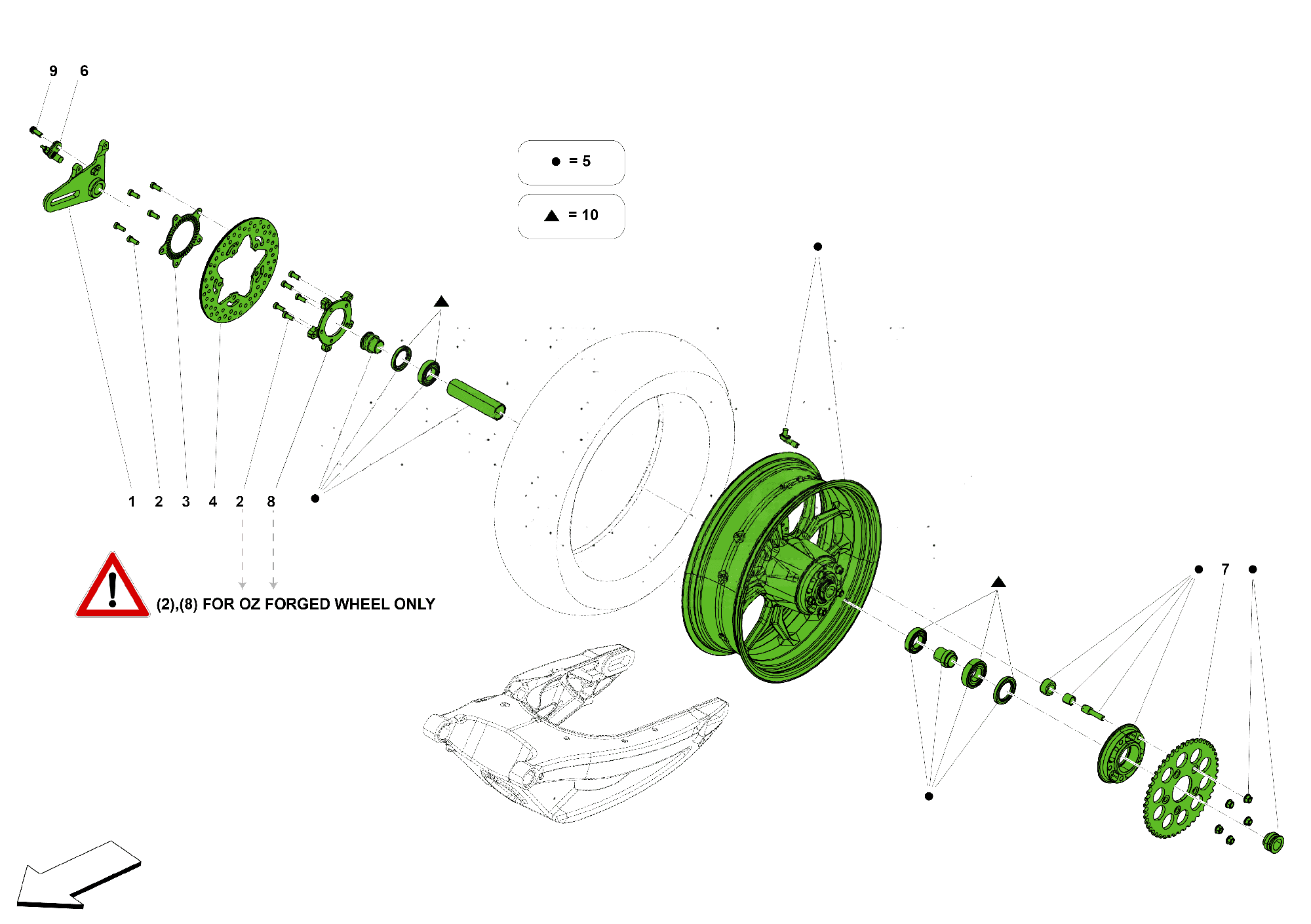

REAR WHEEL
016
REAR WHEEL

Variants (5)

Submodel Variant Notes Colour Power Years
ENA001549 EUR/USA Black frame/tank's sticker with "Energica" writing
ITALIAN FLAG
2016
ENA001549 EUR/USA Black frame/tank's sticker with "Energica" writing
LUNAR WHITE
2016
ENA001549 EUR/USA Black frame/tank's sticker with "Energica" writing
MATT BLACK
2016
ENA001549 EUR/USA Black frame/tank's sticker with "Energica" writing
PEARL WHITE
2016
ENA002692 EUR Black frame/tank's sticker with "Energica" writing
MATT BLACK
2016

VINs (68)

Chassis no. Submodel Seq. Engine range
ZNNG1A1B3GM000047 ENA001549 1 —
ZNNG1A1B5GM000051 ENA001549 2 —
ZNNG1A1B1GM000046 ENA001549 3 —
ZNNG1A1B7GM000049 ENA001549 4 —
ZNNG1A1B7GM000052 ENA001549 5 —
ZNNG1A1B3GM000050 ENA001549 6 —
ZNNG1A1B1GM000001 ENA001551 7 —
ZNNG1A1B5GM000048 ENA001549 8 —
ZNNV1A194HM000001 ENA001600 9 —
ZNNG1A1B9HM000054 ENA001549 10 —
ZNNG1A1B4HM000060 ENA001549 11 —
ZNNG1A1B4HM000057 ENA001549 12 —
ZNNG1A1B6HM000061 ENA001549 13 —
ZNNG1A1B0HM000055 ENA001549 14 —
ZNNG1A1B6HM000058 ENA001549 15 —
ZNNG1A1BXHM000063 ENA001549 16 —
ZNNG1A1B7HM000053 ENA001549 17 —
ZNNG1A1B9HM000068 ENA001549 18 —
ZNNG1A1B1HM000064 ENA001549 19 —
ZNNG1A1B3HM000065 ENA001549 20 —
ZNNG1A1B0HM000010 ENA001549 21 —
ZNNG1A1B0HM000069 ENA001549 22 —
ZNNG1A1B5HM000066 ENA001549 23 —
ZNNG1A1B2HM000056 ENA001549 24 —
ZNNG1A1B7HM000067 ENA001549 25 —
ZNNG1A1B8HM000062 ENA001549 26 —
ZNNG1A1B7HM000070 ENA001549 27 —
ZNNG1A1B4HM000074 ENA001549 28 —
ZNNG1A1B9HM000071 ENA001549 29 —
ZNNG1A1B0HM000072 ENA001549 30 —
ZNNG1A1B2HM000073 ENA001549 31 —
ZNNG1A1B6HM000075 ENA001549 32 —
ZNNG1A1BXHM000080 ENA001549 33 —
ZNNG1A1B1HM000078 ENA001549 34 —
ZNNG1A1B0HM000086 ENA001549 35 —
ZNNG1A1B8HM000059 ENA001549 36 —
ZNNG1A1B8HM000076 ENA001549 37 —
ZNNG1A1BXHM000077 ENA001549 38 —
ZNNG1A1B3HM000079 ENA001549 39 —
ZNNG1A1B3HM000082 ENA001549 40 —
ZNNG1A1B0JS000087 ENA001549 41 —
ZNNG1A1B2JS000088 ENA001549 42 —
ZNNG1A1B4JS000089 ENA001549 43 —
ZNNG1A1B0JS000090 ENA001549 44 —
ZNNG1A1B2JS000091 ENA001549 45 —
ZNNG1A1B4JS000092 ENA001549 46 —
ZNNG1A1B6JS000093 ENA001549 47 —
ZNNG1A1B8JS000094 ENA002963 48 —
ZNNG1A1BXJS000095 ENA002963 49 —
ZNNG1A1B1JS000096 ENA002963 50 —
ZNNG1A1B3JS000097 ENA002963 51 —
ZNNG1A1B5JS000098 ENA002963 52 —
ZNNG1A1B7JS000099 ENA002962 53 —
ZNNG1A1BXJS000100 ENA002962 54 —
ZNNG1A1B1JS000101 ENA002962 55 —
ZNNG1A1B3JS000102 ENA002962 56 —
ZNNG1A1B7JS000104 ENA002962 57 —
ZNNG1A1B9JS000105 ENA002962 58 —
ZNNG1A1B0JS000106 ENA002962 59 —
ZNNG1A1B2JS000107 ENA002962 60 —
ZNNG1A1B4JS000108 ENA002962 61 —
ZNNG1A1B6JS000109 ENA002962 62 —
ZNNG1A1B2JS000110 ENA002962 63 —
ZNNG1A1B4JS000111 ENA002962 64 —
ZNNG1A1B6JS000112 ENA002962 65 —
ZNNG1A1B8JS000113 ENA002962 66 —
ZNNG1A1B1JS000115 ENA003275 67 —
ZNNG1A1B2JS000138 ENA002962 68 —

Fitting accessories (86)

PARTS AND ACCESSORIES

A 34 accessories

PARTS AND ACCESSORIES

AA 34
(EGO MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
ENS008209
(EGO MODELS/ALL YEARS) - FRONT FORK - REAR SHOCK ABSORBER - SPANNER WRENCH - UNIBALL
€2.943,00
(EGO) ERGAL KIT - BLACK
ENA002642
(EGO) ERGAL KIT - BLACK
€315,00
(EGO) ERGAL KIT - GOLD
ENA002417
(EGO) ERGAL KIT - GOLD
€315,00
EGO REAR SEAT COVER ASTEROID GREY - CORSA CLIENTI -
ENA006844
EGO REAR SEAT COVER ASTEROID GREY - CORSA CLIENTI -
€256,00
EGO REAR SEAT COVER ROSSO CORSA - CORSA CLIENTI KIT -
ENA007157
EGO REAR SEAT COVER ROSSO CORSA - CORSA CLIENTI KIT -
€256,00
SPLASH GUARD EGO AND EVA (EVA =<2019 WITHOUT SIDE BAGS & RACK KIT ENA001885)
ENS008244
SPLASH GUARD EGO AND EVA (EVA =<2019 WITHOUT SIDE BAGS & RACK KIT ENA001885)
€85,00
TANK BAG WITH TANK COVER (can hold a full-face helmet)
ENS008374
TANK BAG WITH TANK COVER (can hold a full-face helmet)
€256,00
USB PORT KIT (EGO) FOR HEADSTOCK ENF000699
ENA003221
USB PORT KIT (EGO) FOR HEADSTOCK ENF000699
€134,00
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008413
(GERMAN STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
ENS008412
(UK STANDARD) CHARGING CABLE WITH CONTROL BOX
€484,00 all models
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
ENS007786
ENERGICA HEADSTOCK STAND (EGO,EVA,ESSE ESSE 9)
€165,00
ERGAL STAND BOBBINS
ENS002588
ERGAL STAND BOBBINS
€18,90 all models
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
ENS011754
REAR STAND/V-SHAPED ADAPTERS + ERGAL BOBBINS
€110,00 all models
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
ENS003355
STRETCH INDOOR COVER (EGO,EVA,ESSE ESSE 9)
€182,00
CARBON FIBER BELLY PAN (EGO)
ENS002812
CARBON FIBER BELLY PAN (EGO)
€588,00
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
ENS010836
SLEEK CARBON FRONT MUDGUARD (EGO,EVA,ESSE ESSE 9,EXPERIA)
€340,00 all models
EGO TECH SEAT
ENS002692
EGO TECH SEAT
99 999+
ENERGICA EGO TANK PAD
ENF002550
ENERGICA EGO TANK PAD
€21,00
BEARINGS REPLACING KIT (BITUBO/OHLINS)
ENA006051
BEARINGS REPLACING KIT (BITUBO/OHLINS)
€160,00
GLOVES-HIGH VOLTAGE 1000V
ENS002235
GLOVES-HIGH VOLTAGE 1000V
€70,00 all models
HEXAGON SOCKET
ENS002237
HEXAGON SOCKET
€26,00
MOTOR AND TRANSMISSION MAINTENANCE KIT
ENA001869
MOTOR AND TRANSMISSION MAINTENANCE KIT
€34,00
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
ENS010173
OBD DIAGNOSTIC CABLE (VDB/BMS/DTB/INVERTER)
€120,00 all models
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
ENF007774
OHLINS SHOCK SPANNER WRENCH Spanner wrench allows adjusting spring preload
€15,75
PCAN INTERFACE (VDB vehicle data bus)
ENS003005
PCAN INTERFACE (VDB vehicle data bus)
€210,00 all models
PINION TIGHTENING (15-16-17 TEETH)
ENA009890
PINION TIGHTENING (15-16-17 TEETH)
€80,00
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
ENS004854
SERVICE BMS DONGLE and USB/SERIAL ADAPTER
€260,00 all models
SPROCKET SOCKET
ENS001870
SPROCKET SOCKET
€90,00 all models
STEERING SOCKET
ENS002130
STEERING SOCKET
€70,00
T-WRENCH HIGH VOLTAGE 1000V (6mm) (FOR PRE-EMCE INVERTERS)
ENS002239
T-WRENCH HIGH VOLTAGE 1000V (6mm) (FOR PRE-EMCE INVERTERS)
€44,00
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
ENS003004
USB/SERIAL ADAPTER RS232 CONVERTER TO USB 2.0
€17,00 all models
CARBON WHEELS
ENS009532
CARBON WHEELS
€3.290,00
CAST ALUMINIUM WHEELS WITH RED DETAILS
ENS009533
CAST ALUMINIUM WHEELS WITH RED DETAILS
€322,00
OZ ALUMINUM FORGED WHEELS
ENS006842
OZ ALUMINUM FORGED WHEELS
€2.645,00 all models

MANUALS (PRINTED VERSION)

C 10 accessories

OWNER MANUALS

CA 10
CZECH - Příručka k použití a údržbě
END003549
CZECH - Příručka k použití a údržbě
DUTCH - Gebruiks- en onderhoudshandleiding
ENF003093
DUTCH - Gebruiks- en onderhoudshandleiding
ENGLISH - Owner Manual
ENF003099
ENGLISH - Owner Manual
FRENCH - Livret d'utilisation et d'entretien
ENF003096
FRENCH - Livret d'utilisation et d'entretien
GERMAN - Betriebs- und Wartungsanleitung
ENF003087
GERMAN - Betriebs- und Wartungsanleitung
ITALIAN - Libretto di Uso e Manutenzione
ENF003081
ITALIAN - Libretto di Uso e Manutenzione
NORWEGIAN - Håndbok for bruk og vedlikehold
ENF003102
NORWEGIAN - Håndbok for bruk og vedlikehold
PORTUGUESE - Manual de utilização e manutenção
ENF003090
PORTUGUESE - Manual de utilização e manutenção
SPANISH - Manual de uso y mantenimiento
ENF003084
SPANISH - Manual de uso y mantenimiento
SWEDISH - Användar - och underhållsmanual
ENF003105
SWEDISH - Användar - och underhållsmanual

DEALER IDENTITY

D 42 accessories

VISUAL & MERCHANDISING

DA 42
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
MKT000041
4.2 wireless speaker bamboo/ABS and LED light with Energica Logo. Minimum batch: 3 pieces
€28,50 all models
Bamboo smartphone stand. Minimum batch: 3 pieces
MKT000042
Bamboo smartphone stand. Minimum batch: 3 pieces
€10,50 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
MKT000046
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotor.com" Minimum batch: 10 pieces
€22,00 all models
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
MKT000047
Embroidered keychain on two sides with Energica Logo. Subject: "energicamotorusa.com" Minimum batch: 10 pieces
€22,00 all models
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
MKT000057
Energica Thermal Bottle Double layer wall in stainless steel 18/8 with copper vacuum insulation. Calapcity 500 mil Package included Minimum batch: 4 pieces
€58,00 all models
Energica Towel Package of 3 pieces Minimum batch: 3 piece
MKT000059
Energica Towel Package of 3 pieces Minimum batch: 3 piece
€30,00 all models
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
MKT000043
Thermal mug 450ml. Single-walled steel with bamboo liner and dispenser lid Minimum batch: 3 pieces
€29,70 all models
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
MKT000040
Wireless charger for smartphone in bamboo with Energica Logo. Minimum batch: 3 pieces
€24,00 all models
(326CM) – BEACH FLAG POLE + FLAG (72X285)
MKT000066
(326CM) – BEACH FLAG POLE + FLAG (72X285)
€119,00 all models
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
MKT000065
(550CM) – EXTERNAL FLAG POLE + FLAG (81X449)
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
MKT000072
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC
€199,00 all models
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
MKT000091
100X200 CEILING BANNER HANGING PANEL MADE OF 15MM LIGHT PVC DOUBLE-SIDED
€399,00 all models
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
MKT000073
100X200 CEILING BANNER SUSPENSION PANEL FABRIC AND AL.SINGLE-SIDED
€249,00 all models
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
MKT000090
100X200 CEILING BANNER SUSPENSION PANEL MADE OF FABRIC AND ALUMINIUM DOUBLE-SIDED
€349,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
MKT000077
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM (ALUMINIUM VLED 120)
€899,00 all models
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
MKT000076
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM ALUMINIUM (STRUCTURE VD 44)
€599,00 all models
MKT000075
100X200 FREE-STANDING GRAPHIC DISPLAY TOTEM PVC LIGHT 15MM
€249,00 all models
100X200 ROLL UP PRINT + STRUCTURE
MKT000074
100X200 ROLL UP PRINT + STRUCTURE
€99,00 all models
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
MKT000082
100X200 TOP PLATFORM PLATFORM MELAMINE FACED CHIPBOARD 18MM
€1.999,00 all models
MKT000093
100x200 15MM THICK LIGHT PVC PANEL PRINTED DOUBLE-SIDED
€249,00 all models
MKT000092
100x200 LIGHT PVC PANEL 19MM THICK PRINTED SINGLE SIDED, COMPLETE WITH PAIR OF SUPPORTS
€599,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
MKT000085
110X270 BASIC PLAT. MELAMINE FACED CHIPB.+ FABRIC PANEL 18MM THICK+LOGO
€839,00 all models
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
MKT000084
110X270 BASIC PLAT. MELAMINE FACED CHIPBOARD + PVC PANEL 18MM THICK+LOGO
€529,00 all models
MKT000083
110X270 BASIC PLATFORM MELAMINE FACED CHIPBOARD 18MM THICK + LOGO
€329,00 all models
MKT000086
120X240 EASY PLATFORM+PVC PANEL MELAMINE FACED CHIPBOARD 18MM THICK+LOGO
€649,00 all models
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
MKT000088
150X180X60 MERCHANDISING CORNER (COMPACT VERSION)
€1.399,00 all models
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
MKT000071
150X90 PVC WALL BANNER ONE-SIDED DIGITAL PRINTING + PERIMETER STUDS
€64,00 all models
180X270X60 MERCHANDISING CORNER (BIG VERSION)
MKT000087
180X270X60 MERCHANDISING CORNER (BIG VERSION)
€2.799,00 all models
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000061
200X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.099,00 all models
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
MKT000070
300X200X10 SINGLE SIDED WALL DISPLAY WALL LIGHT BOX AL.+PERIMETER LED
€1.599,00 all models
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
MKT000060
300X50 EXTERNAL SIGN ALUMINIUM FRAME, 20MM THICK, BLACK FINISH INTERNAL
€1.599,00 all models
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
MKT000062
50X50 EXTERNAL SIGN BOX MADE OF GREEN COLOUR PLEXI + LED INSIDE
€499,00 all models
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
MKT000063
50X50 EXTERNAL SIGN BOX MADE WITH INTERNAL STEEL LOAD-BEARING STRUCTURE
€649,00 all models
70X100 POSTER DIGITAL PRINT
MKT000078
70X100 POSTER DIGITAL PRINT
€8,99 all models
94X90X60 MERCHANDISING CORNER (EASY VERSION)
MKT000089
94X90X60 MERCHANDISING CORNER (EASY VERSION)
€499,00 all models
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
MKT000069
CIRCULAR-SHAPED PLINTH THAT CAN BE FILLED WITH WATER
€69,00 all models
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
MKT000067
CROSS-SHAPED PLINTH LARGE CROSS + BALLAST THAT CAN BE FILLED WITH WATER
€29,00 all models
DESK DISPLAY IN TRANSPARENT METHACRYLATE
MKT000081
DESK DISPLAY IN TRANSPARENT METHACRYLATE
€9,99 all models
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
MKT000080
DEVICE HOLDER DEVICE STAND MADE OF PAINTED METAL
€99,00 all models
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
MKT000058
ENERGICA MOTORCYCLE MAT 100% POLYESTHER - UV - OIL - PETROL RESISTANT. RESISTANT RIM, RUBBERIZED BACK, WASHABLE WITH DEGREASER CM 80X250x0,5 - 31.4” x 98” x 0.2"
€184,00 all models
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
MKT000068
SQUARE-SHAPED PLINTH IRON PLINTH BOTH FOR INTERNAL AND EXTERNAL USE
€64,00 all models
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
MKT000079
TECHNICAL SHEET HOLDER HORIZONTAL OR VERTICAL ADJUSTABLE
€69,00 all models
